GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

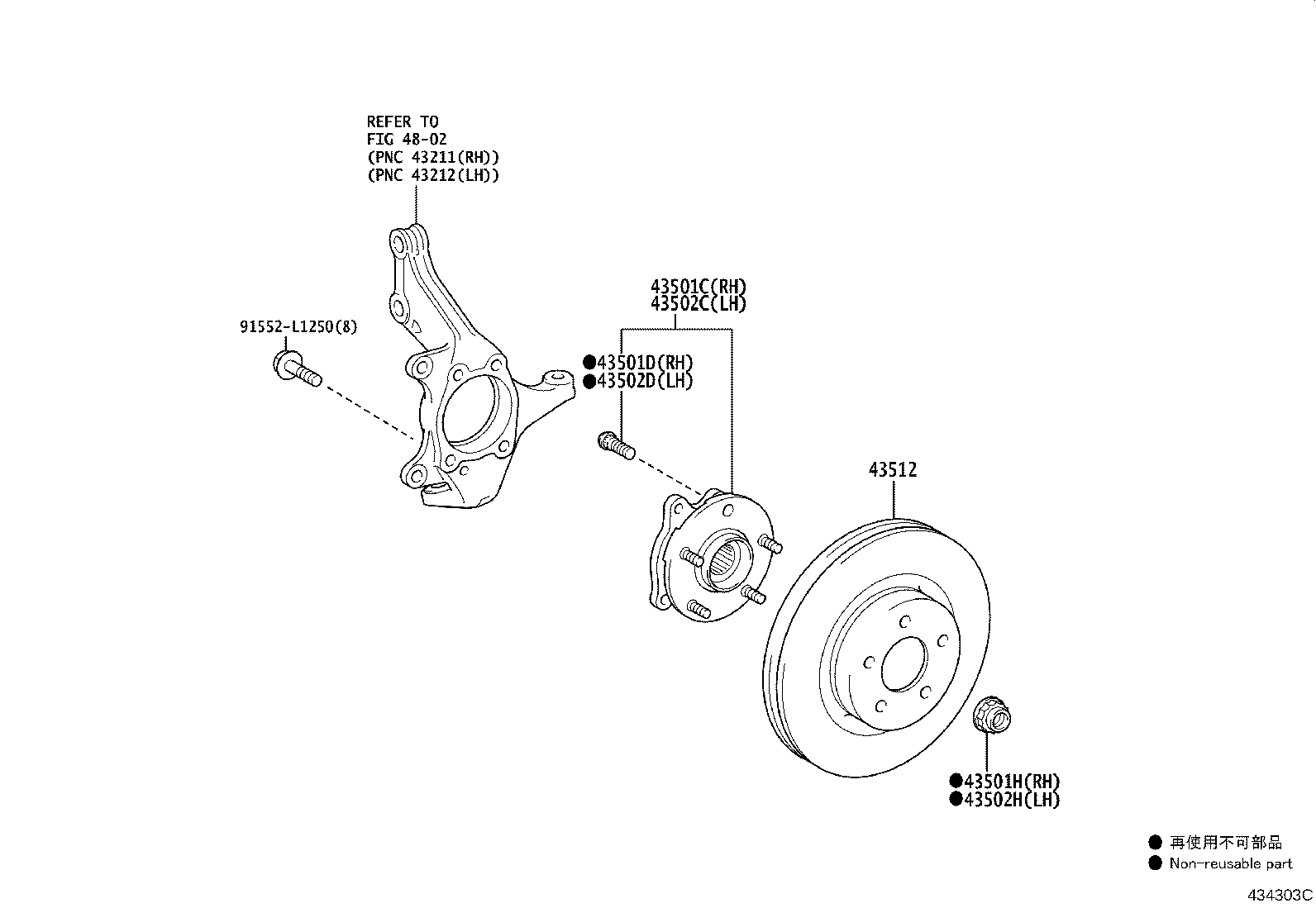

Click highlighted areas on diagram

diagram 43501C 43501D 43501H 43502C 43502D 43502H 43512 4802 91552L1250
Part # Description Qty Price
43501C - HUB SUB-ASSY, FRONT AXLE, RH
43550-28030

AYH36,GGH31

 1
43501D - BOLT, HUB (FOR FRONT AXLE RH)
90942-02049

AYH36,GGH31

 5
43501H - NUT (FOR FRONT AXLE SHAFT RH)
90177-22001

AYH36,GGH31

 1
43502C - HUB SUB-ASSY, FRONT AXLE, LH
43550-28030

AYH36,GGH31

 1
43502D - BOLT, HUB (FOR FRONT AXLE LH)
90942-02049

AYH36,GGH31

 5
43502H - NUT (FOR FRONT AXLE SHAFT LH)
90177-22001

AYH36,GGH31

 1
43512 - DISC, FRONT
43512-28190

AYH36..RHD;GGH31..6FC

 2
Common parts
91552-L1250
Linked diagrams
4802
