GGH31R-LFTVK (2020)
Toyota Lexus Lm350/Lm300h
(2001- )6FC
U660E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35111C - HOUSING, TRANSAXLE | ||||
| 35105-33012 |
GGH31..6FC |
1 | ||
| 35783R - GEAR, COUNTER DRIVEN | ||||
| 35705-28010 |
GGH31..6FC |
1 | ||
| 41039A - GEAR KIT, DIFFERENTIAL | ||||
| 41039-48040 |
GGH31..6FC |
1 | ||
| 41211J - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-42012 |
GGH31..6FC |
1 | ||
| 41211K - BEARING, TAPERED ROLLER (FOR DIFFERENTIAL DRIVE PINION | ||||
| 90366-35176 |
GGH31..6FC |
1 | ||
| 41211L - SHIM (FOR DIFFERENTIAL DRIVE PINION) | ||||
| 90564-71016 |
GGH31..6FC T=2.050 |
1 | ||
| 90564-71014 |
GGH31..6FC T=2.000 |
1 | ||
| 90564-71015 |
GGH31..6FC T=2.025 |
1 | ||
| 90564-71022 |
GGH31..6FC T=2.200 |
1 | ||
| 90564-71018 |
GGH31..6FC T=2.100 |
1 | ||
| 90564-71017 |
GGH31..6FC T=2.075 |
1 | ||
| 90564-71019 |
GGH31..6FC T=2.125 |
1 | ||
| 90564-71028 |
GGH31..6FC T=2.350 |
1 | ||
| 90564-71029 |
GGH31..6FC T=2.375 |
1 | ||
| 90564-71030 |
GGH31..6FC T=2.400 |
1 | ||
| 90564-71021 |
GGH31..6FC T=2.175 |
1 | ||
| 90564-71035 |
GGH31..6FC T=2.525 |
1 | ||
| 90564-71027 |
GGH31..6FC T=2.325 |
1 | ||
| 90564-71020 |
GGH31..6FC T=2.150 |
1 | ||
| 90564-71041 |
GGH31..6FC T=2.675 |
1 | ||
| 90564-71031 |
GGH31..6FC T=2.425 |
1 | ||
| 90564-71034 |
GGH31..6FC T=2.500 |
1 | ||
| 90564-71026 |
GGH31..6FC T=2.300 |
1 | ||
| 90564-71040 |
GGH31..6FC T=2.650 |
1 | ||
| 90564-71023 |
GGH31..6FC T=2.225 |
1 | ||
| 90564-71033 |
GGH31..6FC T=2.475 |
1 | ||
| 90564-71024 |
GGH31..6FC T=2.250 |
1 | ||
| 90564-71044 |
GGH31..6FC T=2.750 |
1 | ||
| 90564-71042 |
GGH31..6FC T=2.700 |
1 | ||
| 90564-71025 |
GGH31..6FC T=2.275 |
1 | ||
| 90564-71039 |
GGH31..6FC T=2.625 |
1 | ||
| 90564-71037 |
GGH31..6FC T=2.575 |
1 | ||
| 90564-71038 |
GGH31..6FC T=2.600 |
1 | ||
| 90564-71036 |
GGH31..6FC T=2.550 |
1 | ||
| 90564-71046 |
GGH31..6FC T=2.800 |
1 | ||
| 90564-71045 |
GGH31..6FC T=2.775 |
1 | ||
| 90564-71043 |
GGH31..6FC T=2.725 |
1 | ||
| 90564-71047 |
GGH31..6FC T=2.825 |
1 | ||
| 90564-71049 |
GGH31..6FC T=2.875 |
1 | ||
| 90564-71048 |
GGH31..6FC T=2.850 |
1 | ||
| 90564-71053 |
GGH31..6FC T=2.975 |
1 | ||
| 90564-71052 |
GGH31..6FC T=2.950 |
1 | ||
| 90564-71051 |
GGH31..6FC T=2.925 |
1 | ||
| 90564-71054 |
GGH31..6FC T=3.000 |
1 | ||
| 90564-71032 |
GGH31..6FC T=2.450 |
1 | ||
| 90564-71050 |
GGH31..6FC T=2.900 |
1 | ||
| 41221 - GEAR, FRONT DIFFERENTIAL RING | ||||
| 41221-28160 |
GGH31..6FC |
1 | ||
| 41301P - SCREW(FOR FRONT DIFFERENTIAL CASE) | ||||
| 90105-12303 |
GGH31..6FC |
12 | ||
| 41311 - CASE, FRONT DIFFERENTIAL | ||||
| 41301-48120 |
GGH31..6FC |
1 | ||
| 41311D - SHIM (FOR FRONT DIFFERENTIAL CASE FRONT) | ||||
| 90564-79054 |
GGH31..6FC T=2.000 |
1 | ||
| 90564-79056 |
GGH31..6FC T=2.050 |
1 | ||
| 90564-79061 |
GGH31..6FC T=2.175 |
1 | ||
| 90564-79057 |
GGH31..6FC T=2.075 |
1 | ||
| 90564-79062 |
GGH31..6FC T=2.200 |
1 | ||
| 90564-79063 |
GGH31..6FC T=2.225 |
1 | ||
| 90564-79064 |
GGH31..6FC T=2.250 |
1 | ||
| 90564-79059 |
GGH31..6FC T=2.125 |
1 | ||
| 90564-79055 |
GGH31..6FC T=2.025 |
1 | ||
| 90564-79060 |
GGH31..6FC T=2.150 |
1 | ||
| 90564-79058 |
GGH31..6FC T=2.100 |
1 | ||
| 90564-79069 |
GGH31..6FC T=2.375 |
1 | ||
| 90564-79066 |
GGH31..6FC T=2.300 |
1 | ||
| 90564-79065 |
GGH31..6FC T=2.275 |
1 | ||
| 90564-79071 |
GGH31..6FC T=2.425 |
1 | ||
| 90564-79070 |
GGH31..6FC T=2.400 |
1 | ||
| 90564-79073 |
GGH31..6FC T=2.475 |
1 | ||
| 90564-79074 |
GGH31..6FC T=2.500 |
1 | ||
| 90564-79075 |
GGH31..6FC T=2.525 |
1 | ||
| 90564-79079 |
GGH31..6FC T=2.625 |
1 | ||
| 90564-79084 |
GGH31..6FC T=2.750 |
1 | ||
| 90564-79072 |
GGH31..6FC T=2.450 |
1 | ||
| 90564-79080 |
GGH31..6FC T=2.650 |
1 | ||
| 90564-79068 |
GGH31..6FC T=2.350 |
1 | ||
| 90564-79067 |
GGH31..6FC T=2.325 |
1 | ||
| 90564-79078 |
GGH31..6FC T=2.600 |
1 | ||
| 90564-79081 |
GGH31..6FC T=2.675 |
1 | ||
| 90564-79076 |
GGH31..6FC T=2.550 |
1 | ||
| 90564-79085 |
GGH31..6FC T=2.775 |
1 | ||
| 90564-79082 |
GGH31..6FC T=2.700 |
1 | ||
| 90564-79086 |
GGH31..6FC T=2.800 |
1 | ||
| 90564-79083 |
GGH31..6FC T=2.725 |
1 | ||
| 90564-79089 |
GGH31..6FC T=2.875 |
1 | ||
| 90564-79087 |
GGH31..6FC T=2.825 |
1 | ||
| 90564-79077 |
GGH31..6FC T=2.575 |
1 | ||
| 90564-79088 |
GGH31..6FC T=2.850 |
1 | ||
| 41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR | ||||
| 90366-50149 |
GGH31..6FC |
1 | ||
| 41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE | ||||
| 90366-55077 |
GGH31..6FC |
1 | ||
| 41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT) | ||||
| 90250-06058 |
GGH31..6FC |
1 | ||
| 41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1 | ||||
| 41342-33051 |
GGH31..6FC |
1 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-33030 |
GGH31..6FC |
2 | ||
| 41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST | ||||
| 41351-33030 |
GGH31..6FC |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-33050 |
GGH31..6FC T=1.65 |
2 | ||
| 41361-33090 |
GGH31..6FC T=1.85 |
2 | ||
| 41361-33060 |
GGH31..6FC T=1.70 |
2 | ||
| 41361-33100 |
GGH31..6FC T=1.90 |
2 | ||
| 41361-33030 |
GGH31..6FC T=1.55 |
2 | ||
| 41361-33080 |
GGH31..6FC T=1.80 |
2 | ||
| 41361-33040 |
GGH31..6FC T=1.60 |
2 | ||
| 41361-33020 |
GGH31..6FC T=1.50 |
2 | ||
| 41361-33070 |
GGH31..6FC T=1.75 |
2 | ||
| 41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-33050 |
GGH31..6FC T=1.65 |
2 | ||
| 41361-33090 |
GGH31..6FC T=1.85 |
2 | ||
| 41361-33060 |
GGH31..6FC T=1.70 |
2 | ||
| 41361-33100 |
GGH31..6FC T=1.90 |
2 | ||
| 41361-33030 |
GGH31..6FC T=1.55 |
2 | ||
| 41361-33080 |
GGH31..6FC T=1.80 |
2 | ||
| 41361-33040 |
GGH31..6FC T=1.60 |
2 | ||
| 41361-33020 |
GGH31..6FC T=1.50 |
2 | ||
| 41361-33070 |
GGH31..6FC T=1.75 |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-45001 |
GGH31..6FC |
2 | ||
| 41361G - WASHER, CONICAL SPRING(FOR CENTER DIFFERENTIAL SIDE GEA | ||||
| 90208-45001 |
GGH31..6FC |
2 | ||

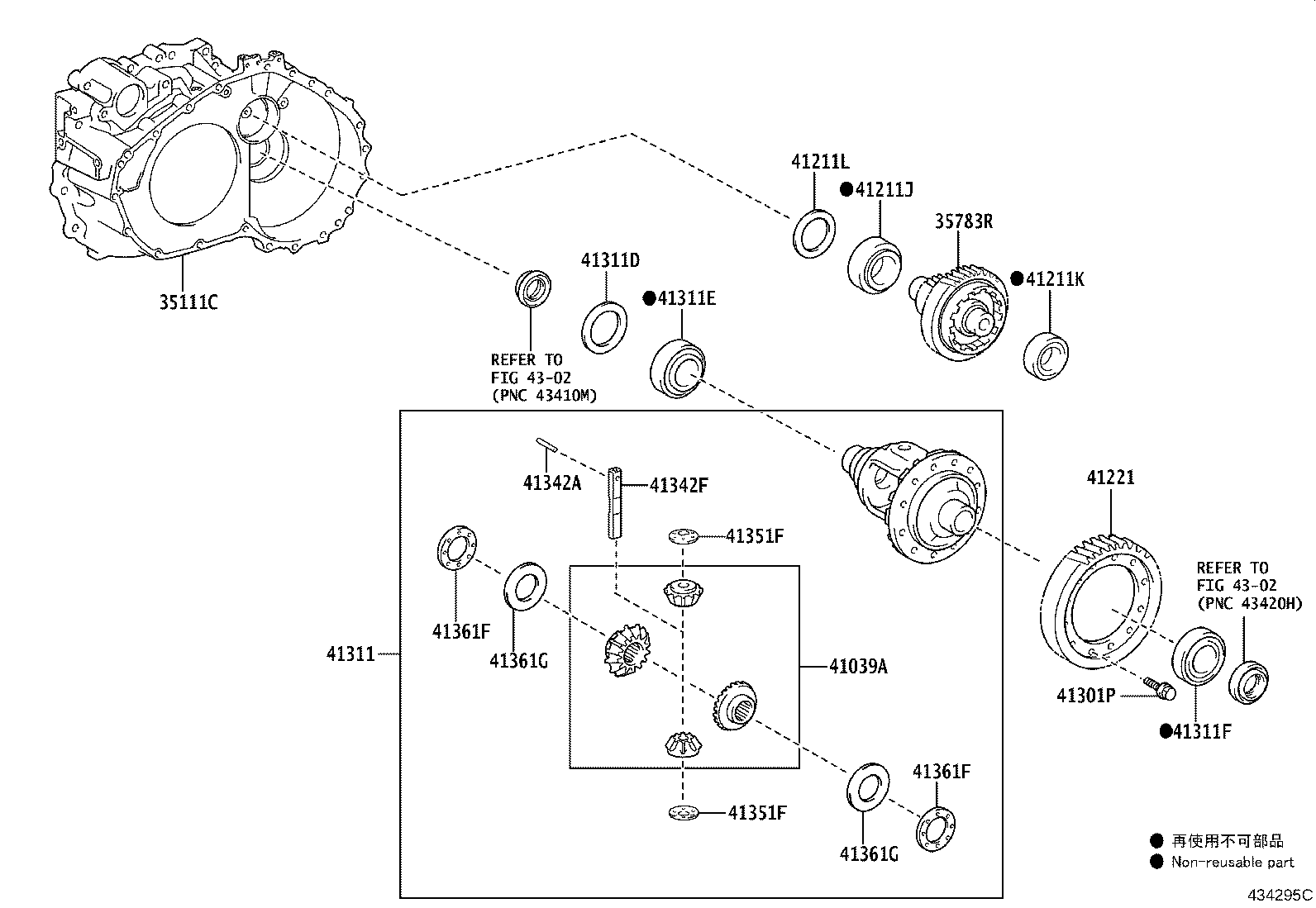

| Linked diagrams | ||||
| 4302 | ||||
