GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

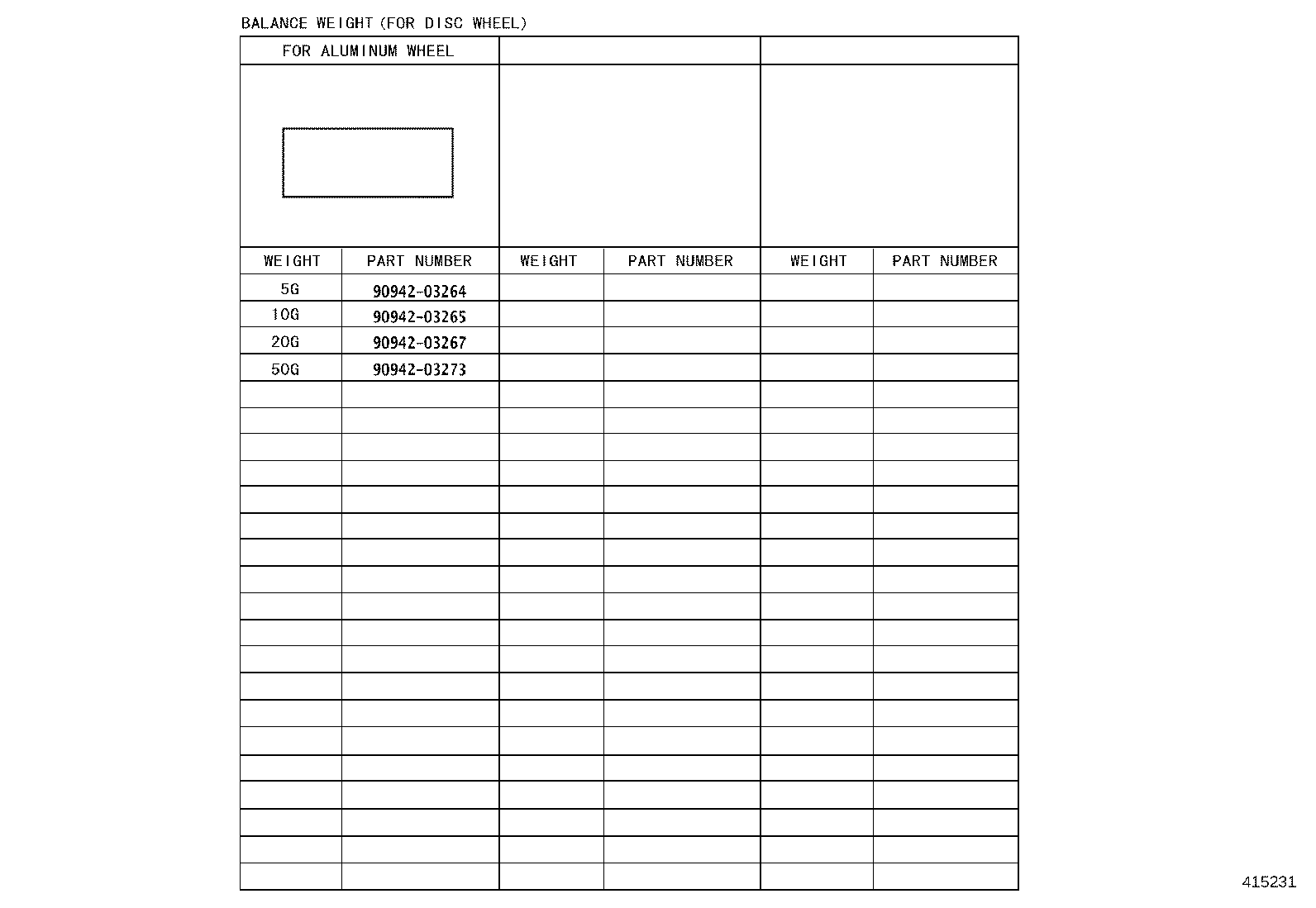

ILLUST NO. 2 OF 2(2001- )

Click highlighted areas on diagram

diagram 9094203264 9094203265 9094203267 9094203273
Part # Description Qty Price
Common parts
90942-03264
90942-03265
90942-03267
90942-03273

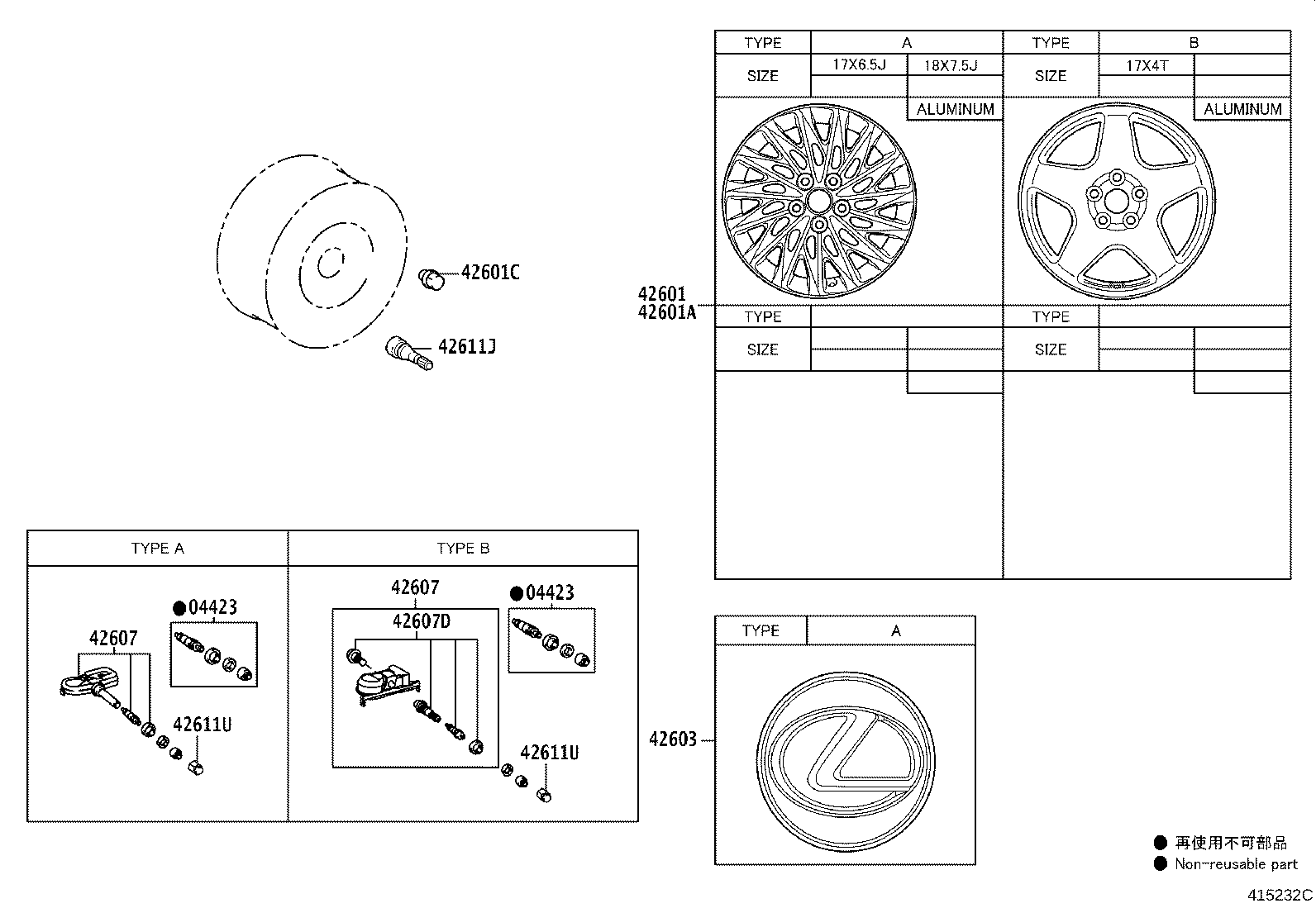

ILLUST NO. 1 OF 2(2001- )

Click highlighted areas on diagram

diagram 04423 04423 42601 42601A 42601C 42603 42607 42607 42607D 42611J 42611U 42611U
Part # Description Qty Price
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

AYH36,GGH31

 4
04423 - FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
04423-33060

AYH36,GGH31

 4
42601 - WHEEL, DISC
42611-58370

GGH31..RHD

17X6.5J,#,TIRE & DISC WHEEL-225/60R17 ALUMINUM(SPUTTERING),TYPE A:REFER ILLUST.

 4
42611-58380

GGH31

18X7.5J,#,TYPE A:REFER ILLUST.

 4
42601A - WHEEL, DISC (FOR SPARE)
42611-58320

AYH36;GGH31..6FC;GGH31..LHD

17X4T,TYPE B:REFER ILLUST.

 1
42601C - NUT, HUB (FOR AXLE)
90942-01033

AYH36,GGH31

 20
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-50381

AYH36,GGH31

*ALU,TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-53020

AYH36..LHD;GGH31..6FC

TYPE B:REFER ILLUST.

 4
42607-48010

AYH36..LHD;GGH31..6FC

TYPE A:REFER ILLUST.

 4
42607 - VALVE SUB-ASSY, TIRE PRESSURE MONITOR
42607-53020

AYH36..LHD;GGH31..6FC

TYPE B:REFER ILLUST.

 4
42607-48010

AYH36..LHD;GGH31..6FC

TYPE A:REFER ILLUST.

 4
42607D - VALVE, TIRE PRESSURE MONITOR
90942-05044

AYH36,GGH31

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

AYH36,GGH31

 1
42611U - CAP, TIRE VALVE
90942-05042

AYH36,GGH31

 4
42611U - CAP, TIRE VALVE
90942-05042

AYH36,GGH31

 4
