GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

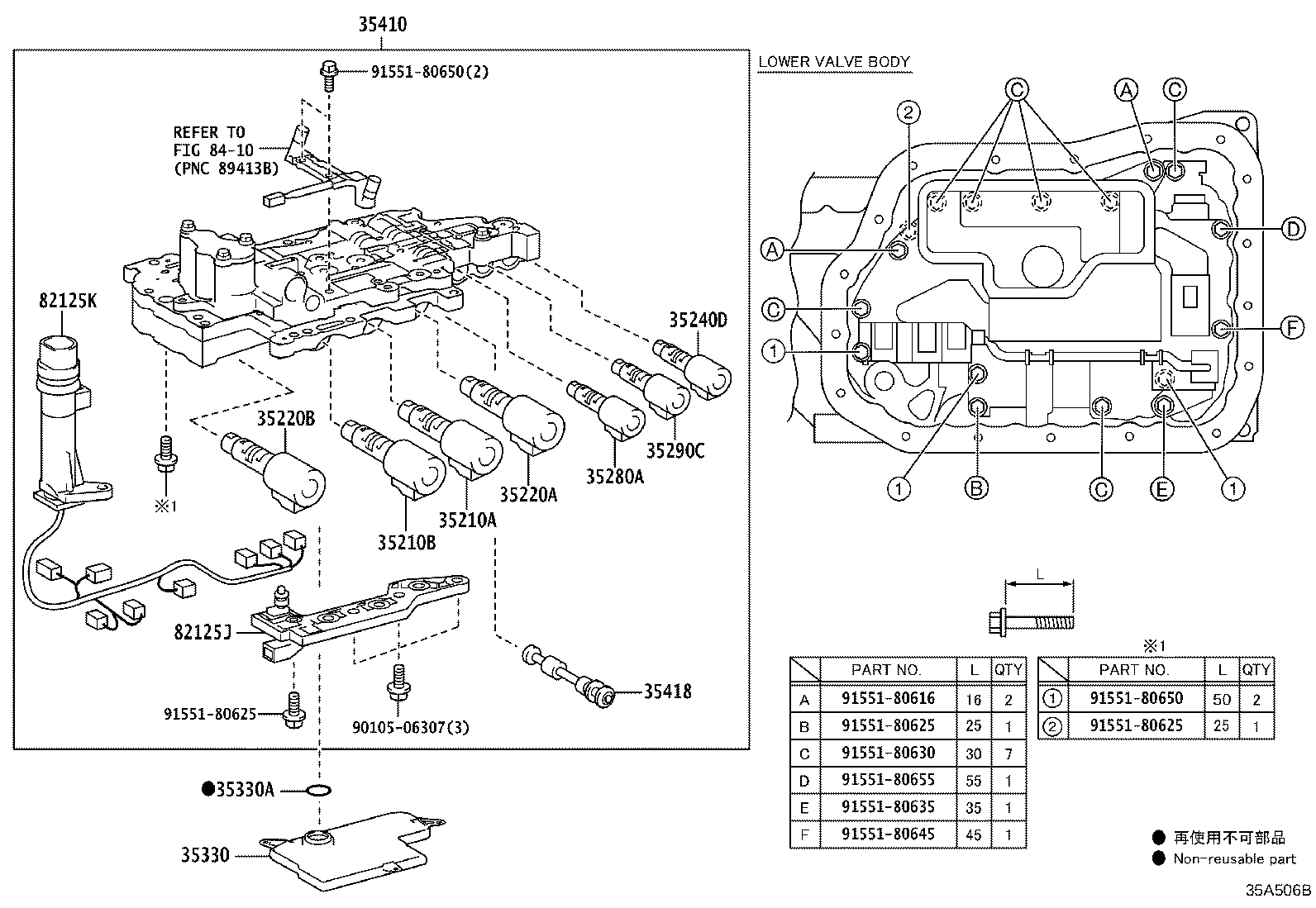

ILLUST NO. 1 OF 2(2001- )6FC

Click highlighted areas on diagram

U660E

diagram 35210A 35210B 35220A 35220B 35240D 35280A 35290C 35330 35330A 35410 35418 82125J 82125K 8410 9010506307 9155180616 9155180625 9155180625 9155180625 9155180630 9155180635 9155180645 9155180650 9155180650 9155180655
Part # Description Qty Price
35210A - VALVE, SOLENOID(SL1)
35210-33030

GGH31..6FC

 1
35210B - VALVE, SOLENOID(SL3)
35210-33030

GGH31..6FC

 1
35220A - VALVE, SOLENOID(SL2)
35220-33040

GGH31..6FC

 1
35220B - VALVE, SOLENOID(SL4)
35220-33040

GGH31..6FC

 1
35240D - VALVE, SOLENOID(SL)
35240-73010

GGH31..6FC

 1
35280A - VALVE, SOLENOID(SLU)
35280-52040

GGH31..6FC

 1
35290C - VALVE, SOLENOID(SLT)
35290-33040

GGH31..6FC

 1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-48020

GGH31..6FC

 1
35330A - RING, O (FOR OIL STRAINER)
90301-27015

GGH31..6FC

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-33240

GGH31..6FC

 1
35418 - VALVE, MANUAL
35418-73010

GGH31..6FC

 1
82125J - WIRE, TRANSMISSION
82125-33151

GGH31..6FC

 1
82125K - WIRE, TRANSMISSION
82125-33160

GGH31..6FC

 1
Common parts
90105-06307
91551-80616
91551-80625
91551-80630
91551-80635
91551-80645
91551-80650
91551-80655
Linked diagrams
8410

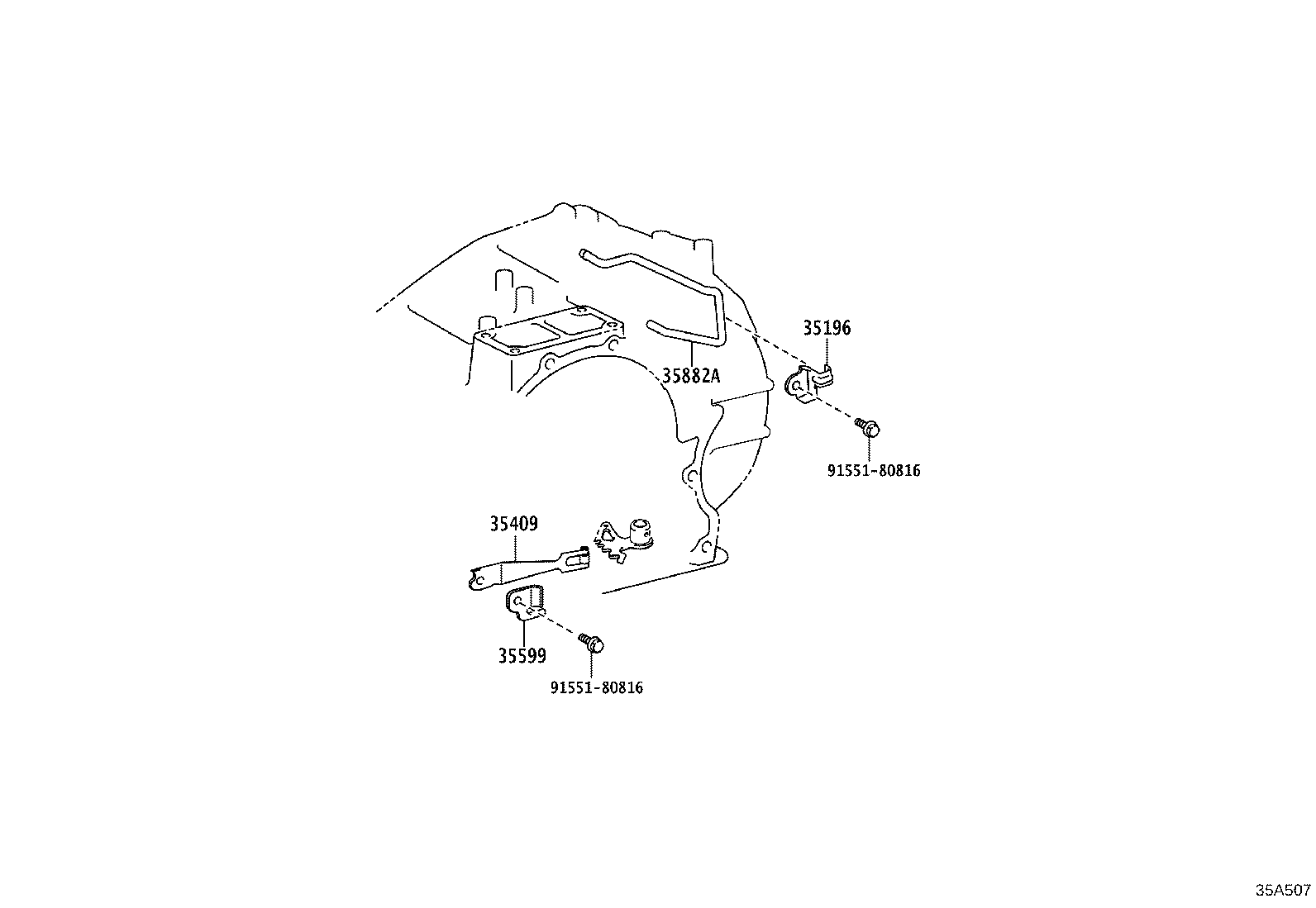

ILLUST NO. 2 OF 2(2001- )6FC

Click highlighted areas on diagram

U660E

diagram 35196 35409 35599 35882A 9155180816 9155180816
Part # Description Qty Price
35196 - CLAMP, TRANSAXLE APPLY TUBE, NO.2
35196-33010

GGH31..6FC

 1
35409 - SPRING SUB-ASSY, MANUAL DETENT
35409-33010

GGH31..6FC

 1
35599 - COVER, MANUAL DETENT SPRING
35599-33010

GGH31..6FC

 1
35882A - TUBE, DIFFERENTIAL GEAR LUBE APPLY
35882-33040

GGH31..6FC

 1
Common parts
91551-80816
