GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )6FC

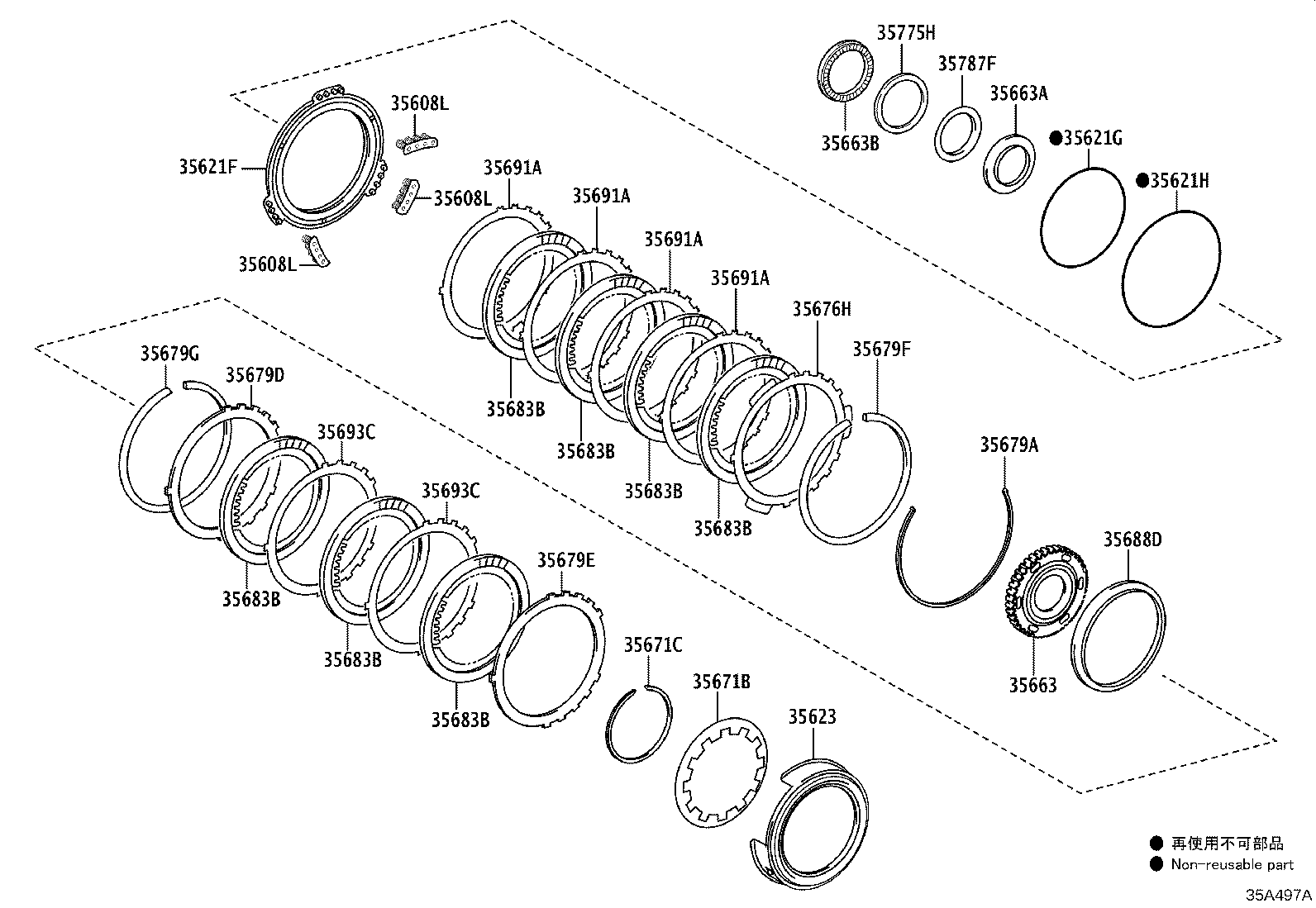

Click highlighted areas on diagram

U660E

diagram 35608L 35608L 35608L 35621F 35621G 35621H 35623 35663 35663A 35663B 35671B 35671C 35676H 35679A 35679D 35679E 35679F 35679G 35683B 35683B 35683B 35683B 35683B 35683B 35683B 35688D 35691A 35691A 35691A 35691A 35693C 35693C 35775H 35787F
Part # Description Qty Price
35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-33030

GGH31..6FC

 3
35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-33030

GGH31..6FC

 3
35608L - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
35608-33030

GGH31..6FC

 3
35621F - PISTON, BRAKE, NO.1
35621-48010

GGH31..6FC

 1
35621G - RING, O (FOR BRAKE PISTON INNER)
90301-99190

GGH31..6FC

 1
35621H - RING, O (FOR BRAKE PISTON OUTER)
90301-99189

GGH31..6FC

 1
35623 - PISTON, BRAKE, NO.3
35623-48030

GGH31..6FC

 1
35663 - HUB, BRAKE NO.3
35663-33020

GGH31..6FC

 1
35663A - BEARING, THRUST NEEDLE ROLLER, NO.1
90374-62009

GGH31..6FC

 1
35663B - BEARING, THRUST NEEDLE ROLLER, NO.2
90374-62008

GGH31..6FC

 1
35671B - SPRING, BRAKE PISTON RETURN
35671-33010

GGH31..6FC

 1
35671C - RING, SNAP (FOR BRAKE PISTON RETURN SPRING)
90520-99103

GGH31..6FC

 1
35676H - FLANGE, BRAKE, NO.1
35676-33030

GGH31..6FC

T=3.1,MARK 31

 1
35676-33020

GGH31..6FC

T=3.0,MARK 30

 1
35676-33050

GGH31..6FC

T=3.3,MARK 33

 1
35676-33080

GGH31..6FC

T=3.6,MARK 36

 1
35676-33070

GGH31..6FC

T=3.5,MARK 35

 1
35676-33040

GGH31..6FC

T=3.2,MARK 32

 1
35676-33060

GGH31..6FC

T=3.4,MARK 34

 1
35679A - RING, HOLE SNAP(FOR BRAKE FLANGE)
90521-99136

GGH31..6FC

 1
35679D - FRANGE, BRAKE, NO.2
35679-73010

GGH31..6FC

 1
35679E - FRANGE, BRAKE, NO.3
35679-73050

GGH31..6FC

T=4.1,MARK 41

 1
35679-73020

GGH31..6FC

T=3.8,MARK 38

 1
35679-73040

GGH31..6FC

T=4.0,MARK 40

 1
35679-73030

GGH31..6FC

T=3.9,MARK 39

 1
35679-73100

GGH31..6FC

T=3.7,MARK 37

 1
35679-73060

GGH31..6FC

T=4.2,MARK 42

 1
35679-73090

GGH31..6FC

T=4.5,MARK 45

 1
35679-73080

GGH31..6FC

T=4.4,MARK 44

 1
35679-73070

GGH31..6FC

T=4.3,MARK 43

 1
35679F - RING, SNAP(FOR BRAKE FLANGE)
90520-99116

GGH31..6FC

 1
35679G - RING, SNAP (FOR RAKE FLANGE NO.3)
90520-99112

GGH31..6FC

 1
35683B - DISC, BRAKE, NO.3
35683-33030

GGH31..6FC

 7
35683B - DISC, BRAKE, NO.3
35683-33030

GGH31..6FC

 7
35683B - DISC, BRAKE, NO.3
35683-33030

GGH31..6FC

 7
35683B - DISC, BRAKE, NO.3
35683-33030

GGH31..6FC

 7
35683B - DISC, BRAKE, NO.3
35683-33030

GGH31..6FC

 7
35683B - DISC, BRAKE, NO.3
35683-33030

GGH31..6FC

 7
35683B - DISC, BRAKE, NO.3
35683-33030

GGH31..6FC

 7
35688D - STOPPER, BRAKE SNAP RING
35688-45010

GGH31..6FC

 1
35691A - PLATE, BRAKE, NO.1
35691-33010

GGH31..6FC

 4
35691A - PLATE, BRAKE, NO.1
35691-33010

GGH31..6FC

 4
35691A - PLATE, BRAKE, NO.1
35691-33010

GGH31..6FC

 4
35691A - PLATE, BRAKE, NO.1
35691-33010

GGH31..6FC

 4
35693C - PLATE, BRAKE, NO.3
35693-33010

GGH31..6FC

 2
35693C - PLATE, BRAKE, NO.3
35693-33010

GGH31..6FC

 2
35775H - RACE, THRUST BEARING, NO.5
35775-48020

GGH31..6FC

 1
35787F - RACE, THRUST BEARING, NO.2
35787-48021

GGH31..6FC

 1
