GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )6FC

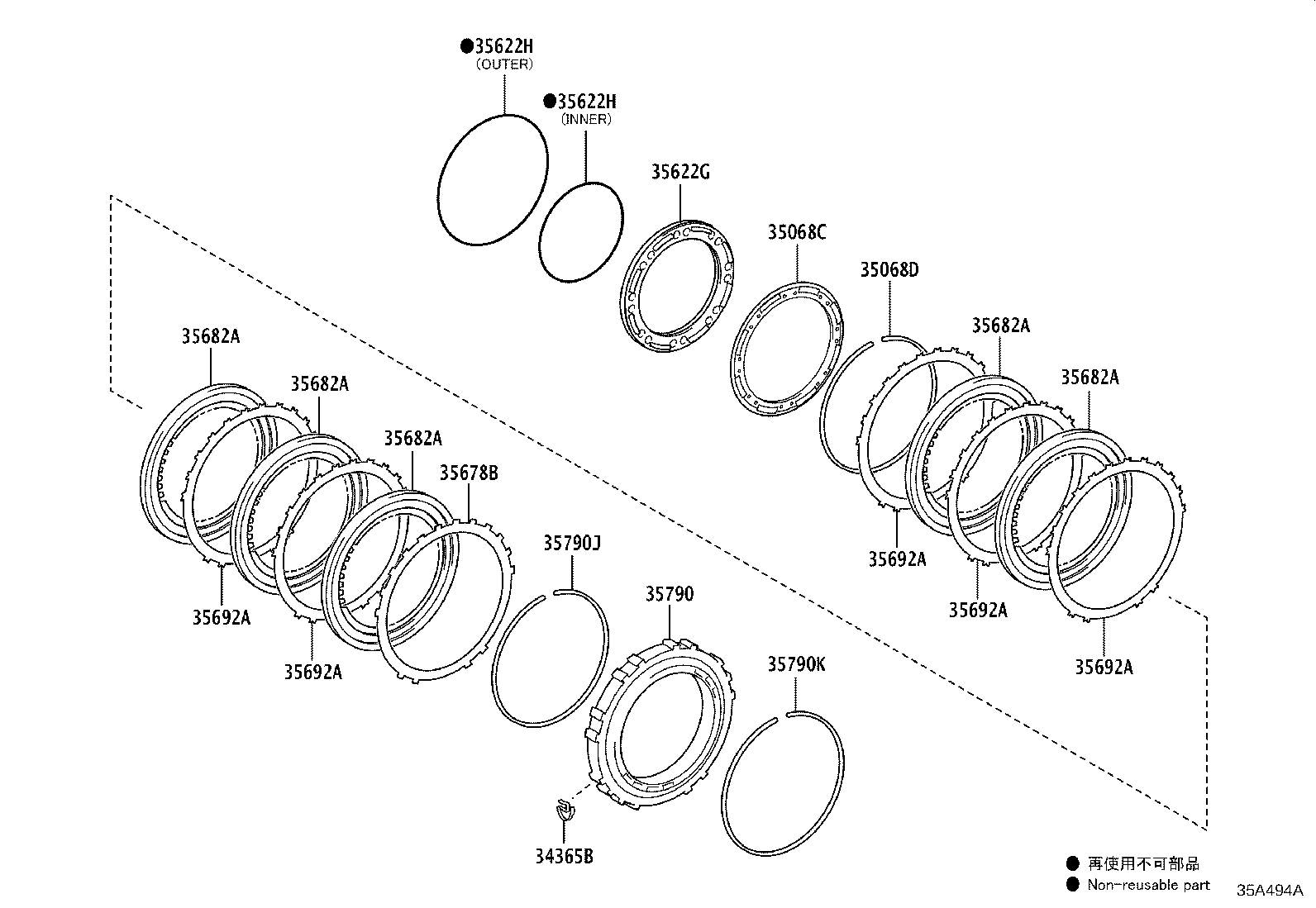

Click highlighted areas on diagram

U660E

diagram 34365B 35068C 35068D 35622G 35622H 35622H 35678B 35682A 35682A 35682A 35682A 35682A 35692A 35692A 35692A 35692A 35692A 35790 35790J 35790K
Part # Description Qty Price
34365B - RETAINER, OUTER RACE
34365-33021

GGH31..6FC

 1
35068C - SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN
35068-33030

GGH31..6FC

 1
35068D - RING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING
90520-99109

GGH31..6FC

 1
35622G - PISTON, BRAKE, NO.2
35622-33010

GGH31..6FC

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99191

GGH31..6FC

OUTER

 1
90301-99190

GGH31..6FC

INNER

 1
35622H - RING, O (FOR BRAKE PISTON NO.2)
90301-99191

GGH31..6FC

OUTER

 1
90301-99190

GGH31..6FC

INNER

 1
35678B - FLANGE, BRAKE, NO.2
35678-33060

GGH31..6FC

T=4.0,MARK 40

 1
35678-33100

GGH31..6FC

T=4.4,MARK 44

 1
35678-33080

GGH31..6FC

T=4.2,MARK 42

 1
35678-33090

GGH31..6FC

T=4.3,MARK 43

 1
35678-33070

GGH31..6FC

T=4.1,MARK 41

 1
35682A - DISC, BRAKE, NO.2
35682-33020

GGH31..6FC

 5
35682A - DISC, BRAKE, NO.2
35682-33020

GGH31..6FC

 5
35682A - DISC, BRAKE, NO.2
35682-33020

GGH31..6FC

 5
35682A - DISC, BRAKE, NO.2
35682-33020

GGH31..6FC

 5
35682A - DISC, BRAKE, NO.2
35682-33020

GGH31..6FC

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

GGH31..6FC

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

GGH31..6FC

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

GGH31..6FC

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

GGH31..6FC

 5
35692A - PLATE, BRAKE, NO.2
35692-33030

GGH31..6FC

 5
35790 - CLUTCH ASSY, 1 WAY
35791-48010

GGH31..6FC

 1
35790J - RING, SNAP NO.1 (FOR 1 WAY CLUTCH)
90520-99105

GGH31..6FC

 1
35790K - RING, SNAP NO.2 (FOR 1 WAY CLUTCH)
90520-99106

GGH31..6FC

 1
