GGH31R-LFTVK (2020)
Toyota Lexus Lm350/Lm300h
(2001- )6FC
U660E

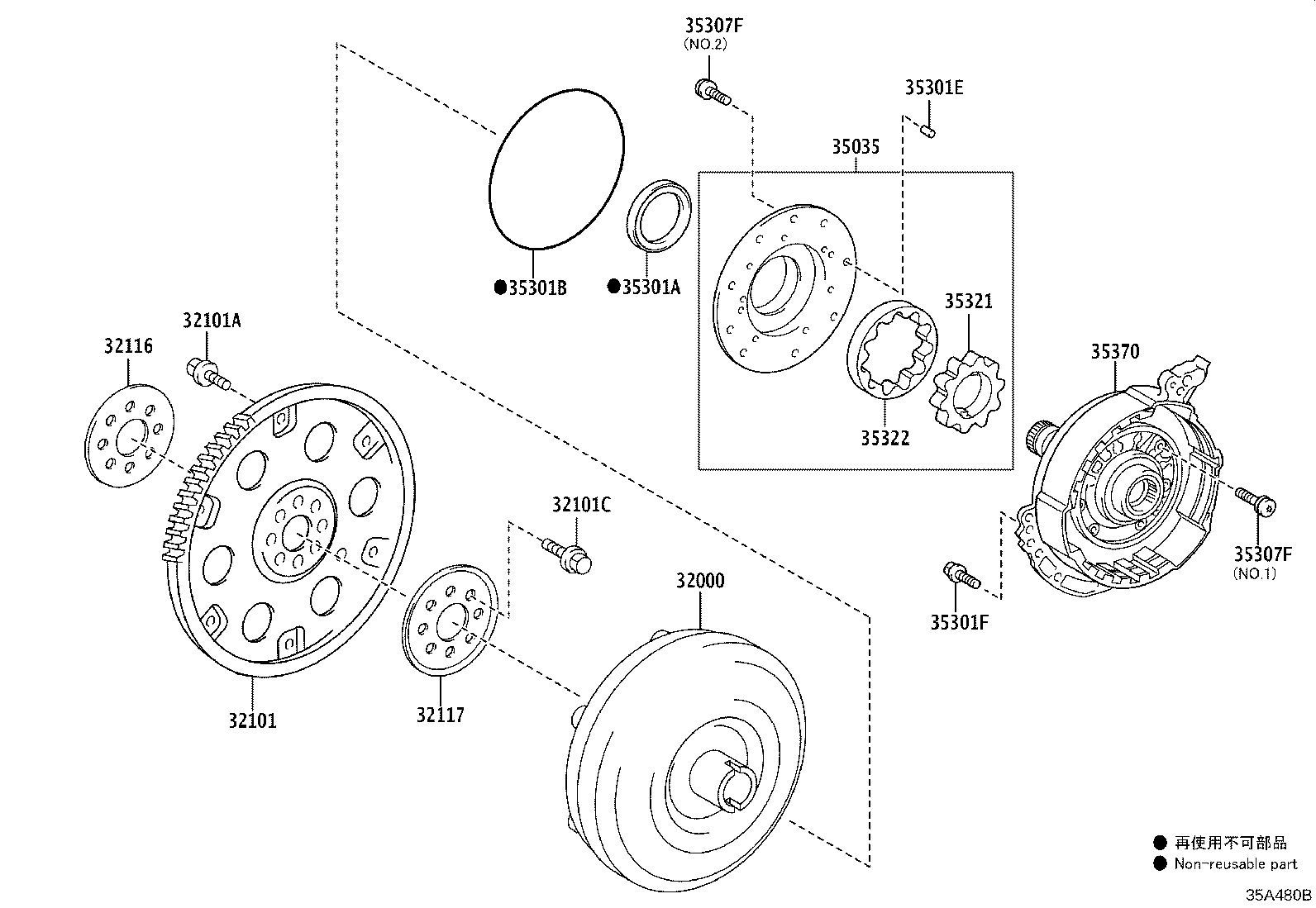

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-33132 |
GGH31..6FC |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-48010 |
GGH31..6FC |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90109-09001 |
GGH31 *9-1.25PX12.4-7.3,BLACK |
1 | ||
| 90119-09025 |
GGH31 *9-1.25PX12.4-8.4,SILVER WHITE |
5 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-10048 |
GGH31 *10-1.25PX18-13 |
8 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-32020 |
GGH31..6FC |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-32020 |
GGH31 |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-33031 |
GGH31..6FC |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-43010 |
GGH31..6FC |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 35697-33010 |
GGH31..6FC |
1 | ||
| 35301E - PIN, STRAIGHT (FOR FRONT OIL PUMP) | ||||
| 90250-08040 |
GGH31..6FC |
2 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 91551-80835 |
GGH31..6FC *8-1.25PX35-22 |
7 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60064 |
GGH31..6FC NO.1:REFER ILLUST. |
7 | ||
| 90148-60065 |
GGH31..6FC NO.2:REFER ILLUST. |
9 | ||
| 35307F - BOLT (FOR STATOR SHAFT) | ||||
| 90148-60064 |
GGH31..6FC NO.1:REFER ILLUST. |
7 | ||
| 90148-60065 |
GGH31..6FC NO.2:REFER ILLUST. |
9 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-33141 |
GGH31..6FC T=11.567,MARK 4 |
1 | ||
| 35321-33111 |
GGH31..6FC T=11.567,MARK 1 |
1 | ||
| 35321-33131 |
GGH31..6FC T=11.567,MARK 3 |
1 | ||
| 35321-33121 |
GGH31..6FC T=11.567,MARK 2 |
1 | ||
| 35321-33151 |
GGH31..6FC T=11.567,MARK 5 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-33120 |
GGH31..6FC T=11.567,MARK 2 |
1 | ||
| 35322-33130 |
GGH31..6FC T=11.567,MARK 3 |
1 | ||
| 35322-33140 |
GGH31..6FC T=11.567,MARK 4 |
1 | ||
| 35322-33150 |
GGH31..6FC T=11.567,MARK 5 |
1 | ||
| 35322-33110 |
GGH31..6FC T=11.567,MARK 1 |
1 | ||
| 35370 - SHAFT ASSY, STATOR | ||||
| 35370-33031 |
GGH31..6FC |
1 | ||
