GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )2GRFE

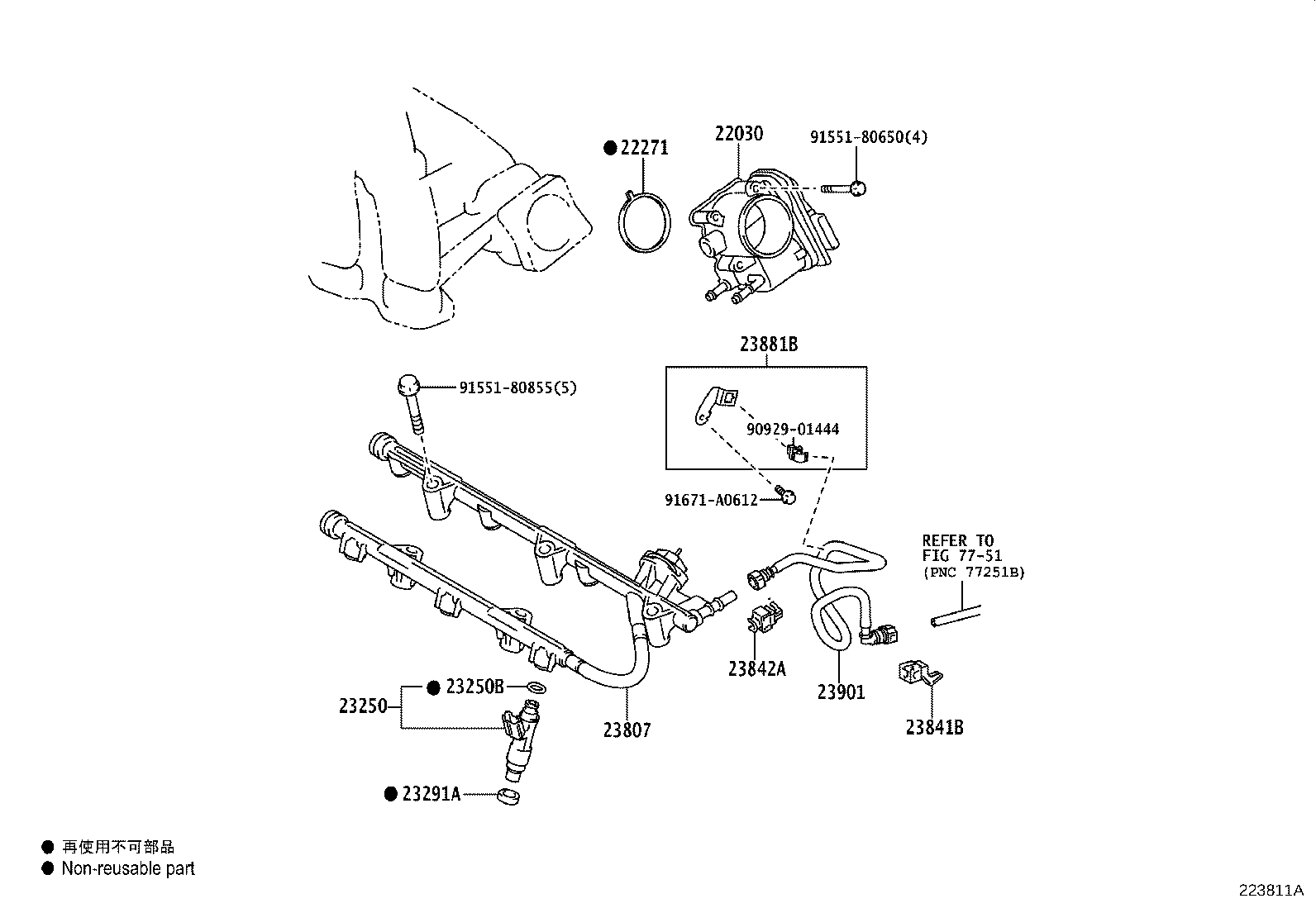

Click highlighted areas on diagram

diagram 22030 22271 23250 23250B 23291A 23807 23841B 23842A 23881B 23901 7751 9092901444 9155180650 9155180855 91671A0612
Part # Description Qty Price
22030 - BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22030-31030

2GRFE..GGH31

 1
22271 - GASKET, THROTTLE BODY
22271-31040

2GR#..GGH31

 1
23250 - INJECTOR ASSY, FUEL
23209-31050

2GRFE..GGH31

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07033

2GRFE..GGH31

 6
23291A - INSULATOR, INJECTOR VIBRATION
23291-28020

2GR#..GGH31

 6
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-31090

2GRFE..GGH31

 1
23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI)
23841-28020

2GRFE..GGH31

 1
23842A - CLAMP, FUEL PIPE, NO.2(FOR EFI)
23842-31020

2GRFE..GGH31

 1
23881B - BRACKET, FUEL HOSE
23881-31050

2GRFE..GGH31

 1
23901 - TUBE SUB-ASSY, FUEL
23901-31080

2GRFE..GGH31

 1
Common parts
90929-01444
91551-80650
91551-80855
91671-A0612
Linked diagrams
7751
