GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )2GRFE

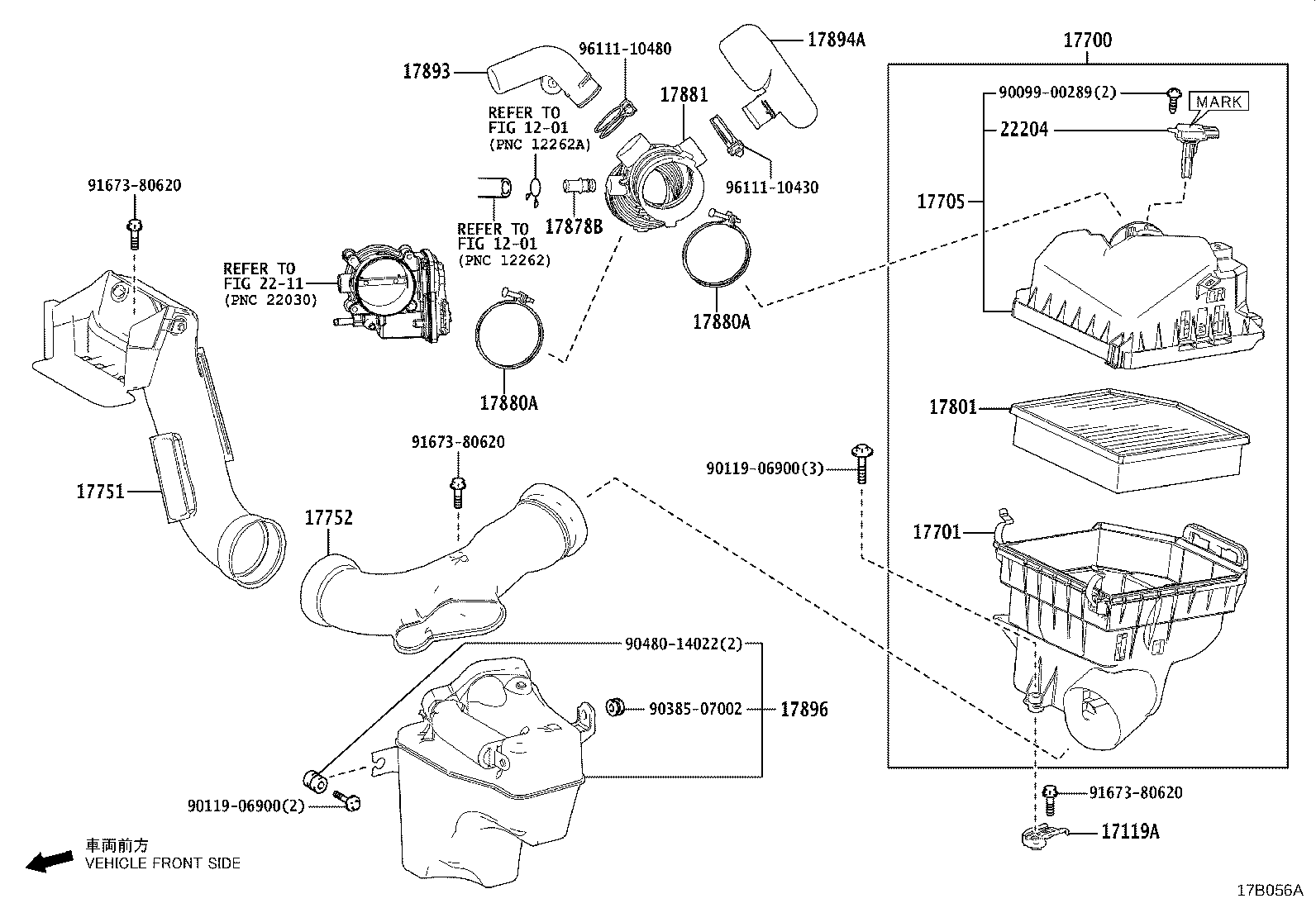

Click highlighted areas on diagram

diagram 1201 1201 17119A 17700 17701 17705 17751 17752 17801 17878B 17880A 17880A 17881 17893 17894A 17896 2211 22204 9009900289 9011906900 9011906900 9038507002 9048014022 9167380620 9167380620 9167380620 9611110430 9611110480
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-31170

2GR#..GGH31

 1
17700 - CLEANER ASSY, AIR
17700-31A90

2GRFE..GGH31

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-31720

2GRFE..GGH31

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31430

2GRFE..GGH31

 1
17751 - INLET, AIR CLEANER, NO.1
17751-31380

2GR#..GGH31

 1
17752 - INLET, AIR CLEANER, NO.2
17752-31150

2GR#..GGH31

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31170

2GR#..GGH31

 1
17878B - TUBE, VENTILATION
17878-31010

2GRFE..GGH31

 1
17880A - CLAMP, HOSE
96111-10900

2GR#..GGH31

 2
17880A - CLAMP, HOSE
96111-10900

2GR#..GGH31

 2
17881 - HOSE, AIR CLEANER, NO.1
17881-31320

2GRFE..GGH31

 1
17893 - RESONATOR, INTAKE AIR
17893-31160

2GR#..GGH31

 1
17894A - RESONATOR, INTAKE AIR, NO.2
17894-31090

2GRFE..GGH31

 1
17896 - RESONATOR, INTAKE AIR, NO.3
17896-31030

2GR#..GGH31

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0T040

2GRFE..GGH31

MARK 22204-0T040

 1
22204-0V010

2GRFE..GGH31

MARK 22204-0V010

 1
22204-0V020

2GRFE..GGH31

MARK 22204-0V020

 1
22204-28010

2GRFE..GGH31

MARK 22204-28010

 1
Common parts
90099-00289
90119-06900
90385-07002
90480-14022
91673-80620
96111-10430
96111-10480
Linked diagrams
1201
2211
