GGH31R-LFTVK (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )2GRFE

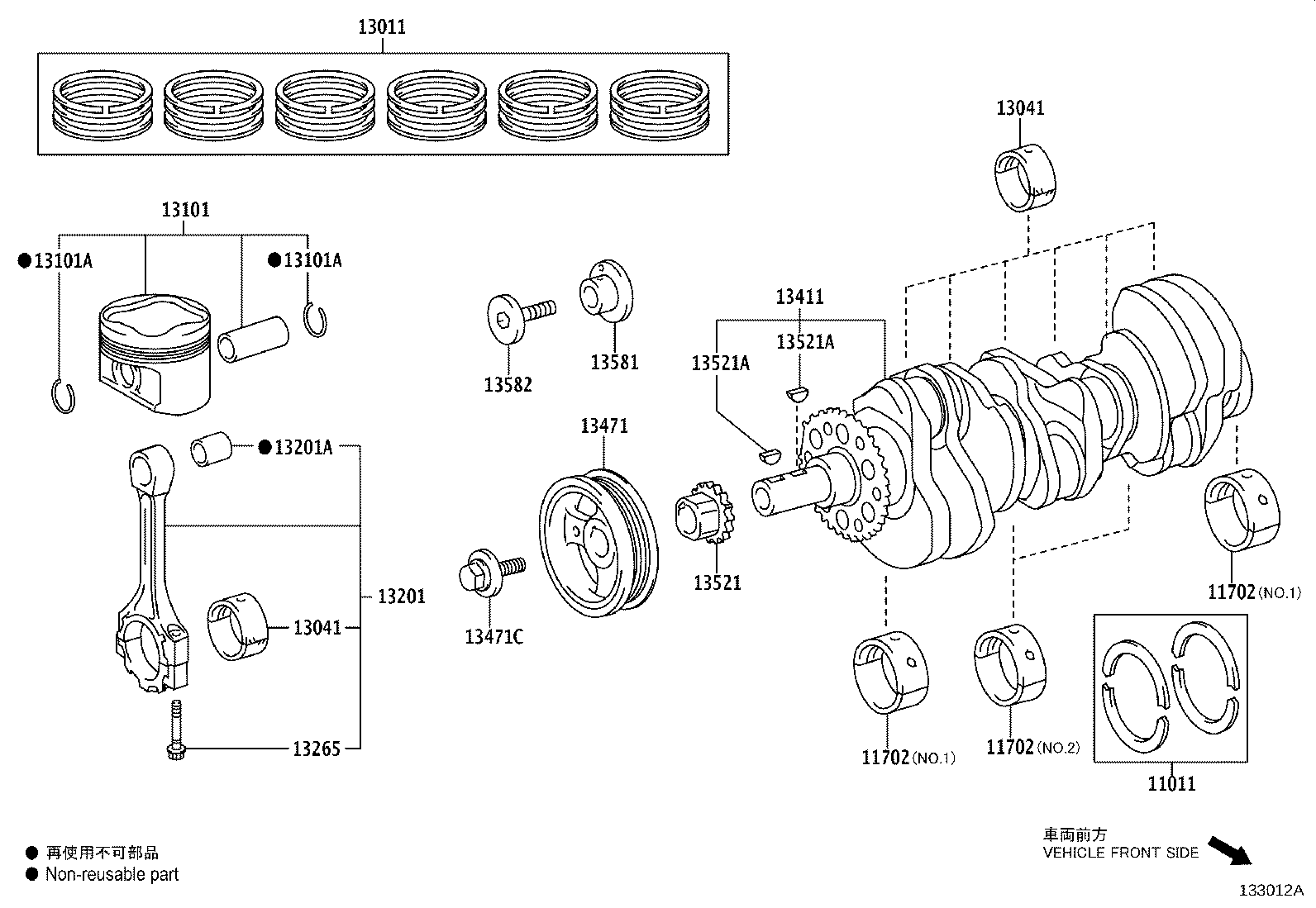

Click highlighted areas on diagram

diagram 11011 11702 11702 11702 13011 13041 13041 13101 13101A 13101A 13201 13201A 13265 13411 13471 13471C 13521 13521A 13521A 13581 13582
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-31080

2GR#..GGH31

STD

 1
11702 - BEARING SET, CRANKSHAFT
11071-31060D4

2GR#..GGH31

STD,MARK UPPER 4 LOWER 4,NO.2,REFER R/M

 2
11071-31060A1

2GR#..GGH31

STD,MARK UPPER 1 LOWER 1,NO.2,REFER R/M

 2
11071-31060E5

2GR#..GGH31

STD,MARK UPPER 5 LOWER 5,NO.2,REFER R/M

 2
11701-31100A1

2GR#..GGH31

STD,MARK UPPER 1 LOWER 1,NO.1,REFER R/M

 2
11071-31060C3

2GR#..GGH31

STD,MARK UPPER 3 LOWER 3,NO.2,REFER R/M

 2
11071-31060B2

2GR#..GGH31

STD,MARK UPPER 2 LOWER 2,NO.2,REFER R/M

 2
11701-31100D4

2GR#..GGH31

STD,MARK UPPER 4 LOWER 4,NO.1,REFER R/M

 2
11701-31100B2

2GR#..GGH31

STD,MARK UPPER 2 LOWER 2,NO.1,REFER R/M

 2
11701-31100C3

2GR#..GGH31

STD,MARK UPPER 3 LOWER 3,NO.1,REFER R/M

 2
11701-31100E5

2GR#..GGH31

STD,MARK UPPER 5 LOWER 5,NO.1,REFER R/M

 2
11702 - BEARING SET, CRANKSHAFT
11071-31060D4

2GR#..GGH31

STD,MARK UPPER 4 LOWER 4,NO.2,REFER R/M

 2
11071-31060A1

2GR#..GGH31

STD,MARK UPPER 1 LOWER 1,NO.2,REFER R/M

 2
11071-31060E5

2GR#..GGH31

STD,MARK UPPER 5 LOWER 5,NO.2,REFER R/M

 2
11701-31100A1

2GR#..GGH31

STD,MARK UPPER 1 LOWER 1,NO.1,REFER R/M

 2
11071-31060C3

2GR#..GGH31

STD,MARK UPPER 3 LOWER 3,NO.2,REFER R/M

 2
11071-31060B2

2GR#..GGH31

STD,MARK UPPER 2 LOWER 2,NO.2,REFER R/M

 2
11701-31100D4

2GR#..GGH31

STD,MARK UPPER 4 LOWER 4,NO.1,REFER R/M

 2
11701-31100B2

2GR#..GGH31

STD,MARK UPPER 2 LOWER 2,NO.1,REFER R/M

 2
11701-31100C3

2GR#..GGH31

STD,MARK UPPER 3 LOWER 3,NO.1,REFER R/M

 2
11701-31100E5

2GR#..GGH31

STD,MARK UPPER 5 LOWER 5,NO.1,REFER R/M

 2
11702 - BEARING SET, CRANKSHAFT
11071-31060D4

2GR#..GGH31

STD,MARK UPPER 4 LOWER 4,NO.2,REFER R/M

 2
11071-31060A1

2GR#..GGH31

STD,MARK UPPER 1 LOWER 1,NO.2,REFER R/M

 2
11071-31060E5

2GR#..GGH31

STD,MARK UPPER 5 LOWER 5,NO.2,REFER R/M

 2
11701-31100A1

2GR#..GGH31

STD,MARK UPPER 1 LOWER 1,NO.1,REFER R/M

 2
11071-31060C3

2GR#..GGH31

STD,MARK UPPER 3 LOWER 3,NO.2,REFER R/M

 2
11071-31060B2

2GR#..GGH31

STD,MARK UPPER 2 LOWER 2,NO.2,REFER R/M

 2
11701-31100D4

2GR#..GGH31

STD,MARK UPPER 4 LOWER 4,NO.1,REFER R/M

 2
11701-31100B2

2GR#..GGH31

STD,MARK UPPER 2 LOWER 2,NO.1,REFER R/M

 2
11701-31100C3

2GR#..GGH31

STD,MARK UPPER 3 LOWER 3,NO.1,REFER R/M

 2
11701-31100E5

2GR#..GGH31

STD,MARK UPPER 5 LOWER 5,NO.1,REFER R/M

 2
13011 - RING SET, PISTON
13011-31151

2GRFE..GGH31

STD

 1
13041 - BEARING, CONNECTING ROD
13041-3111002

2GRFE..GGH31

MARK 2

 6
13041-3111004

2GRFE..GGH31

MARK 4

 6
13041-3111001

2GRFE..GGH31

MARK 1

 6
13041-3111003

2GRFE..GGH31

MARK 3

 6
13041 - BEARING, CONNECTING ROD
13041-3111002

2GRFE..GGH31

MARK 2

 6
13041-3111004

2GRFE..GGH31

MARK 4

 6
13041-3111001

2GRFE..GGH31

MARK 1

 6
13041-3111003

2GRFE..GGH31

MARK 3

 6
13101 - PISTON SUB-ASSY, W/PIN
13101-31092C0

2GRFE..GGH31

STD,MARK C,REFER REPAIR MANUAL

 6
13101-31092A0

2GRFE..GGH31

STD,MARK A,REFER REPAIR MANUAL

 6
13101-31092B0

2GRFE..GGH31

STD,MARK B,REFER REPAIR MANUAL

 6
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-22025

2GR#..GGH31

 12
13101A - RING, HOLE SNAP(FOR PISTON PIN)
90520-22025

2GR#..GGH31

 12
13201 - ROD SUB-ASSY, CONNECTING
13201-39305A0

2GRFE..GGH31

MARK A

 6
13201-39305B0

2GRFE..GGH31

MARK B

 6
13201-39305C0

2GRFE..GGH31

MARK C

 6
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73144

2GR#..GGH31

 6
13265 - BOLT, CONNECTING ROD
13265-28020

2GR#..GGH31

 12
13411 - CRANKSHAFT
13401-31041

2GRFE..GGH31

 1
13471 - PULLEY, CRANKSHAFT
13470-31030

2GRFE..GGH31

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-16020

2GR#..GGH31

 1
13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING
13521-31041

2GRFE..GGH31

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-30516

2GR#..GGH31

 2
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-30516

2GR#..GGH31

 2
13581 - SHAFT, IDLE GEAR, NO.1
13581-31030

2GR#..GGH31

 1
13582 - SHAFT, IDLE GEAR, NO.2
13582-31031

2GR#..GGH31

 1
