GGH31R-LFTVK (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )2GRFE

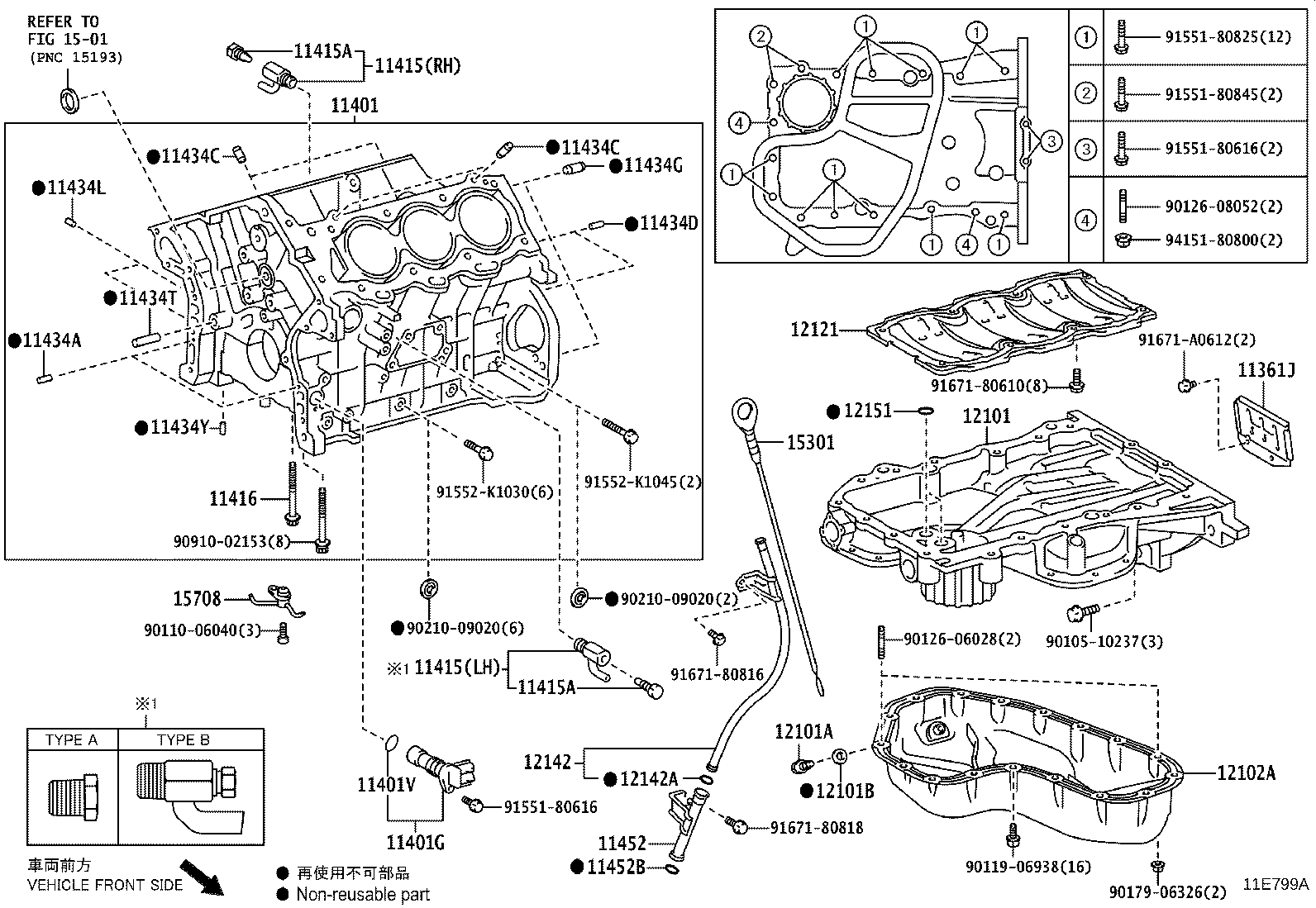

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11361J - COVER, FLYWHEEL HOUSING UNDER | ||||
| 11361-31060 |
2GR#..GGH31 |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-80826 |
2GRFE..GGH31 |
1 | ||
| 11401G - SENSOR, CRANK POSITION | ||||
| 90919-05057 |
2GRFE..GGH31 |
1 | ||
| 11401V - O-RING, CRANK POSITION SENSOR | ||||
| 90301-14016 |
2GR#..GGH31 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
2GRFE..GGH31 LH,TYPE A:REF.ILL. |
1 | ||
| 90910-09129 |
2GR#..GGH31 RH |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 90345-52001 |
2GRFE..GGH31 LH,TYPE A:REF.ILL. |
1 | ||
| 90910-09129 |
2GR#..GGH31 RH |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
2GR#..GGH31 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90910-09087 |
2GR#..GGH31 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02154 |
2GRFE..GGH31 |
8 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-04097 |
2GR#..GGH31 L=12,OD=4.0 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
2GR#..GGH31 L=18,OD=8 |
4 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90250-08120 |
2GR#..GGH31 L=18,OD=8 |
4 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-04097 |
2GR#..GGH31 L=12,OD=4.0 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10113 |
2GR#..GGH31 |
2 | ||
| 11434L - PIN, STRAIGHT(FOR ENGINE MOUNTING) | ||||
| 90250-04097 |
2GR#..GGH31 |
2 | ||
| 11434T - PIN, RING(FOR TIMING BELT IDLER BRACKET SET) | ||||
| 90250-10030 |
2GR#..GGH31 |
1 | ||
| 11434Y - PIN, STRAIGHT(FOR OIL PAN) | ||||
| 90250-04097 |
2GR#..GGH31 |
2 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-31060 |
2GRFE..GGH31 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| 90301-12018 |
2GRFE..GGH31 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-31121 |
2GRFE..GGH31 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
2GR#..GGH31 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
2GR#..GGH31 |
1 | ||
| 12102A - PAN SUB-ASSY, OIL, NO.2 | ||||
| 12102-31051 |
2GRFE..GGH31 |
1 | ||
| 12121 - PLATE, OIL PAN BAFFLE, NO.1 | ||||
| 12121-31120 |
2GR#..GGH31 |
1 | ||
| 12142 - GUIDE, OIL LEVEL GAGE, NO.2 | ||||
| 12142-31030 |
2GRFE..GGH31 |
1 | ||
| 12142A - RING, O(FOR OIL LEVEL GAGE GUIDE, NO.2) | ||||
| 96721-19010 |
2GRFE..GGH31 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-31010 |
2GR#..GGH31 |
2 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-31100 |
2GRFE..GGH31 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-31050 |
2GR#..GGH31 |
3 | ||
| Common parts | ||||
| 90105-10237 | ||||
| 90110-06040 | ||||
| 90119-06938 | ||||
| 90126-06028 | ||||
| 90126-08052 | ||||
| 90179-06326 | ||||
| 90210-09020 | ||||
| 90910-02153 | ||||
| 91551-80616 | ||||
| 91551-80825 | ||||
| 91551-80845 | ||||
| 91552-K1030 | ||||
| 91552-K1045 | ||||
| 91671-80610 | ||||
| 91671-80816 | ||||
| 91671-80818 | ||||
| 91671-A0612 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1501 | ||||
