GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )8FC

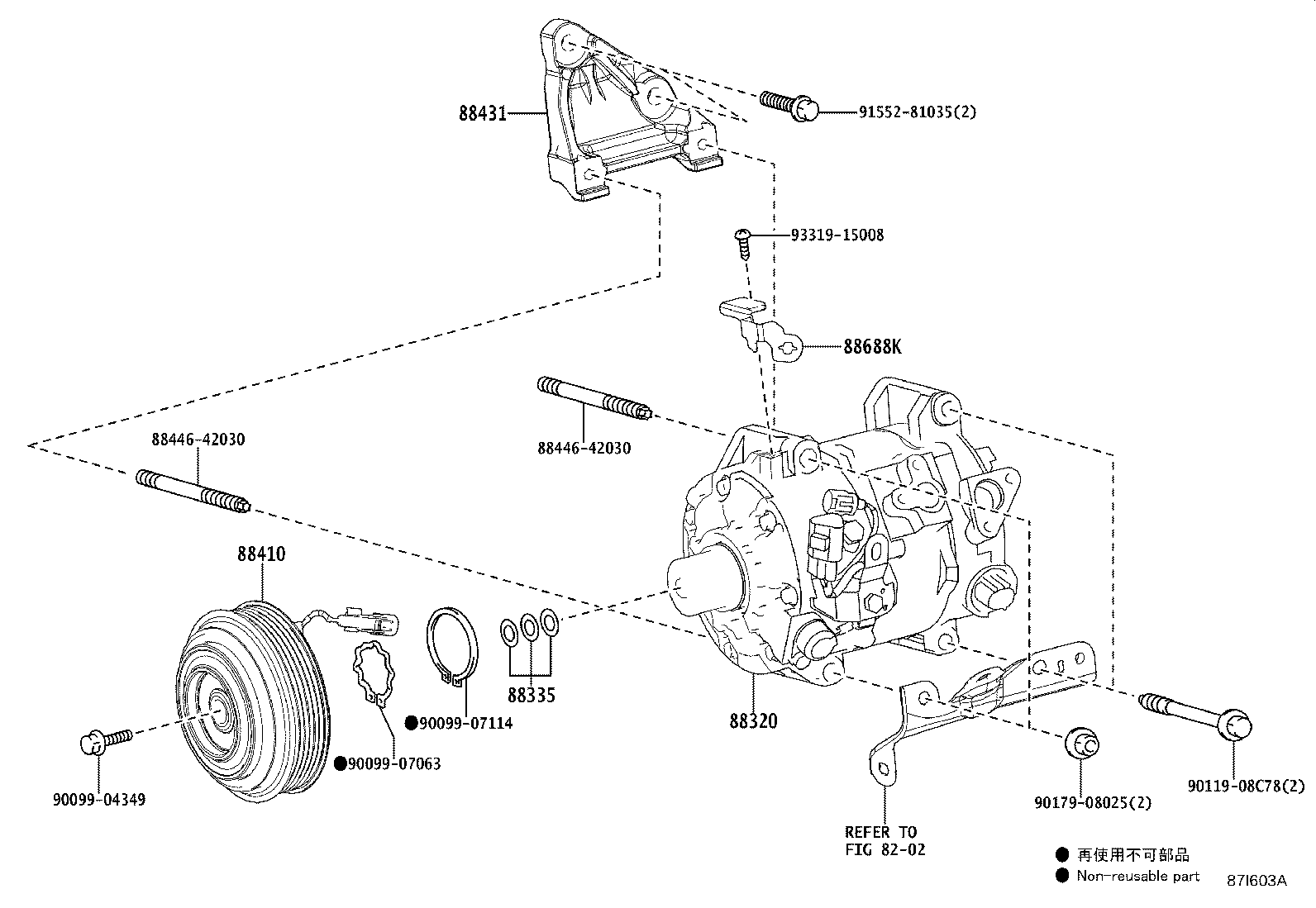

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-58020 |
GGH31 |
1 | ||
| 88335 - GASKET KIT, OVERHAUL | ||||
| 88335-14020 |
GGH31 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-0N010 |
GGH31..8FC |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-48050 |
GGH31..8FC |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-33570 |
GGH31 |
1 | ||
| Common parts | ||||
| 88446-42030 | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 90119-08C78 | ||||
| 90179-08025 | ||||
| 91552-81035 | ||||
| 93319-15008 | ||||
| Linked diagrams | ||||
| 8202 | ||||
