GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

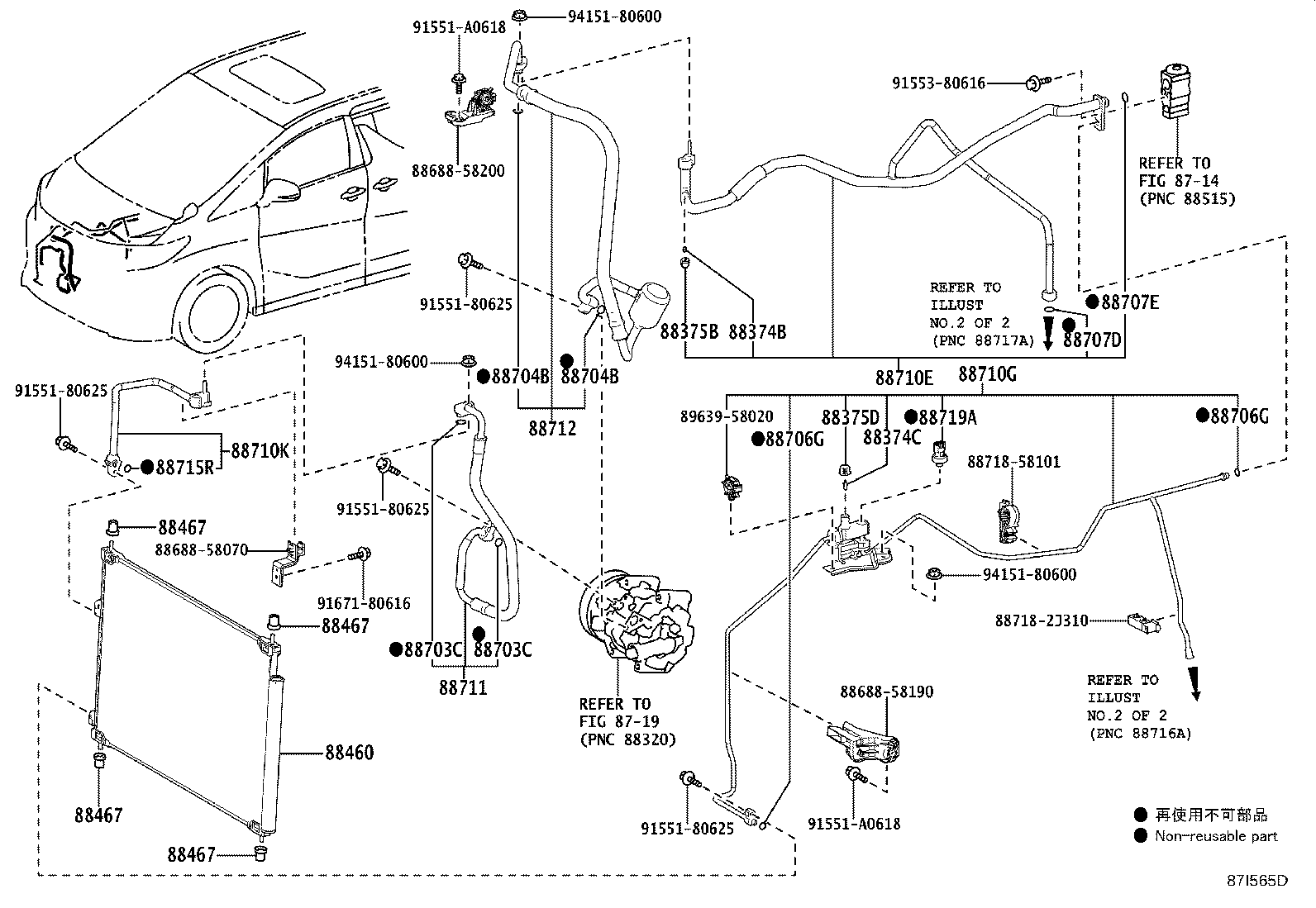

ILLUST NO. 1 OF 2(2001- )8FC

Click highlighted areas on diagram

FRONT

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 88467 88467 8868858070 8868858190 8868858200 88703C 88703C 88704B 88704B 88706G 88706G 88707D 88707E 88710E 88710G 88710K 88711 88712 88715R 887182J310 8871858101 88719A 8963958020 9155180625 9155180625 9155180625 9155180625 91551A0618 91551A0618 9155380616 9167180616 9415180600 9415180600 9415180600
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AYH36,GGH31

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AYH36,GGH31

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AYH36,GGH31

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

AYH36,GGH31

 1
88460 - CONDENSER ASSY, COOLER
88460-58050

GGH31

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

GGH31

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

GGH31

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

GGH31

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
16716-28010

GGH31

 4
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

AYH36,GGH31

ID=10.8,OD=15.6

 2
88703C - RING, O(FOR DISCHARGE HOSE)
90099-14120

AYH36,GGH31

ID=10.8,OD=15.6

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

AYH36,GGH31

ID=13.4,OD=18.2

 2
88704B - RING, O(FOR SUCTION HOSE)
90099-14121

AYH36,GGH31

ID=13.4,OD=18.2

 2
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

AYH36,GGH31

ID=6.7,OD=10.3

 2
88706G - RING, O(FOR LIQUID TUBE)
90099-14119

AYH36,GGH31

ID=6.7,OD=10.3

 2
88707D - RING, O(FOR SUCTION TUBE)
90099-14120

AYH36,GGH31

ID=10.8,OD=15.6

 1
88707E - RING, O, NO.2(FOR SUCTION TUBE)
90099-14121

AYH36,GGH31

ID=13.4,OD=18.2

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-58210

AYH36,GGH31..LHD

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-58190

AYH36,GGH31..LHD

 1
88710K - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.3
88710-58220

GGH31

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-58160

GGH31..8FC

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-58100

GGH31..8FC

 1
88715R - RING, O(FOR DISCHARGE TUBE)
90099-14120

GGH31

ID=10.8,OD=15.6

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

AYH36,GGH31

 1
Common parts
88688-58070
88688-58190
88688-58200
88718-2J310
88718-58101
89639-58020
91551-80625
91551-A0618
91553-80616
91671-80616
94151-80600
Linked diagrams
8714
8719

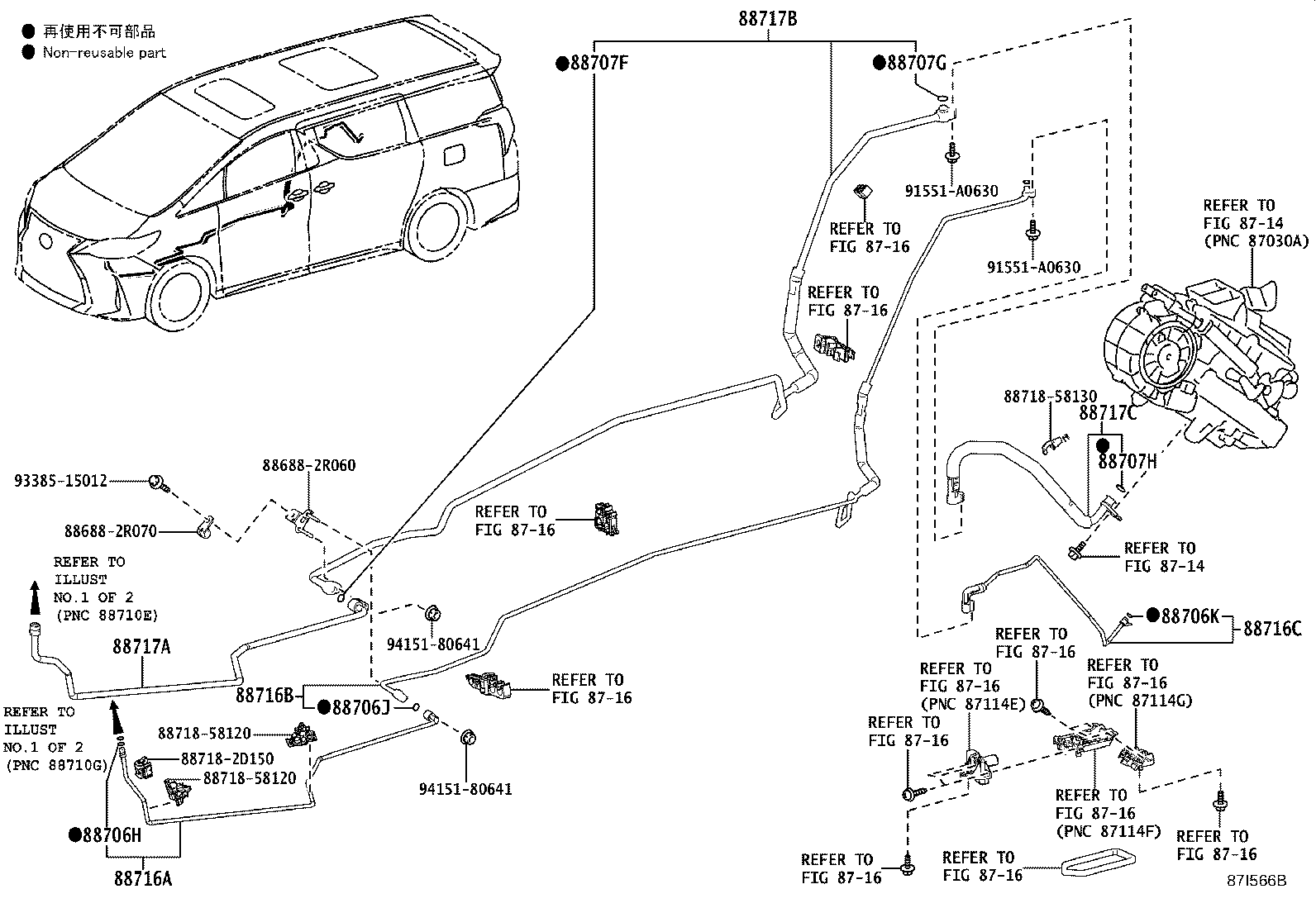

ILLUST NO. 2 OF 2(2001- )

Click highlighted areas on diagram

REAR

diagram 8714 8714 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 8716 886882R060 886882R070 88706H 88706J 88706K 88707F 88707G 88707H 88716A 88716B 88716C 88717A 88717B 88717C 887182D150 8871858120 8871858120 8871858130 91551A0630 91551A0630 9338515012 9415180641 9415180641
Part # Description Qty Price
88706H - RING, O, NO.2(FOR LIQUID TUBE)
90099-14119

AYH36,GGH31

ID=6.7,OD=10.3

 2
88706J - RING, O, NO.3(FOR LIQUID TUBE)
90099-14119

AYH36,GGH31

ID=6.7,OD=10.3

 2
88706K - RING, O, NO.4(FOR LIQUID TUBE)
90099-14119

AYH36,GGH31

ID=6.7,OD=10.3

 1
88707F - RING, O, NO.3(FOR SUCTION TUBE)
90099-14120

AYH36,GGH31

ID=10.8,OD=15.6

 1
88707G - RING, O, NO.4(FOR SUCTION TUBE)
90099-14121

AYH36,GGH31

ID=13.4,OD=18.2

 1
88707H - RING, O, NO.5(FOR SUCTION TUBE)
90099-14121

AYH36,GGH31

ID=13.4,OD=18.2

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-58281

AYH36,GGH31

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-58290

AYH36,GGH31

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-58220

AYH36,GGH31

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-58171

AYH36,GGH31

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-58180

AYH36,GGH31

 1
88717C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-58140

AYH36,GGH31

 1
Common parts
88688-2R060
88688-2R070
88718-2D150
88718-58120
88718-58130
91551-A0630
93385-15012
94151-80641
Linked diagrams
8714
8716
