GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

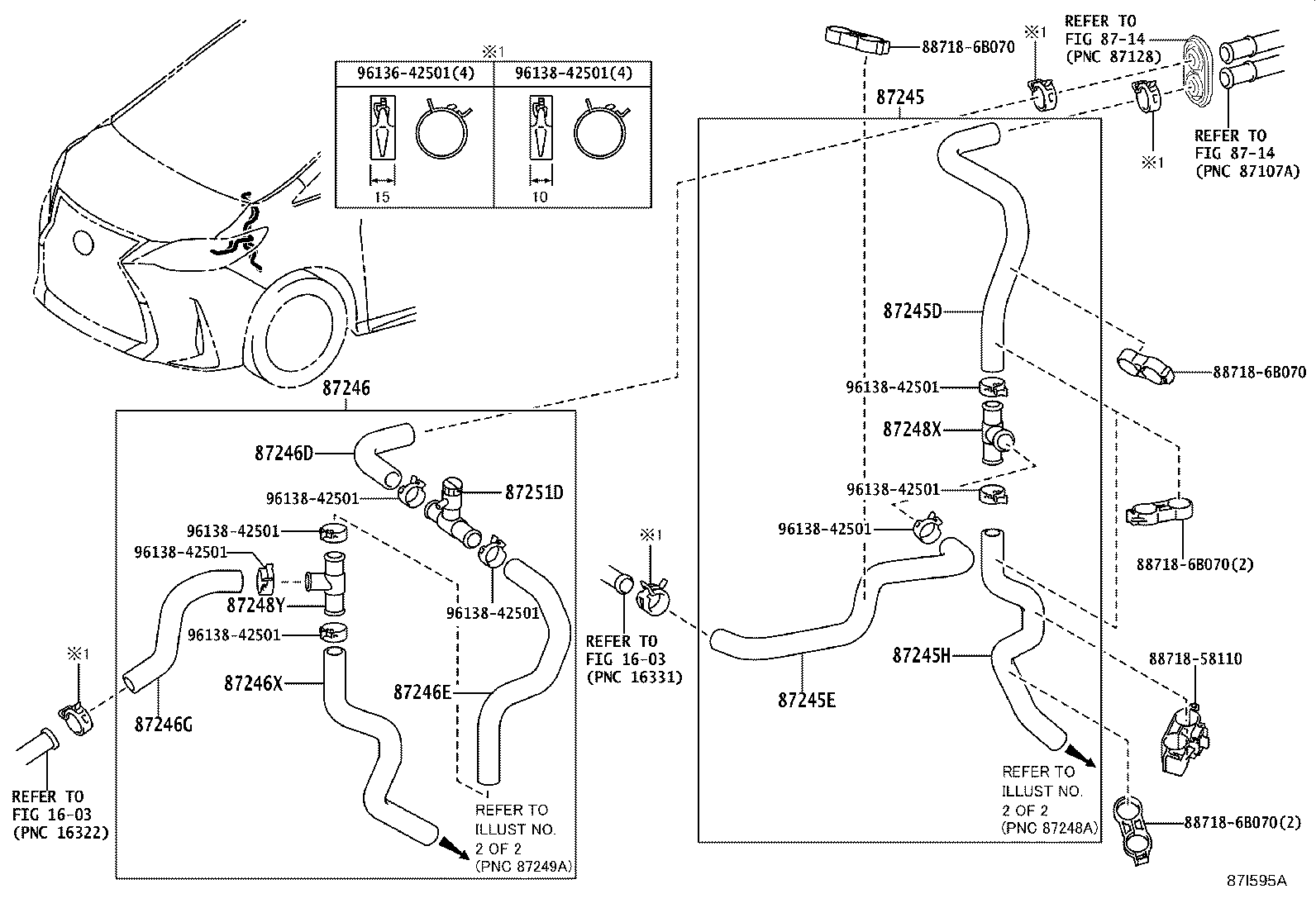

ILLUST NO. 1 OF 2(2001- )GGH31..LHD

Click highlighted areas on diagram

FRONT

diagram 1603 1603 8714 8714 87245 87245D 87245E 87245H 87246 87246D 87246E 87246G 87246X 87248X 87248Y 87251D 8871858110 887186B070 887186B070 887186B070 887186B070 9613642501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501 9613842501
Part # Description Qty Price
87245 - HOSE, HEATER WATER, INLET
87209-58460

GGH31..LHD

 1
87245D - HOSE, HEATER WATER, INLET D
87245-58340

GGH31..LHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-58290

GGH31..8FC

 1
87245H - HOSE, HEATER WATER, INLET H
87245-58280

GGH31..8FC

 1
87246 - HOSE, HEATER WATER, OUTLET
87209-58470

GGH31..LHD

 1
87246D - HOSE, HEATER WATER, OUTLET D
87245-58350

GGH31..LHD

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-58360

GGH31..LHD

 1
87246G - HOSE, HEATER WATER, OUTLET G
87245-58330

GGH31..8FC

 1
87246X - HOSE, HEATER WATER
87245-58320

GGH31..8FC

 1
87248X - PIPE, HEATER WATER
87248-26880

GGH31..8FC

 1
87248Y - PIPE, HEATER WATER, NO.2
87248-26880

GGH31..8FC

 1
87251D - JOINT, WATER, NO.1
87251-12050

GGH31..8FC

 1
Common parts
88718-58110
88718-6B070
96136-42501
96138-42501
Linked diagrams
1603
8714

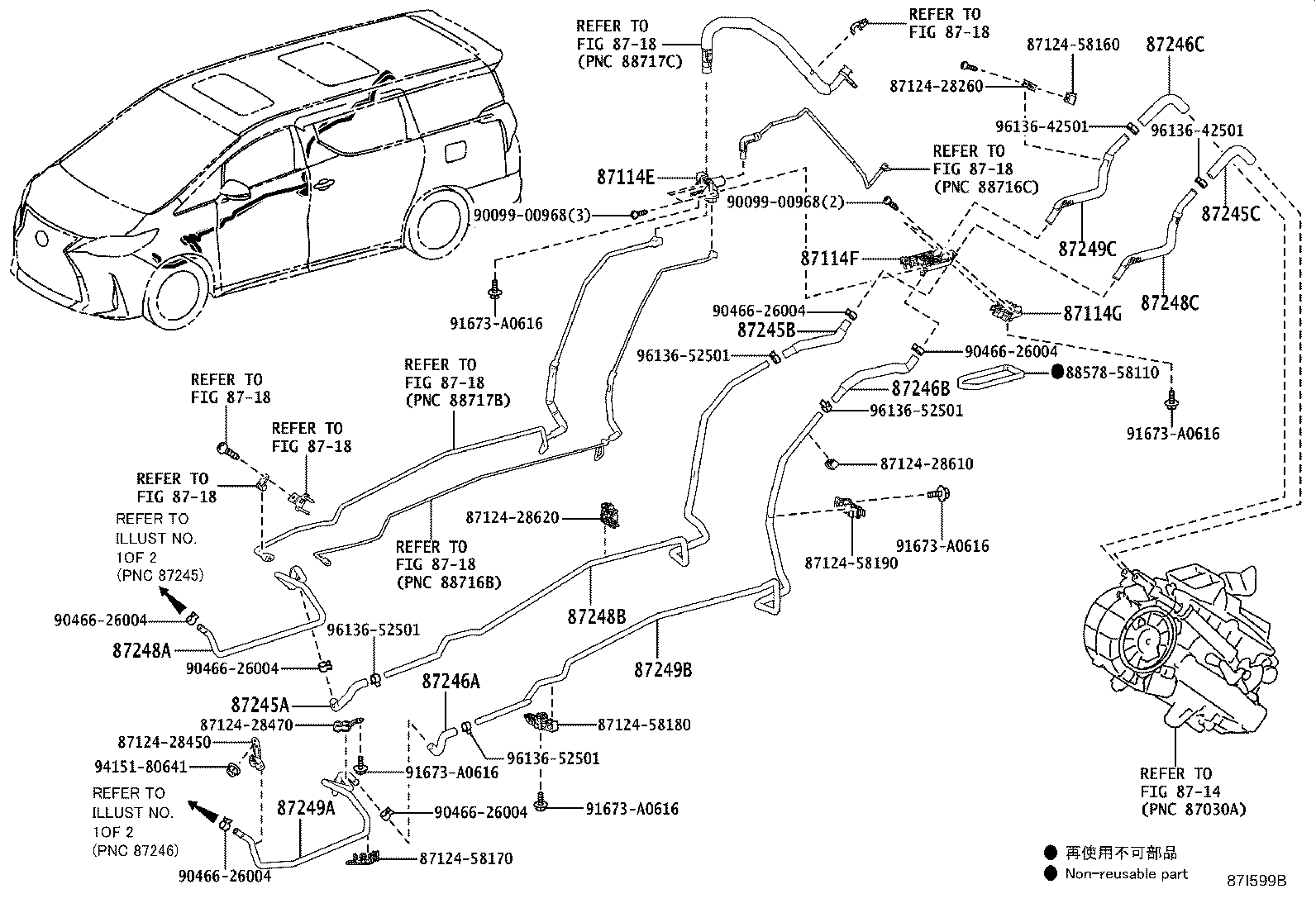

ILLUST NO. 2 OF 2(2001- )GGH31

Click highlighted areas on diagram

REAR

diagram 87114E 87114F 87114G 8712428260 8712428450 8712428470 8712428610 8712428620 8712458160 8712458170 8712458180 8712458190 8714 8718 8718 8718 8718 8718 8718 8718 8718 87245A 87245B 87245C 87246A 87246B 87246C 87248A 87248B 87248C 87249A 87249B 87249C 8857858110 9009900968 9009900968 9046626004 9046626004 9046626004 9046626004 9046626004 9046626004 91673A0616 91673A0616 91673A0616 91673A0616 91673A0616 9415180641 9613642501 9613642501 9613652501 9613652501 9613652501 9613652501
Part # Description Qty Price
87114E - COVER, HEATER, NO.1
87114-58040

AYH36,GGH31

 1
87114F - COVER, HEATER, NO.2
87114-58020

AYH36,GGH31

 1
87114G - COVER, HEATER, NO.3
87114-58030

AYH36,GGH31

 1
87245A - HOSE, HEATER WATER, INLET A
87245-58220

AYH36,GGH31

 1
87245B - HOSE, HEATER WATER, INLET B
87245-58230

AYH36,GGH31

 1
87245C - HOSE, HEATER WATER ,INLET C
87245-58180

AYH36,GGH31

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-58240

AYH36,GGH31

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-58250

AYH36,GGH31

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-58180

AYH36,GGH31

 1
87248A - PIPE, HEATER WATER INLET, A
87248-58230

GGH31..8FC

 1
87248B - PIPE, HEATER WATER INLET, B
87248-58210

AYH36,GGH31

 1
87248C - PIPE, HEATER WATER INLET, C
87248-58150

AYH36,GGH31

 1
87249A - PIPE, HEATER WATER OUTLET, A
87248-58240

GGH31..8FC

 1
87249B - PIPE, HEATER WATER OUTLET, B
87248-58220

AYH36,GGH31

 1
87249C - PIPE, HEATER WATER OUTLET, C
87248-58160

AYH36,GGH31

 1
Common parts
87124-28260
87124-28450
87124-28470
87124-28610
87124-28620
87124-58160
87124-58170
87124-58180
87124-58190
88578-58110
90099-00968
90466-26004
91673-A0616
94151-80641
96136-42501
96136-52501
Linked diagrams
8714
8718
