GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 5(2001- )

Click highlighted areas on diagram

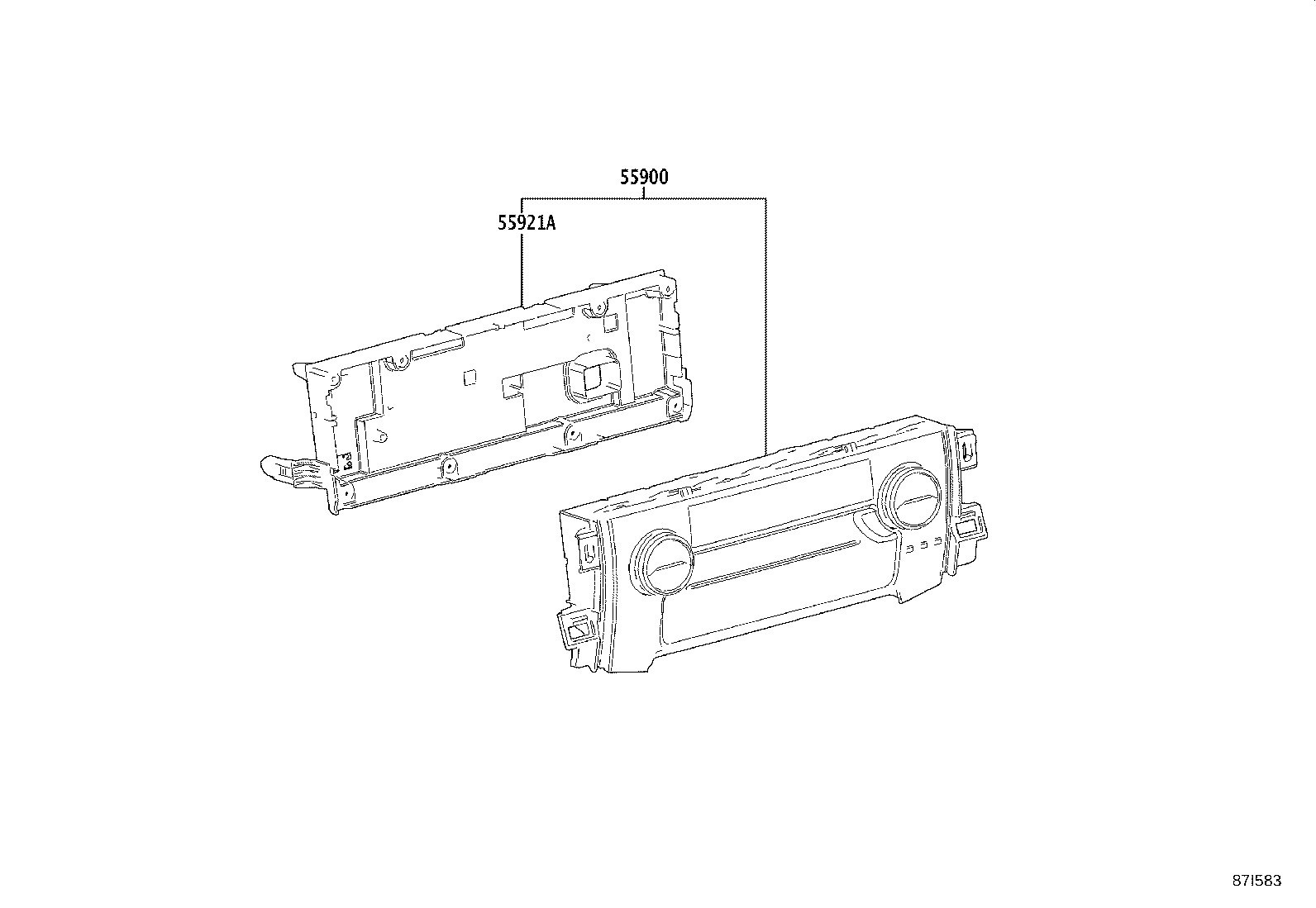

FRONT HEATER CONTROL PANEL

diagram 55900 55921A
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-58440

GGH31..LHD

 1
55921A - RETAINER, HEATER CONTROL
55921-58010

AYH36,GGH31

 1

ILLUST NO. 2 OF 5(2001- )

Click highlighted areas on diagram

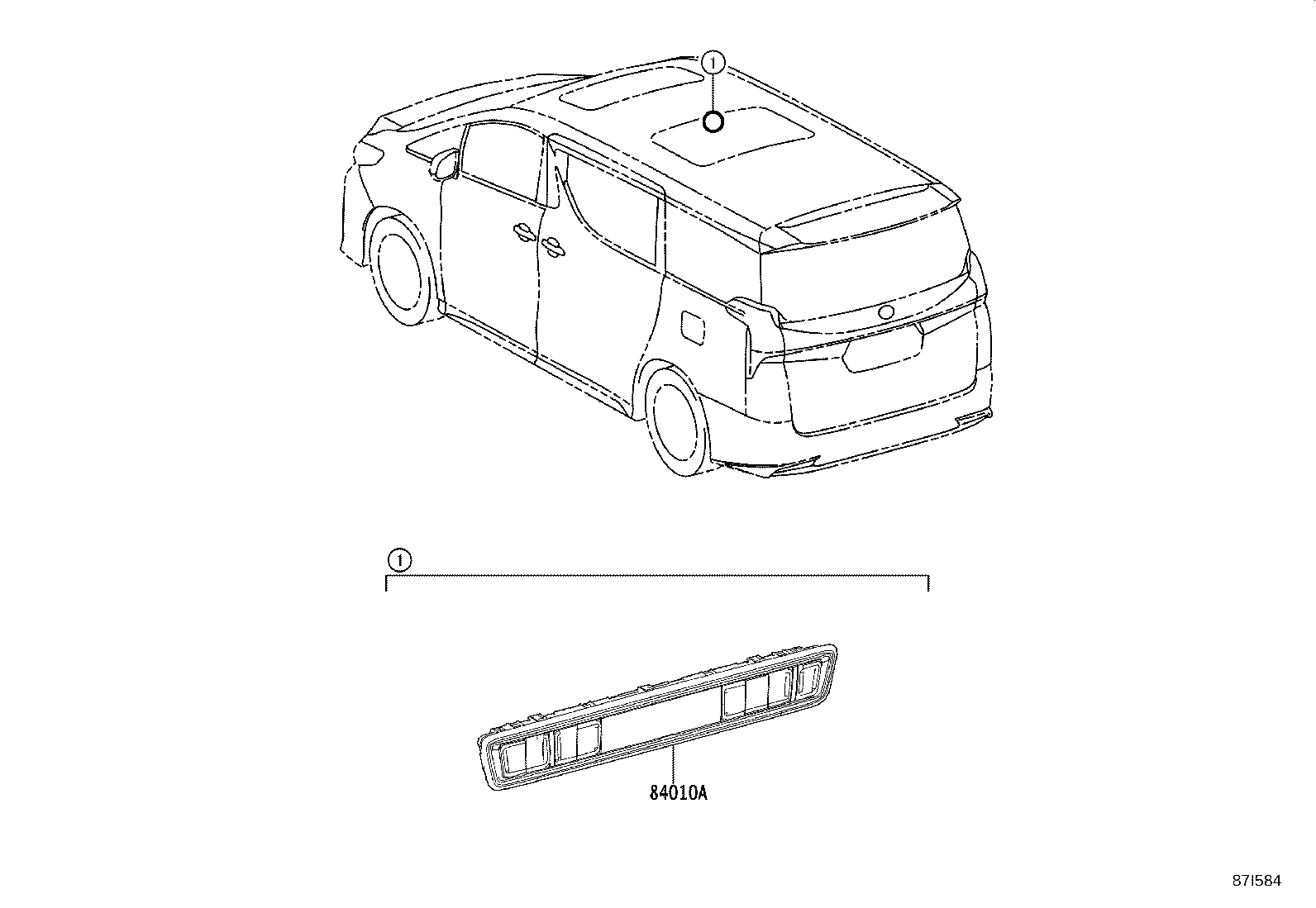

REAR HEATER CONTROL PANEL

diagram 84010A
Part # Description Qty Price
84010A - CONTROL & PANEL ASSY, INTEGRATION
84010-58280C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1

ILLUST NO. 3 OF 5(2001- )GGH31..LHD

Click highlighted areas on diagram

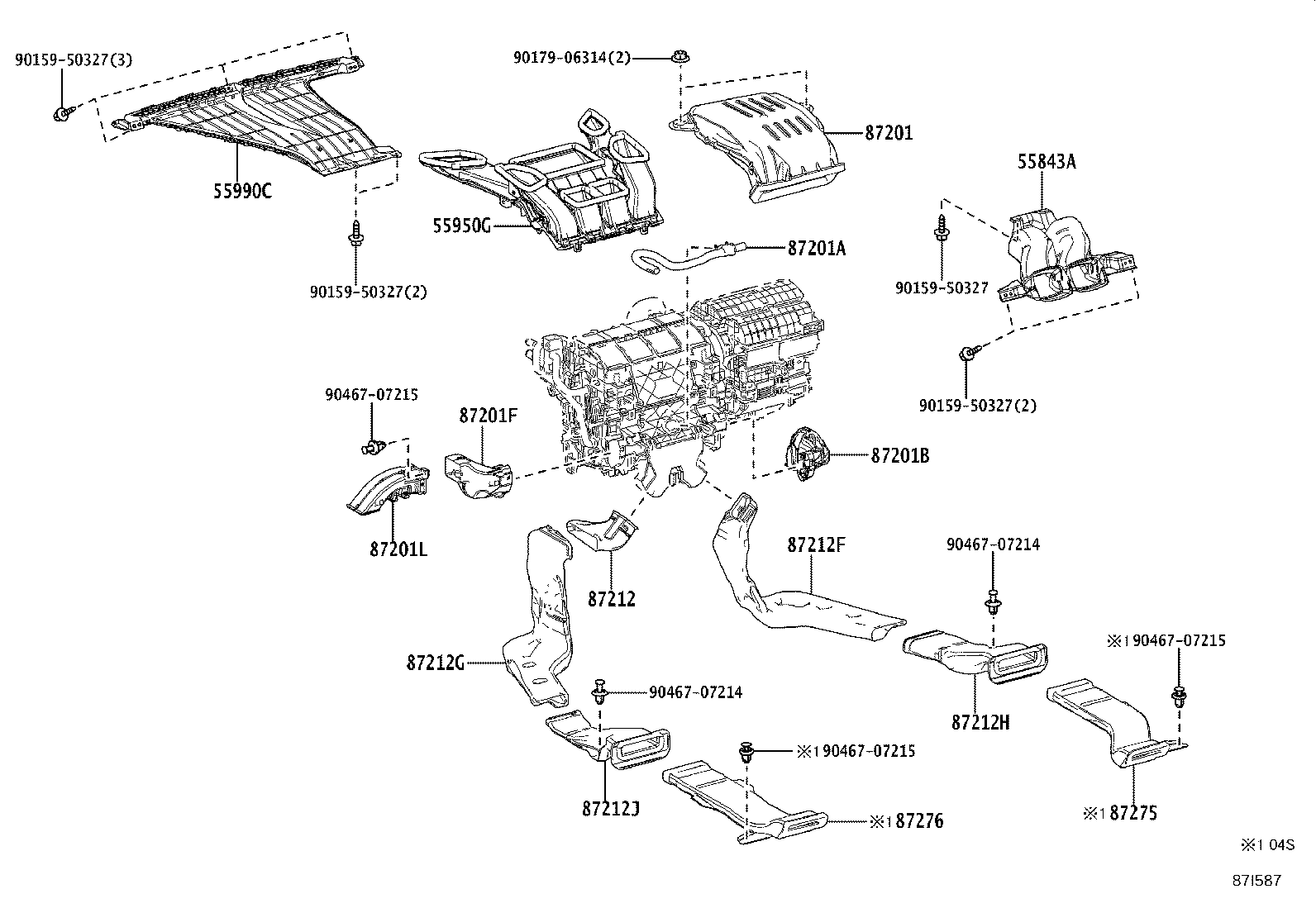

FRONT AIR DUCT

diagram 55843A 55950G 55990C 87201 87201A 87201B 87201F 87201L 87212 87212F 87212G 87212H 87212J 87275 87276 9015950327 9015950327 9015950327 9015950327 9017906314 9046707214 9046707214 9046707215 9046707215 9046707215
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-58100

AYH36,GGH31..LHD

 1
55950G - NOZZLE ASSY, DEFROSTER
55950-58071

AYH36,GGH31..LHD

 1
55990C - NOZZLE ASSY, CENTER DEFROSTER
55990-58030

AYH36,GGH31..LHD

 1
87201 - DUCT SUB-ASSY, AIR, NO.1
87201-58180

AYH36,GGH31..LHD

 1
87201A - DUCT SUB-ASSY, AIR
87201-58150

AYH36,GGH31..LHD

 1
87201B - DUCT SUB-ASSY, AIR, NO.2
87211-58140

AYH36,GGH31..LHD

 1
87201F - DUCT SUB-ASSY, AIR, NO.3
87211-58120

AYH36,GGH31..LHD

 1
87201L - DUCT SUB-ASSY, AIR, NO.4
87211-58130

AYH36,GGH31..LHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-58180

AYH36,GGH31..LHD

 1
87212F - DUCT, AIR, REAR NO.2
87212-58120

AYH36,GGH31..LHD

 1
87212G - DUCT, AIR, REAR NO.3
87212-58170

AYH36,GGH31..LHD

 1
87212H - DUCT, AIR, REAR NO.4
87212-58220

GGH31

 1
87212J - DUCT, AIR, REAR NO.5
87212-58230

GGH31

 1
Common parts
90159-50327
90179-06314
90467-07214
90467-07215

ILLUST NO. 4 OF 5(2001- )V

Click highlighted areas on diagram

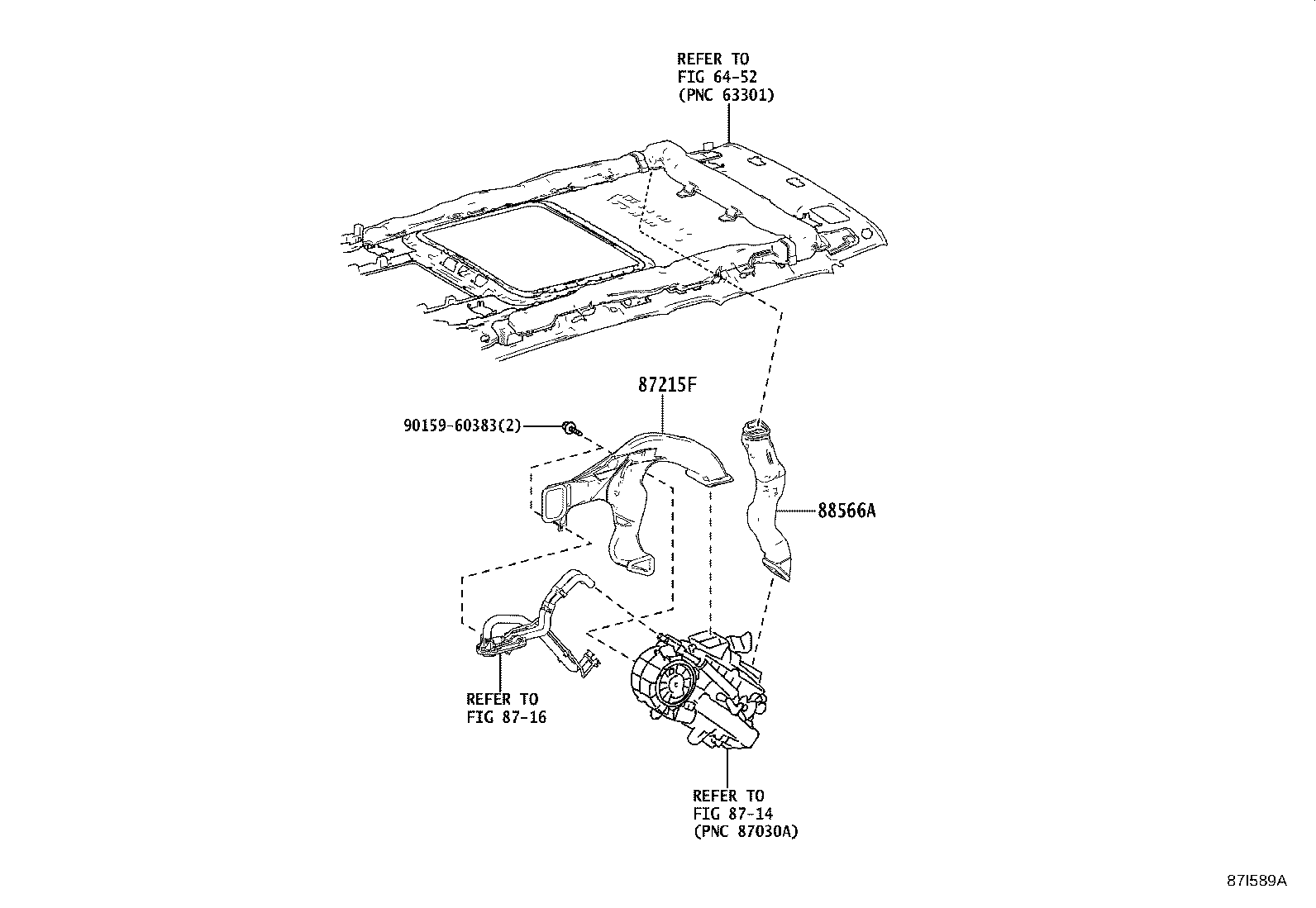

REAR AIR DUCT

diagram 6452 8714 8716 87215F 88566A 9015960383
Part # Description Qty Price
87215F - DUCT, AIR, REAR NO.3
87215-58040

AYH36,GGH31..V

 1
88566A - DUCT, COOLER AIR, NO.1
88566-58140

AYH36,GGH31

 1
88566-58141

AYH36,GGH31

 1
Common parts
90159-60383
Linked diagrams
6452
8714
8716

ILLUST NO. 5 OF 5(2001- )LHD

Click highlighted areas on diagram

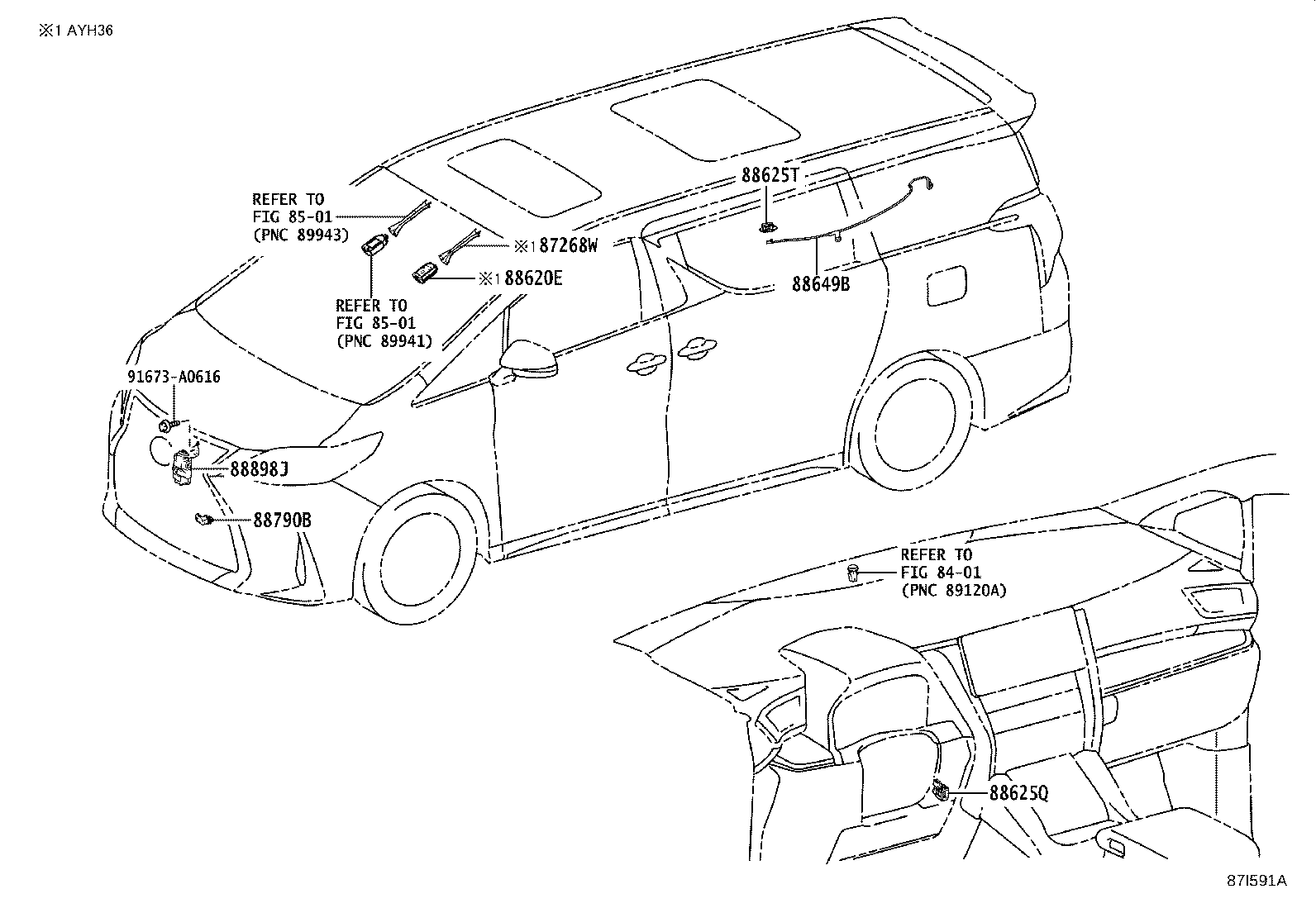

SENSOR

diagram 8401 8501 8501 87268W 88620E 88625Q 88625T 88649B 88790B 88898J 91673A0616
Part # Description Qty Price
88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR)
88625-47021

AYH36,GGH31

 1
88625T - THERMISTOR, COOLER (ROOM TEMP. SENSOR NO.2)
88625-45020C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
88649B - WIRING, COOLER
88649-58010

AYH36,GGH31..V

 1
88790B - THERMISTOR ASSY
88790-28100

AYH36,GGH31

 1
88898J - SENSOR, SMOG VENTILATION
88898-58031

AYH36,GGH31

 1
Common parts
91673-A0616
Linked diagrams
8401
8501
