GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

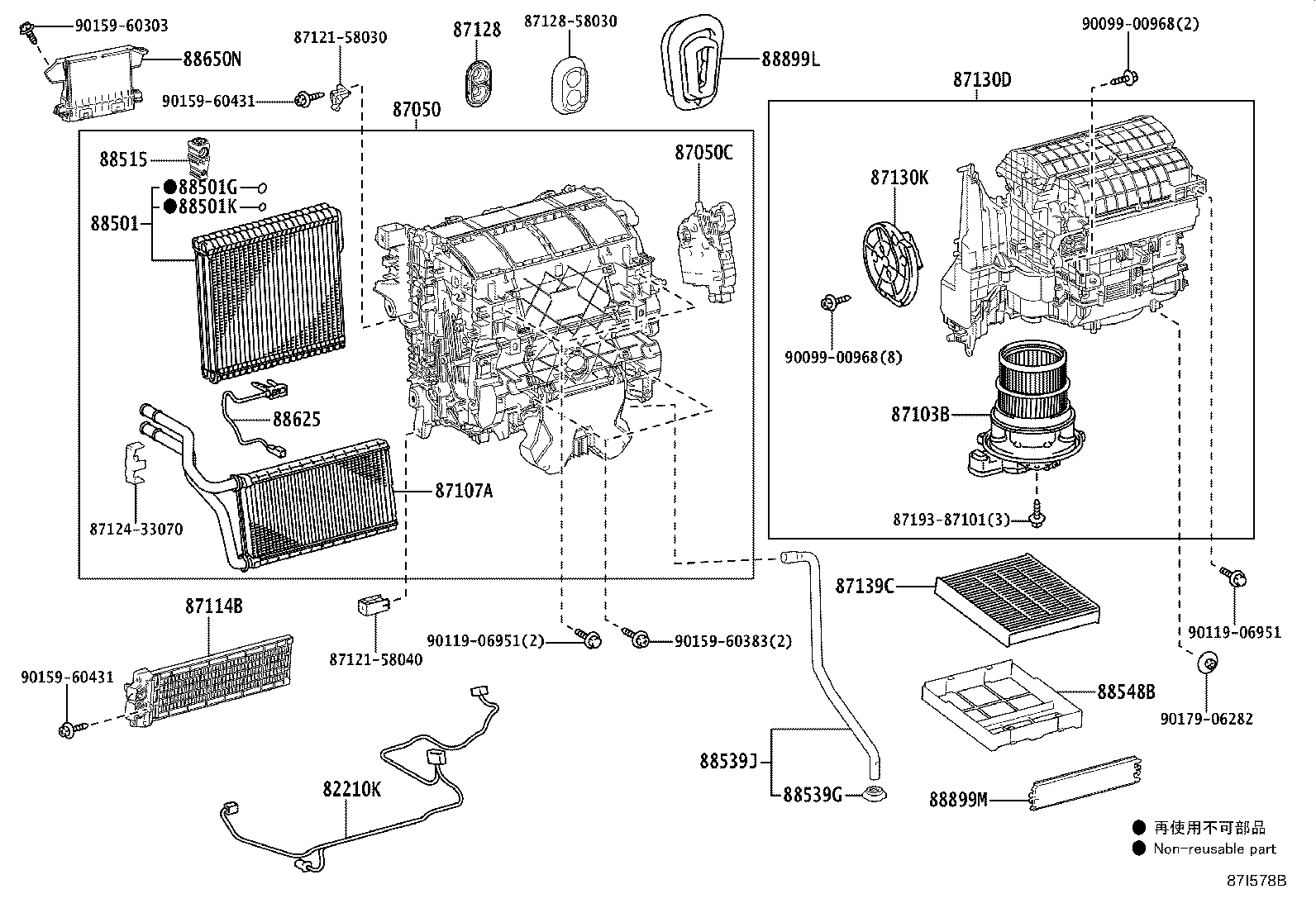

ILLUST NO. 1 OF 3(2001- )GGH31..LHD

Click highlighted areas on diagram

FRONT

diagram 82210K 87050 87050C 87103B 87107A 87114B 8712158030 8712158040 8712433070 87128 8712858030 87130D 87130K 87139C 8719387101 88501 88501G 88501K 88515 88539G 88539J 88548B 88625 88650N 88899L 88899M 9009900968 9009900968 9011906951 9011906951 9015960303 9015960383 9015960431 9015960431 9017906282
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-58090

GGH31..LHD

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-58120

GGH31..LHD

 1
87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87106-48170

AYH36,GGH31

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-58080

AYH36,GGH31..LHD

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-58060

AYH36,GGH31..LHD

 1
87114B - COVER, HEATER
87114-58050

GGH31;AYH36..RHD

 1
87128 - GROMMET, HEATER
87128-28010

AYH36,GGH31

 1
87130D - BLOWER ASSY
87130-47290

AYH36,GGH31..LHD

 1
87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1
87106-58050

AYH36,GGH31..LHD

 1
87139C - FILTER, CLEAN AIR
87139-58010

AYH36,GGH31

DEODORANT FILTER

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-58060

GGH31..8FC

 1
88501G - O-RING, COOLER EVAPORATOR NO.1(SUCTION)
90099-14121

AYH36,GGH31

ID=13.4,OD=18.2

 1
88501K - O-RING, COOLER EVAPORATOR NO.1(LIQUID)
90099-14120

AYH36,GGH31

ID=10.8,OD=15.6

 1
88515 - VALVE, COOLER EXPANSION
88515-48110

AYH36,GGH31

 1
88539G - GROMMET (FOR COOLER UNIT DRAIN HOSE)
90480-26022

AYH36,GGH31

 1
88539J - HOSE, DRAIN COOLER
88539-58091

AYH36,GGH31..LHD

 1
88548B - CASE, AIR FILTER
88899-48070

AYH36..RHD;GGH31..LHD

 1
88625 - THERMISTOR, COOLER, NO.1
88620-28060

GGH31..8FC

 1
88650N - AMPLIFIER ASSY, AIR CONDITIONER
88650-58290

GGH31..V

 1
88899L - PARTS, COOLING UNIT
88899-58040

AYH36,GGH31

 1
88899M - PLATE, COVER(FOR AIR FILTER)
88899-47120

AYH36,GGH31

 1
Common parts
87121-58030
87121-58040
87124-33070
87128-58030
87193-87101
90099-00968
90119-06951
90159-60303
90159-60383
90159-60431
90179-06282

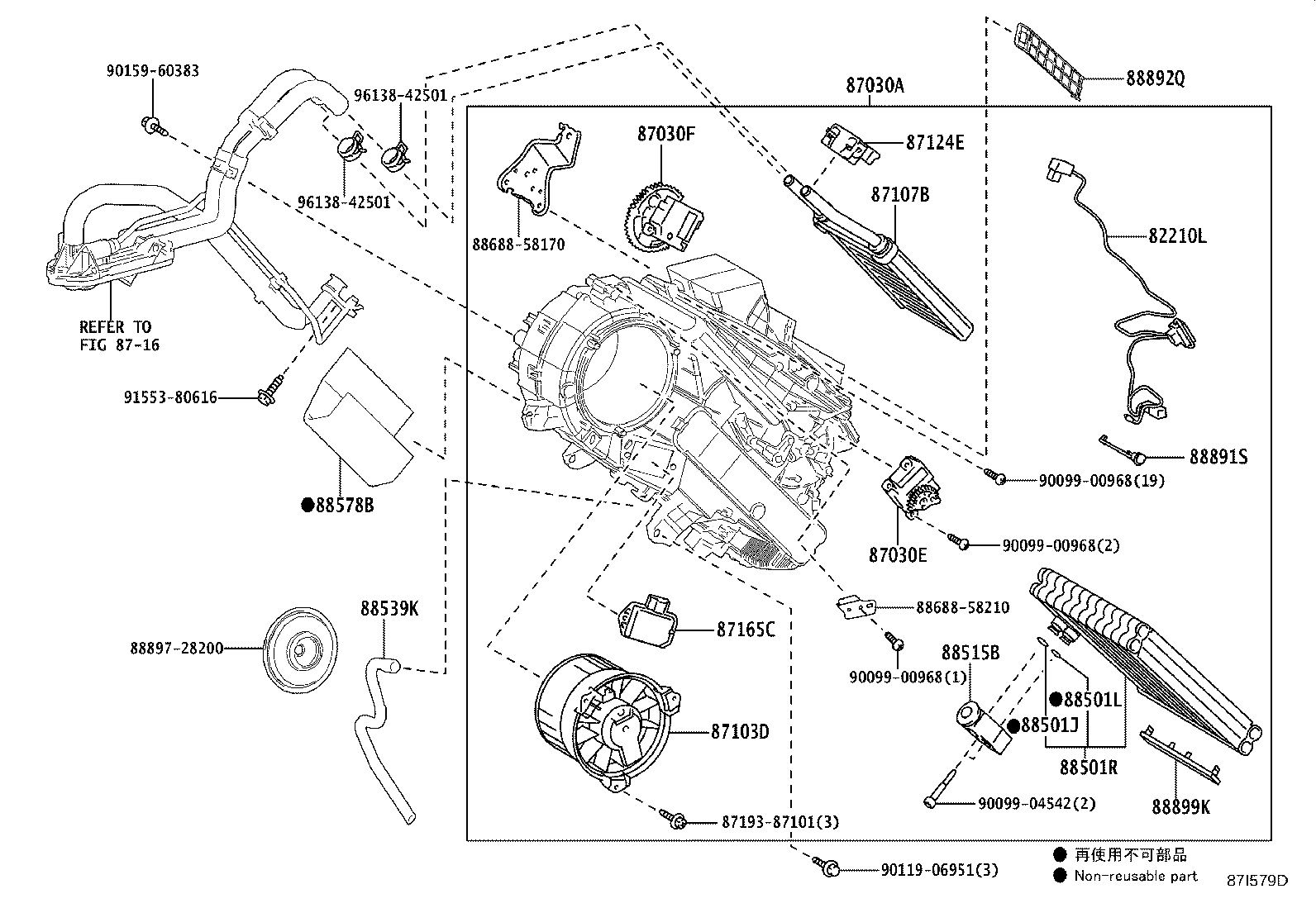

ILLUST NO. 2 OF 3(2001- )

Click highlighted areas on diagram

REAR

diagram 82210L 87030A 87030E 87030F 87103D 87107B 87124E 8716 87165C 8719387101 88501J 88501L 88501R 88515B 88539K 88578B 8868858170 8868858210 88891S 88892Q 8889728200 88899K 9009900968 9009900968 9009900968 9009904542 9011906951 9015960383 9155380616 9613842501 9613842501
Part # Description Qty Price
82210L - HARNESS ASSY, AIR CONDITIONER, NO.2
82212-58020

AYH36,GGH31

 1
87030A - UNIT ASSY, COOLING, REAR
87030-58030

GGH31

 1
87030E - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.1
87106-28170

AYH36,GGH31

 1
87030F - DAMPER SERVO SUB-ASSY, REAR COOLING UNIT, NO.2
87106-58030

AYH36,GGH31

 1
87103D - MOTOR SUB-ASSY, BLOWER W/FAN(FOR REAR)
87103-28111

AYH36,GGH31

 1
87107B - UNIT SUB-ASSY, HEATER RADIATOR
87107-28300

AYH36,GGH31

 1
87124E - CLAMP, HEATER
87124-28540

AYH36,GGH31

 1
87165C - CONTROL, BLOWER MOTOR
87165-58010

AYH36,GGH31

 1
87165-45030

AYH36,GGH31

 1
88501J - O-RING, COOLER EVAPORATOR NO.2(SUCTION)
90099-14121

AYH36,GGH31

ID=13.4,OD=18.2

 1
88501L - O-RING, COOLER EVAPORATOR NO.2(LIQUID)
90099-14120

AYH36,GGH31

ID=10.8,OD=15.6

 1
88501R - EVAPORATOR SUB-ASSY (REAR)
88501-28360

GGH31

 1
88515B - VALVE, REAR COOLING UNIT EXPANSION
88515-28210

AYH36,GGH31

 1
88539K - HOSE, DRAIN COOLER
88539-58070

AYH36,GGH31

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-28490

AYH36,GGH31

 1
88891S - COVER, COOLER, NO.1
88891-20240

AYH36,GGH31

 1
88892Q - PLATE, COOLER
88892-28020

AYH36,GGH31

 1
88899K - PLATE, COVER
88899-60450

AYH36,GGH31

 1
88899-60520

AYH36,GGH31

 1
Common parts
87193-87101
88688-58170
88688-58210
88897-28200
90099-00968
90099-04542
90119-06951
90159-60383
91553-80616
96138-42501
Linked diagrams
8716
