GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )

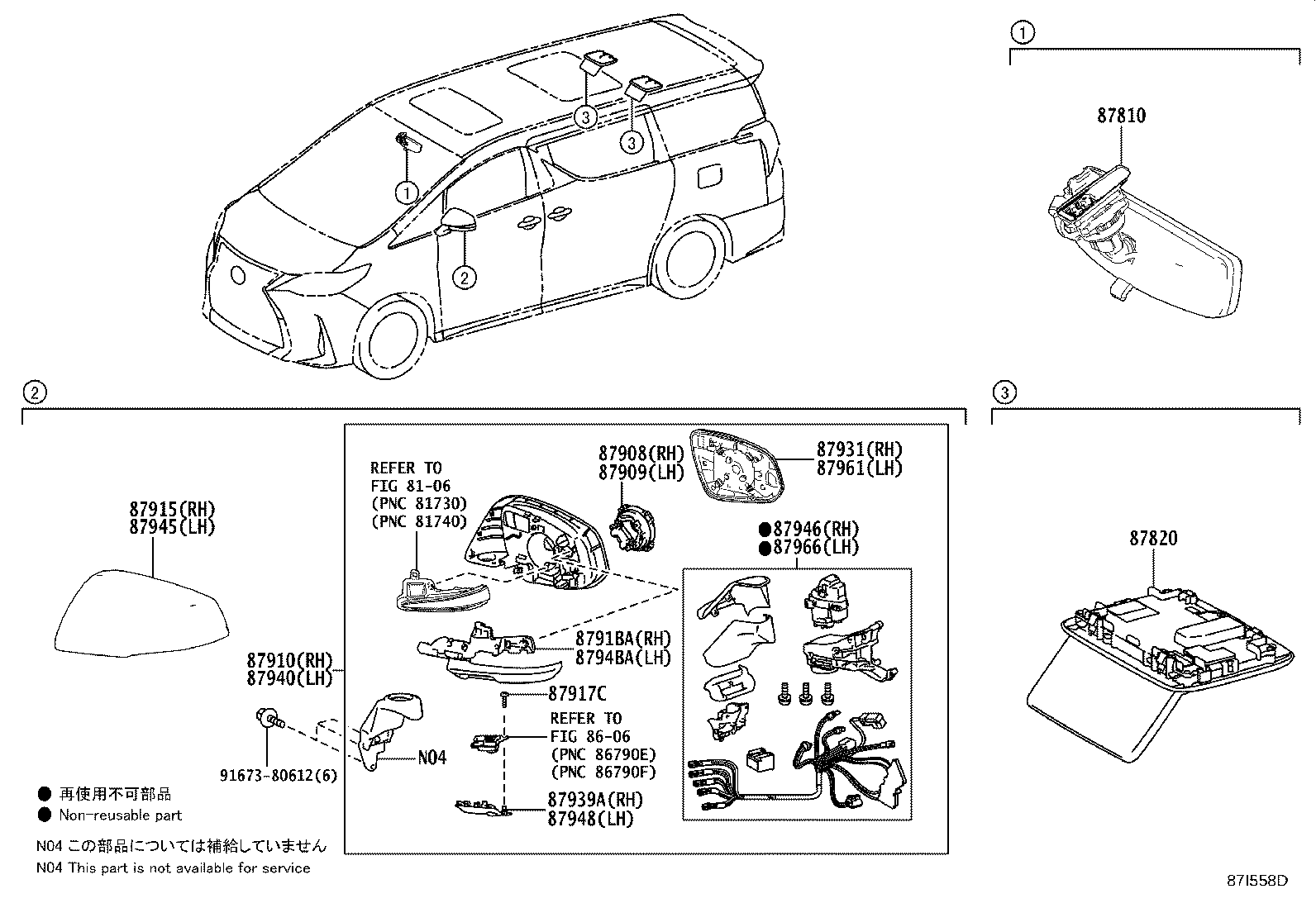

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-0WZ40 |
AYH36,GGH31 |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-58430 |
AYH36,GGH31..LHD NO PAINT REQ. |
1 | ||
| 87915 - COVER, OUTER MIRROR, RH | ||||
| 87915-58010A0 |
AYH36,GGH31 WHITE PEARL CS.,070 |
1 | ||
| 87915-58010C0 |
AYH36,GGH31 BLACK,202 |
1 | ||
| 87917C - SCREW, OUTER MIRROR | ||||
| 87917-58420 |
AYH36,GGH31 |
6 | ||
| 8791BA - COVER, OUTER MIRROR, RH NO.3 | ||||
| 8791B-58190 |
AYH36,GGH31 |
1 | ||
| 87931 - OUTER MIRROR, RH | ||||
| 87931-58310 |
AYH36,GGH31..LHD |
1 | ||
| 87939A - COVER, OUTER MIRROR HOLE, RH | ||||
| 87939-58420 |
AYH36,GGH31 |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-58480 |
AYH36,GGH31..LHD NO PAINT REQ. |
1 | ||
| 87945 - COVER, OUTER MIRROR, LH | ||||
| 87945-58010A0 |
AYH36,GGH31 WHITE PEARL CS.,070 |
1 | ||
| 87945-58010C0 |
AYH36,GGH31 BLACK,202 |
1 | ||
| 87946 - RETRACTOR, OUTER MIRROR, RH | ||||
| 87946-58430 |
AYH36,GGH31..LHD |
1 | ||
| 87948 - COVER, OUTER MIRROR HOLE, LH | ||||
| 87948-58470 |
AYH36,GGH31 |
1 | ||
| 8794BA - COVER, OUTER MIRROR, LH NO.3 | ||||
| 8794B-58240 |
AYH36,GGH31 |
1 | ||
| 87961 - MIRROR OUTER, LH | ||||
| 87961-58360 |
AYH36,GGH31..LHD |
1 | ||
| 87966 - RETRACTOR, OUTER MIRROR, LH | ||||
| 87966-58480 |
AYH36,GGH31..LHD |
1 | ||
| Common parts | ||||
| 91673-80612 | ||||
| Linked diagrams | ||||
| 8106 | ||||
| 8606 | ||||
