GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

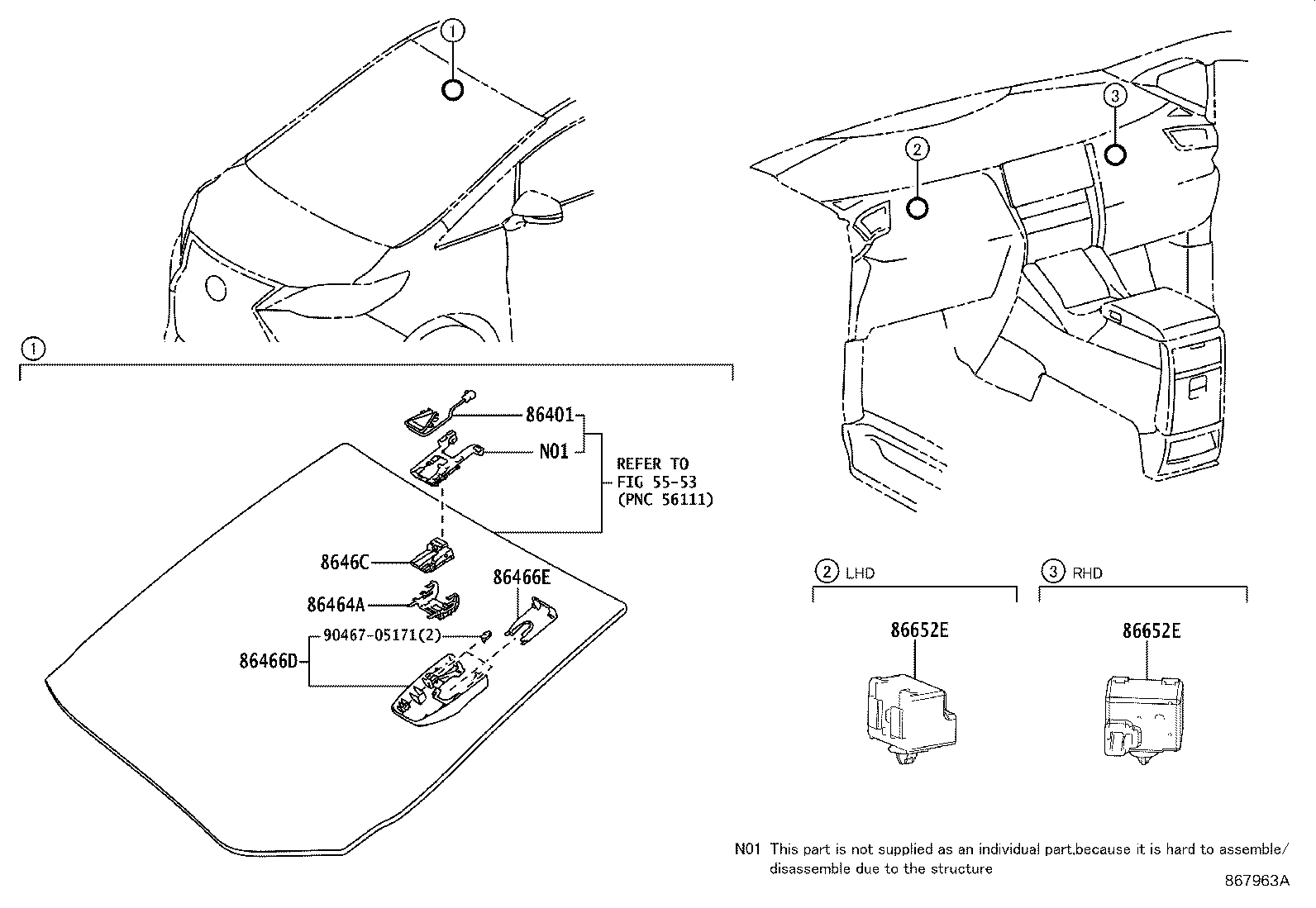

Click highlighted areas on diagram

diagram 5553 86401 86464A 86466D 86466E 8646C 86652E 86652E 9046705171
Part # Description Qty Price
86401 - HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER
86401-58020

AYH36,GGH31

 1
86464A - LATCH, FORWARD RECOGNITION
86464-26010

AYH36,GGH31

 1
86466D - COVER, FORWARD RECOGNITION, NO.1
86466-58010

AYH36,GGH31

 1
86466E - COVER, FORWARD RECOGNITION, NO.2
86466-58030

AYH36,GGH31

 1
8646C - CAMERA, FORWARD RECOGNITION
8646C-58030

AYH36,GGH31

 1
8646C-V2010

AYH36,GGH31

 1
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

AYH36,GGH31

 1
86652E - BUZZER, PRE-COLLISION CITY
86652-50010

AYH36,GGH31

 1
Common parts
90467-05171
Linked diagrams
5553
