GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )V

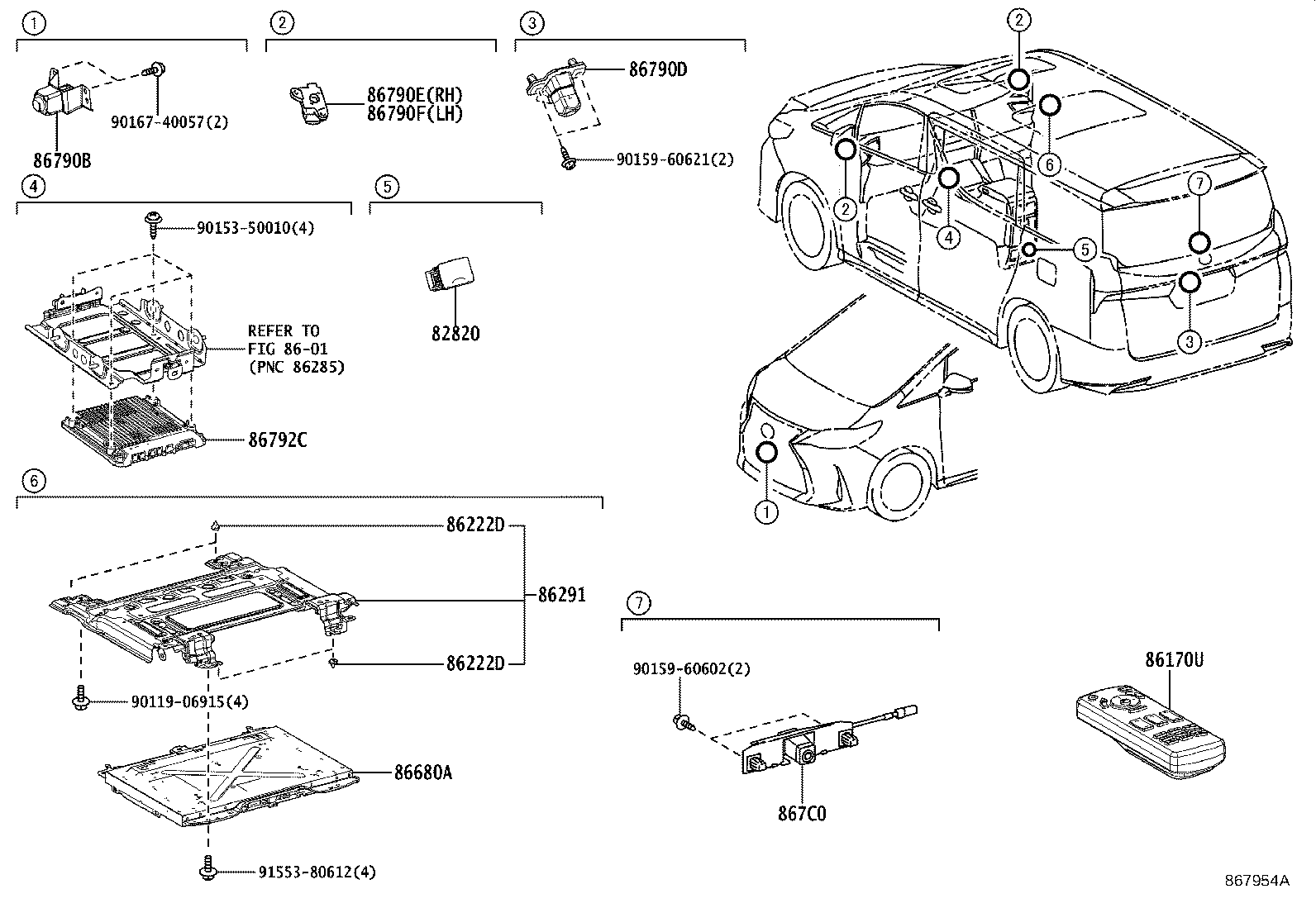

Click highlighted areas on diagram

diagram 82820 8601 86170U 86222D 86222D 86291 86680A 86790B 86790D 86790E 86790F 86792C 867C0 9011906915 9015350010 9015960602 9015960621 9016740057 9155380612
Part # Description Qty Price
82820 - COVER, CONNECTOR
82821-58050C2

AYH36,GGH31

BLACK,TRIM0#,2#

 1
86170U - SWITCH & VOLUME ASSY, REAR
86170-58150

GGH31..V;AYH36..RHD..V

 1
86222D - CLIP, TELEVISION BRACKET
86222-60020

AYH36,GGH31

 4
86222D - CLIP, TELEVISION BRACKET
86222-60020

AYH36,GGH31

 4
86291 - BRACKET, TELEVISION
86291-58052

AYH36,GGH31

 1
86680A - DISPLAY ASSY, TELEVISION
86680-58220C0

AYH36..RHD..V;GGH31..8FC..V

PANASONIC,BLACK,TRIM0#,2#

 1
86790B - CAMERA ASSY, TELEVISION, FR
86790-58250

AYH36,GGH31

 1
86790D - CAMERA ASSY, TELEVISION, RR
86790-58240

AYH36,GGH31

 1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
86790-58270

AYH36,GGH31

 1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
86790-58260

AYH36,GGH31

 1
86792C - COMPUTER, PARKING ASSIST
86792-58330

AYH36,GGH31..LHD

 1
867C0 - CAMERA ASSY, INNER MIRROR
867C0-58050

AYH36;GGH31..LHD

 1
Common parts
90119-06915
90153-50010
90159-60602
90159-60621
90167-40057
91553-80612
Linked diagrams
8601
