GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )LHD

Click highlighted areas on diagram

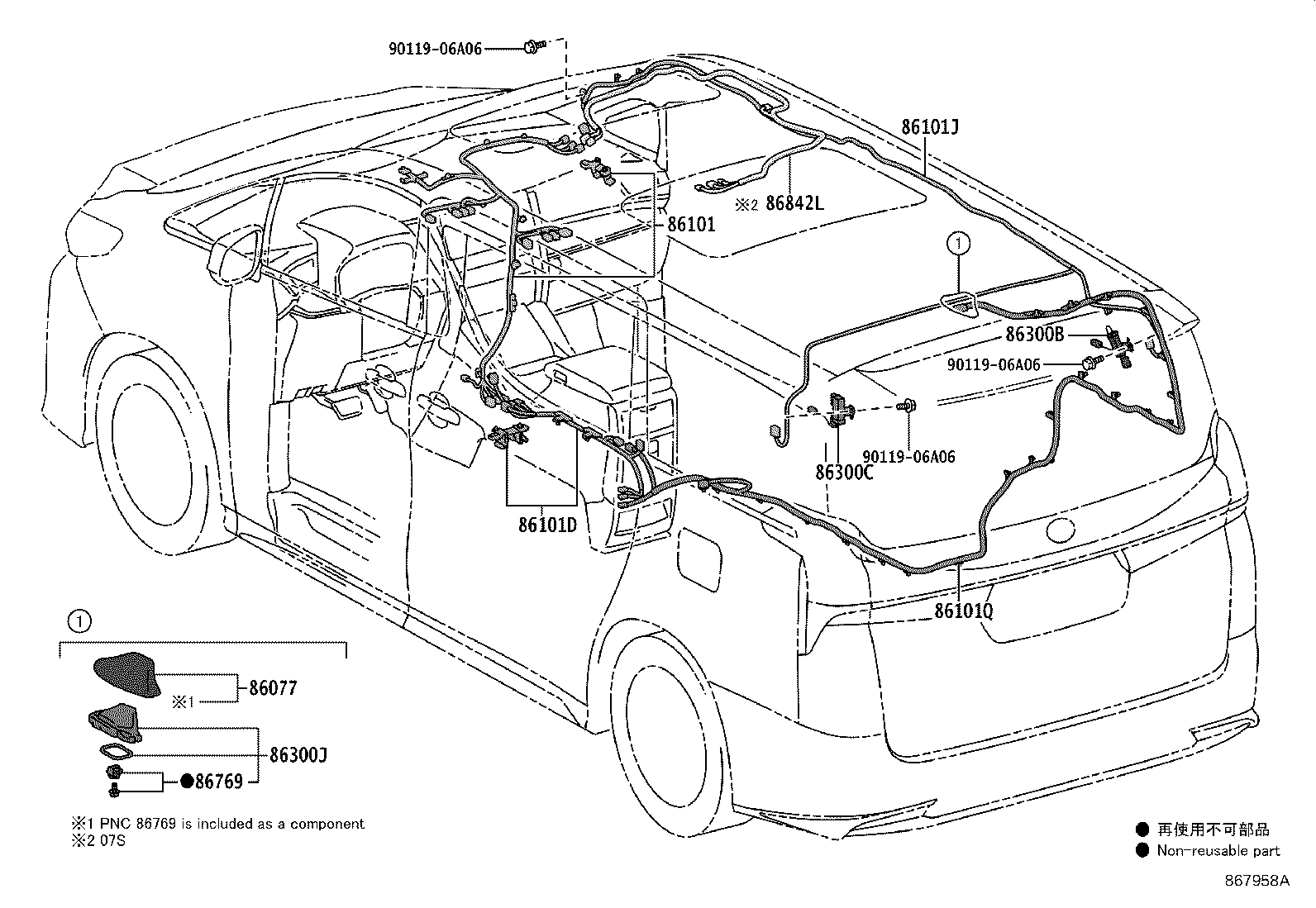

W(SHARKFIN ANTENNA)

diagram 86077 86101 86101D 86101J 86101Q 86300B 86300C 86300J 86769 86842L 9011906A06 9011906A06 9011906A06
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-58840

GGH31..LHD..V

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-58850

AYH36,GGH31

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-58130

AYH36,GGH31

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-58150

AYH36,GGH31

 1
86842L - WIRE, NAVIGATION, NO.1
86842-58820

AYH36,GGH31..V

 1
Common parts
90119-06A06

(2001- )LHD

Click highlighted areas on diagram

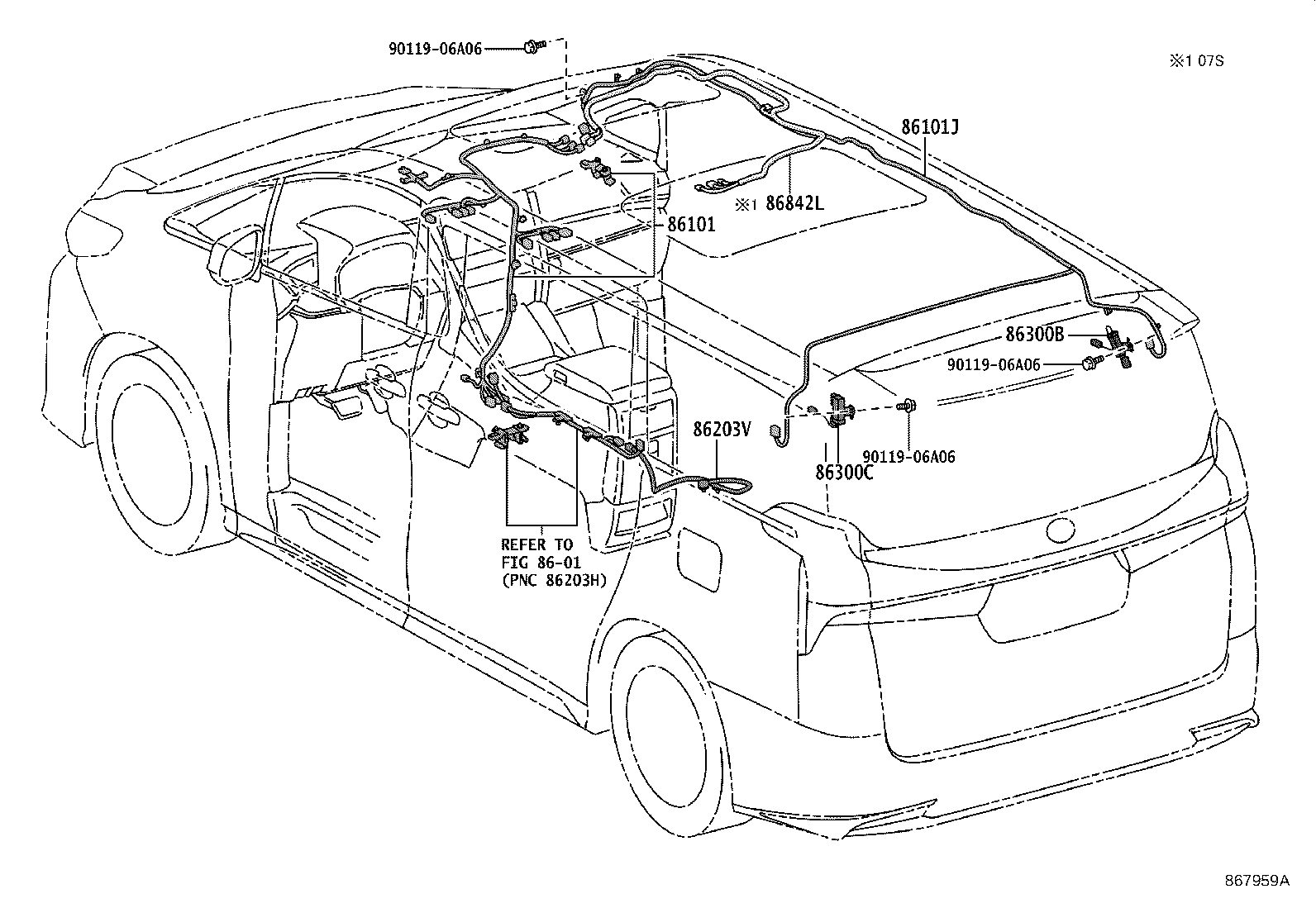

W/O(SHARKFIN ANTENNA)

diagram 8601 86101 86101J 86203V 86300B 86300C 86842L 9011906A06 9011906A06 9011906A06
Part # Description Qty Price
86101 - CORD SUB-ASSY, ANTENNA
86101-58840

GGH31..LHD..V

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-58850

AYH36,GGH31

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-58130

AYH36,GGH31

 1
86300C - ANTENNA ASSY, AMPLIFIER, NO.2
86300-58150

AYH36,GGH31

 1
86842L - WIRE, NAVIGATION, NO.1
86842-58820

AYH36,GGH31..V

 1
Common parts
90119-06A06
Linked diagrams
8601
