GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )V

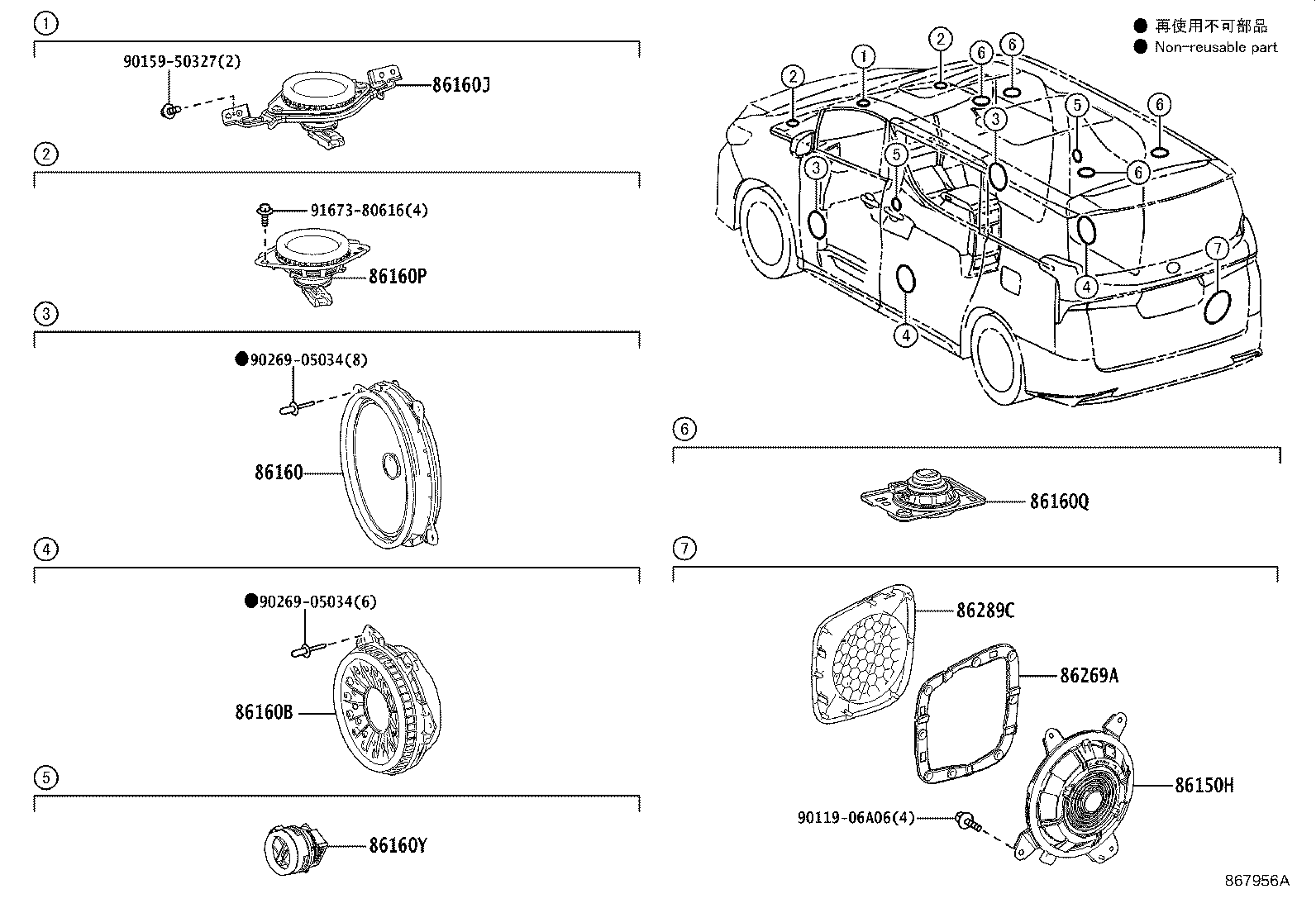

Click highlighted areas on diagram

diagram 86150H 86160 86160B 86160J 86160P 86160Q 86160Y 86269A 86289C 9011906A06 9015950327 9026905034 9026905034 9167380616
Part # Description Qty Price
86150H - SPEAKER ASSY, W/BRACKET
86150-0W440

AYH36,GGH31

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-0WW00

AYH36,GGH31

 2
86160B - SPEAKER ASSY, REAR
86150-58200

AYH36,GGH31

 2
86160J - SPEAKER ASSY, FRONT NO.3
86150-58170

AYH36,GGH31..V

 1
86160P - SPEAKER ASSY, FRONT NO.2
86150-58160

AYH36,GGH31

 2
86160Q - SPEAKER ASSY, ROOF
86150-58210

AYH36,GGH31..V

 4
86160Y - SPEAKER ASSY, REAR NO.2
86160-0WS10

AYH36,GGH31

 2
86269A - GRILLE, SPEAKER
86269-58030

AYH36,GGH31

 1
86289C - PLATE, SPEAKER GRILLE
86289-58010C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
Common parts
90119-06A06
90159-50327
90269-05034
91673-80616
