GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

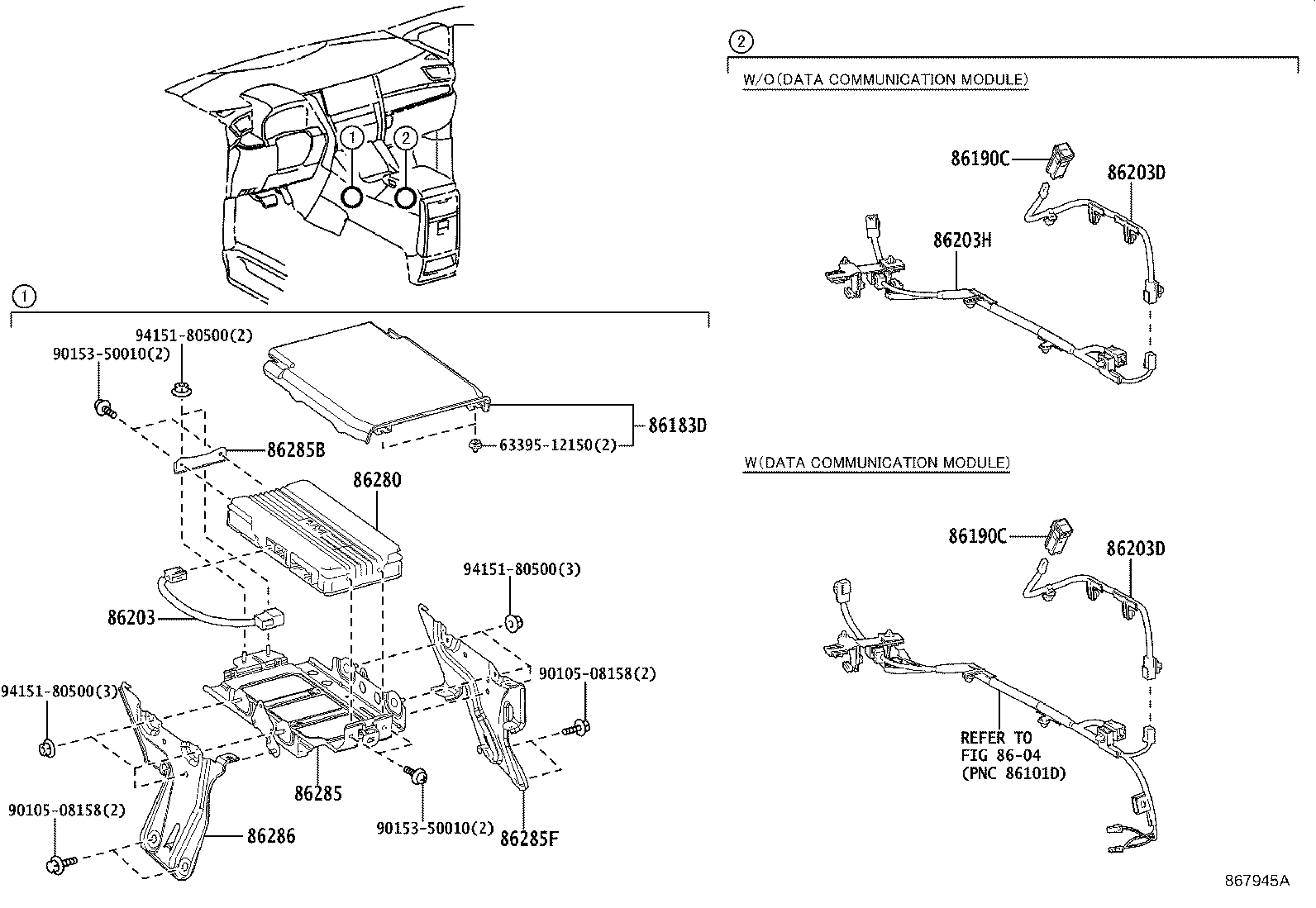

ILLUST NO. 1 OF 2(2001- )LHD

Click highlighted areas on diagram

diagram 6339512150 8604 86183D 86190C 86190C 86203 86203D 86203D 86203H 86280 86285 86285B 86285F 86286 9010508158 9010508158 9015350010 9015350010 9415180500 9415180500 9415180500
Part # Description Qty Price
86183D - COVER, AUDIO AMPLIFIER
86183-58020

AYH36,GGH31

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-26010

AYH36,GGH31

 1
86190-26011

AYH36,GGH31

 1
86190C - ADAPTER ASSY, STEREO JACK, NO.1
86190-26010

AYH36,GGH31

 1
86190-26011

AYH36,GGH31

 1
86203 - WIRE, RADIO
86203-58250

AYH36,GGH31

 1
86203D - WIRE, STEREO COMPONENT, NO.1
86203-58410

AYH36,GGH31

 1
86203D - WIRE, STEREO COMPONENT, NO.1
86203-58410

AYH36,GGH31

 1
86203H - WIRE, STEREO COMPONENT, NO.2
86203-58460

GGH31..V;AYH36..RHD..V

 1
86280 - AMPLIFIER ASSY, STEREO COMPONENT
86280-0WG50

AYH36,GGH31..V

 1
86285 - BRACKET, AMPLIFIER, NO.1
86285-58220

AYH36,GGH31

 1
86285B - BRACKET, AMPLIFIER, NO.1
86285-58200

AYH36,GGH31

 1
86285F - BRACKET, AMPLIFIER, NO.2
86285-58230

AYH36,GGH31

 1
86286 - BRACKET, AMPLIFIER, NO.2
86286-58020

AYH36,GGH31

 1
Common parts
63395-12150
90105-08158
90153-50010
94151-80500
Linked diagrams
8604

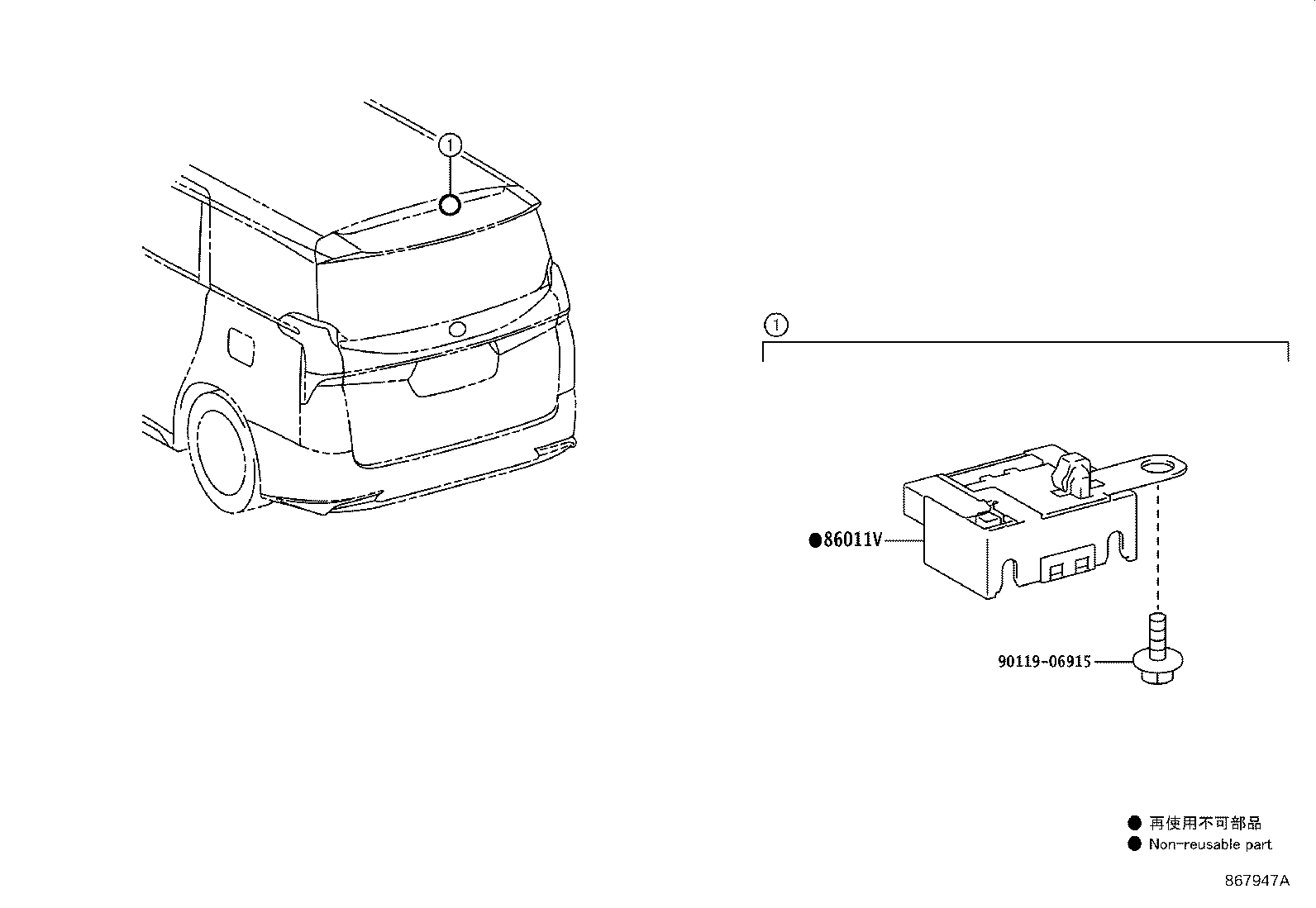

ILLUST NO. 2 OF 2(2001- )

Click highlighted areas on diagram

CONDENSER

diagram 86011V 9011906915
Part # Description Qty Price
86011V - CONDENSER, RADIO SETTING
90980-04204

AYH36,GGH31

 1
Common parts
90119-06915
