GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )

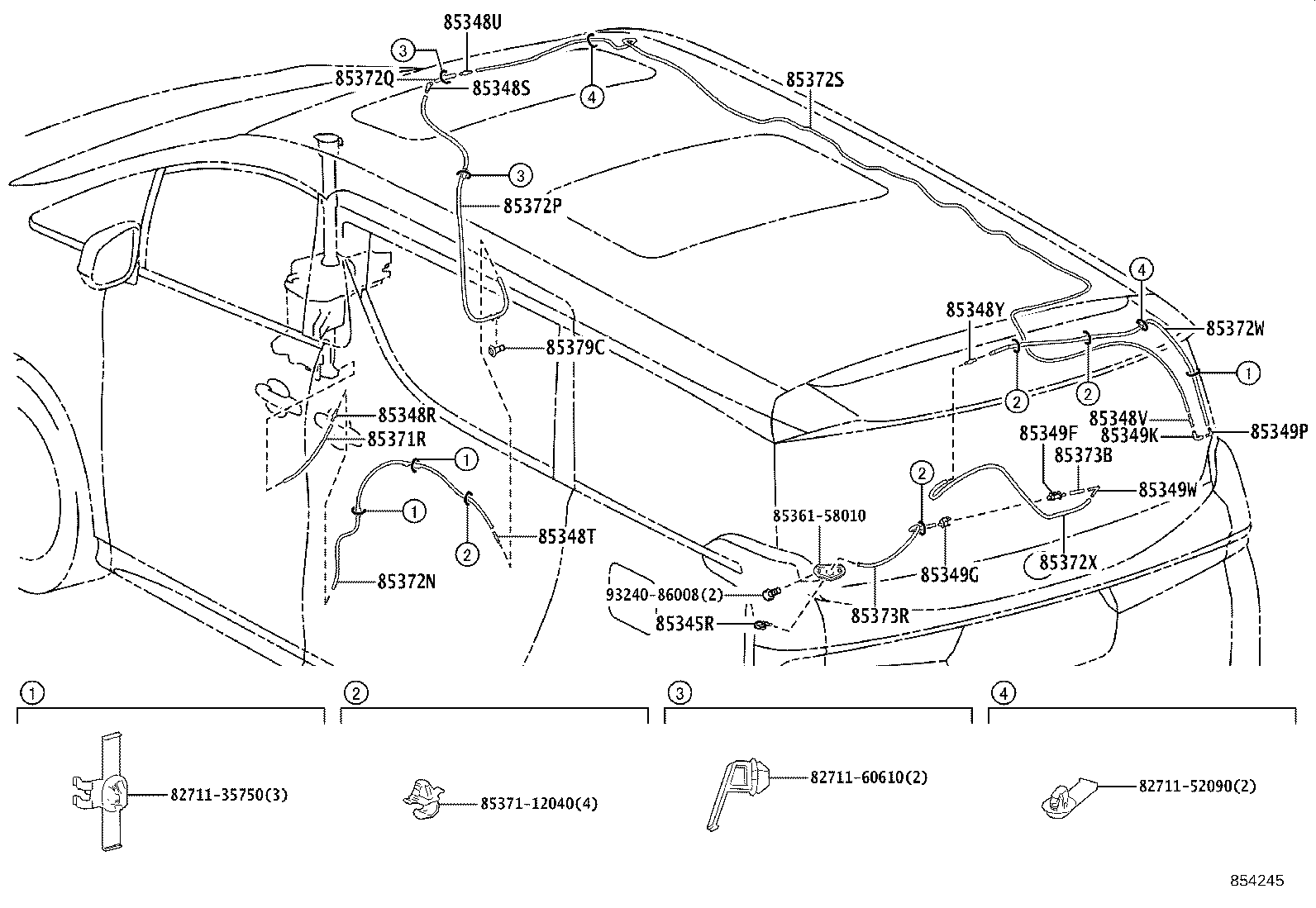

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85345R - NOZZLE, REAR WASHER | ||||
| 85391-58020 |
AYH36,GGH31 |
1 | ||
| 85348R - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85349-89122 |
AYH36,GGH31 |
1 | ||
| 85348S - JOINT, REAR WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
AYH36,GGH31 |
1 | ||
| 85348T - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85349-89122 |
AYH36,GGH31 |
1 | ||
| 85348U - JOINT, REAR WASHER HOSE, NO.3 | ||||
| 85349-89122 |
AYH36,GGH31 |
1 | ||
| 85348V - JOINT, REAR WASHER HOSE, NO.4 | ||||
| 85349-89122 |
AYH36,GGH31 |
1 | ||
| 85348Y - JOINT, REAR WASHER HOSE, NO.5 | ||||
| 85349-89122 |
AYH36,GGH31 |
1 | ||
| 85349F - JOINT, REAR WASHER HOSE, NO.1 | ||||
| 85375-58270 |
AYH36,GGH31 |
1 | ||
| 85349G - JOINT, REAR WASHER HOSE, NO.2 | ||||
| 85395-58030 |
AYH36,GGH31 |
1 | ||
| 85349K - JOINT, REAR WASHER ELBOW, NO.2 | ||||
| 85355-14481 |
AYH36,GGH31 |
1 | ||
| 85349P - JOINT, REAR WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
AYH36,GGH31 |
1 | ||
| 85349W - JOINT, REAR WASHER ELBOW, NO.4 | ||||
| 85355-12360 |
AYH36,GGH31 |
1 | ||
| 85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-62129 |
AYH36,GGH31 L=200 |
1 | ||
| 85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-62127 |
AYH36,GGH31 L=960 |
1 | ||
| 85372P - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-62054 |
AYH36,GGH31 L=716 |
1 | ||
| 85372Q - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-62128 |
AYH36,GGH31 L=125 |
1 | ||
| 85372S - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-62140 |
AYH36,GGH31 L=4440 |
1 | ||
| 85372W - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-62173 |
AYH36,GGH31 L=730 |
1 | ||
| 85372X - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-62126 |
AYH36,GGH31 L=600 |
1 | ||
| 85373B - HOSE, REAR WASHER(FROM JOINT TO JOINT), NO.7 | ||||
| 90099-62089 |
AYH36,GGH31 L=30 |
1 | ||
| 85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-62058 |
AYH36,GGH31 L=390 |
1 | ||
| 85379C - GROMMET, REAR WASHER HOSE NO.1 | ||||
| 85379-16180 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 82711-35750 | ||||
| 82711-52090 | ||||
| 82711-60610 | ||||
| 85361-58010 | ||||
| 85371-12040 | ||||
| 93240-86008 | ||||
