GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

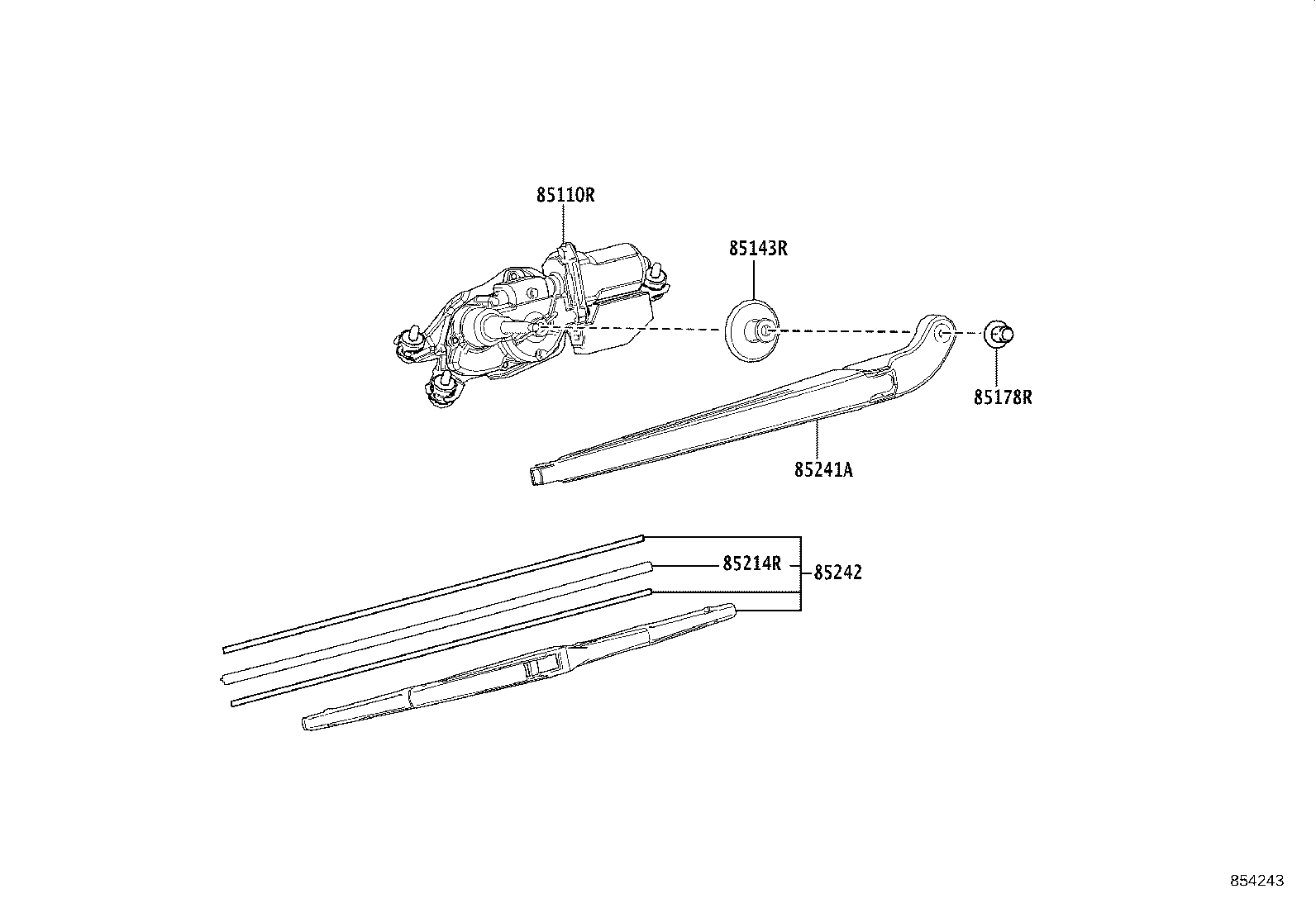

Click highlighted areas on diagram

diagram 85110R 85143R 85178R 85214R 85241A 85242
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-58020

AYH36,GGH31

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-58010

AYH36,GGH31

 1
85178R - NUT (FOR REAR WIPER ARM SETTING)
85113-58020

AYH36,GGH31

 1
85214R - RUBBER, REAR WIPER
85214-30280

AYH36,GGH31

 1
85241A - ARM, REAR WIPER
85241-58030

AYH36,GGH31

 1
85242 - BLADE, RR WIPER
85242-12130

AYH36,GGH31

 1
