GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

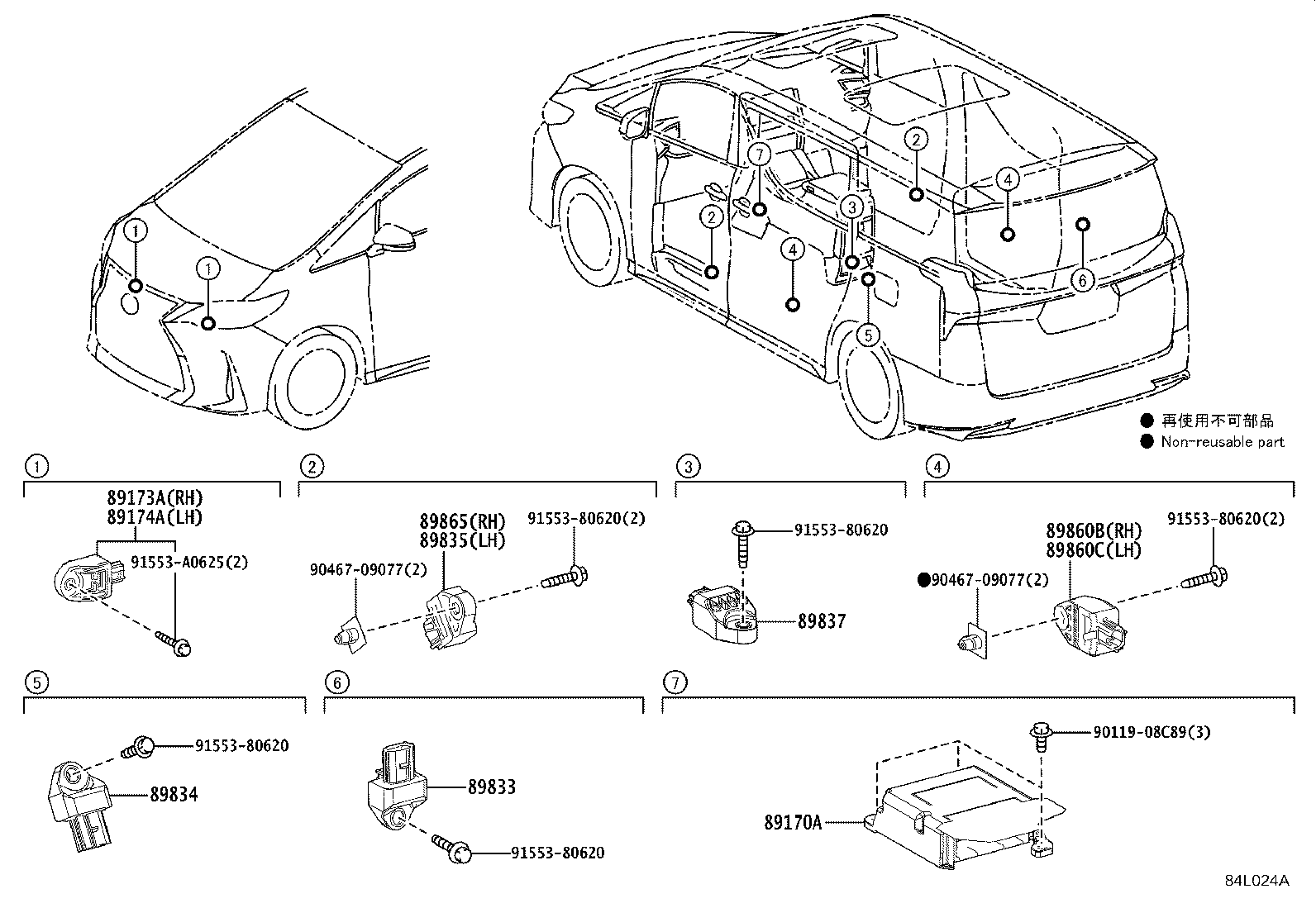

Click highlighted areas on diagram

diagram 89170A 89173A 89174A 89833 89834 89835 89837 89860B 89860C 89865 9011908C89 9046709077 9046709077 9155380620 9155380620 9155380620 9155380620 9155380620 91553A0625
Part # Description Qty Price
89170A - COMPUTER ASSY, AIR BAG
89170-58080

GGH31

 1
89173A - SENSOR, AIR BAG, FRONT RH
89173-79095

AYH36,GGH31

 1
89174A - SENSOR, AIR BAG, FRONT LH
89173-79095

AYH36,GGH31

 1
89833 - SENSOR, AIR BAG, REAR RH
89831-28040

AYH36,GGH31

 1
89834 - SENSOR, AIR BAG, REAR LH
89831-28040

AYH36,GGH31

 1
89835 - SENSOR, DOOR SIDE AIR BAG, LH
89831-58010

AYH36,GGH31

 1
89837 - SENSOR, FRONT FLOOR SIDE AIR BAG
89837-28040

AYH36,GGH31

 1
89860B - SENSOR ASSY, SIDE AIR BAG, RH, NO.2
89831-28050

AYH36,GGH31

 1
89860C - SENSOR ASSY, SIDE AIR BAG, LH, NO.2
89831-28050

AYH36,GGH31

 1
89865 - SENSOR, DOOR SIDE AIR BAG, RH
89831-58010

AYH36,GGH31

 1
Common parts
90119-08C89
90467-09077
91553-80620
91553-A0625
