GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

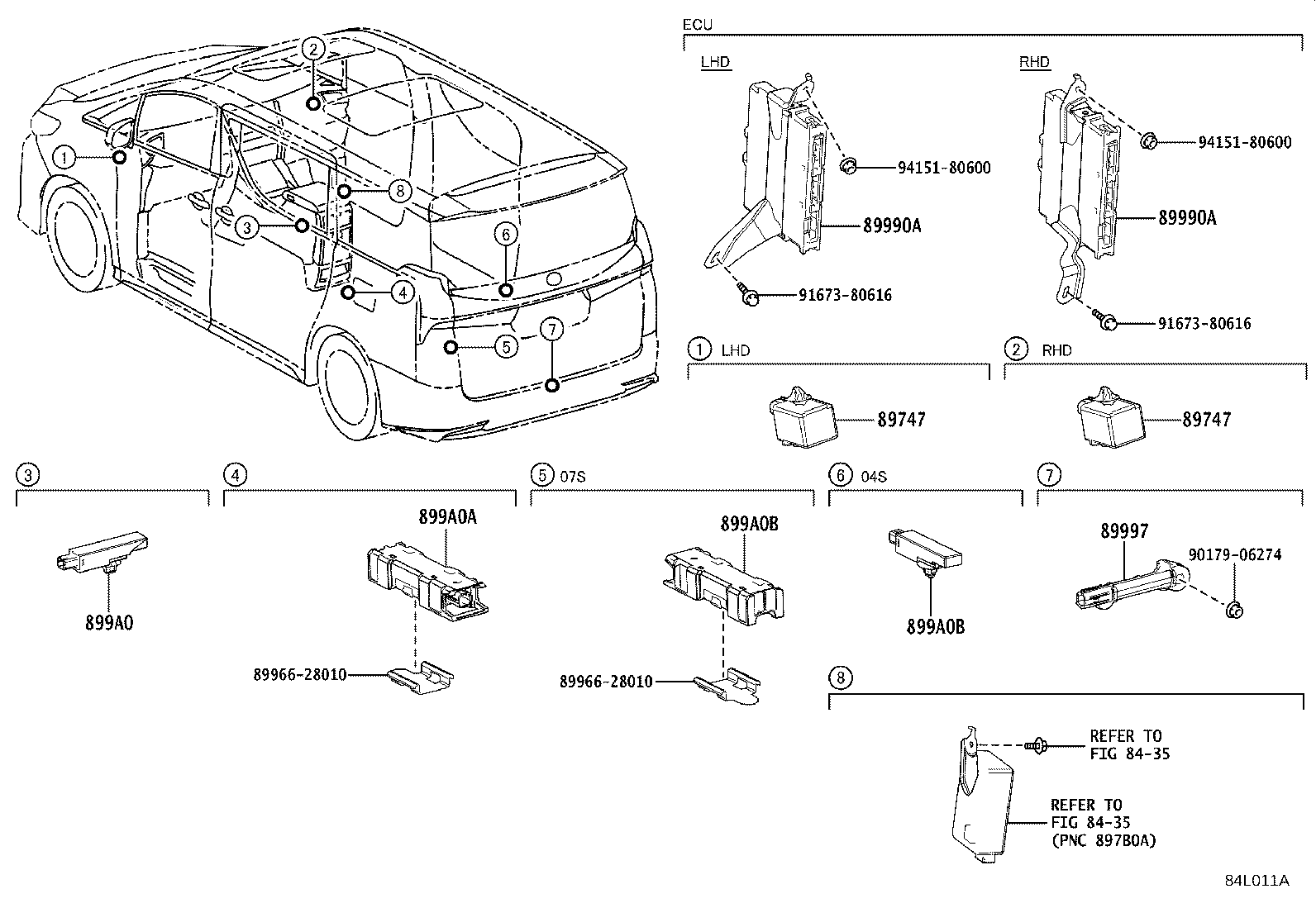

Click highlighted areas on diagram

diagram 8435 8435 89747 89747 8996628010 8996628010 89990A 89990A 89997 899A0 899A0A 899A0B 899A0B 9017906274 9167380616 9167380616 9415180600 9415180600
Part # Description Qty Price
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

AYH36,GGH31

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-30040

AYH36,GGH31

 1
89990A - COMPUTER ASSY, SMART KEY
89990-58280

GGH31..LHD..V

 1
89990A - COMPUTER ASSY, SMART KEY
89990-58280

GGH31..LHD..V

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-30100

AYH36,GGH31

 1
899A0 - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1
899A0-47010

AYH36,GGH31

 1
899A0A - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2
899A0-60020

AYH36,GGH31

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-60020

AYH36,GGH31..V

 1
899A0B - ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3
899A0-60020

AYH36,GGH31..V

 1
Common parts
89966-28010
90179-06274
91673-80616
94151-80600
Linked diagrams
8435
