GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

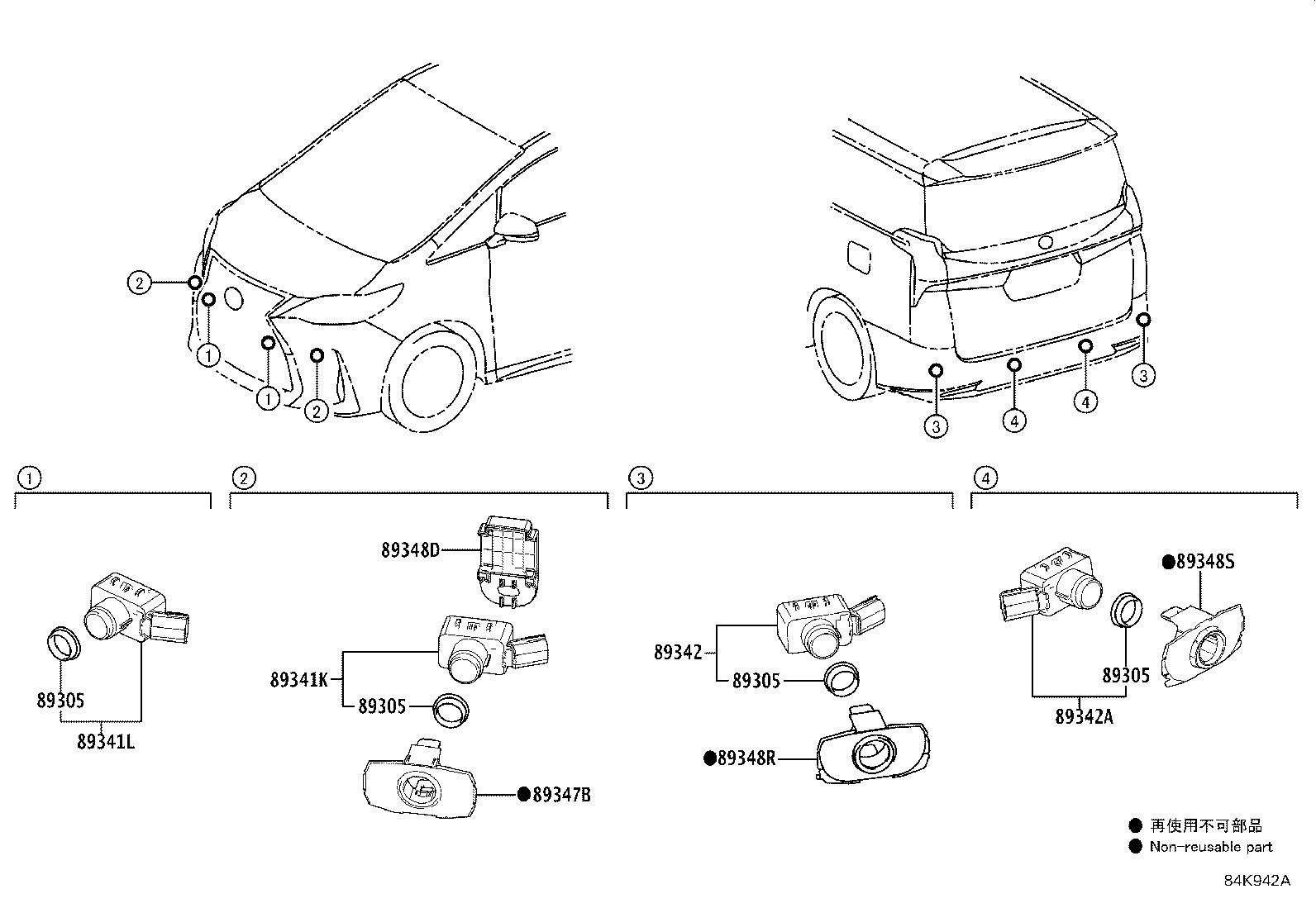

ILLUST NO. 1 OF 2(2001- )

Click highlighted areas on diagram

diagram 89305 89305 89305 89305 89341K 89341L 89342 89342A 89347B 89348D 89348R 89348S
Part # Description Qty Price
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

AYH36,GGH31

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

AYH36,GGH31

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

AYH36,GGH31

 1
89305 - CUSHION SET, ULTRASONIC SENSOR
89305-47010

AYH36,GGH31

 1
89341K - SENSOR, ULTRASONIC, FRONT CORNER
89341-33220A5

AYH36,GGH31

WHITE PEARL CS.,070

 2
89341-33220C5

AYH36,GGH31

BLACK,202

 2
89341L - SENSOR, ULTRASONIC, FRONT CENTER
89341-33220C4

AYH36,GGH31

MAT BLACK

 2
89342 - SENSOR, ULTRASONIC, REAR CORNER
89341-33220A5

AYH36,GGH31

WHITE PEARL CS.,070

 2
89341-33220C5

AYH36,GGH31

BLACK,202

 2
89342A - SENSOR, ULTRASONIC, REAR CENTER
89341-33220A5

AYH36,GGH31

WHITE PEARL CS.,070

 2
89341-33220C5

AYH36,GGH31

BLACK,202

 2
89347B - RETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348-50130

AYH36,GGH31

 2
89348D - CLIP, ULTRASONIC SENSOR
89348-58130

AYH36,GGH31

 2
89348R - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-58320C0

AYH36,GGH31

BLACK,202

 2
89348-58320A0

AYH36,GGH31

WHITE PEARL CS.,070

 2
89348S - RETAINER, ULTRASONIC SENSOR, REAR CENTER
89348-48160C4

AYH36,GGH31

BLACK,202

 2
89348-48160A0

AYH36,GGH31

WHITE PEARL CS.,070

 2

ILLUST NO. 2 OF 2(2001- )

Click highlighted areas on diagram

diagram 89340A 89340A 89343C 89343D 9167380616 9167380616
Part # Description Qty Price
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-58150

AYH36,GGH31..LHD

 1
89340A - COMPUTER ASSY, CLEARANCE WARNING
89340-58150

AYH36,GGH31..LHD

 1
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-48010

AYH36,GGH31

 1
89343D - BUZZER, CLEARANCE WARNING, NO.2
89747-30040

AYH36,GGH31

 1
Common parts
91673-80616
