GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

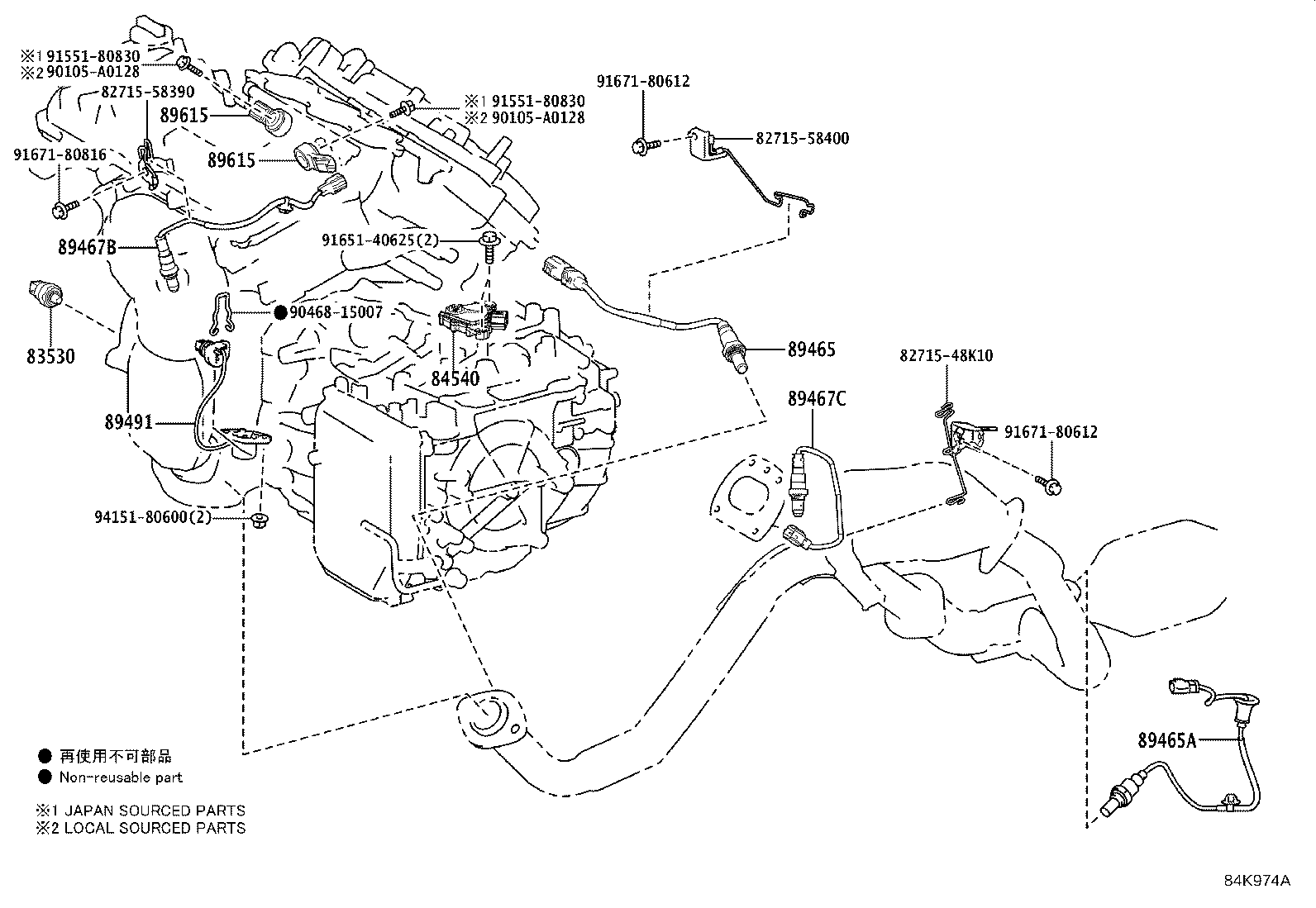

ILLUST NO. 1 OF11(2001- )8FC
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
AYH36,GGH31 DENSO |
1 | ||
| 83530-60020 |
AYH36,GGH31 YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-33020 |
GGH31..8FC |
1 | ||
| 84540-33021 |
GGH31..8FC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-48390 |
GGH31..8FC |
1 | ||
| 89465A - SENSOR, OXYGEN NO.2 | ||||
| 89465-58180 |
GGH31..8FC |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-58070 |
GGH31..8FC |
1 | ||
| 89467C - SENSOR, AIR FUEL RATIO, NO.2 | ||||
| 89467-48320 |
GGH31..8FC |
1 | ||
| 89491 - SENSOR, ENGINE OIL LEVEL | ||||
| 89491-48040 |
GGH31..8FC |
1 | ||
| 89491-48021 |
GGH31..8FC |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GGH31 (L) |
2 | ||
| 89615-20090 |
GGH31 (J) |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-06010 |
GGH31 (L) |
2 | ||
| 89615-20090 |
GGH31 (J) |
2 | ||
| Common parts | ||||
| 82715-48K10 | ||||
| 82715-58390 | ||||
| 82715-58400 | ||||
| 90105-A0128 | ||||
| 90468-15007 | ||||
| 91551-80830 | ||||
| 91651-40625 | ||||
| 91671-80612 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
ILLUST NO. 8 OF11(2001- )
STEERING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33270 |
GGH31..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-33270 |
GGH31..LHD |
1 | ||
| 84250A - SWITCH ASSY, STEERING PAD | ||||
| 84250-48451 |
AYH36,GGH31 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84308-58010 |
AYH36,GGH31 |
1 | ||
| 84307 - CABLE SUB-ASSY, SPIRAL W/SENSOR | ||||
| 84307-58080 |
AYH36,GGH31 |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-78010 |
AYH36,GGH31..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-78010 |
AYH36,GGH31..LHD |
1 | ||
| 89245B - SENSOR, STEERING | ||||
| 8924B-10010 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90159-50265 | ||||

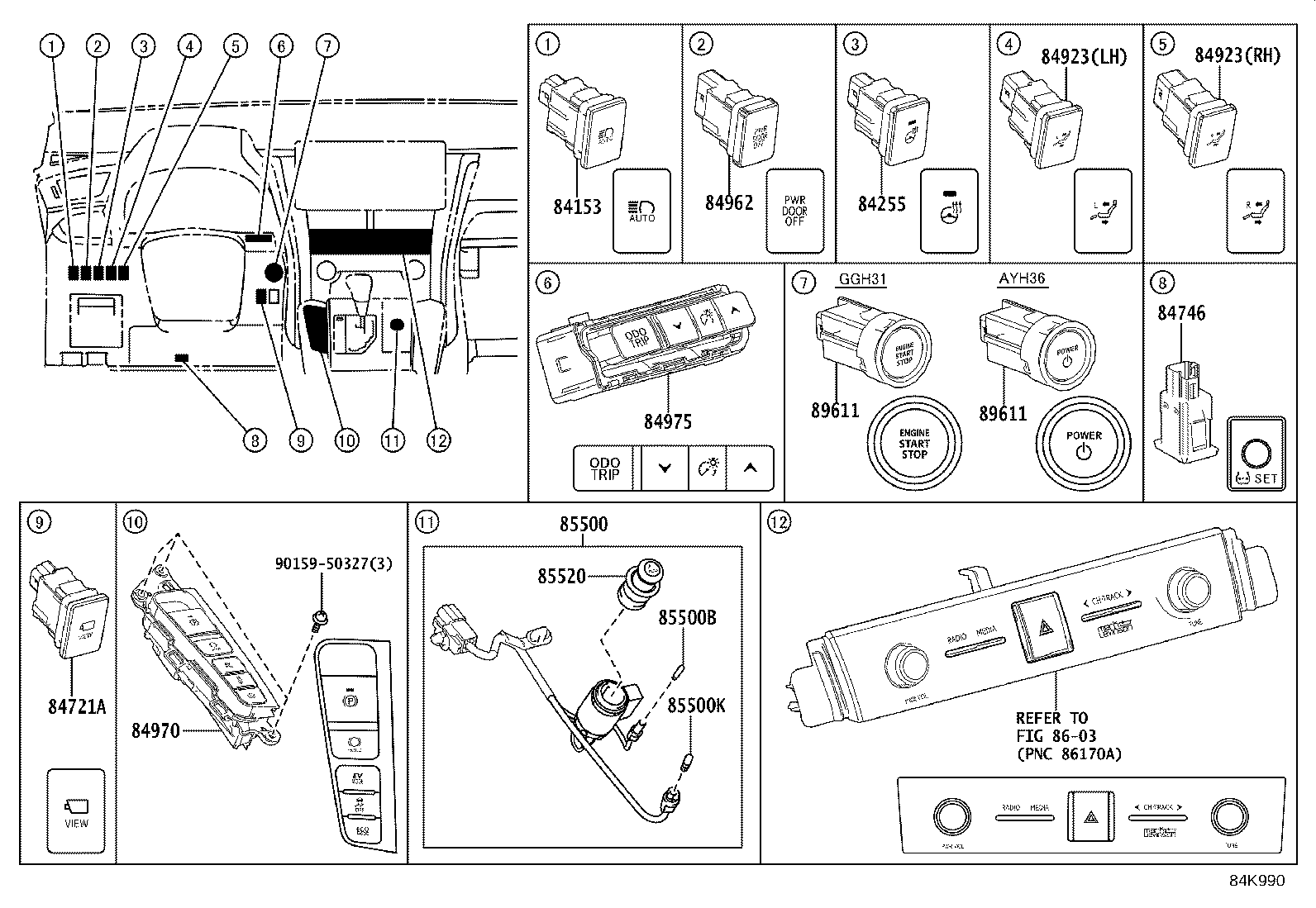

ILLUST NO. 5 OF11(2001- )LHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84153 - SWITCH, AUTO HIGH BEAM | ||||
| 84153-53012 |
AYH36,GGH31 |
1 | ||
| 84255 - SWITCH, STEERING HEATER | ||||
| 84255-58020 |
AYH36,GGH31..V |
1 | ||
| 84721A - SWITCH, FRONT WIDE VIEW | ||||
| 84721-58030 |
AYH36,GGH31 |
1 | ||
| 84746 - SWITCH, TIRE PRESSURE WARNING | ||||
| 84746-50010 |
AYH36,GGH31 |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-58170 |
AYH36,GGH31 LH |
1 | ||
| 84923-58160 |
AYH36,GGH31 RH |
1 | ||
| 84923 - SWITCH, REAR POWER SEAT | ||||
| 84923-58170 |
AYH36,GGH31 LH |
1 | ||
| 84923-58160 |
AYH36,GGH31 RH |
1 | ||
| 84962 - SWITCH, POWER SLIDE DOOR MAIN | ||||
| 84962-58020 |
AYH36,GGH31 |
1 | ||
| 84970 - SWITCH ASSY, COMBINATION | ||||
| 84970-58130 |
GGH31..LHD |
1 | ||
| 84975 - SWITCH, TRIP | ||||
| 84975-58070 |
AYH36,GGH31..LHD |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-58020 |
AYH36,GGH31..LHD |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90010-01173 |
AYH36,GGH31..LHD 14V 1.4W,W(CAP) |
1 | ||
| 85500K - BULB,ASH RECEPTACLE LAMP | ||||
| 90010-01174 |
AYH36,GGH31..LHD 14V 2.0W,W(CAP) |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
AYH36,GGH31..LHD |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
GGH31..6FC;GGH31..LHD |
1 | ||
| 89611 - SWITCH, PUSH START | ||||
| 89611-42012 |
GGH31..6FC;GGH31..LHD |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8603 | ||||

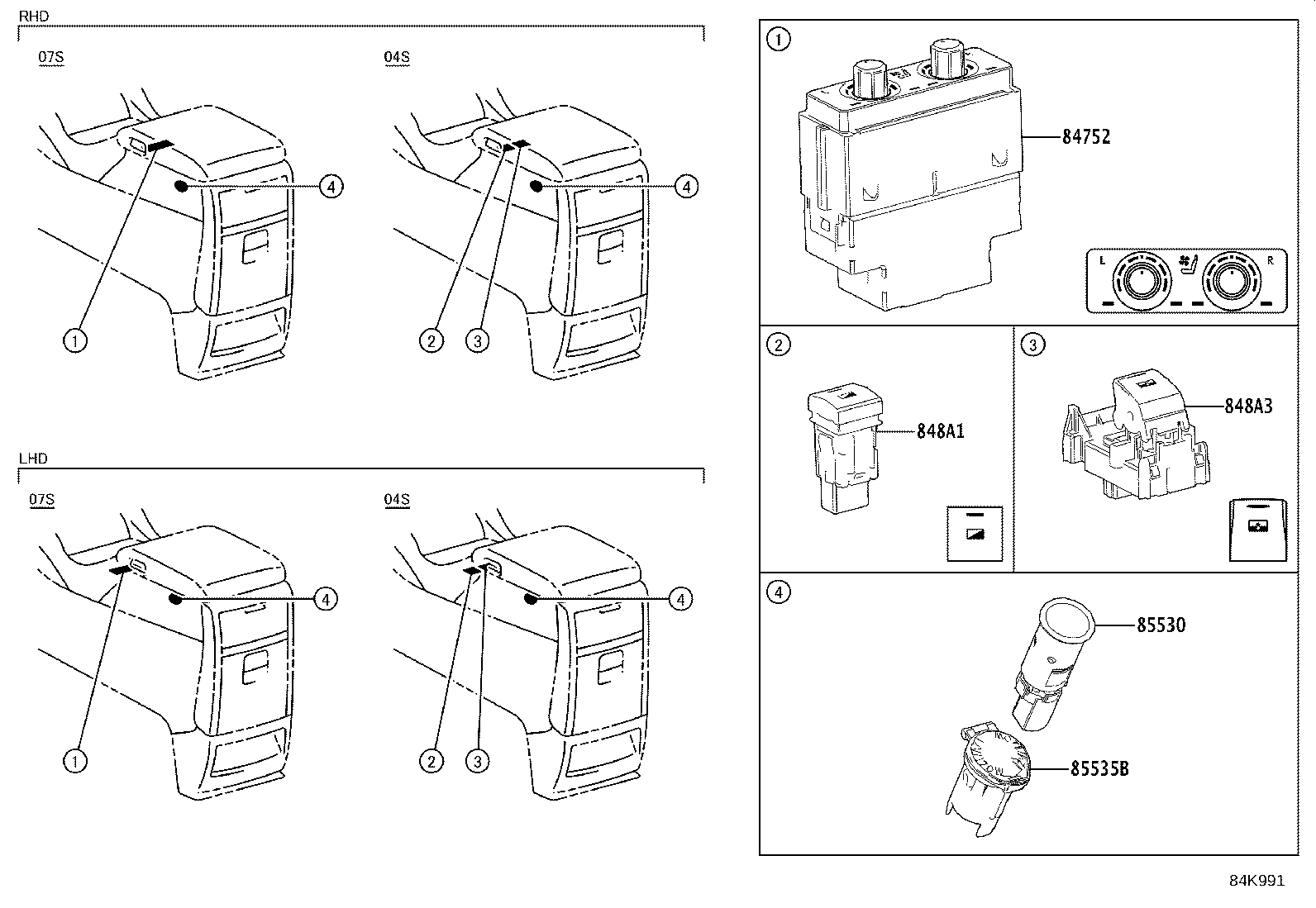

ILLUST NO. 6 OF11(2001- )
FRONT CONSOLE BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84752 - SWITCH, REFRESHING SEAT | ||||
| 84752-58020 |
AYH36,GGH31..V |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-42010 |
AYH36,GGH31 |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-44050C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||

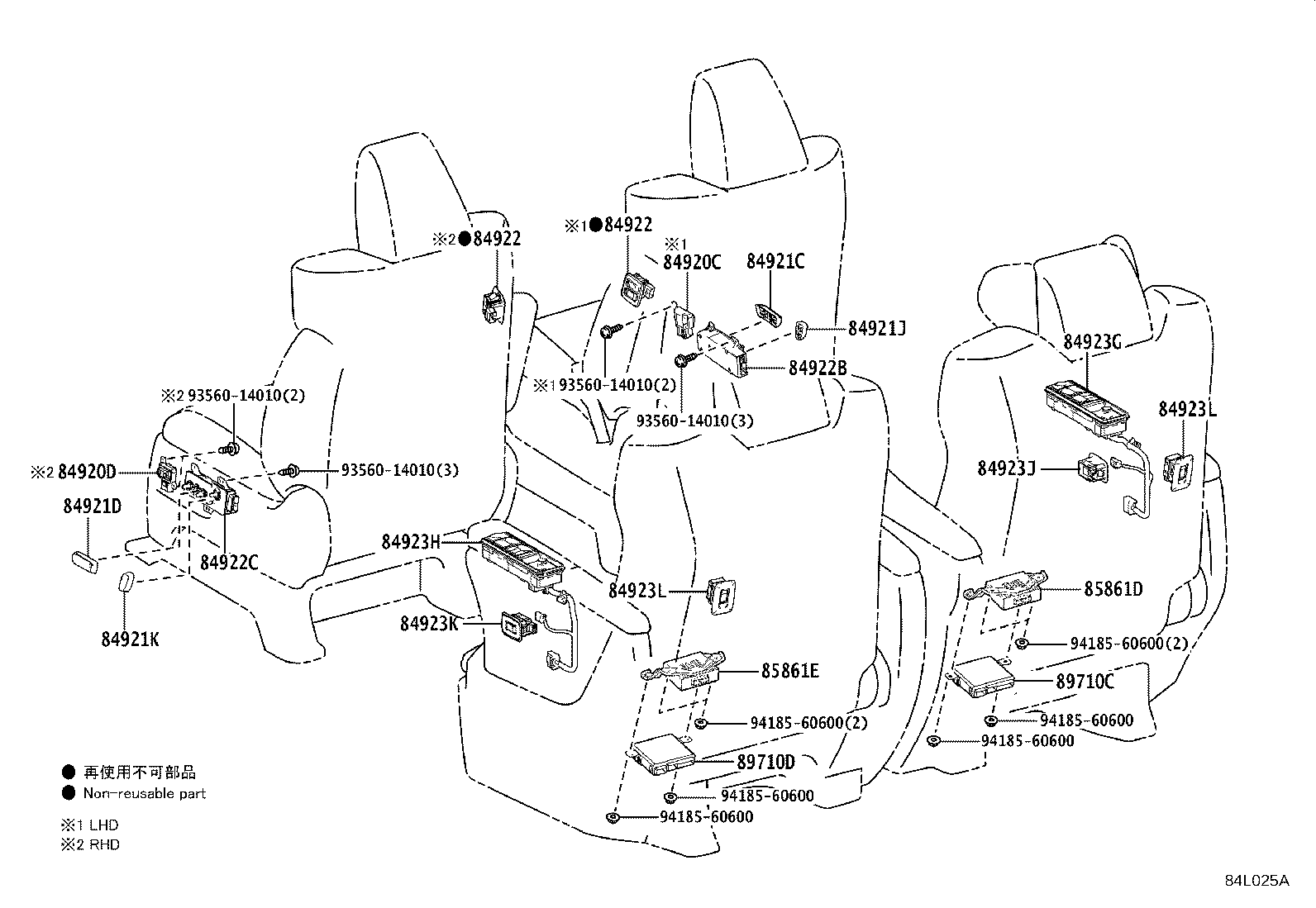

ILLUST NO. 9 OF11(2001- )V
SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84920C - SWITCH ASSY, POWER SEAT FRONT, RH | ||||
| 84920-58020C0 |
AYH36,GGH31..LHD..V BLACK,TRIM0#,2# |
1 | ||
| 84921C - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-22070C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84921D - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-22100C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84921J - KNOB, POWER SEAT SWITCH, RH | ||||
| 84921-22080C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84921K - KNOB, POWER SEAT SWITCH, LH | ||||
| 84921-22090C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84920-58030A2 |
AYH36,GGH31..LHD..V WHITE,TRIM0# |
1 | ||
| 84920-58030C0 |
AYH36,GGH31..LHD..V BLACK,TRIM2# |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84920-58030A2 |
AYH36,GGH31..LHD..V WHITE,TRIM0# |
1 | ||
| 84920-58030C0 |
AYH36,GGH31..LHD..V BLACK,TRIM2# |
1 | ||
| 84922B - SWITCH, FRONT POWER SEAT, RH | ||||
| 84922-60160 |
AYH36,GGH31..LHD..V |
1 | ||
| 84922C - SWITCH, FRONT POWER SEAT, LH | ||||
| 84070-58060 |
AYH36,GGH31..LHD..V |
1 | ||
| 84923G - SWITCH, REAR POWER SEAT, NO.1, RH | ||||
| 84923-58180 |
AYH36,GGH31..V |
1 | ||
| 84923H - SWITCH, REAR POWER SEAT, NO.1, LH | ||||
| 84923-58190 |
AYH36,GGH31..V |
1 | ||
| 84923J - SWITCH, REAR POWER SEAT, NO.2, RH | ||||
| 84923-58200C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 84923K - SWITCH, REAR POWER SEAT, NO.2, LH | ||||
| 84923-58210C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 84923L - SWITCH, REAR POWER SEAT, NO.3 | ||||
| 84923-58220C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 84923L - SWITCH, REAR POWER SEAT, NO.3 | ||||
| 84923-58220C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 85861D - COMPUTER, SEAT CLIMATE CONTROL, REAR RH | ||||
| 85861-58020 |
AYH36,GGH31..V |
1 | ||
| 85861E - COMPUTER, SEAT CLIMATE CONTROL, REAR LH | ||||
| 85861-58020 |
AYH36,GGH31..V |
1 | ||
| 89710C - COMPUTER ASSY, POSITION CONTROL, RH | ||||
| 89710-58020 |
AYH36,GGH31..V |
1 | ||
| 89710D - COMPUTER ASSY, POSITION CONTROL, LH | ||||
| 89710-58020 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 93560-14010 | ||||
| 94185-60600 | ||||

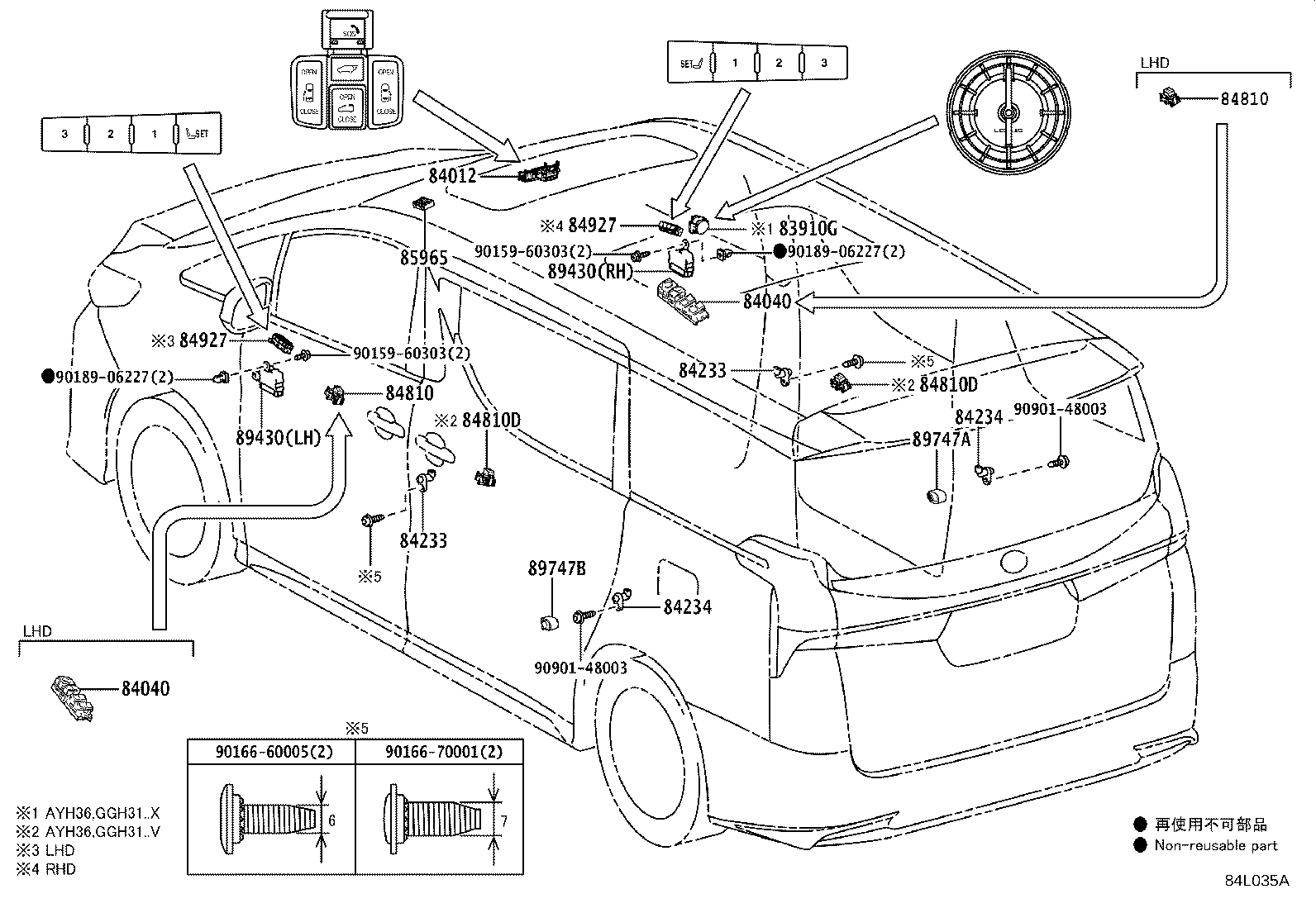

ILLUST NO.10 OF11(2001- )
DOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84012 - CONTROL & PANEL SUB-ASSY, INTEGRATION | ||||
| 84012-58210 |
GGH31;AYH36..RHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-58030 |
AYH36,GGH31..LHD |
1 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-58030 |
AYH36,GGH31..LHD |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
AYH36,GGH31 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-53010 |
AYH36,GGH31 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AYH36,GGH31 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-53010 |
AYH36,GGH31 |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-58020 |
AYH36,GGH31 |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33140 |
AYH36,GGH31..V |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-33140 |
AYH36,GGH31..V |
2 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-58060 |
AYH36,GGH31..LHD |
1 | ||
| 84927 - SWITCH, SEAT MEMORY | ||||
| 84927-58060 |
AYH36,GGH31..LHD |
1 | ||
| 85965 - RELAY, ROOM LAMP CONTROL | ||||
| 85965-58020 |
AYH36,GGH31 |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-58050 |
AYH36,GGH31 RH |
1 | ||
| 89430-58051 |
AYH36,GGH31 RH |
1 | ||
| 89430-58060 |
AYH36,GGH31 LH |
1 | ||
| 89430-58061 |
AYH36,GGH31 LH |
1 | ||
| 89430 - COMPUTER ASSY, OUTER MIRROR CONTROL | ||||
| 89430-58050 |
AYH36,GGH31 RH |
1 | ||
| 89430-58051 |
AYH36,GGH31 RH |
1 | ||
| 89430-58060 |
AYH36,GGH31 LH |
1 | ||
| 89430-58061 |
AYH36,GGH31 LH |
1 | ||
| 89747A - BUZZER, POWER SLIDE DOOR WARNING, RH | ||||
| 89747-58020 |
AYH36,GGH31 |
1 | ||
| 89747B - BUZZER, POWER SLIDE DOOR WARNING, LH | ||||
| 89747-58020 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90159-60303 | ||||
| 90166-60005 | ||||
| 90166-70001 | ||||
| 90189-06227 | ||||
| 90901-48003 | ||||

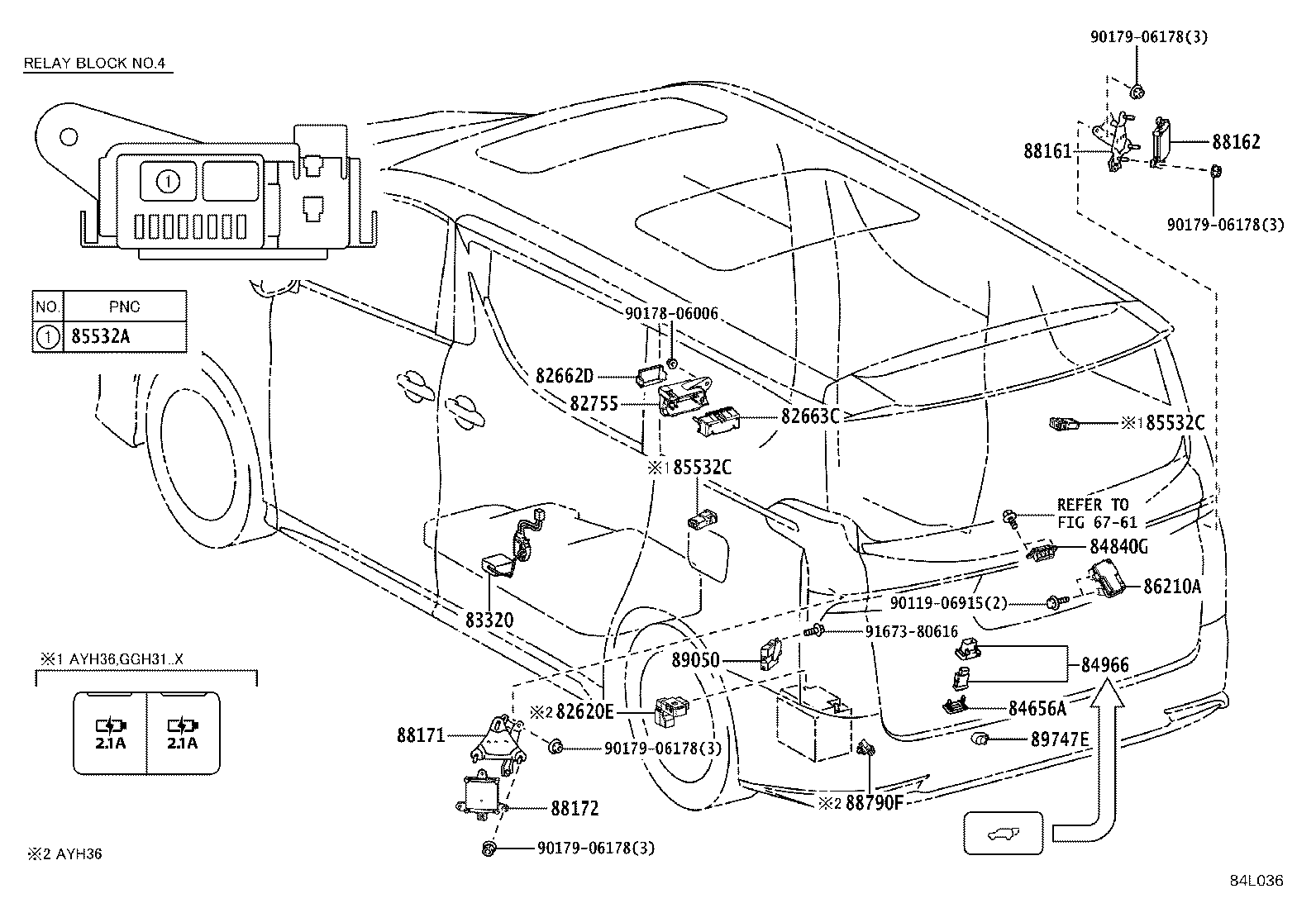

ILLUST NO.11 OF11(2001- )
FLOOR & BACK DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-58030 |
GGH31..8FC |
1 | ||
| 84656A - BEZEL, SWITCH | ||||
| 84656-58020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 84840G - SWITCH ASSY, BACK DOOR OPENER | ||||
| 84840-58010 |
AYH36,GGH31 |
1 | ||
| 84966 - SWITCH, POWER BACK DOOR CONTROL | ||||
| 84930-58080 |
AYH36,GGH31 |
1 | ||
| 88161 - BRACKET, BLIND SPOT MONITOR, RH | ||||
| 88161-58010 |
AYH36;GGH31..8FC |
1 | ||
| 88162 - SENSOR, BLIND SPOT MONITOR, RH | ||||
| 88162-58030 |
AYH36;GGH31..8FC |
1 | ||
| 88171 - BRACKET, BLIND SPOT MONITOR, LH | ||||
| 88171-58010 |
AYH36;GGH31..8FC |
1 | ||
| 88172 - SENSOR, BLIND SPOT MONITOR, LH | ||||
| 88162-58030 |
AYH36;GGH31..8FC |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-58030 |
AYH36,GGH31 |
1 | ||
| 89747E - BUZZER, POWER BACK DOOR WARNING | ||||
| 89747-58020 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90178-06006 | ||||
| 90179-06178 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 6761 | ||||

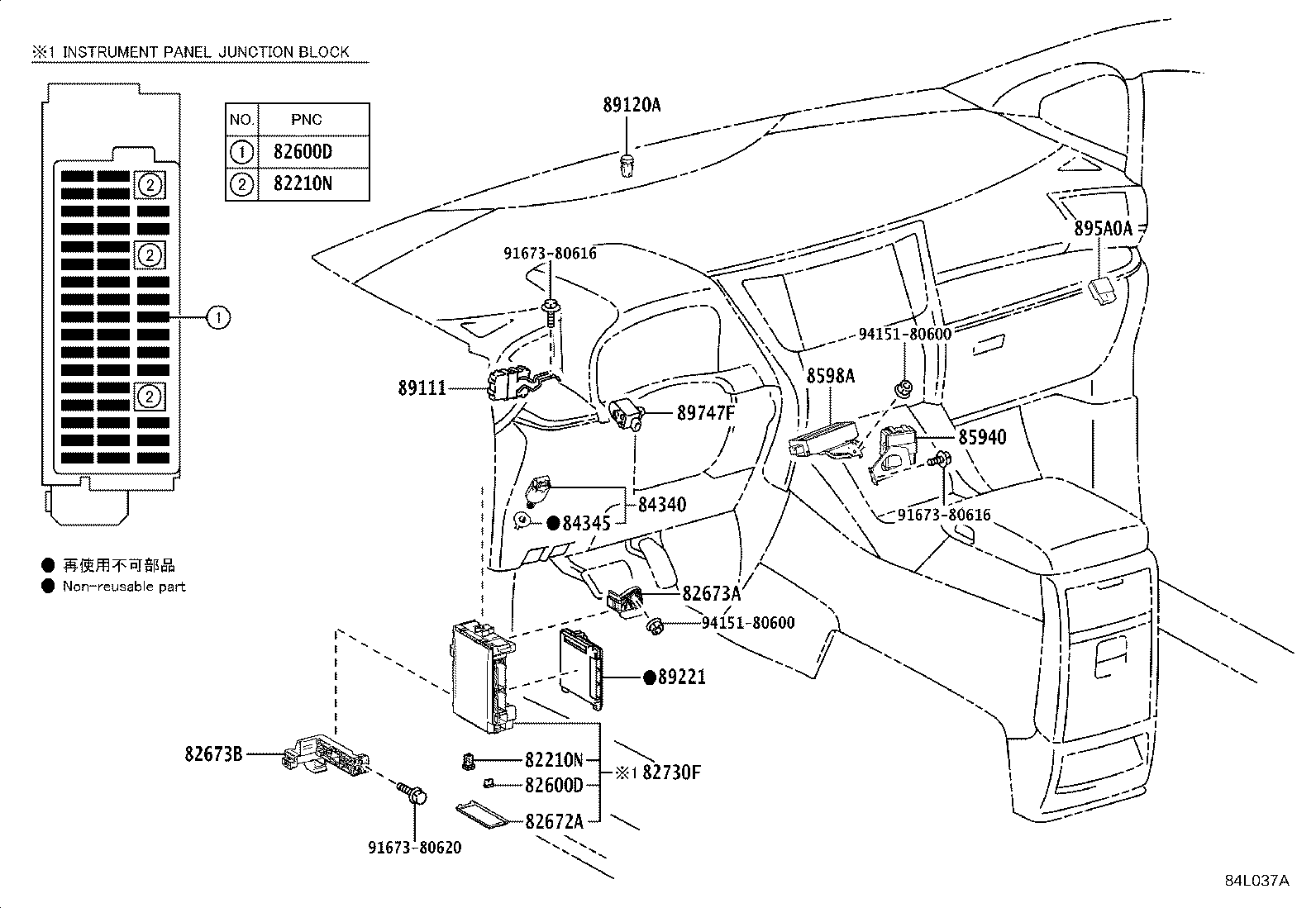

ILLUST NO. 4 OF11(2001- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AYH36,GGH31 30A,TERM.:FEMALE,PNK |
1 | ||
| 82210N - INSTRUMENT PANEL FUSIBLE LINK | ||||
| 90982-08306 |
AYH36,GGH31 30A,TERM.:FEMALE,PNK |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
AYH36,GGH31 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AYH36,GGH31 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AYH36,GGH31 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AYH36,GGH31 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
AYH36,GGH31 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
AYH36,GGH31 10A,MINI FUSE,RED |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09020 |
AYH36,GGH31 7.5A,MINI FUSE,BROWN |
1 | ||
| 90982-09022 |
AYH36,GGH31 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09023 |
AYH36,GGH31 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AYH36,GGH31 5A,MINI FUSE,TAN |
1 | ||
| 90982-09025 |
AYH36,GGH31 30A,MINI FUSE,GRN |
1 | ||
| 90982-09021 |
AYH36,GGH31 10A,MINI FUSE,RED |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-58090 |
AYH36,GGH31 |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-58060 |
AYH36,GGH31 |
1 | ||
| 82673B - BRACKET, JUNCTION BLOCK | ||||
| 82673-58080 |
AYH36,GGH31..LHD |
1 | ||
| 82730F - BLOCK ASSY, JUNCTION, LH | ||||
| 82730-58350 |
AYH36,GGH31 |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-49105 |
AYH36,GGH31 |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
AYH36,GGH31 |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-58060 |
AYH36,GGH31..LHD |
1 | ||
| 8598A - BATTERY, DOOR CONTROL | ||||
| 8598A-V2010 |
GGH31..LHD |
1 | ||
| 8598A-58010 |
GGH31..LHD |
1 | ||
| 89111 - COMPUTER, NETWORK GATEWAY | ||||
| 89100-58080 |
AYH36,GGH31..LHD |
1 | ||
| 89120A - SENSOR, AUTOMATIC LIGHT CONTROL | ||||
| 89121-30020 |
AYH36,GGH31 |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89220-58600 |
GGH31..LHD..V |
1 | ||
| 89220-V2010 |
GGH31..LHD..V VIETNAM SPEC |
1 | ||
| 895A0A - COMPUTER ASSY, STOP LAMP CONTROL | ||||
| 895A0-30010 |
AYH36,GGH31 |
1 | ||
| 89747F - BUZZER, BLIND SPOT MONITOR | ||||
| 89747-52010 |
AYH36;GGH31..8FC |
1 | ||
| Common parts | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||

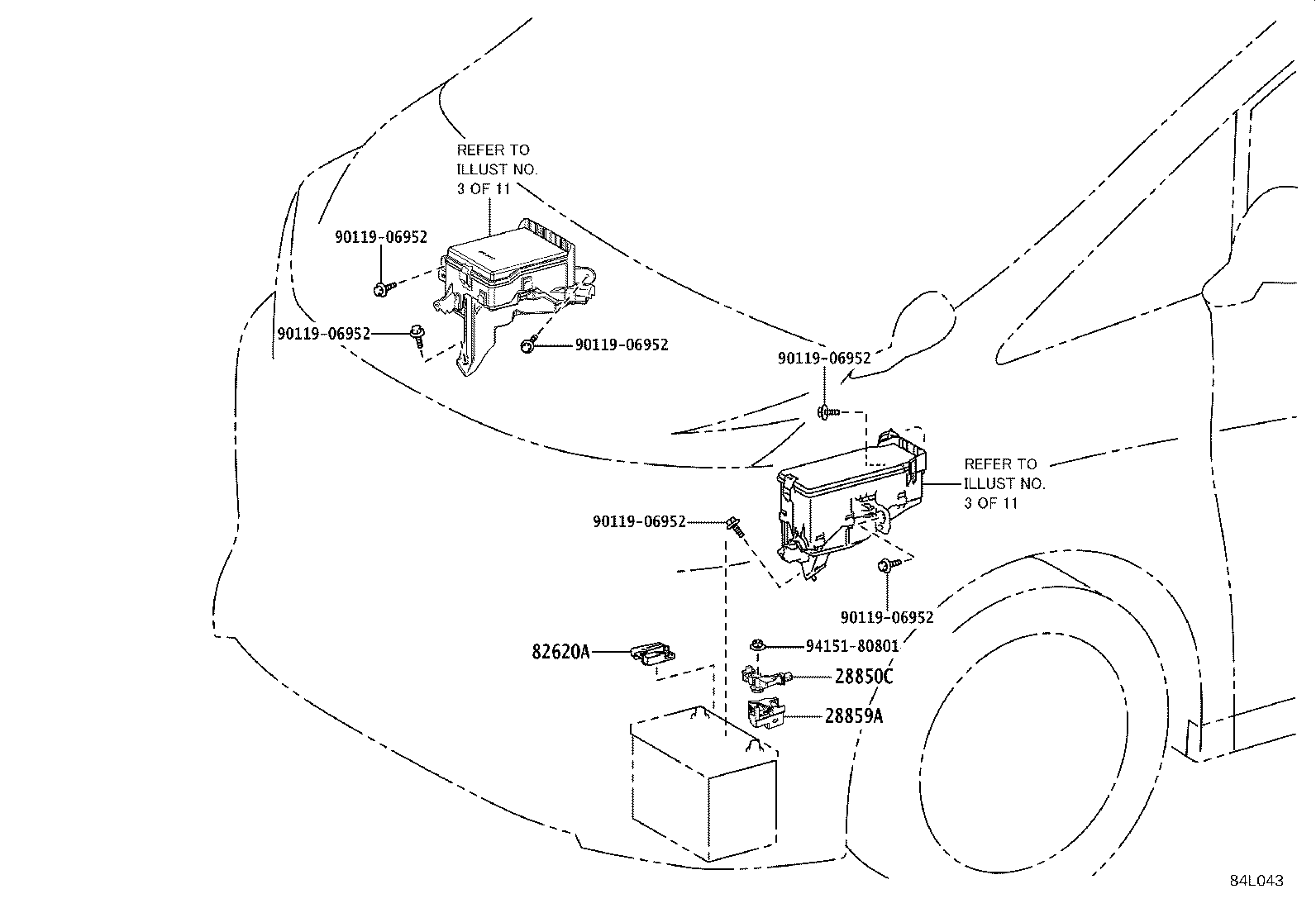

ILLUST NO. 2 OF11(2001- )8FC
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28850C - SENSOR ASSY, BATTERY STATE | ||||
| 28850-36030 |
2GRFKS..GGH31 |
1 | ||
| 28859A - HOLDER, BATTERY CURRENT SENSOR | ||||
| 28859-36020 |
2GRFKS..GGH31 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-08040 |
GGH31 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 94151-80801 | ||||

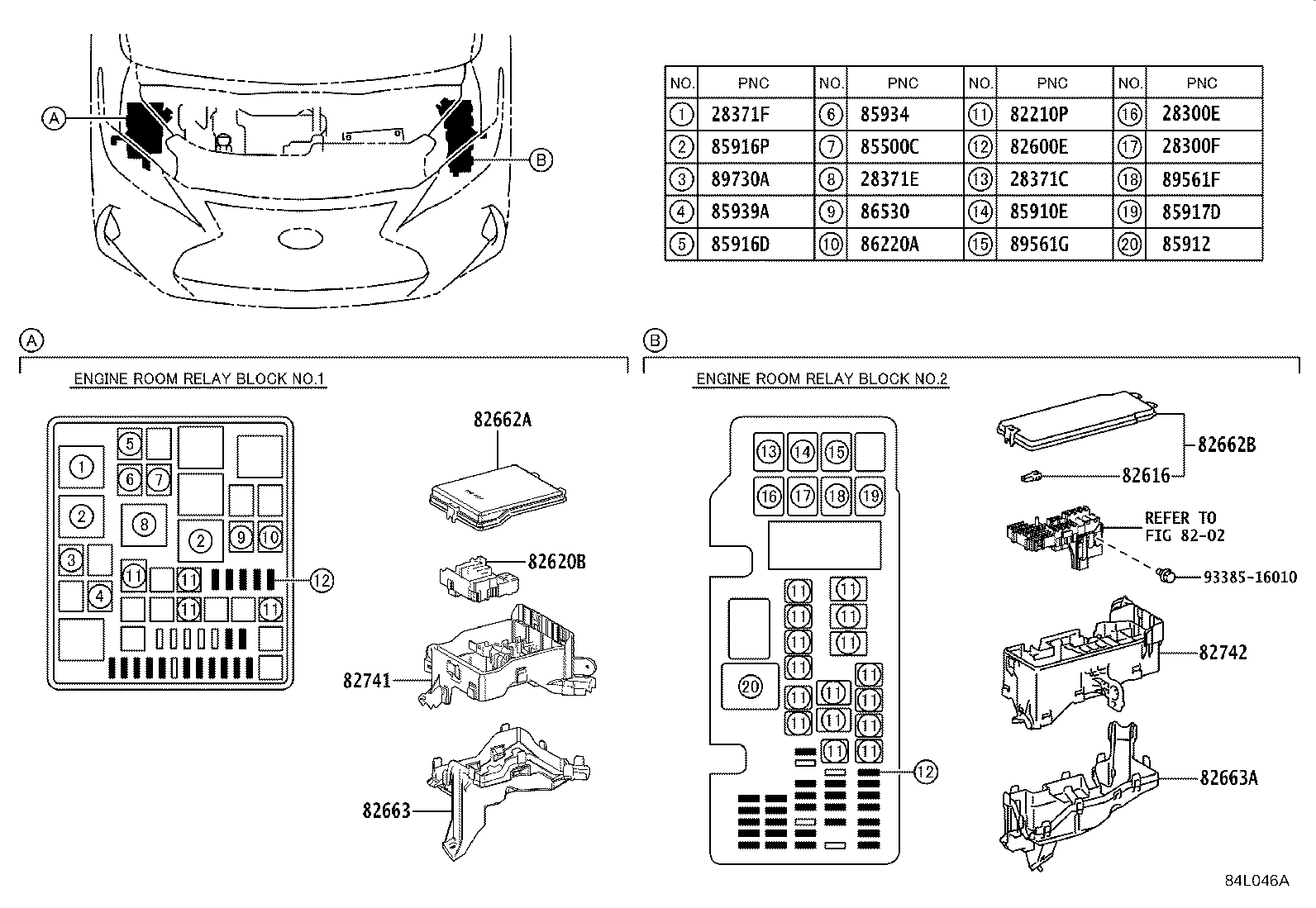

ILLUST NO. 3 OF11(2001- )8FC
ENGINE ROOM RELAY BLOCK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300E - RELAY ASSY, STARTER, NO.1 | ||||
| 28300-21020 |
2GR#..GGH31 |
1 | ||
| 28300F - RELAY ASSY, STARTER, NO.2 | ||||
| 28300-21020 |
2GRFKS..GGH31 |
1 | ||
| 28371C - RELAY, IGNITION, NO.2 | ||||
| 90987-02027 |
2GRFKS..GGH31 |
1 | ||
| 28371E - RELAY, IGNITION, NO.4 | ||||
| 90987-02025 |
2ARFXE,2GR#..AYH36,GGH31 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 90982-08286 |
AYH36,GGH31 140A,TERM.:MALE,RBR |
1 | ||
| 90982-08295 |
AYH36,GGH31 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08304 |
AYH36,GGH31 60A,TERM.:FEMALE,YEL |
1 | ||
| 90982-08274 |
AYH36,GGH31 120A,TERM.:MALE,WHT |
1 | ||
| 82620-08050 |
GGH31 180A,TERMINAL:MALE |
1 | ||
| 90982-08296 |
AYH36,GGH31 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08294 |
AYH36,GGH31 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08305 |
AYH36,GGH31 80A,TERM.:FEMALE,BLK |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
AYH36,GGH31 30A,MINI FUSE,GRN |
1 | ||
| 90982-09022 |
AYH36,GGH31 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09021 |
AYH36,GGH31 10A,MINI FUSE,RED |
1 | ||
| 90982-09023 |
AYH36,GGH31 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09019 |
AYH36,GGH31 5A,MINI FUSE,TAN |
1 | ||
| 90982-09020 |
AYH36,GGH31 7.5A,MINI FUSE,BROWN |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
AYH36,GGH31 |
1 | ||
| 82620B - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-58060 |
GGH31;AYH36..RHD |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-58160 |
GGH31..8FC |
1 | ||
| 82662B - COVER, RELAY BLOCK, UPPER, NO.2 | ||||
| 82662-58220 |
GGH31..8FC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-58030 |
AYH36,GGH31 |
1 | ||
| 82663A - COVER, RELAY BLOCK, LOWER, NO.2 | ||||
| 82663-58050 |
GGH31..8FC |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-58030 |
AYH36,GGH31 |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82741-58050 |
GGH31..8FC |
1 | ||
| 85500C - RELAY, CIGARETTE LIGHTER | ||||
| 90987-02027 |
AYH36,GGH31..LHD |
1 | ||
| 85910E - RELAY, INJECTOR | ||||
| 90987-02027 |
GGH31..8FC |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-04010 |
AYH36,GGH31 |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02027 |
GGH31..8FC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02025 |
AYH36,GGH31 |
2 | ||
| 85917D - RELAY, HEATER(FOR AIR FUEL RATIO SENSOR) | ||||
| 90987-02027 |
GGH31..8FC |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02028 |
GGH31 |
1 | ||
| 85939A - RELAY, STEERING HEATER | ||||
| 90987-02027 |
AYH36,GGH31 |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 90987-02027 |
AYH36,GGH31 |
1 | ||
| 89561F - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.1 | ||||
| 90987-02027 |
GGH31..8FC |
1 | ||
| 89561G - RELAY, ELECTRONIC FUEL INJECTION MAIN, NO.2 | ||||
| 90987-02027 |
GGH31..8FC |
1 | ||
| 89730A - RELAY(FOR SECURITY WARNING) | ||||
| 90987-02027 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 93385-16010 | ||||
| Linked diagrams | ||||
| 8202 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
