GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

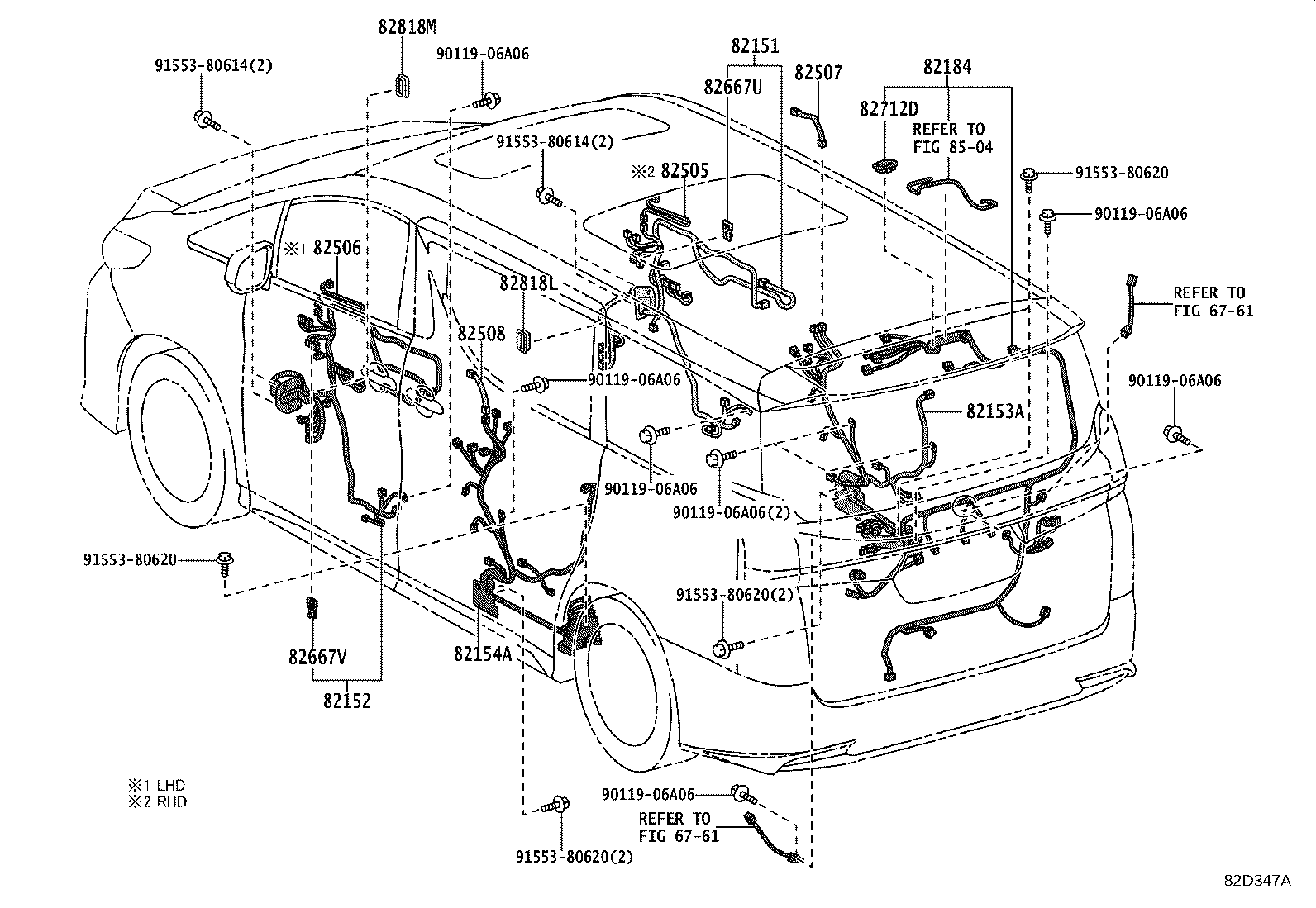

ILLUST NO. 4 OF14(2001- )
Click highlighted areas on diagram
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-58320 |
AYH36,GGH31..LHD |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-58290 |
AYH36,GGH31..LHD |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82053-58240 |
AYH36,GGH31..V |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82054-58240 |
AYH36,GGH31..V |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-58540 |
AYH36,GGH31 |
1 | ||
| 82506 - WIRING SUB-ASSY, FRONT DOOR, LH | ||||
| 82506-58010 |
AYH36,GGH31..LHD |
1 | ||
| 82507 - WIRING SUB-ASSY, REAR DOOR, RH | ||||
| 82507-58010 |
AYH36,GGH31 |
1 | ||
| 82508 - WIRING SUB-ASSY, REAR DOOR, LH | ||||
| 82507-58010 |
AYH36,GGH31 |
1 | ||
| 82667U - HOLDER, CONNECTOR, NO.32 | ||||
| 82666-58680 |
AYH36,GGH31 |
1 | ||
| 82667V - HOLDER, CONNECTOR, NO.33 | ||||
| 82666-58680 |
AYH36,GGH31 |
1 | ||
| 82712D - SUPPORT, WIRING HARNESS | ||||
| 82712-58281 |
AYH36,GGH31 |
1 | ||
| 82818L - PROTECTOR, WIRING HARNESS, NO.12 | ||||
| 82817-58E20 |
AYH36,GGH31 |
1 | ||
| 82818M - PROTECTOR, WIRING HARNESS, NO.13 | ||||
| 82817-58E20 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
| 91553-80614 | ||||
| 91553-80620 | ||||
| Linked diagrams | ||||
| 6761 | ||||
| 8504 | ||||

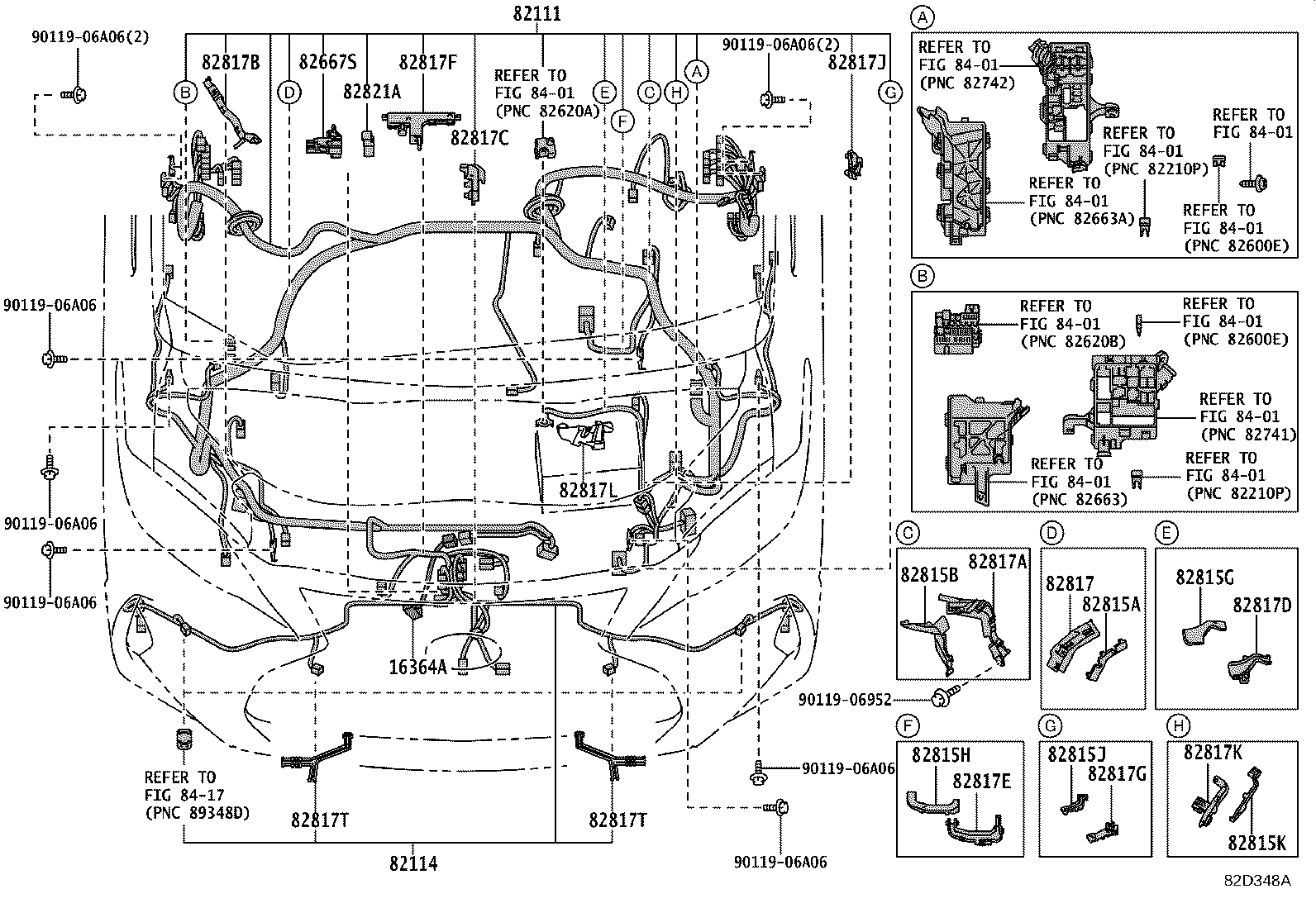

ILLUST NO. 1 OF14(2001- )GGH31..LHD
Click highlighted areas on diagram
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16364A - WIRE, COOLING FAN | ||||
| 16364-31010 |
2GRFKS..GGH31 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-58660 |
GGH31..LHD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-58620 |
AYH36,GGH31 |
1 | ||
| 82667S - HOLDER, CONNECTOR, NO.30 | ||||
| 82666-58720 |
AYH36,GGH31 |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-28B20 |
GGH31;AYH36..RHD |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-58880 |
GGH31..LHD |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-58A60 |
GGH31 |
1 | ||
| 82815H - COVER, WIRING HARNESS PROTECTOR NO.6 | ||||
| 82815-58B50 |
GGH31 |
1 | ||
| 82815J - COVER, WIRING HARNESS PROTECTOR, NO.7 | ||||
| 82815-58B80 |
GGH31..8FC |
1 | ||
| 82815K - COVER, WIRING HARNESS PROTECTOR, NO.8 | ||||
| 82815-58B90 |
AYH36,GGH31 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-28G20 |
GGH31;AYH36..RHD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-58G70 |
GGH31..LHD |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-58G80 |
AYH36,GGH31 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-58J00 |
AYH36,GGH31 |
1 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-58J80 |
GGH31 |
1 | ||
| 82817E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-58L80 |
GGH31 |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-58L90 |
AYH36,GGH31 |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-58M00 |
GGH31..8FC |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-58M10 |
GGH31 |
1 | ||
| 82817K - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-58M20 |
AYH36,GGH31 |
1 | ||
| 82817L - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-58L70 |
GGH31 |
1 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-58P80 |
AYH36,GGH31 |
2 | ||
| 82817T - PROTECTOR, WIRING HARNESS, NO.15 | ||||
| 82817-58P80 |
AYH36,GGH31 |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-58160 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90119-06952 | ||||
| 90119-06A06 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8417 | ||||
ILLUST NO. 2 OF14(2001- )8FC
Click highlighted areas on diagram

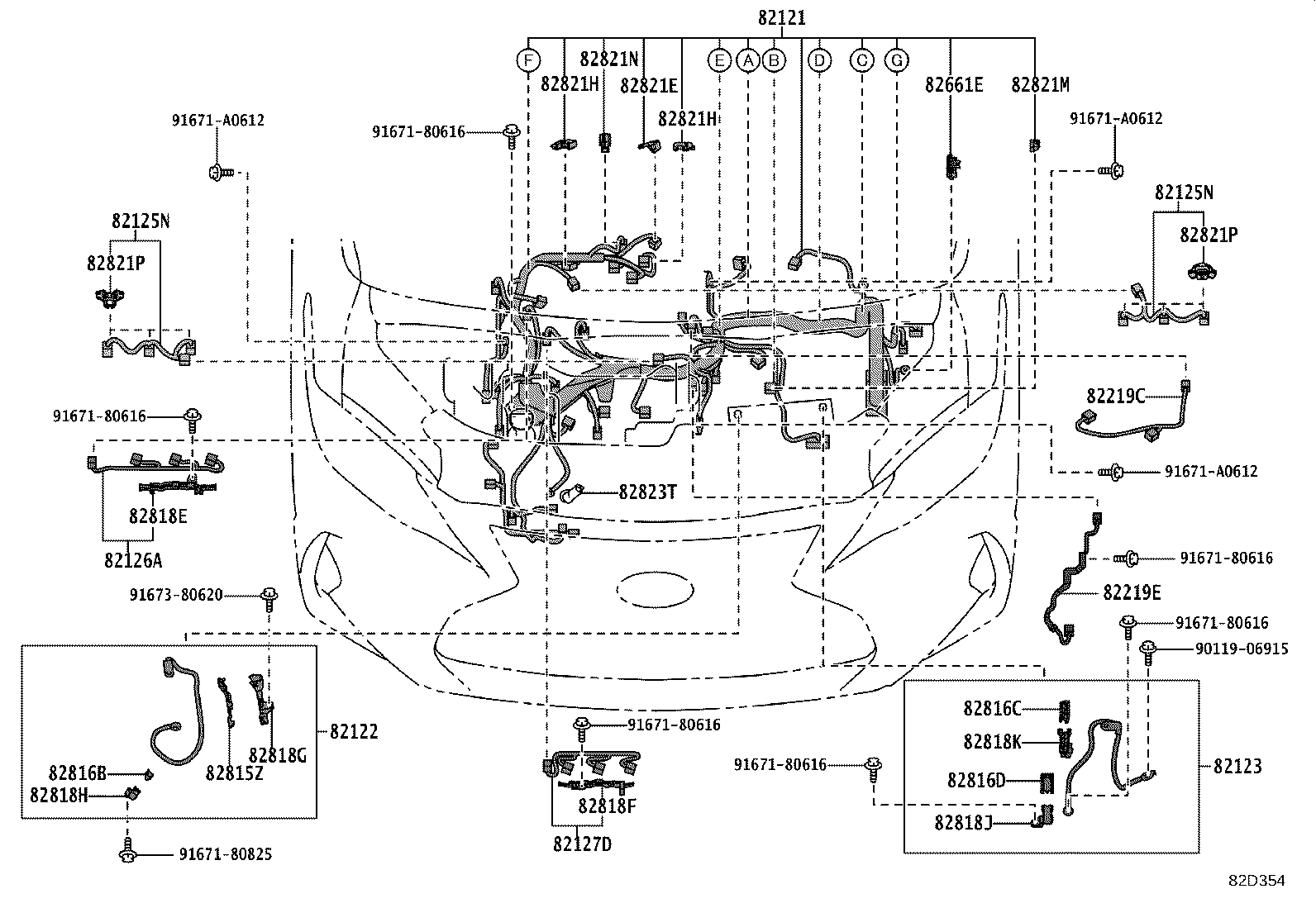

ENGINE 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-58220 |
GGH31..8FC |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-58080 |
GGH31..8FC |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-58070 |
GGH31..8FC |
1 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-48060 |
GGH31..8FC |
2 | ||
| 82125N - WIRE, ENGINE, NO.5 | ||||
| 82125-48060 |
GGH31..8FC |
2 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82126-33060 |
GGH31..8FC |
1 | ||
| 82127D - WIRE, ENGINE, NO.7 | ||||
| 82127-33020 |
GGH31..8FC |
1 | ||
| 82219C - WIRE, SENSOR | ||||
| 82219-48020 |
GGH31..8FC |
1 | ||
| 82219E - WIRE, SENSOR | ||||
| 82219-48030 |
GGH31..8FC |
1 | ||
| 82661E - COVER, RELAY BLOCK, SIDE NO.2 | ||||
| 82661-58070 |
GGH31..8FC |
1 | ||
| 82815Z - COVER, WIRING HARNESS PROTECTOR, NO.18 | ||||
| 82815-58C10 |
GGH31..8FC |
1 | ||
| 82816B - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-58C20 |
GGH31..8FC |
1 | ||
| 82816C - COVER, WIRING HARNESS PROTECTOR, NO.2 | ||||
| 82815-58570 |
GGH31..8FC |
1 | ||
| 82816D - COVER, WIRING HARNESS PROTECTOR, NO.3 | ||||
| 82815-58C30 |
GGH31..8FC |
1 | ||
| 82818E - PROTECTOR, WIRING HARNESS, NO.6 | ||||
| 82817-30R30 |
GGH31..8FC |
1 | ||
| 82818F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-30R30 |
GGH31..8FC |
1 | ||
| 82818G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-58J90 |
GGH31..8FC |
1 | ||
| 82818H - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-58K00 |
GGH31..8FC |
1 | ||
| 82818J - PROTECTOR, WIRING HARNESS, NO.10 | ||||
| 82817-58K10 |
GGH31..8FC |
1 | ||
| 82818K - PROTECTOR, WIRING HARNESS, NO.11 | ||||
| 82817-58M30 |
GGH31..8FC |
1 | ||
| 82821E - COVER, CONNECTOR | ||||
| 82821-58070 |
GGH31..8FC |
1 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-58090 |
GGH31..8FC |
2 | ||
| 82821H - COVER, CONNECTOR | ||||
| 82821-58090 |
GGH31..8FC |
2 | ||
| 82821M - COVER, CONNECTOR | ||||
| 82821-58100 |
GGH31..8FC |
1 | ||
| 82821N - COVER, CONNECTOR | ||||
| 82821-58110 |
GGH31..8FC |
1 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-48240 |
GGH31..8FC |
6 | ||
| 82821P - COVER, CONNECTOR | ||||
| 82821-48240 |
GGH31..8FC |
6 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-34010 |
GGH31..8FC |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80616 | ||||
| 91671-80825 | ||||
| 91671-A0612 | ||||
| 91673-80620 | ||||
ILLUST NO. 3 OF14(2001- )LHD
Click highlighted areas on diagram

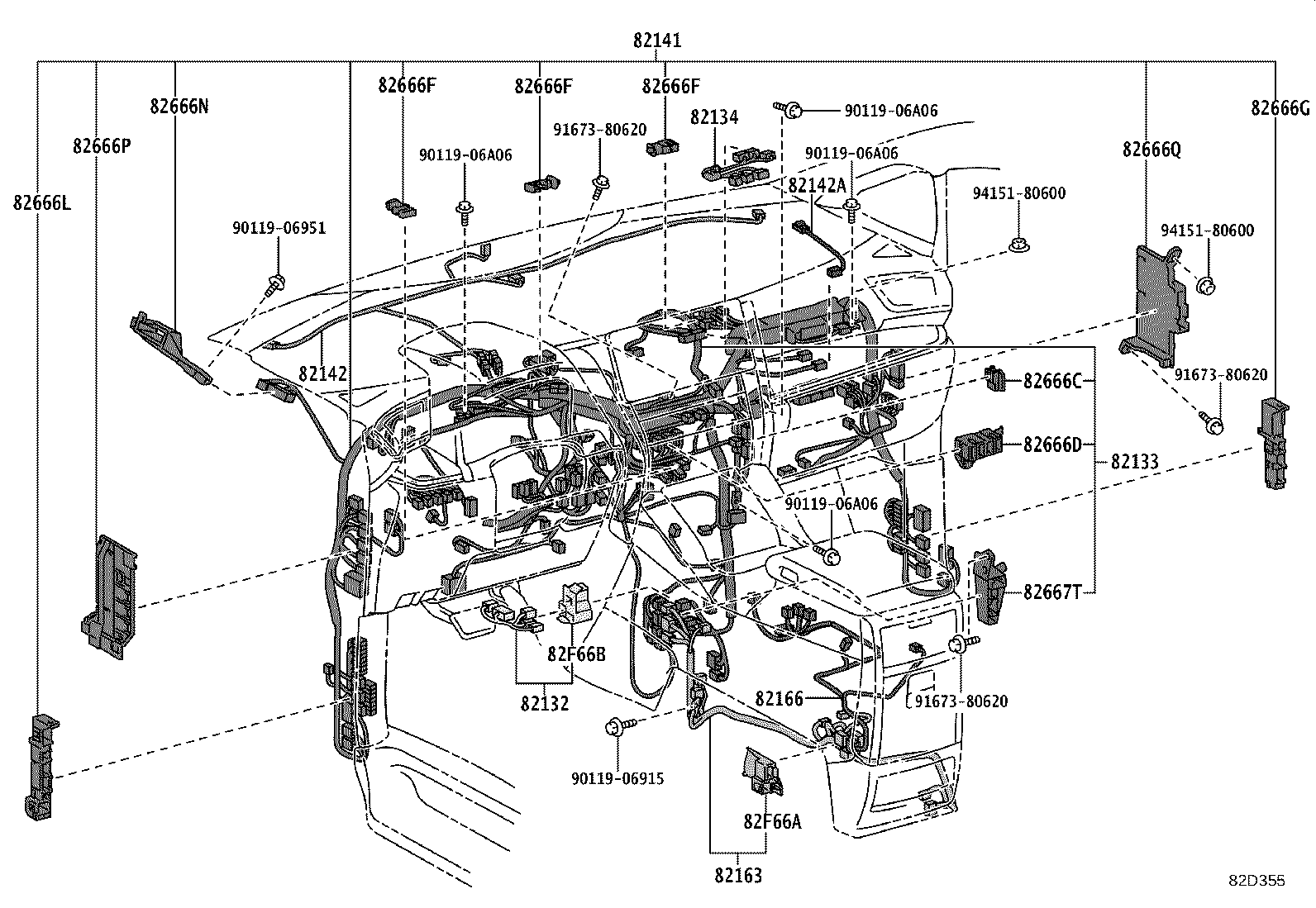

INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-58070 |
AYH36,GGH31 |
1 | ||
| 82133 - WIRE, COWL, NO.3 | ||||
| 82133-58A30 |
AYH36,GGH31..LHD..V |
1 | ||
| 82133-V2150 |
AYH36,GGH31..LHD..V |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-58010 |
AYH36,GGH31 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-58810 |
GGH31..LHD |
1 | ||
| 82141-V2230 |
GGH31..LHD |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-58300 |
AYH36,GGH31..LHD..V |
1 | ||
| 82142A - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82140-58020 |
AYH36,GGH31 |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-58270 |
GGH31;AYH36..RHD |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-58300 |
AYH36,GGH31..LHD..V |
1 | ||
| 82666C - HOLDER, CONNECTOR NO.4 | ||||
| 82666-26080 |
AYH36,GGH31..LHD |
1 | ||
| 82666D - HOLDER, CONNECTOR NO.5 | ||||
| 82666-58450 |
AYH36,GGH31..LHD |
1 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26180 |
AYH36,GGH31 |
3 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26180 |
AYH36,GGH31 |
3 | ||
| 82666F - HOLDER, CONNECTOR NO.7 | ||||
| 82666-26180 |
AYH36,GGH31 |
3 | ||
| 82666G - HOLDER, CONNECTOR NO.8 | ||||
| 82666-58350 |
AYH36,GGH31 |
1 | ||
| 82666L - HOLDER, CONNECTOR NO.9 | ||||
| 82666-58400 |
AYH36,GGH31 |
1 | ||
| 82666N - HOLDER, CONNECTOR NO.10 | ||||
| 82666-58510 |
AYH36,GGH31..LHD |
1 | ||
| 82666P - HOLDER, CONNECTOR NO.11 | ||||
| 82666-58430 |
AYH36,GGH31 |
1 | ||
| 82666Q - HOLDER, CONNECTOR NO.12 | ||||
| 82666-58550 |
AYH36,GGH31..LHD |
1 | ||
| 82667T - HOLDER, CONNECTOR, NO.31 | ||||
| 82666-58710 |
AYH36,GGH31..LHD |
1 | ||
| 82F66A - HOLDER, CONNECTOR, NO.38 | ||||
| 82666-58610 |
AYH36,GGH31 |
1 | ||
| 82F66B - HOLDER, CONNECTOR, NO.39 | ||||
| 82666-58760 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-06951 | ||||
| 90119-06A06 | ||||
| 91673-80620 | ||||
| 94151-80600 | ||||
ILLUST NO. 5 OF14(2001- )V
Click highlighted areas on diagram

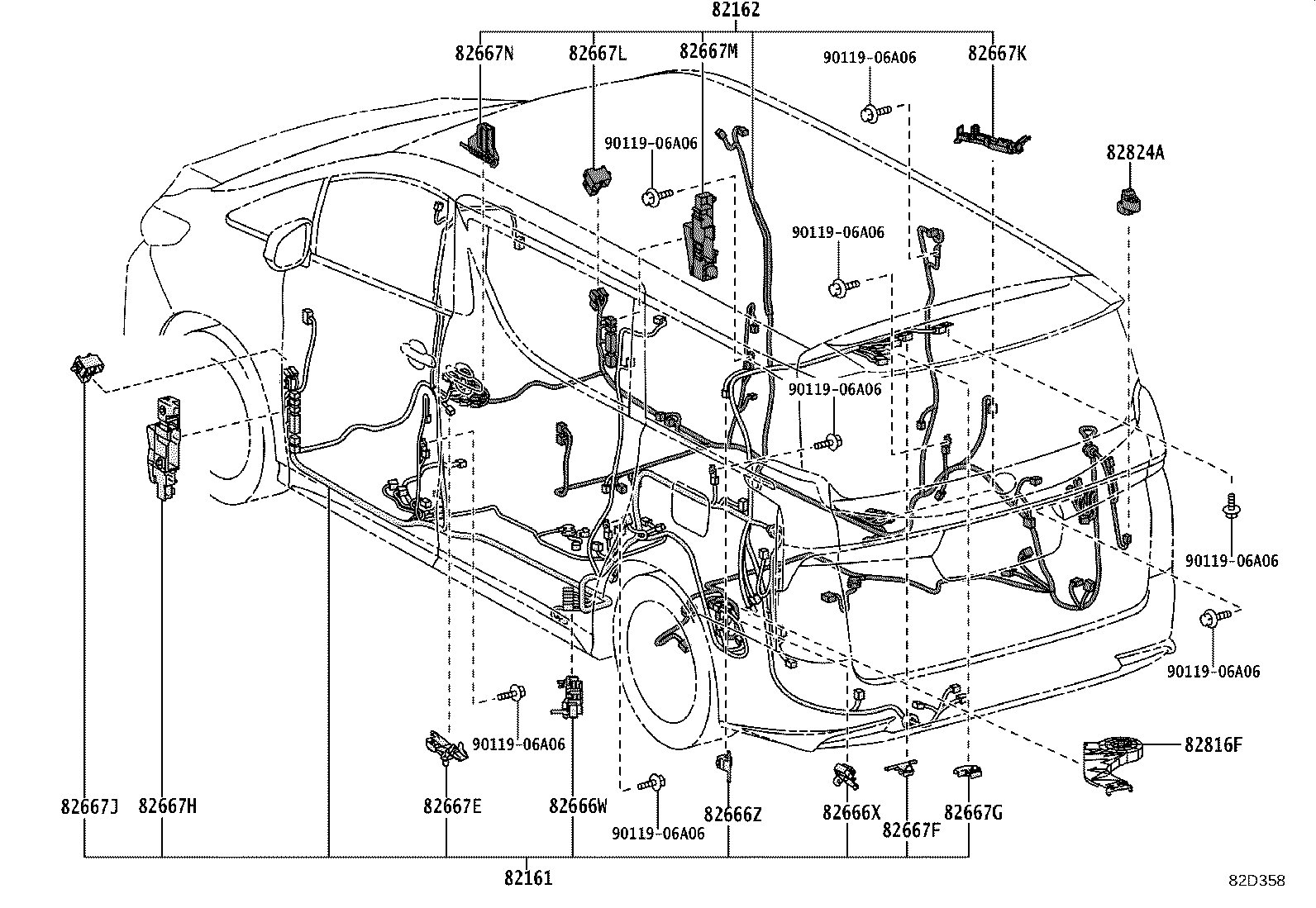

FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-V2010 |
GGH31..8FC..V |
1 | ||
| 82161-58A90 |
GGH31..8FC..V |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-58A60 |
GGH31..V |
1 | ||
| 82162-V2090 |
GGH31..V |
1 | ||
| 82666W - HOLDER, CONNECTOR NO.16 | ||||
| 82666-58340 |
AYH36,GGH31 |
1 | ||
| 82666X - HOLDER, CONNECTOR NO.17 | ||||
| 82666-58360 |
AYH36,GGH31 |
1 | ||
| 82666Z - HOLDER, CONNECTOR NO.19 | ||||
| 82666-58560 |
AYH36,GGH31 |
2 | ||
| 82667E - HOLDER, CONNECTOR, NO.20 | ||||
| 82666-58590 |
AYH36,GGH31 |
1 | ||
| 82667F - HOLDER, CONNECTOR, NO.21 | ||||
| 82666-58530 |
AYH36,GGH31 |
1 | ||
| 82667G - HOLDER, CONNECTOR, NO.22 | ||||
| 82666-58670 |
AYH36,GGH31 |
1 | ||
| 82667H - HOLDER, CONNECTOR, NO.23 | ||||
| 82666-58730 |
AYH36,GGH31 |
1 | ||
| 82667J - HOLDER, CONNECTOR, NO.24 | ||||
| 82666-58740 |
AYH36,GGH31 |
1 | ||
| 82667K - HOLDER, CONNECTOR, NO.25 | ||||
| 82666-58330 |
AYH36,GGH31 |
1 | ||
| 82667L - HOLDER, CONNECTOR, NO.26 | ||||
| 82666-58500 |
AYH36,GGH31 |
1 | ||
| 82667M - HOLDER, CONNECTOR, NO.27 | ||||
| 82666-58580 |
AYH36,GGH31 |
1 | ||
| 82667N - HOLDER, CONNECTOR, NO.28 | ||||
| 82666-58600 |
AYH36,GGH31 |
1 | ||
| 82816F - COVER, WIRING HARNESS PROTECTOR, NO.4 | ||||
| 82815-58810 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
ILLUST NO. 6 OF14(2001- )
Click highlighted areas on diagram

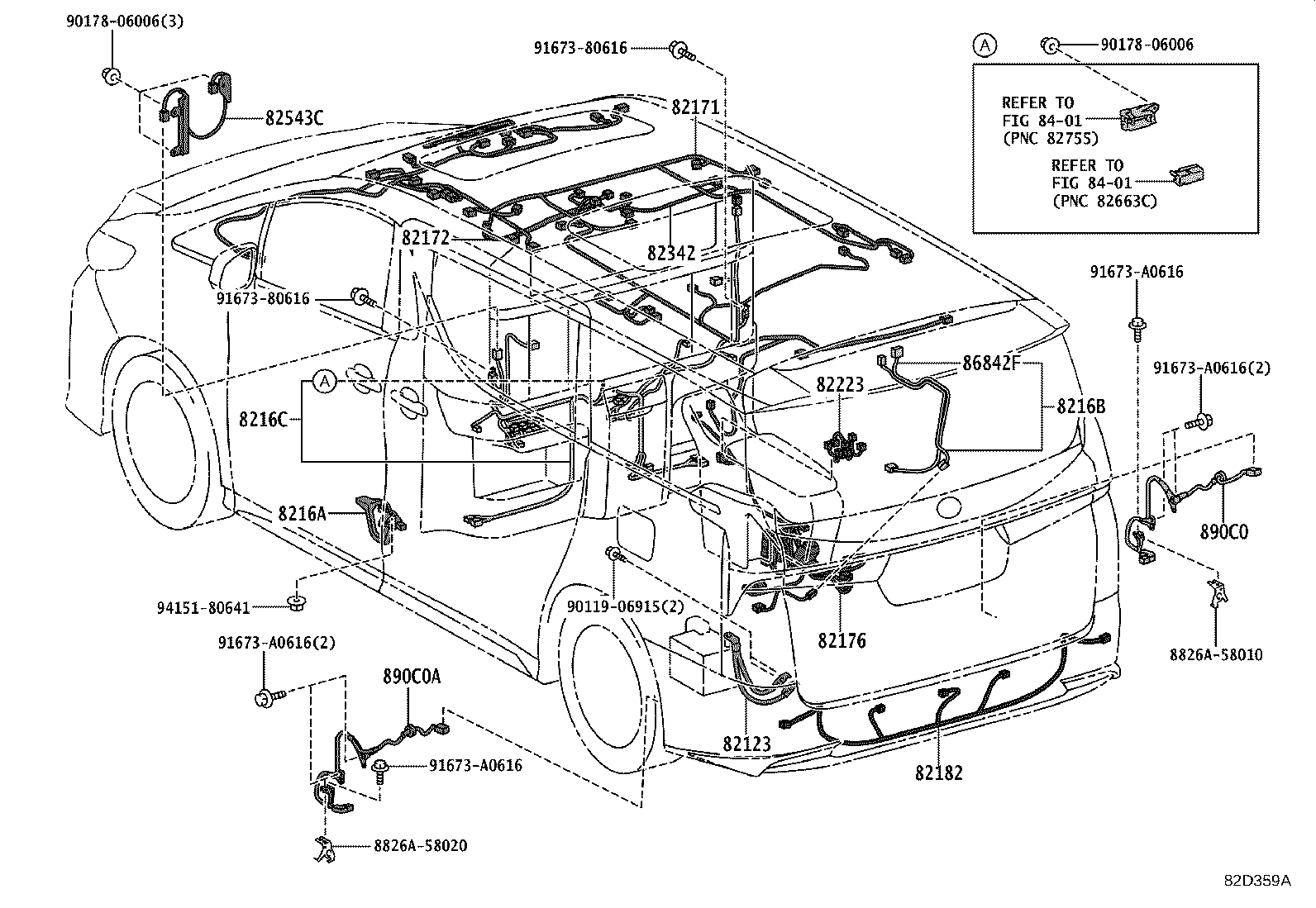

ROOF & LUGGAGE & REAR CONSOLE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-58070 |
GGH31..8FC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-58E00 |
GGH31..LHD..V |
1 | ||
| 82171-V2330 |
GGH31..LHD..V |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-58210 |
AYH36,GGH31..V |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-58220 |
AYH36,GGH31 |
1 | ||
| 890C0 - WIRE ASSY, PARKING BRAKE, NO.1 | ||||
| 890C0-58010 |
AYH36,GGH31 |
1 | ||
| 890C0A - WIRE ASSY, PARKING BRAKE, NO.2 | ||||
| 890C0-58020 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 8826A-58010 | ||||
| 8826A-58020 | ||||
| 90119-06915 | ||||
| 90178-06006 | ||||
| 91673-80616 | ||||
| 91673-A0616 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF14(2001- )LHD
Click highlighted areas on diagram

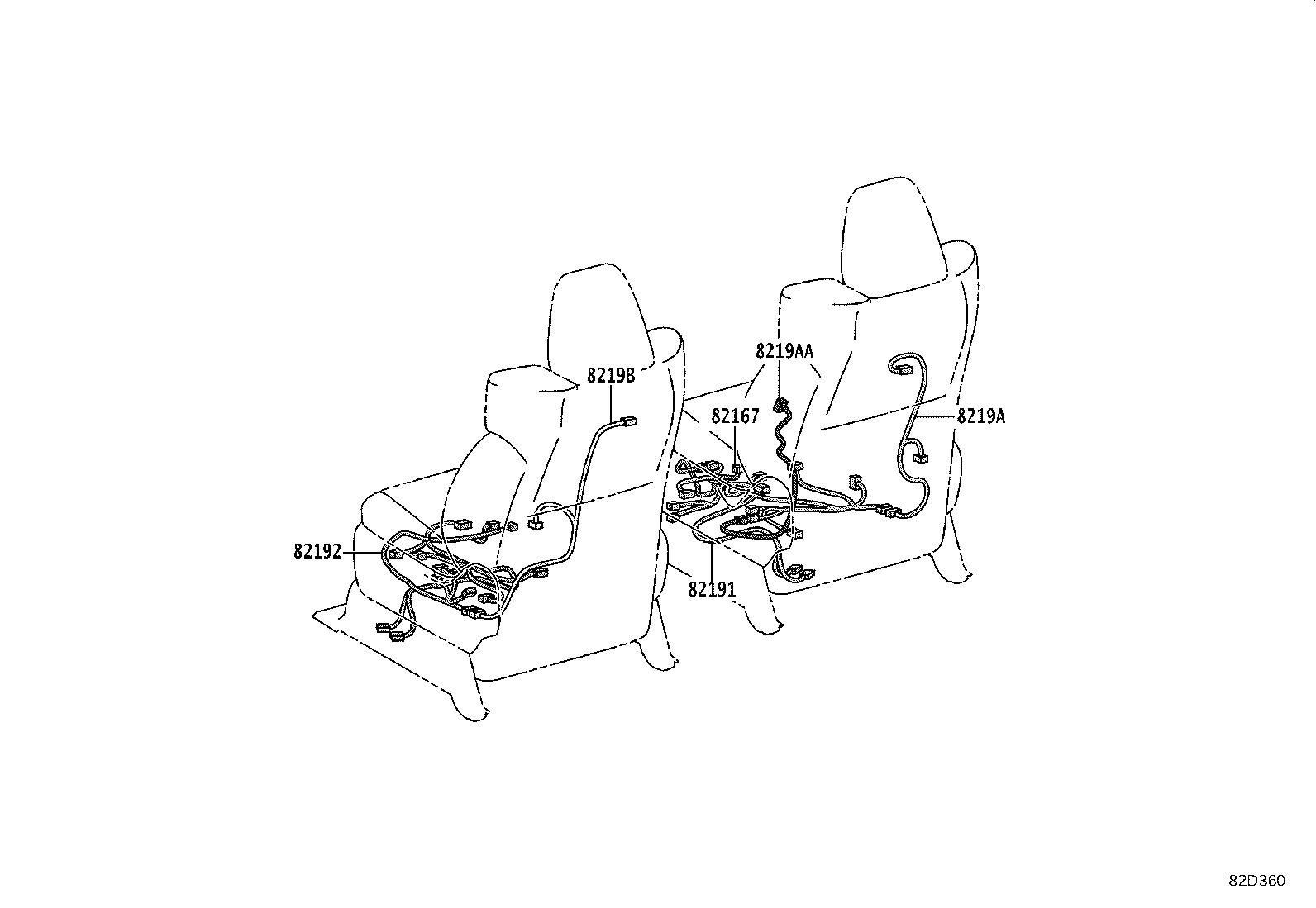

FRONT SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82167-58060 |
AYH36,GGH31..V |
1 | ||
| 82191 - WIRE, FRONT SEAT, RH | ||||
| 82191-58230 |
AYH36,GGH31..LHD..V |
1 | ||
| 82192 - WIRE, FRONT SEAT, LH | ||||
| 82192-58190 |
AYH36,GGH31..LHD..V |
1 | ||
| 8219A - WIRE, FRONT SEAT, RH NO.2 | ||||
| 8219A-58050 |
AYH36,GGH31..LHD..V |
1 | ||
| 8219AA - WIRE, FRONT SEAT, RH NO.3 | ||||
| 8219A-58060 |
AYH36,GGH31..LHD..V |
1 | ||
| 8219B - WIRE, FRONT SEAT, LH NO.2 | ||||
| 8219B-58010 |
AYH36,GGH31..LHD..V |
1 | ||
ILLUST NO. 9 OF14(2001- )V
Click highlighted areas on diagram

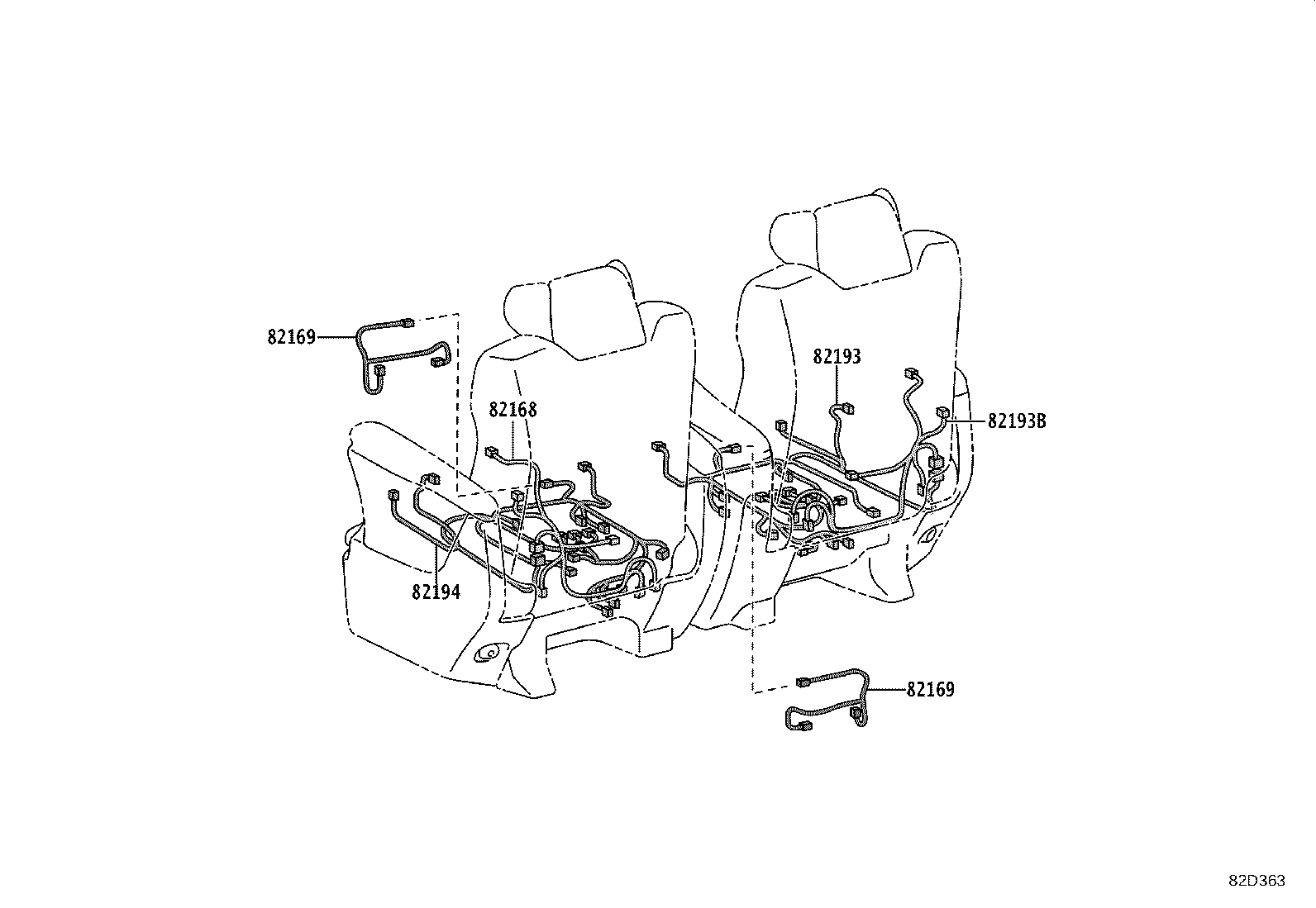

REAR SEAT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82168-58050 |
AYH36,GGH31..V |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-58030 |
AYH36,GGH31..V |
1 | ||
| 82169 - WIRE FRAME, NO.3 | ||||
| 82169-58030 |
AYH36,GGH31..V |
1 | ||
| 82193 - WIRE, REAR SEAT, RH | ||||
| 82193-V2010 |
AYH36,GGH31..V |
1 | ||
| 82193-58130 |
AYH36,GGH31..V |
1 | ||
| 82193B - WIRE, REAR SEAT, NO.2 | ||||
| 82167-58050 |
AYH36,GGH31..V |
1 | ||
| 82194 - WIRE, REAR SEAT, LH | ||||
| 82194-V2010 |
AYH36,GGH31..V |
1 | ||
| 82194-58060 |
AYH36,GGH31..V |
1 | ||
ILLUST NO.10 OF14(2001- )
Click highlighted areas on diagram

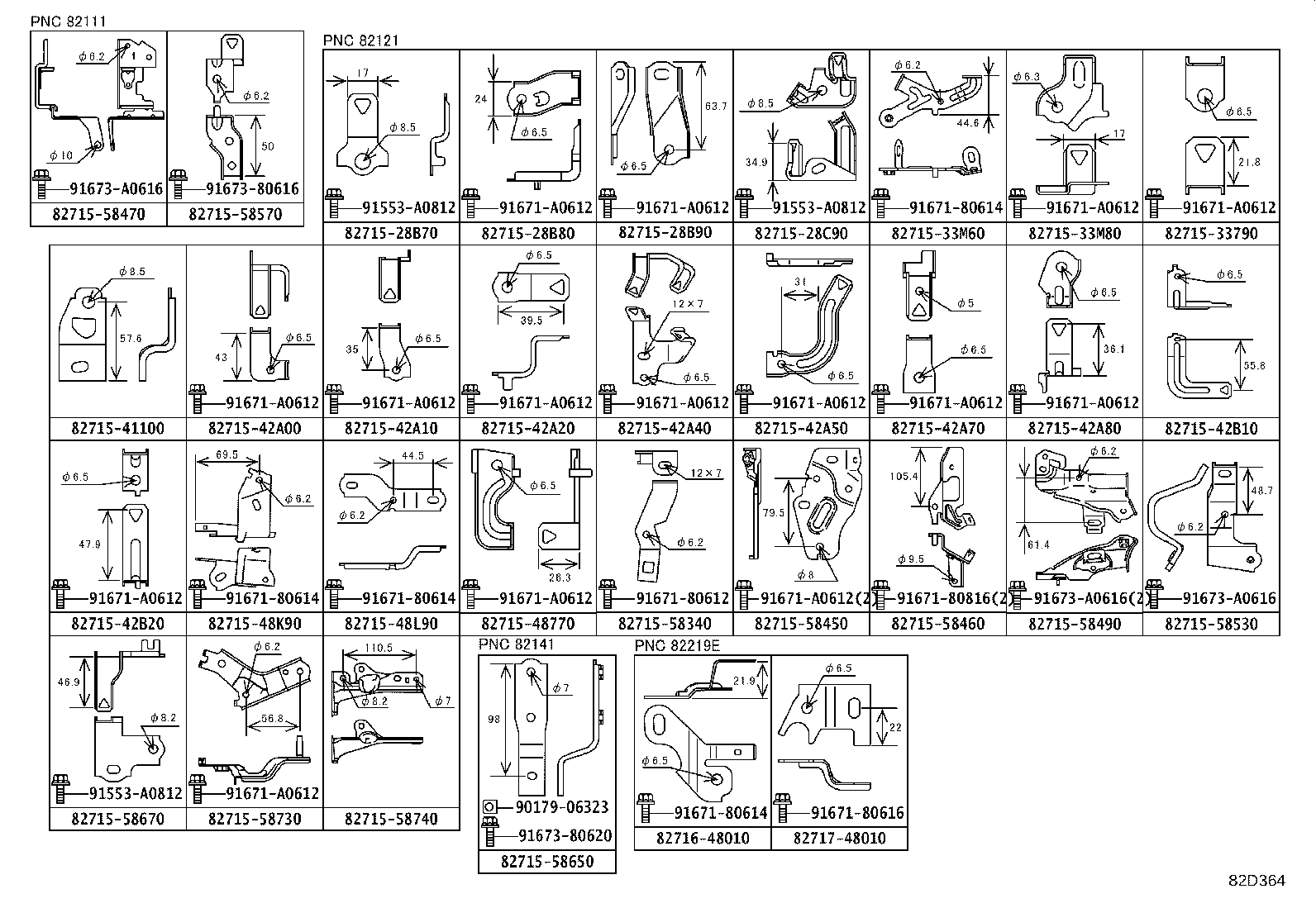

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-28B70 | ||||
| 82715-28B80 | ||||
| 82715-28B90 | ||||
| 82715-28C90 | ||||
| 82715-33790 | ||||
| 82715-33M60 | ||||
| 82715-33M80 | ||||
| 82715-41100 | ||||
| 82715-42A00 | ||||
| 82715-42A10 | ||||
| 82715-42A20 | ||||
| 82715-42A40 | ||||
| 82715-42A50 | ||||
| 82715-42A70 | ||||
| 82715-42A80 | ||||
| 82715-42B10 | ||||
| 82715-42B20 | ||||
| 82715-48770 | ||||
| 82715-48K90 | ||||
| 82715-48L90 | ||||
| 82715-58340 | ||||
| 82715-58450 | ||||
| 82715-58460 | ||||
| 82715-58470 | ||||
| 82715-58490 | ||||
| 82715-58530 | ||||
| 82715-58570 | ||||
| 82715-58650 | ||||
| 82715-58670 | ||||
| 82715-58730 | ||||
| 82715-58740 | ||||
| 82716-48010 | ||||
| 82717-48010 | ||||
| 90179-06323 | ||||
| 91553-A0812 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 91671-A0612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-A0616 | ||||
ILLUST NO. 2 OF14(2001- )8FC
Click highlighted areas on diagram

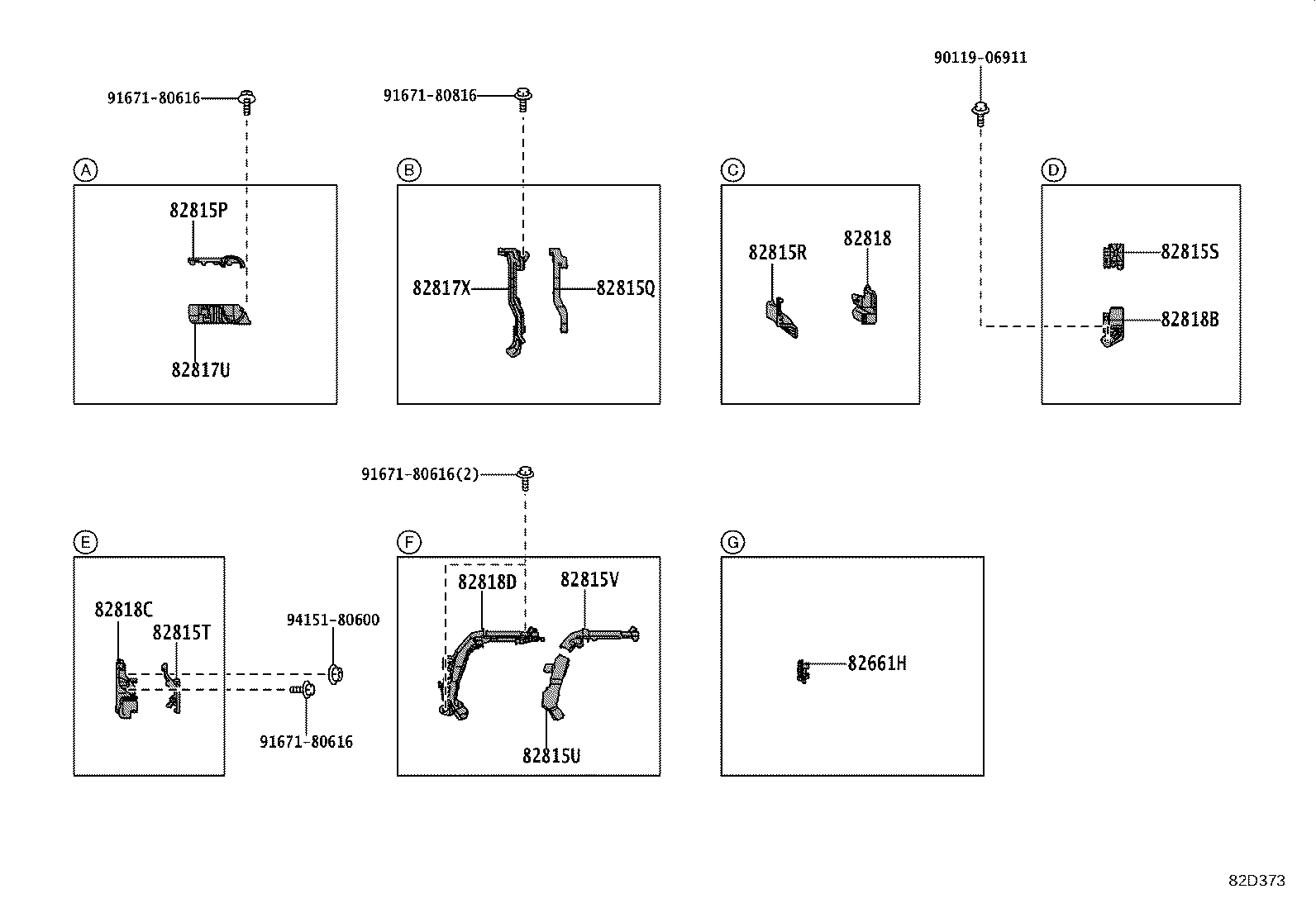

ENGINE 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82661H - COVER, RELAY BLOCK | ||||
| 82661-58080 |
GGH31..8FC |
1 | ||
| 82815P - COVER, WIRING HARNESS PROTECTOR, NO.12 | ||||
| 82815-58A70 |
GGH31..8FC |
1 | ||
| 82815Q - COVER, WIRING HARNESS PROTECTOR, NO.13 | ||||
| 82815-58A80 |
GGH31..8FC |
1 | ||
| 82815R - COVER, WIRING HARNESS PROTECTOR, NO.14 | ||||
| 82815-58A90 |
GGH31..8FC |
1 | ||
| 82815S - COVER, WIRING HARNESS PROTECTOR, NO.15 | ||||
| 82815-58B00 |
GGH31..8FC |
1 | ||
| 82815T - COVER, WIRING HARNESS PROTECTOR, NO.16 | ||||
| 82815-58B10 |
GGH31..8FC |
1 | ||
| 82815U - COVER, WIRING HARNESS PROTECTOR, NO.17 | ||||
| 82815-58B20 |
GGH31..8FC |
1 | ||
| 82815V - COVER, WIRING HARNESS PROTECTOR, NO.1 | ||||
| 82815-58B40 |
GGH31..8FC |
1 | ||
| 82817U - PROTECTOR, WIRING HARNESS, NO.16 | ||||
| 82817-58L00 |
GGH31..8FC |
1 | ||
| 82817X - PROTECTOR, WIRING HARNESS, NO.17 | ||||
| 82817-58L10 |
GGH31..8FC |
1 | ||
| 82818 - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-58L20 |
GGH31..8FC |
1 | ||
| 82818B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-58L30 |
GGH31..8FC |
1 | ||
| 82818C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-58L40 |
GGH31..8FC |
1 | ||
| 82818D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-58L50 |
GGH31..8FC |
1 | ||
| Common parts | ||||
| 90119-06911 | ||||
| 91671-80616 | ||||
| 91671-80816 | ||||
| 94151-80600 | ||||
ILLUST NO.11 OF14(2001- )
Click highlighted areas on diagram

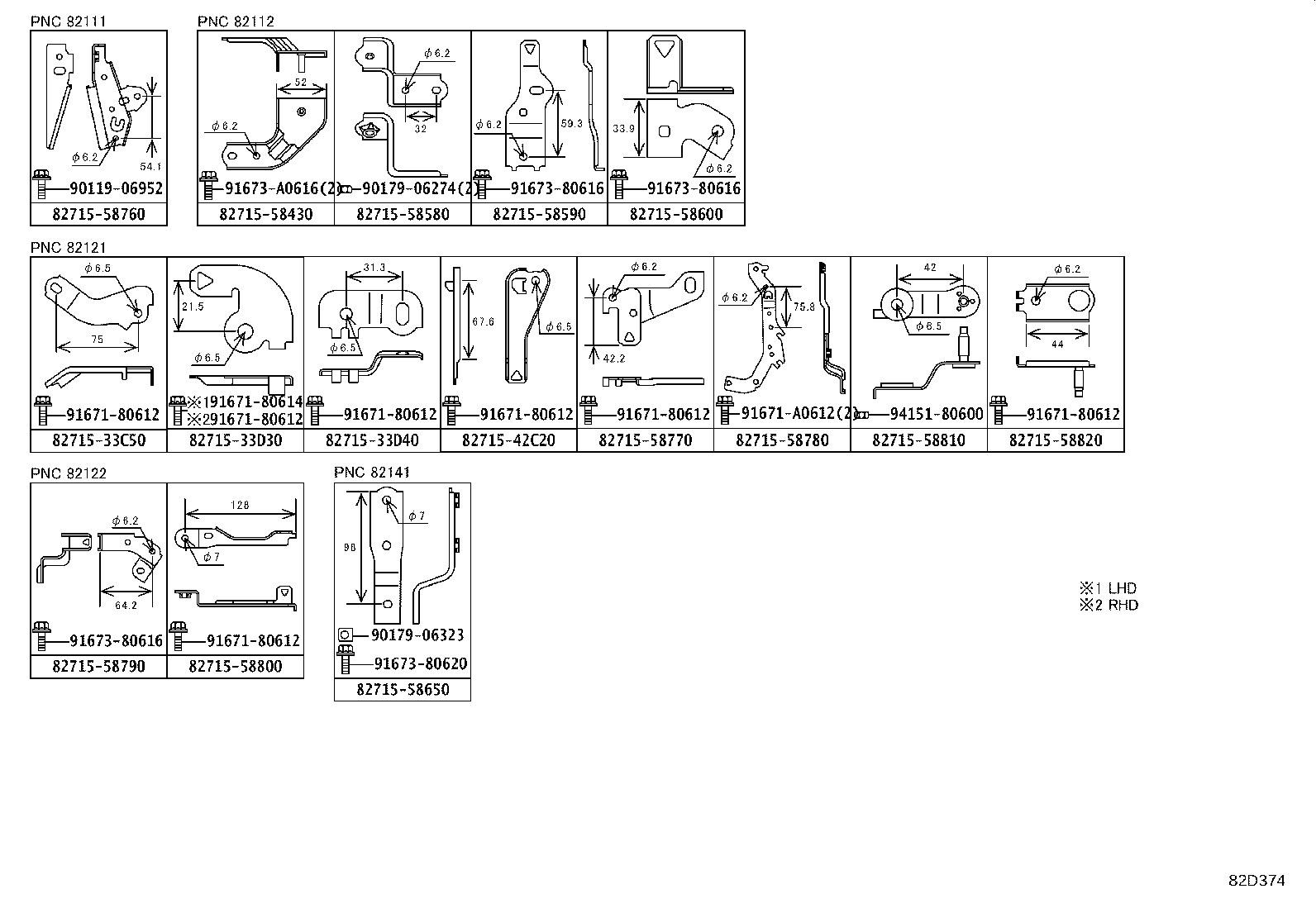

CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-33C50 | ||||
| 82715-33D30 | ||||
| 82715-33D40 | ||||
| 82715-42C20 | ||||
| 82715-58430 | ||||
| 82715-58580 | ||||
| 82715-58590 | ||||
| 82715-58600 | ||||
| 82715-58650 | ||||
| 82715-58760 | ||||
| 82715-58770 | ||||
| 82715-58780 | ||||
| 82715-58790 | ||||
| 82715-58800 | ||||
| 82715-58810 | ||||
| 82715-58820 | ||||
| 90119-06952 | ||||
| 90179-06274 | ||||
| 90179-06323 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-A0612 | ||||
| 91673-80616 | ||||
| 91673-80620 | ||||
| 91673-A0616 | ||||
| 94151-80600 | ||||
ILLUST NO.13 OF14(2001- )
Click highlighted areas on diagram
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-47A10 | ||||
| 82824-78020 | ||||
| 90980-10942 | ||||
| 90980-11060 | ||||
| 90980-11148 | ||||
| 90980-11194 | ||||
| 90980-12380 | ||||
| 90980-12416 | ||||
| 90980-12490 | ||||
| 90980-12520 | ||||
| 90980-12699 | ||||
| 90980-12F30 | ||||
ILLUST NO.14 OF14(2001- )
Click highlighted areas on diagram

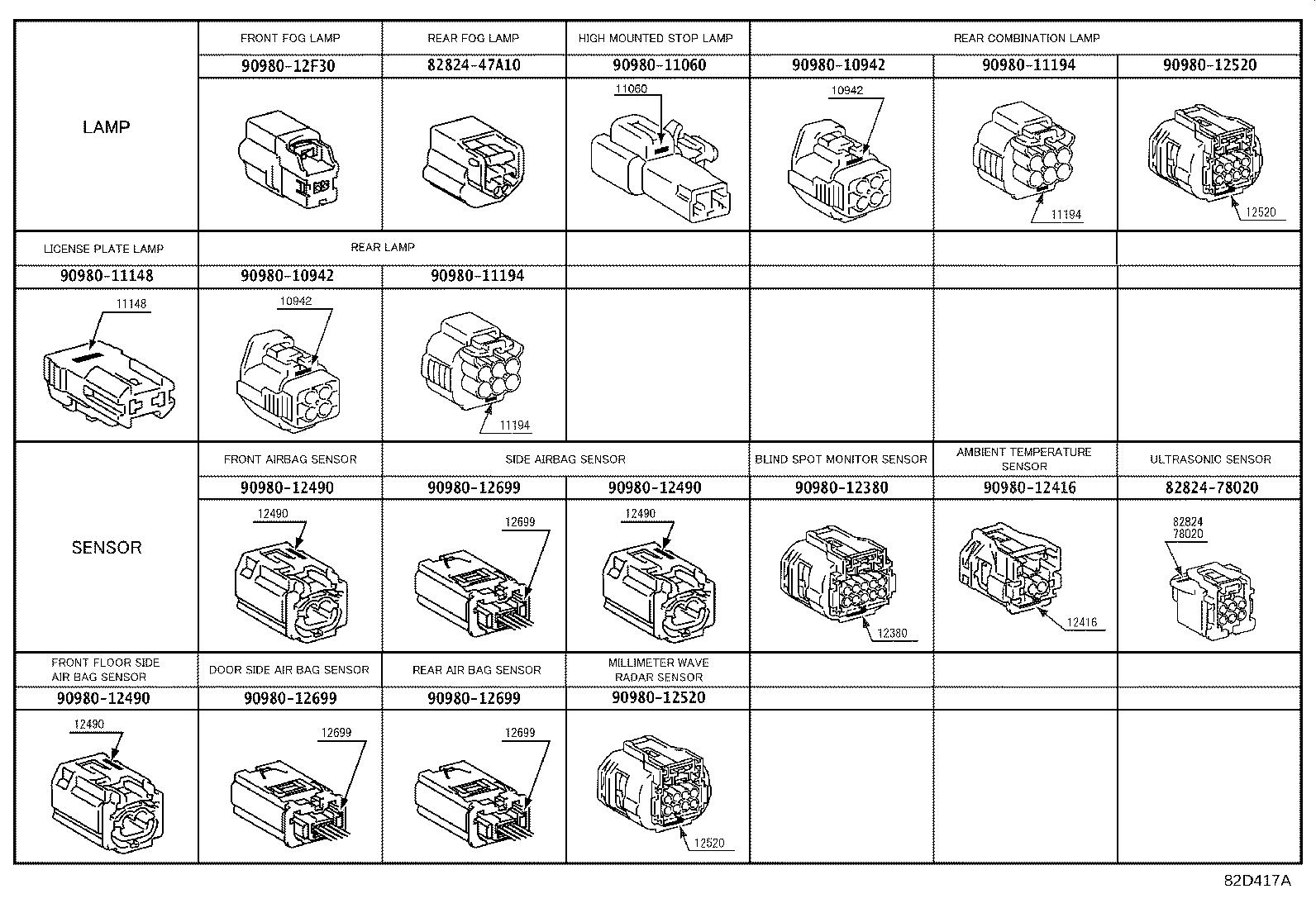

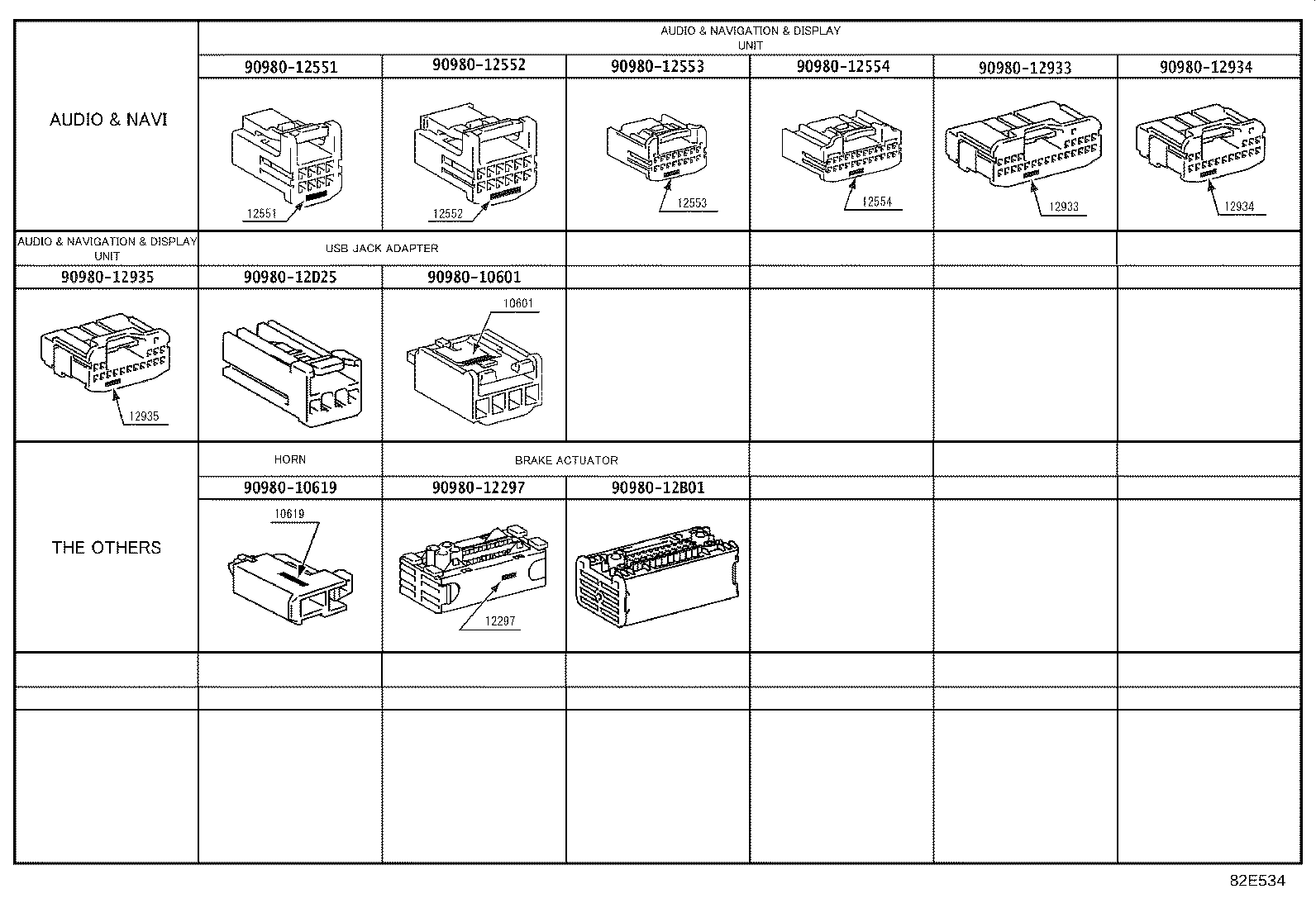

CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10601 | ||||
| 90980-10619 | ||||
| 90980-12297 | ||||
| 90980-12551 | ||||
| 90980-12552 | ||||
| 90980-12553 | ||||
| 90980-12554 | ||||
| 90980-12933 | ||||
| 90980-12934 | ||||
| 90980-12935 | ||||
| 90980-12B01 | ||||
| 90980-12D25 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
