GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

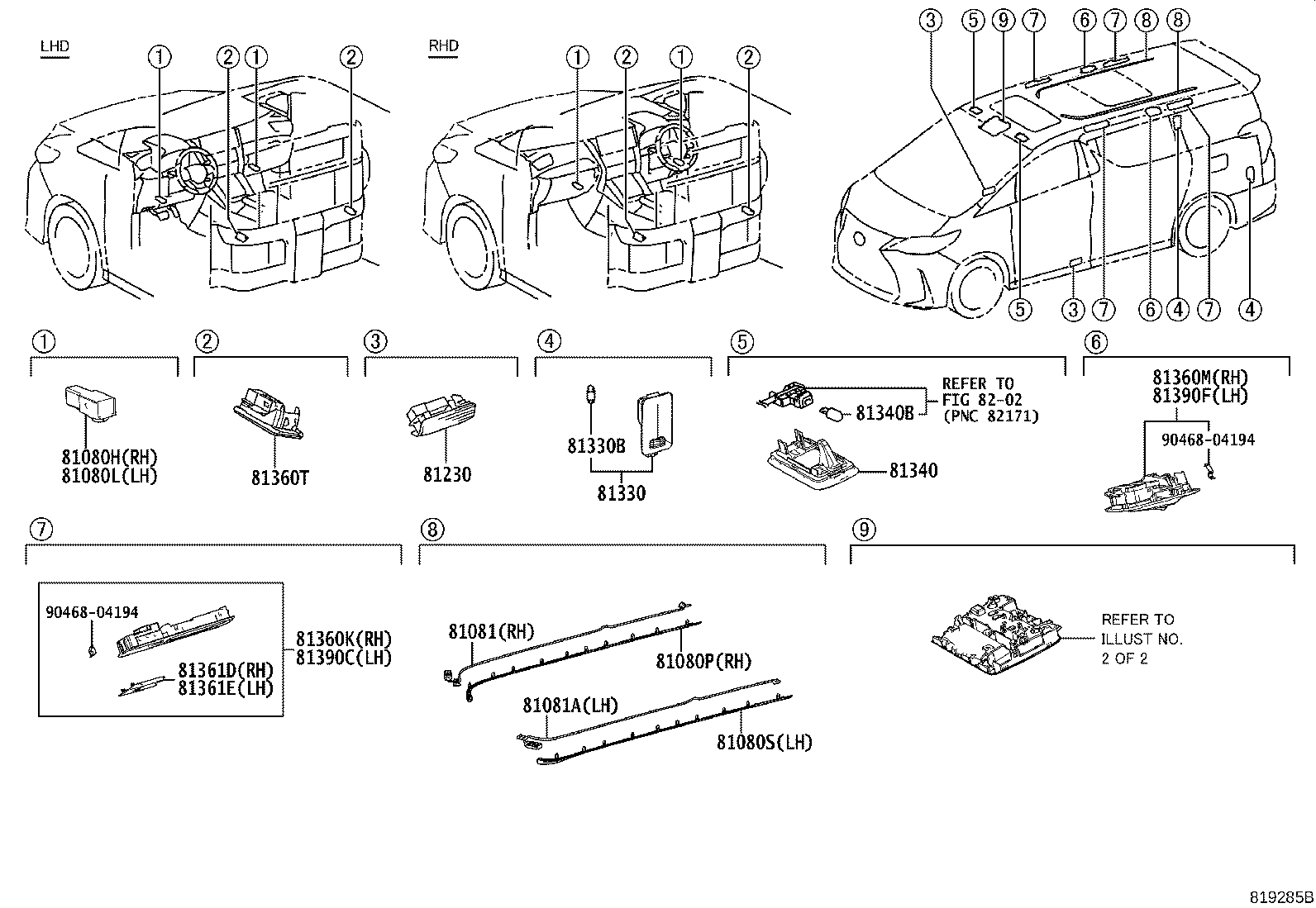

ILLUST NO. 1 OF 2(2001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81080H - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-52050 |
AYH36,GGH31 |
1 | ||
| 81080L - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-52050 |
AYH36,GGH31 |
1 | ||
| 81080P - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH | ||||
| 81080-58250A0 |
AYH36,GGH31 MELLOW WHITE,TRIM0#,2# |
1 | ||
| 81080S - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH | ||||
| 81080-58260A0 |
AYH36,GGH31 MELLOW WHITE,TRIM0#,2# |
1 | ||
| 81081 - LAMP SUB-ASSY, INTERIOR ILLUMINATION | ||||
| 81081-58020 |
AYH36,GGH31 |
1 | ||
| 81081A - LAMP SUB-ASSY, INTERIOR ILLUMINATION, NO.2 | ||||
| 81081-58030 |
AYH36,GGH31 |
1 | ||
| 81230 - LAMP ASSY, COURTESY | ||||
| 81230-11030 |
AYH36,GGH31 |
2 | ||
| 81330 - LAMP ASSY, LUGGAGE COMPARTMENT, NO.1 | ||||
| 81330-58010 |
AYH36,GGH31 |
2 | ||
| 81330B - BULB, LUGGAGE COMPARTMENT LAMP | ||||
| 99132-12050 |
AYH36,GGH31 12V 5W |
2 | ||
| 81340 - LAMP ASSY, VANITY | ||||
| 81340-30110 |
AYH36,GGH31 |
2 | ||
| 81340B - BULB (FOR VANITY LAMP) | ||||
| 90981-11062 |
AYH36,GGH31 12V 8W |
2 | ||
| 81360K - LAMP ASSY, SPOT, RH | ||||
| 81360-58080C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 81360M - LAMP ASSY, SPOT, NO.2 RH | ||||
| 81360-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 81361D - LENS, SPOT LAMP | ||||
| 81361-58110 |
AYH36,GGH31 |
2 | ||
| 81361E - LENS, SPOT LAMP, NO.2 | ||||
| 81361-58120 |
AYH36,GGH31 |
2 | ||
| 81390C - LAMP ASSY, SPOT, LH | ||||
| 81390-58070C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 81390F - LAMP ASSY, SPOT, NO.2 LH | ||||
| 81390-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90468-04194 | ||||
| Linked diagrams | ||||
| 8202 | ||||

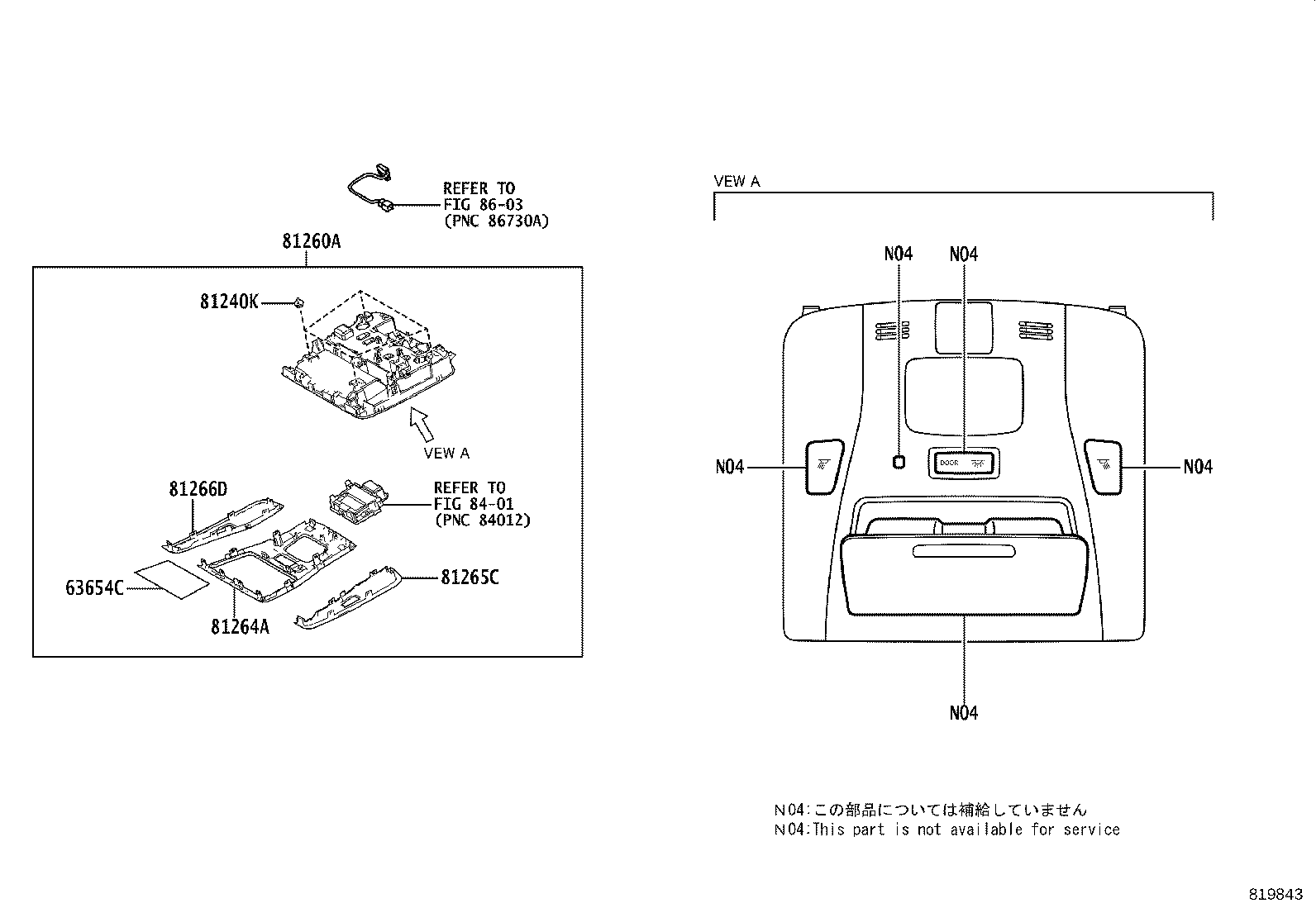

ILLUST NO. 2 OF 2(2001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63654C - COVER, ROOF CONSOLE BOX, INNER | ||||
| 63654-58010 |
AYH36,GGH31 |
1 | ||
| 81240K - CLIP, ROOM LAMP | ||||
| 90467-09245 |
AYH36,GGH31 |
4 | ||
| 81260A - LAMP ASSY, MAP | ||||
| 81208-58280 |
GGH31..LHD |
1 | ||
| 81264A - COVER, MAP LAMP | ||||
| 81369-58050 |
GGH31..LHD |
1 | ||
| 81265C - LENS, MAP LAMP, NO.1 | ||||
| 81361-58090 |
AYH36,GGH31 |
1 | ||
| 81266D - LENS, MAP LAMP, NO.2 | ||||
| 81361-58100 |
AYH36,GGH31 |
1 | ||
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||
