GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )

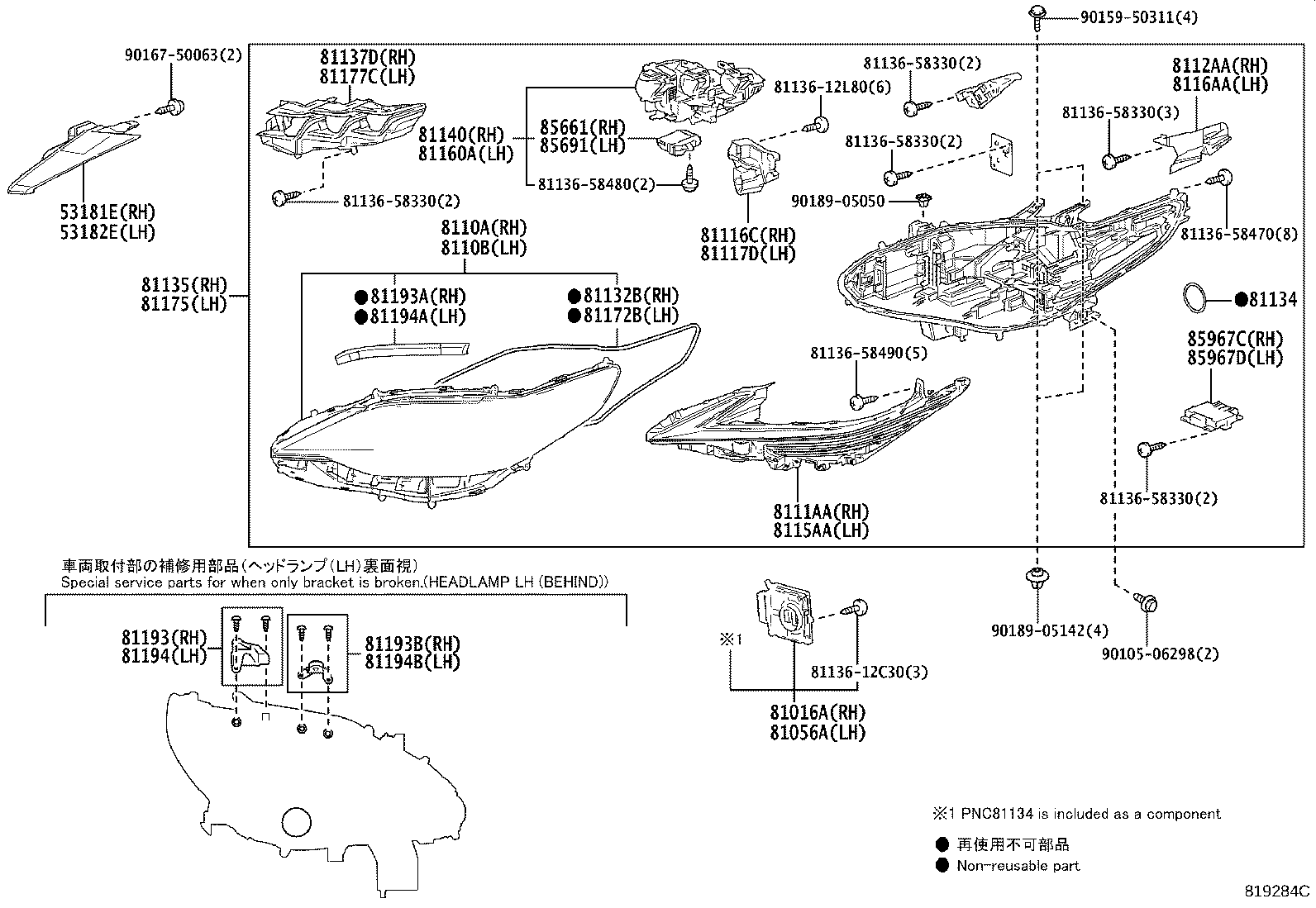

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53181E - COVER, HEADLAMP, RH | ||||
| 53181-58160A0 |
AYH36,GGH31 WHITE PEARL CS.,070 |
1 | ||
| 53181-58160C0 |
AYH36,GGH31 BLACK,202 |
1 | ||
| 53182E - COVER, HEADLAMP, LH | ||||
| 53182-58160C0 |
AYH36,GGH31 BLACK,202 |
1 | ||
| 53182-58160A0 |
AYH36,GGH31 WHITE PEARL CS.,070 |
1 | ||
| 81016A - COMPUTER SUB-ASSY, HEADLAMP, RH | ||||
| 81016-58740 |
AYH36,GGH31 |
1 | ||
| 81056A - COMPUTER SUB-ASSY, HEADLAMP, LH | ||||
| 81056-58740 |
AYH36,GGH31 |
1 | ||
| 8110A - LENS SUB-ASSY, HEADLAMP, RH | ||||
| 8110A-58740 |
AYH36,GGH31 |
1 | ||
| 8110B - LENS SUB-ASSY, HEADLAMP, LH | ||||
| 8110B-58740 |
AYH36,GGH31 |
1 | ||
| 81116C - BRACKET, HEADLAMP, RH | ||||
| 81146-58740 |
AYH36,GGH31 |
1 | ||
| 81117D - BRACKET, HEADLAMP, LH | ||||
| 81186-58740 |
AYH36,GGH31 |
1 | ||
| 8111AA - UNIT, HEADLAMP TURN SIGNAL LED, RH | ||||
| 8112A-58740 |
AYH36,GGH31 |
1 | ||
| 8112AA - UNIT, HEADLAMP CLEARANCE LED, RH | ||||
| 8112B-58740 |
AYH36,GGH31 |
1 | ||
| 81132B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
AYH36,GGH31 |
1 | ||
| 81134 - GASKET, HEADLAMP | ||||
| 81134-58340 |
AYH36,GGH31 |
4 | ||
| 81135 - UNIT ASSY, HEADLAMP, RH | ||||
| 81145-58740 |
AYH36,GGH31..LHD |
1 | ||
| 81137D - BEZEL, HEADLAMP LED, RH | ||||
| 81137-58740 |
AYH36,GGH31 |
1 | ||
| 81140 - UNIT ASSY, HEADLAMP LED, RH | ||||
| 81140-58740 |
AYH36,GGH31..LHD |
1 | ||
| 8115AA - UNIT, HEADLAMP TURN SIGNAL LED, LH | ||||
| 8116A-58740 |
AYH36,GGH31 |
1 | ||
| 81160A - UNIT ASSY, HEADLAMP LED, LH | ||||
| 81160-58740 |
AYH36,GGH31..LHD |
1 | ||
| 8116AA - UNIT, HEADLAMP CLEARANCE LED, LH | ||||
| 8116B-58740 |
AYH36,GGH31 |
1 | ||
| 81172B - GASKET, HEADLAMP LENS | ||||
| 81132-58330 |
AYH36,GGH31 |
1 | ||
| 81175 - UNIT ASSY, HEADLAMP, LH | ||||
| 81185-58740 |
AYH36,GGH31..LHD |
1 | ||
| 81177C - BEZEL, HEADLAMP LED, LH | ||||
| 81177-58740 |
AYH36,GGH31 |
1 | ||
| 81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH | ||||
| 81193-58110 |
AYH36,GGH31 |
1 | ||
| 81193A - PROTECTOR, HEADLAMP, RH | ||||
| 81117-58740 |
AYH36,GGH31 |
1 | ||
| 81193B - RETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2 | ||||
| 81193-58081 |
AYH36,GGH31 |
1 | ||
| 81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH | ||||
| 81194-58110 |
AYH36,GGH31 |
1 | ||
| 81194A - PROTECTOR, HEADLAMP, LH | ||||
| 81157-58740 |
AYH36,GGH31 |
1 | ||
| 81194B - RETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2 | ||||
| 81194-58081 |
AYH36,GGH31 |
1 | ||
| 85661 - MOTOR, HEADLAMP LEVELING, RH | ||||
| 85661-48060 |
AYH36,GGH31 |
1 | ||
| 85691 - MOTOR, HEADLAMP LEVELING, LH | ||||
| 85691-48010 |
AYH36,GGH31 |
1 | ||
| 85967C - COMPUTER, LIGHT CONTROL LED, RH | ||||
| 85967-58020 |
AYH36,GGH31 |
1 | ||
| 85967D - COMPUTER, LIGHT CONTROL LED, LH | ||||
| 85967-58010 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 81136-12C30 | ||||
| 81136-12L80 | ||||
| 81136-58330 | ||||
| 81136-58470 | ||||
| 81136-58480 | ||||
| 81136-58490 | ||||
| 90105-06298 | ||||
| 90159-50311 | ||||
| 90167-50063 | ||||
| 90189-05050 | ||||
| 90189-05142 | ||||
