GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

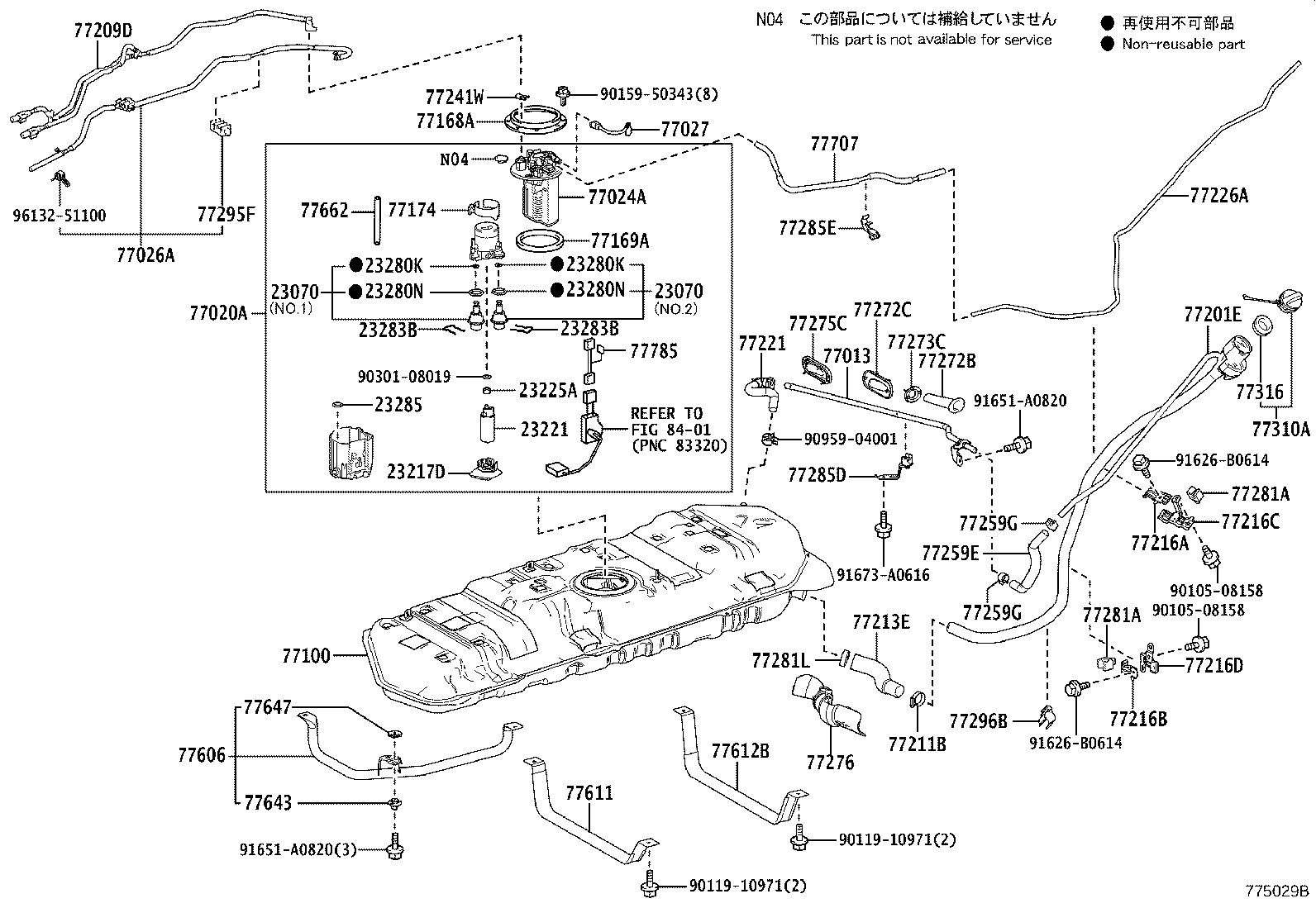

ILLUST NO. 1 OF 4(2001- )8FC
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
2GRFKS..GGH31 NO.2:REFER ILLUST. |
1 | ||
| 23070-31030 |
2GRFKS..GGH31 NO.1:REFER ILLUST. |
1 | ||
| 23070 - VALVE ASSY, FUEL MAIN | ||||
| 23070-36010 |
2GRFKS..GGH31 NO.2:REFER ILLUST. |
1 | ||
| 23070-31030 |
2GRFKS..GGH31 NO.1:REFER ILLUST. |
1 | ||
| 23217D - FILTER, FUEL PUMP | ||||
| 23217-31080 |
2GRFKS..GGH31 |
1 | ||
| 23221 - PUMP, FUEL | ||||
| 23221-31130 |
2GR#..GGH31 |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-31010 |
2GR#..GGH31 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFKS..GGH31 |
2 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
2GRFKS..GGH31 |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2GRFKS..GGH31 |
2 | ||
| 23280N - RING, O(FOR FUEL PRESSURE REGULATOR), NO.2 | ||||
| 90301-15024 |
2GRFKS..GGH31 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
2GRFKS..GGH31 |
2 | ||
| 23283B - HOLDER, FUEL PRESSURE REGULATOR | ||||
| 23283-36010 |
2GRFKS..GGH31 |
2 | ||
| 23285 - RING, O | ||||
| 90301-08020 |
2GRFKS..GGH31 |
1 | ||
| 77013 - TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2 | ||||
| 77013-58010 |
AYH36,GGH31 |
1 | ||
| 77020A - TUBE ASSY, FUEL SUCTION W/PUMP & GAGE | ||||
| 77020-58070 |
GGH31..8FC |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-58060 |
GGH31..8FC |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77026-58030 |
GGH31 |
1 | ||
| 77027 - TUBE SUB-ASSY, FUEL EVAPORATION, NO.2 | ||||
| 77027-58010 |
GGH31;AYH36..RHD |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-58040 |
GGH31 |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
AYH36,GGH31 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-53010 |
GGH31;AYH36..LHD |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-58010 |
GGH31..8FC |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-58080 |
GGH31;AYH36..RHD |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-58030 |
GGH31..8FC |
1 | ||
| 77211B - CLAMP (FOR FUEL FILLER PIPE) | ||||
| 90460-40007 |
AYH36,GGH31 |
1 | ||
| 77213E - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-58030 |
GGH31;AYH36..RHD |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-58030 |
GGH31;AYH36..RHD |
1 | ||
| 77216B - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77216-58040 |
GGH31;AYH36..RHD |
1 | ||
| 77216C - SUPPORT, FUEL TANK FILLER PIPE NO.3 | ||||
| 77217-58030 |
GGH31;AYH36..RHD |
1 | ||
| 77216D - SUPPORT, FUEL TANK FILLER PIPE NO.4 | ||||
| 77217-58040 |
GGH31;AYH36..RHD |
1 | ||
| 77221 - TUBE, FUEL TANK BREATHER, NO.1 | ||||
| 77221-58010 |
GGH31;AYH36..RHD |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-58010 |
GGH31;AYH36..RHD |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AYH36,GGH31 |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-58040 |
GGH31;AYH36..RHD |
1 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90959-04001 |
AYH36,GGH31 |
2 | ||
| 77259G - CLIP, FUEL HOSE | ||||
| 90959-04001 |
AYH36,GGH31 |
2 | ||
| 77272B - SUPPORT, BREATHER TUBE, NO.1 | ||||
| 77272-58010 |
AYH36,GGH31 |
1 | ||
| 77272C - SUPPORT, BREATHER TUBE, NO.3 | ||||
| 77272-58020 |
AYH36,GGH31 |
1 | ||
| 77273C - SUPPORT, BREATHER TUBE, NO.2 | ||||
| 77273-58010 |
AYH36,GGH31 |
1 | ||
| 77275C - SUPPORT, BREATHER TUBE, NO.4 | ||||
| 77273-58020 |
AYH36,GGH31 |
1 | ||
| 77276 - PROTECTOR, FUEL HOSE | ||||
| 77276-58040 |
AYH36,GGH31 |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
GGH31;AYH36..RHD |
2 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-30110 |
GGH31;AYH36..RHD |
2 | ||
| 77281L - CLAMP, FUEL HOSE | ||||
| 90460-46005 |
AYH36,GGH31 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-58030 |
AYH36,GGH31 |
1 | ||
| 77285E - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-28040 |
GGH31 |
1 | ||
| 77295F - GROMMET, FUEL HOSE | ||||
| 77295-35260 |
GGH31 |
1 | ||
| 77296B - SUPPORT, FUEL TUBE PROTECTOR, NO.1 | ||||
| 77296-58010 |
GGH31;AYH36..RHD |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
GGH31;AYH36..RHD |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
GGH31;AYH36..RHD |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-58010 |
AYH36,GGH31 |
1 | ||
| 77611 - BAND, FUEL TANK | ||||
| 77601-58010 |
GGH31 |
1 | ||
| 77612B - BAND, FUEL TANK, NO.2 | ||||
| 77602-58010 |
GGH31 |
1 | ||
| 77643 - RETAINER, FUEL TANK PROTECTOR | ||||
| 51489-28020 |
AYH36,GGH31 |
1 | ||
| 77647 - RETAINER, FUEL TANK PROTECTOR, SIDE | ||||
| 51499-28030 |
AYH36,GGH31 |
1 | ||
| 77662 - COVER, FUEL TANK GAGE | ||||
| 77662-53010 |
AYH36,GGH31 |
1 | ||
| 77707 - TUBE SUB-ASSY, CHARCOAL CANISTER OUTLET | ||||
| 77707-58010 |
GGH31;AYH36..RHD |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-58020 |
GGH31..8FC |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90119-10971 | ||||
| 90159-50343 | ||||
| 90301-08019 | ||||
| 90959-04001 | ||||
| 91626-B0614 | ||||
| 91651-A0820 | ||||
| 91673-A0616 | ||||
| 96132-51100 | ||||
| Linked diagrams | ||||
| 8401 | ||||

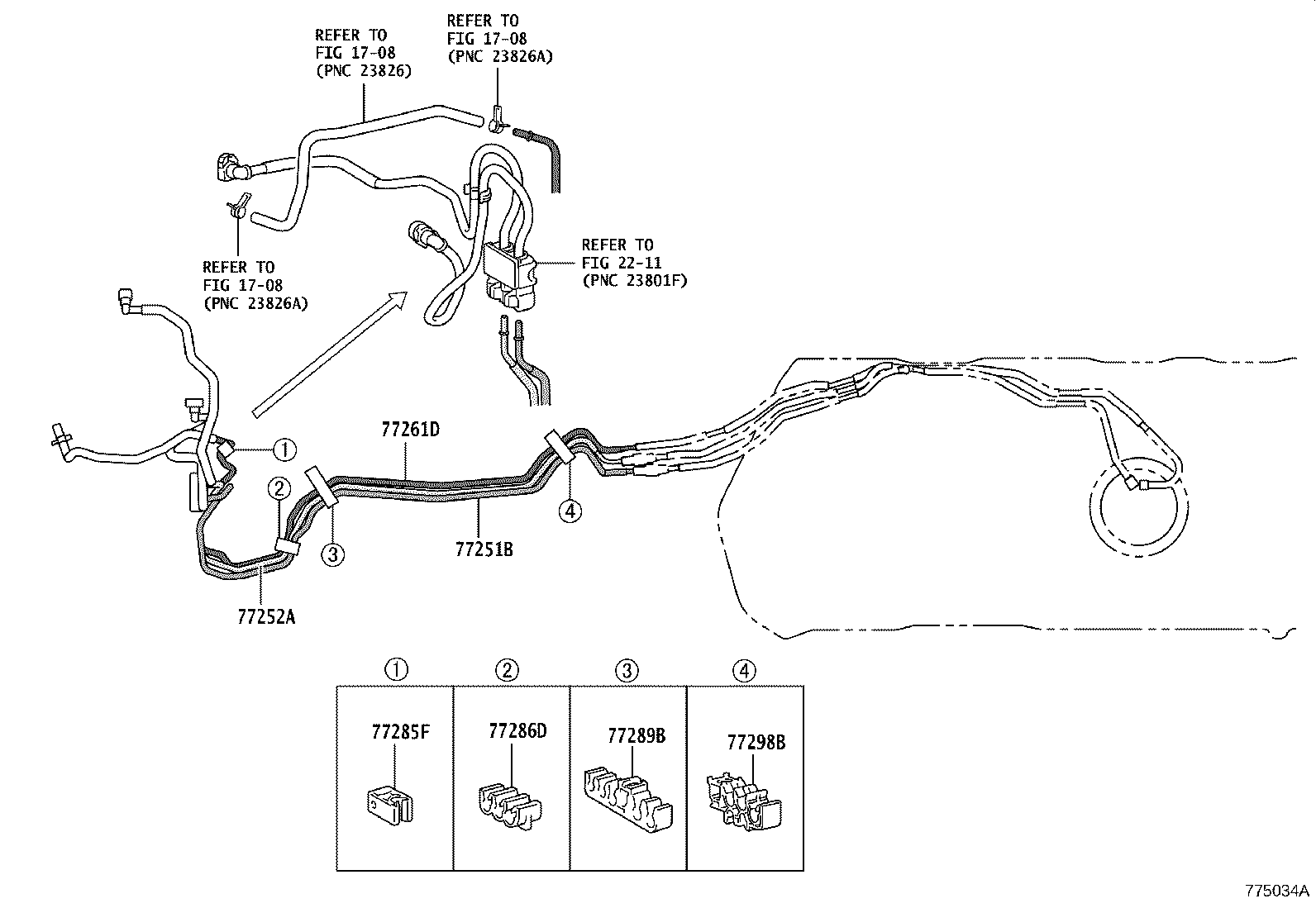

ILLUST NO. 3 OF 4(2001- )8FC
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-58061 |
GGH31..8FC |
1 | ||
| 77252A - TUBE, FUEL MAIN, NO.2 | ||||
| 77252-58011 |
GGH31..8FC |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-58050 |
GGH31..8FC |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-52010 |
GGH31;AYH36..RHD |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-20170 |
GGH31..8FC |
1 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-68010 |
GGH31..8FC |
1 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77299-58030 |
GGH31..8FC |
1 | ||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||

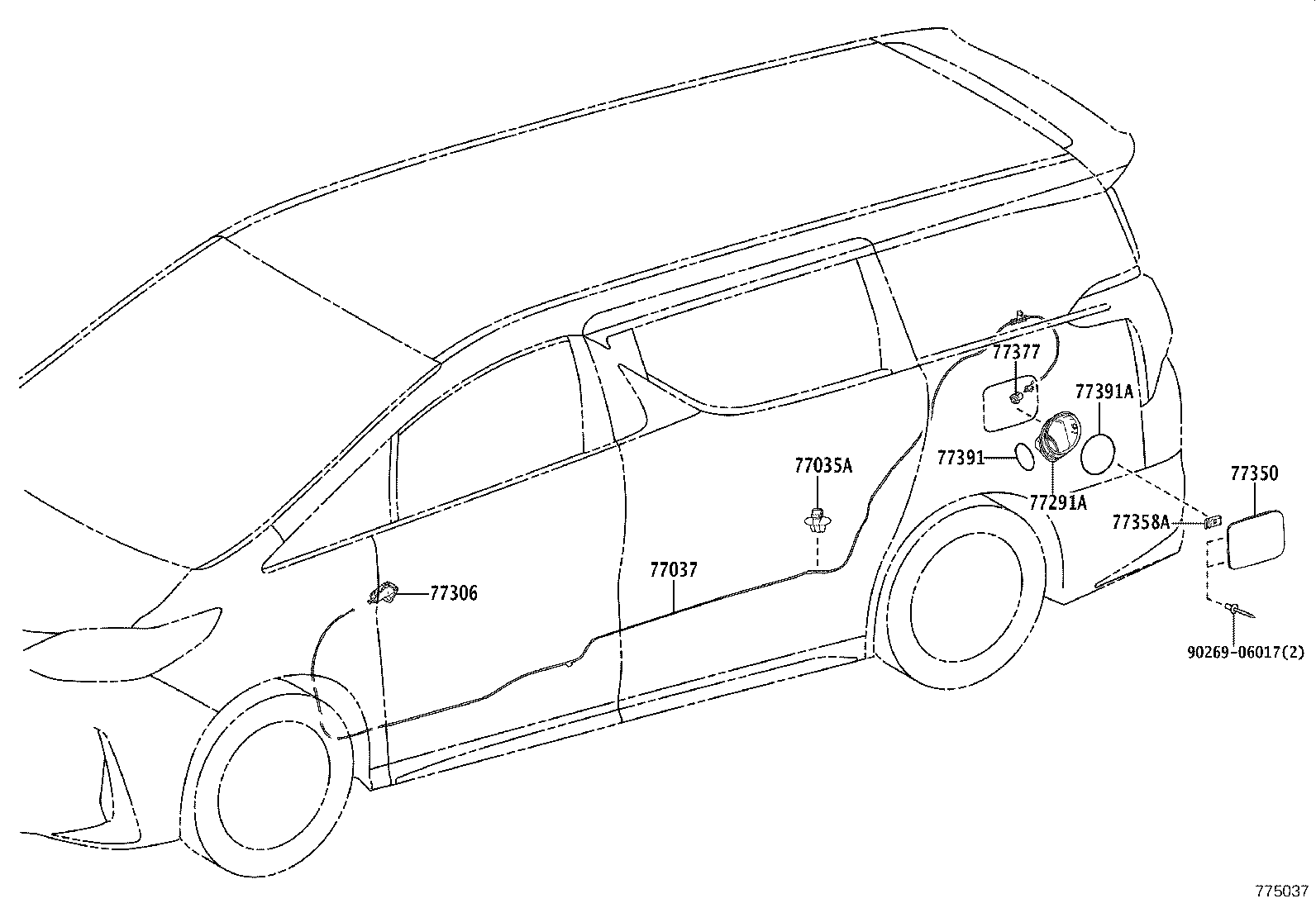

ILLUST NO. 4 OF 4(2001- )LHD
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
AYH36,GGH31..LHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-58050 |
AYH36,GGH31..LHD |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-58020 |
AYH36,GGH31 |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-58020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-58030 |
AYH36,GGH31 |
1 | ||
| 77358A - STOPPER, FUEL FILLER OPENING LID | ||||
| 77358-30060 |
AYH36,GGH31 |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12050 |
AYH36,GGH31 |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-28020 |
AYH36,GGH31 |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-58010 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90269-06017 | ||||
