GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

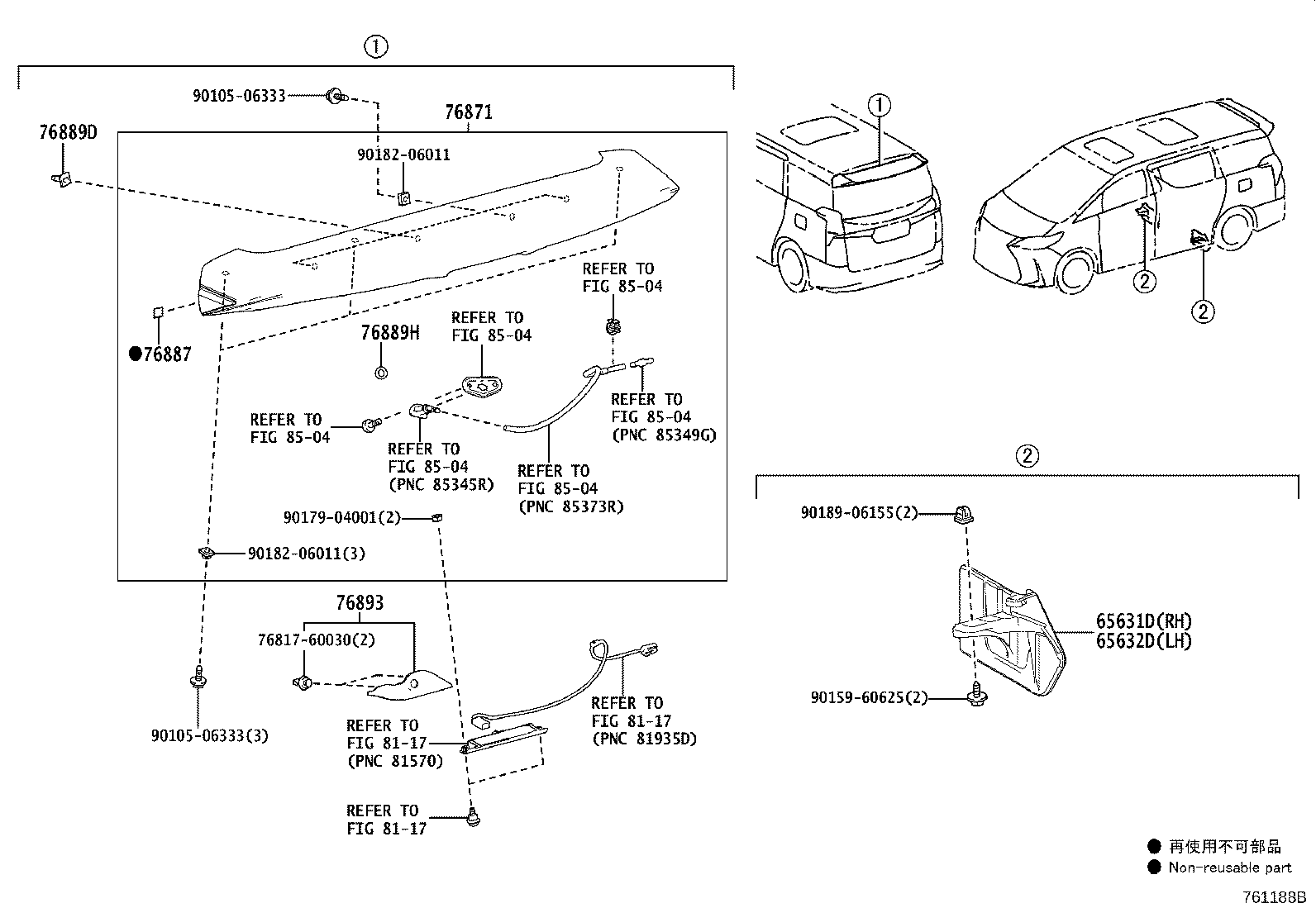

ILLUST NO. 1 OF 2(2001- )

Click highlighted areas on diagram

diagram 65631D 65632D 7681760030 76871 76887 76889D 76889H 76893 8117 8117 8117 8504 8504 8504 8504 8504 8504 9010506333 9010506333 9015960625 9017904001 9018206011 9018206011 9018906155
Part # Description Qty Price
65631D - PLATE, REAR WHEEL HOUSE, FRONT RH
65631-58020

AYH36,GGH31

 1
65632D - PLATE, REAR WHEEL HOUSE, FRONT LH
65632-58020

AYH36,GGH31

 1
76871 - SPOILER, REAR
76085-58900C0

AYH36,GGH31

BLACK,202

 1
76085-58900A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76887 - SEAL, REAR SPOILER
76887-58050

AYH36,GGH31

 2
76889D - CLIP, REAR SPOILER, NO.2
76889-44020

AYH36,GGH31

 3
76889H - SEAL, REAR SPOILER, NO.1
76889-28020

AYH36,GGH31

 1
76893 - COVER, REAR SPOILER, NO.1
76893-58030

AYH36,GGH31

 1
Common parts
76817-60030
90105-06333
90159-60625
90179-04001
90182-06011
90189-06155
Linked diagrams
8117
8504

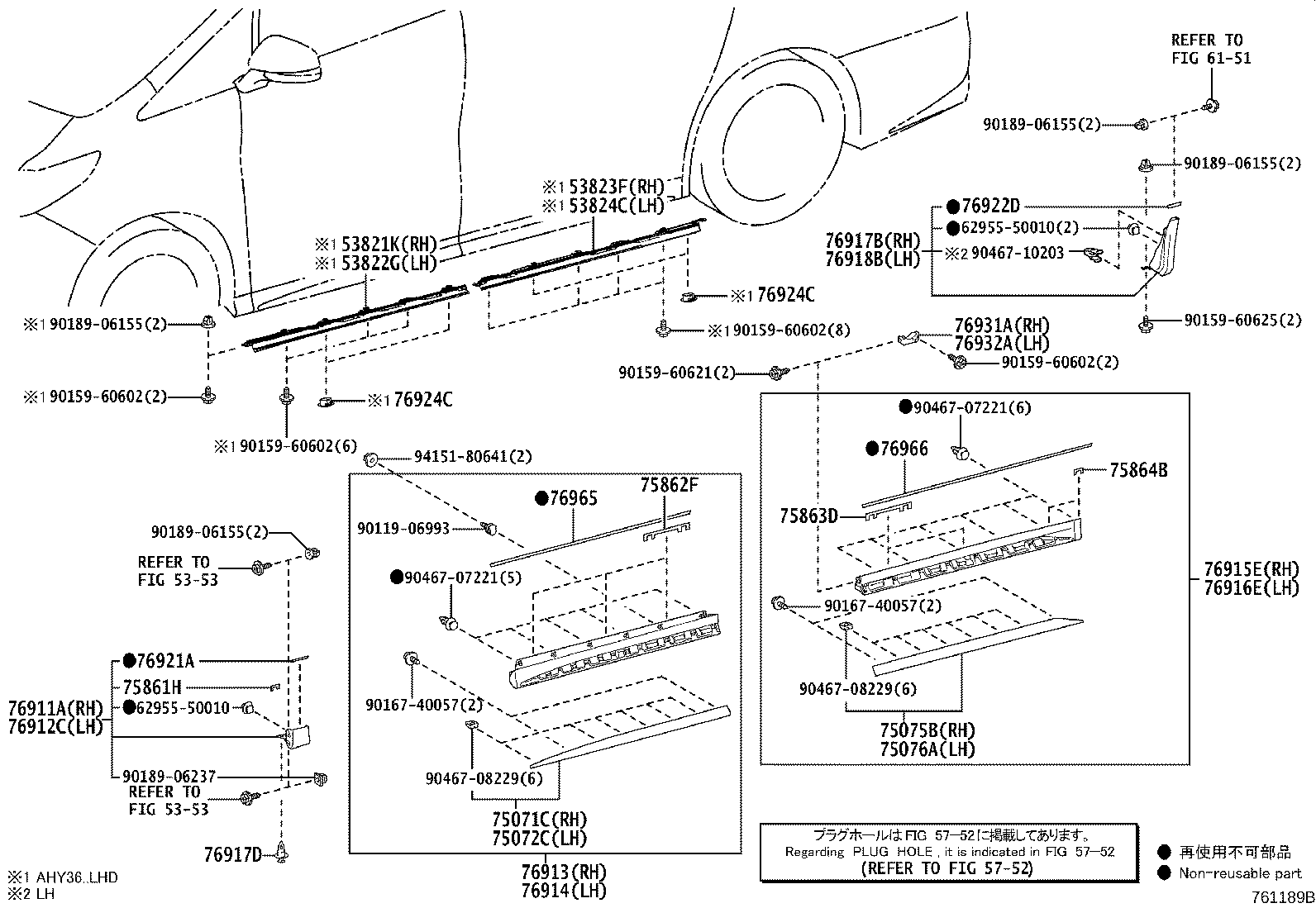

ILLUST NO. 2 OF 2(2001- )

Click highlighted areas on diagram

diagram 5353 5353 53821K 53822G 53823F 53824C 5752 6151 6295550010 6295550010 75071C 75072C 75075B 75076A 75861H 75862F 75863D 75864B 76911A 76912C 76913 76914 76915E 76916E 76917B 76917D 76918B 76921A 76922D 76924C 76924C 76931A 76932A 76965 76966 9011906993 9015960602 9015960602 9015960602 9015960602 9015960621 9015960625 9016740057 9016740057 9018906155 9018906155 9018906155 9018906155 9018906237 9046707221 9046707221 9046708229 9046708229 9046710203 9415180641
Part # Description Qty Price
75071C - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE RH
75071-58010

AYH36,GGH31

 1
75072C - MOULDING SUB-ASSY, FRONT DOOR, OUTSIDE LH
75072-58010

AYH36,GGH31

 1
75075B - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE RH
75075-58010

AYH36,GGH31

 1
75076A - MOULDING SUB-ASSY, REAR DOOR, OUTSIDE LH
75076-58010

AYH36,GGH31

 1
75861H - PROTECTOR, ROCKER PANEL MOULDING, NO.1
75864-58010

AYH36,GGH31

 2
75862F - PROTECTOR, ROCKER PANEL MOULDING, NO.2
75861-58010

AYH36,GGH31

 6
75863D - PROTECTOR, ROCKER PANEL MOULDING, NO.3
75861-58010

AYH36,GGH31

 4
75864B - PROTECTOR, ROCKER PANEL MOULDING, NO.4
75864-58010

AYH36,GGH31

 4
76911A - MUDGUARD, FENDER PANEL, RH
76901-58060C0

AYH36,GGH31

BLACK,202

 1
76901-58060A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76912C - MUDGUARD, FENDER PANEL, LH
76902-58060A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76902-58060C0

AYH36,GGH31

BLACK,202

 1
76913 - MUDGUARD, FRONT DOOR, RH
76903-58070A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76903-58070C0

AYH36,GGH31

BLACK,202

 1
76914 - MUDGUARD, FRONT DOOR, LH
76904-58070C0

AYH36,GGH31

BLACK,202

 1
76904-58070A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76915E - MUDGUARD, SLIDE DOOR, RH
76905-58070A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76905-58070C0

AYH36,GGH31

BLACK,202

 1
76916E - MUDGUARD, SLIDE DOOR, LH
76906-58070C0

AYH36,GGH31

BLACK,202

 1
76906-58070A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76917B - MUDGUARD, QUARTER PANEL, RH
76907-58090A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76907-58090C0

AYH36,GGH31

BLACK,202

 1
76917D - CLIP
52161-16010

AYH36,GGH31

 2
76918B - MUDGUARD, QUARTER PANEL, LH
76908-58090A0

AYH36,GGH31

WHITE PEARL CS.,070

 1
76908-58090C0

AYH36,GGH31

BLACK,202

 1
76921A - PROTECTOR, SIDE MUDGUARD, NO.1
76921-58040

AYH36,GGH31

 2
76922D - PROTECTOR, SIDE MUDGUARD, NO.2
76922-58050

AYH36,GGH31

 2
76931A - BRACKET, SIDE MUDGUARD, NO.1 RH
76931-58020

AYH36,GGH31

 1
76932A - BRACKET, SIDE MUDGUARD, NO.1 LH
76932-28070

AYH36,GGH31

 1
76965 - PROTECTOR, FRONT DOOR LOWER MUDGUARD
76965-58040

AYH36,GGH31

 2
76966 - PROTECTOR, SLIDE DOOR LOWER MUDGUARD
76966-58040

AYH36,GGH31

 2
Common parts
62955-50010
90119-06993
90159-60602
90159-60621
90159-60625
90167-40057
90189-06155
90189-06237
90467-07221
90467-08229
90467-10203
94151-80641
Linked diagrams
5353
5752
6151
