GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(2001- )

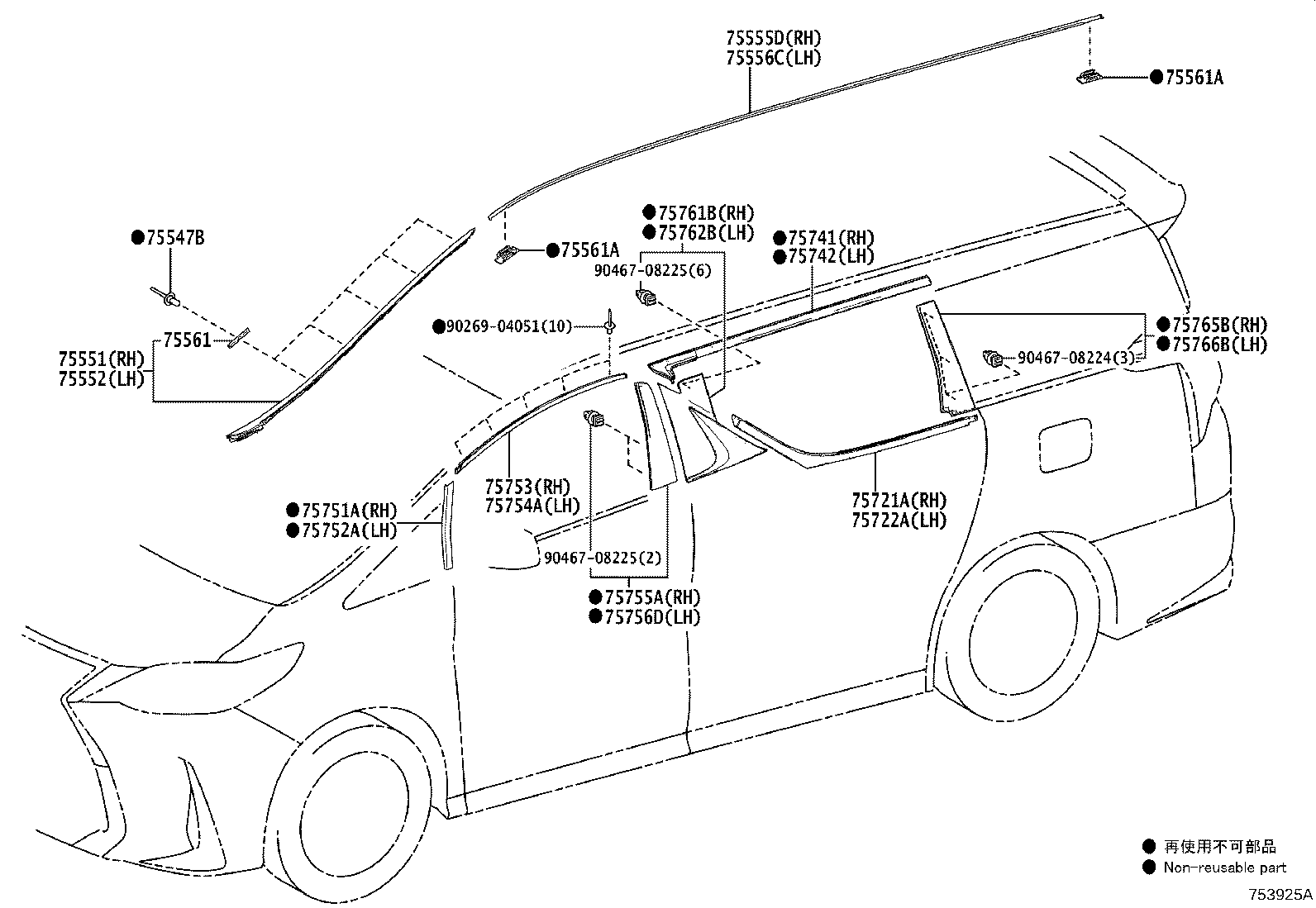

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75547B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.3 | ||||
| 75547-51021 |
AYH36,GGH31 |
10 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-58030 |
AYH36,GGH31 NO PAINT REQ. |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-58030 |
AYH36,GGH31 NO PAINT REQ. |
1 | ||
| 75555D - MOULDING, ROOF DRIP SIDE FINISH, CENTER RH | ||||
| 75555-58030 |
AYH36,GGH31 |
1 | ||
| 75556C - MOULDING, ROOF DRIP SIDE FINISH, CENTER LH | ||||
| 75556-58030 |
AYH36,GGH31 |
1 | ||
| 75561 - CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75545-30170 |
AYH36,GGH31 |
10 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52040 |
AYH36,GGH31 |
4 | ||
| 75561A - CLIP, ROOF DRIP SIDE FINISH MOULDING | ||||
| 75561-52040 |
AYH36,GGH31 |
4 | ||
| 75721A - MOULDING, REAR DOOR BELT, RH | ||||
| 75721-58040 |
AYH36,GGH31 |
1 | ||
| 75722A - MOULDING, REAR DOOR BELT, LH | ||||
| 75722-58040 |
AYH36,GGH31 |
1 | ||
| 75741 - MOULDING, REAR DOOR, OUTSIDE RH | ||||
| 75741-58050 |
AYH36,GGH31 NO PAINT REQ. |
1 | ||
| 75742 - MOULDING, REAR DOOR, OUTSIDE LH | ||||
| 75742-58050 |
AYH36,GGH31 NO PAINT REQ. |
1 | ||
| 75751A - MOULDING, FRONT DOOR WINDOW FRAME, RH(FRONT PILLAR SIDE | ||||
| 75751-58011 |
AYH36,GGH31 |
1 | ||
| 75752A - MOULDING, FRONT DOOR WINDOW FRAME, LH(FRONT PILLAR SIDE | ||||
| 75752-58011 |
AYH36,GGH31 |
1 | ||
| 75753 - MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH | ||||
| 75753-58010 |
AYH36,GGH31 |
1 | ||
| 75754A - MOULDING, FRONT DOOR WINDOW FRAME, UPPER LH | ||||
| 75754-58010 |
AYH36,GGH31 |
1 | ||
| 75755A - MOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SID | ||||
| 75755-58030 |
AYH36,GGH31 |
1 | ||
| 75756D - MOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SID | ||||
| 75756-58030 |
AYH36,GGH31 |
1 | ||
| 75761B - MOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE | ||||
| 75761-58020 |
AYH36,GGH31 |
1 | ||
| 75762B - MOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE | ||||
| 75762-58020 |
AYH36,GGH31 |
1 | ||
| 75765B - MOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE) | ||||
| 75765-58030 |
AYH36,GGH31 |
1 | ||
| 75766B - MOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE) | ||||
| 75766-58030 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90269-04051 | ||||
| 90467-08224 | ||||
| 90467-08225 | ||||
