GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

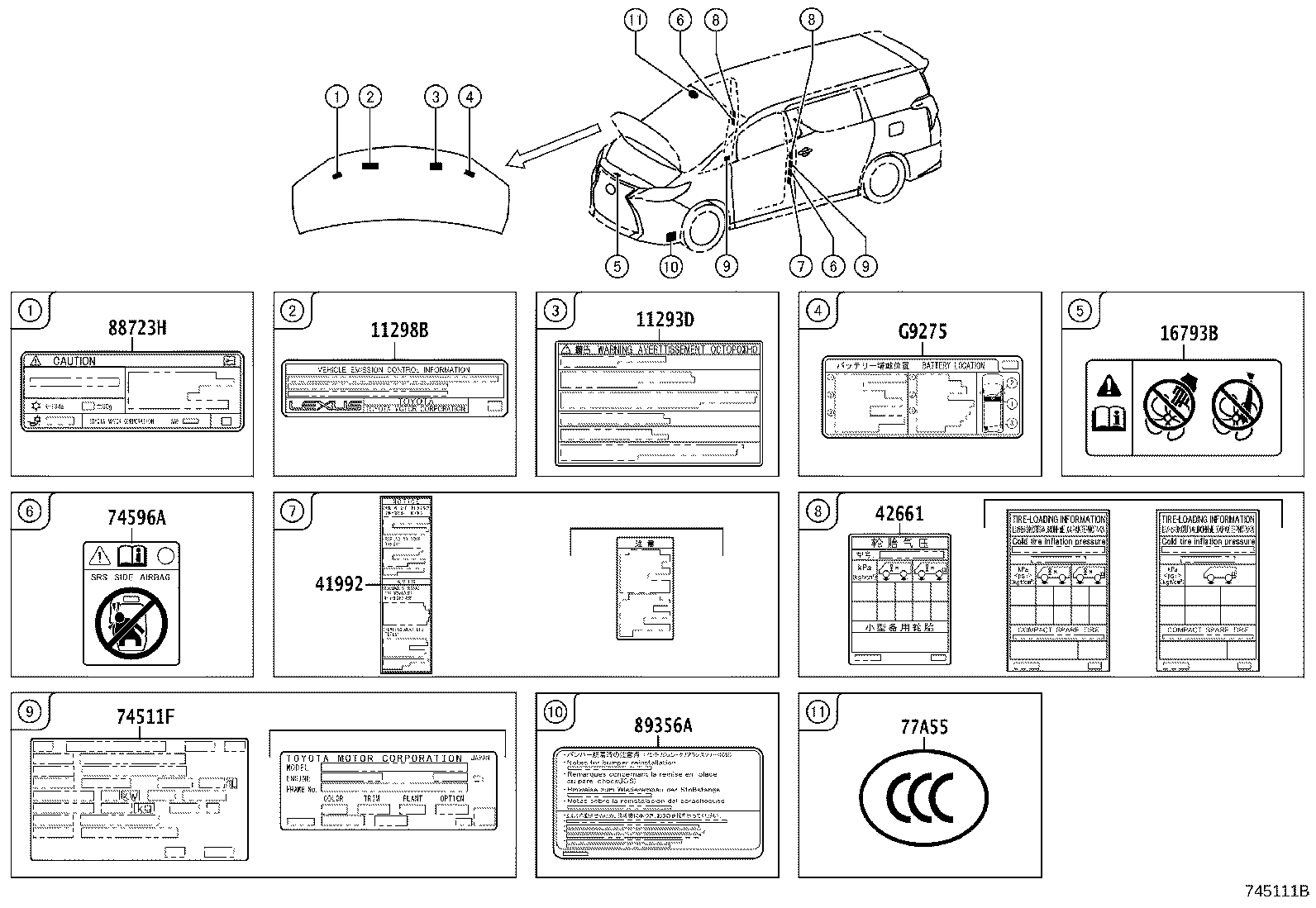

ILLUST NO. 1 OF 4(2001- )
Click highlighted areas on diagram
ENGINE ROOM & EXTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11298B - LABEL, EMISSION CONTROL INFORMATION | ||||
| 11298-31G30 |
2GRFKS..GGH31..LHD |
1 | ||
| 11298-31G30 |
2GRFKS..GGH31..LHD VIETNAM SPEC |
1 | ||
| 11298-31N40 |
2GRFKS..GGH31..LHD |
1 | ||
| 11298-31N40 |
2GRFKS..GGH31..LHD VIETNAM SPEC |
1 | ||
| 16793B - LABEL, COOLING FAN INFORMATION | ||||
| 16793-36050 |
2ARFXE,2GR#..AYH36,GGH31 |
1 | ||
| 42661 - LABEL, TIRE PRESSURE INFORMATION | ||||
| 42661-58410 |
GGH31 |
1 | ||
| 74511F - LABEL, NAME (IDENTIFICATION LASER LABEL) | ||||
| 74511-2B300 |
GGH31;AYH36..RHD *111 |
1 | ||
| 74596A - LABEL, SIDE AIR BAG CAUTION | ||||
| 74596-53012 |
AYH36,GGH31..V |
2 | ||
| 88723H - LABEL, COOLER SERVICE CAUTION | ||||
| 88723-58200 |
GGH31 |
1 | ||
| 89356A - LABEL, CLEARANCE WARNING INFORMATION | ||||
| 89356-47020 |
AYH36,GGH31 |
2 | ||

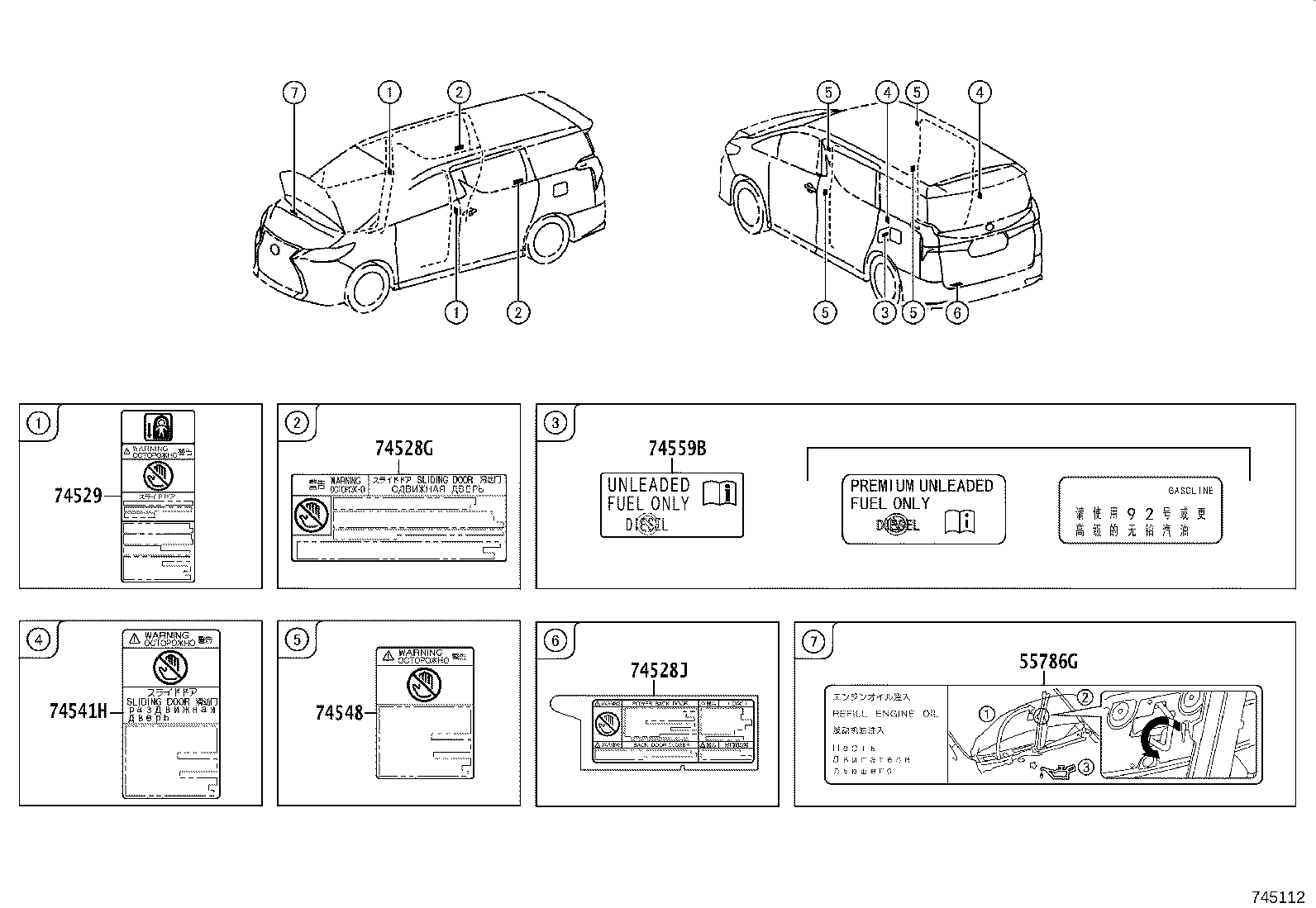

ILLUST NO. 2 OF 4(2001- )
Click highlighted areas on diagram
ENGINE ROOM & EXTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55786G - PLATE, COWL TOP VENTILATOR LOUVER | ||||
| 55786-58020 |
AYH36,GGH31 |
1 | ||
| 74528G - LABEL, POWER SLIDE DOOR CAUTION | ||||
| 74528-28240 |
AYH36,GGH31 |
2 | ||
| 74528J - LABEL, POWER BACK DOOR CAUTION | ||||
| 74528-28210 |
AYH36,GGH31 |
1 | ||
| 74529 - PLATE, CHILD PROOF OR CHILD PROTECTOR LOCK CAUTION | ||||
| 69339-28020 |
AYH36,GGH31 |
2 | ||
| 74541H - PLATE, BODY CAUTION | ||||
| 74541-28130 |
AYH36,GGH31 |
2 | ||
| 74548 - PLATE, BODY CAUTION | ||||
| 74541-28140 |
AYH36,GGH31 |
4 | ||
| 74559B - LABEL, FUEL INFORMATION | ||||
| 74559-60030 |
GGH31 |
1 | ||

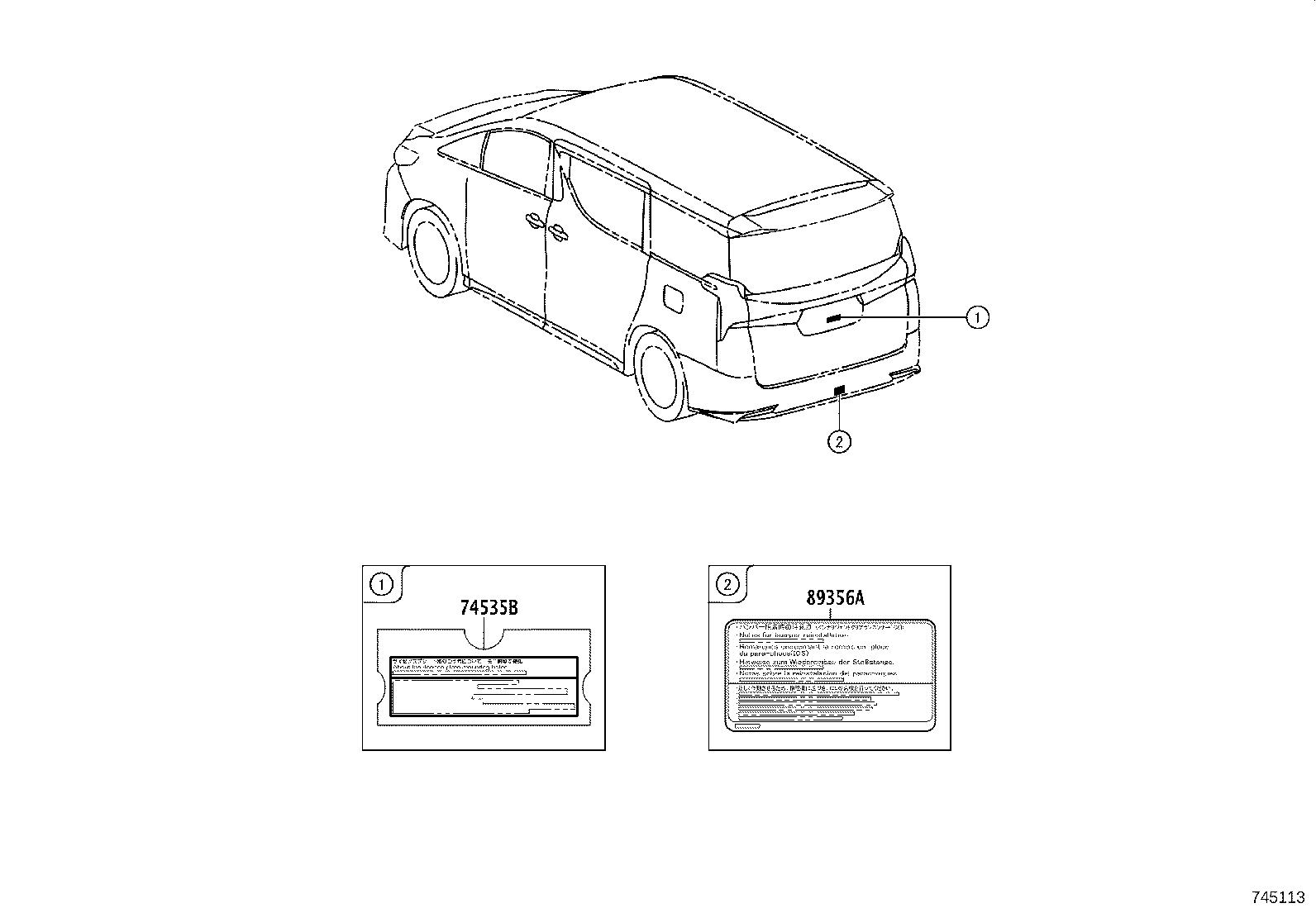

ILLUST NO. 3 OF 4(2001- )
Click highlighted areas on diagram
EXTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74535B - PLATE, TAIL GATE CAUTION | ||||
| 74535-58010 |
AYH36,GGH31 |
1 | ||
| 89356A - LABEL, CLEARANCE WARNING INFORMATION | ||||
| 89356-47020 |
AYH36,GGH31 |
2 | ||
ILLUST NO. 4 OF 4(2001- )
Click highlighted areas on diagram
INTERIOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74541B - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-58070 |
GGH31..LHD |
1 | ||
| 42668-28090 |
GGH31..LHD VIETNAM SPEC |
1 | ||
| 74541E - PLATE, COMPACT SPARE TIRE CAUTION | ||||
| 42668-20020 |
AYH36;GGH31..6FC;GGH31..LHD |
1 | ||
| 74543L - LABEL, REAR SEAT CAUTION, NO.1 | ||||
| 74543-58340 |
AYH36,GGH31..V |
2 | ||
| 74543M - LABEL, REAR SEAT CAUTION, NO.2 | ||||
| 74543-58350 |
AYH36,GGH31..V |
2 | ||
| 74543R - LABEL, REAR SEAT CAUTION | ||||
| 74543-58310 |
AYH36,GGH31..V |
2 | ||
