GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

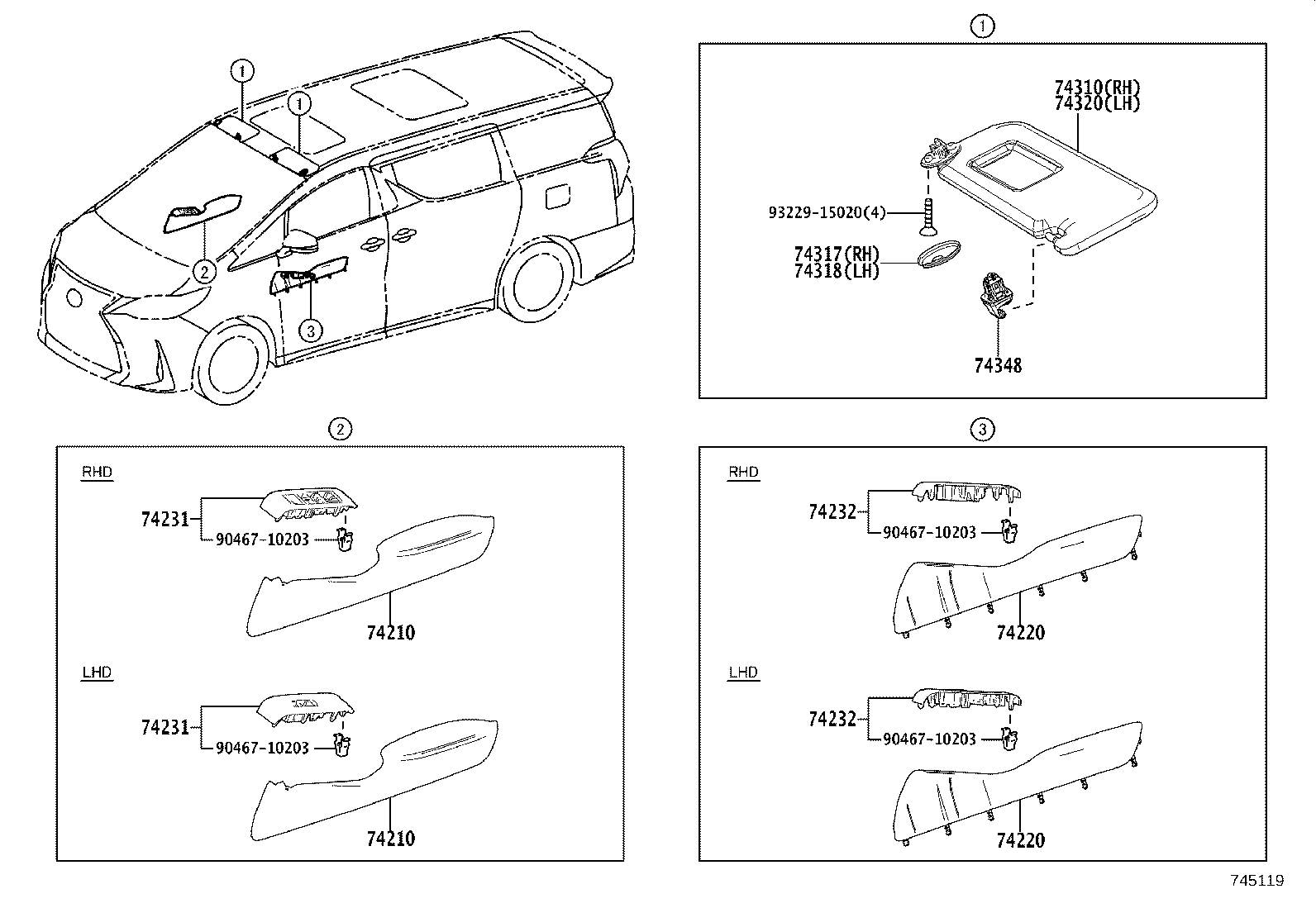

ILLUST NO. 1 OF 2(2001- )
ARMREST & VISOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-58020C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-58020C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-58020C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-58020C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-58360 |
AYH36,GGH31..LHD |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-58360 |
AYH36,GGH31..LHD |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-58210 |
AYH36,GGH31..LHD |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-58210 |
AYH36,GGH31..LHD |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-58160C3 |
GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 74317 - COVER, VISOR BRACKET, RH | ||||
| 74317-60020C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 74318 - COVER, VISOR BRACKET, LH | ||||
| 74317-60020C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-58100C3 |
GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-33040C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| Common parts | ||||
| 90467-10203 | ||||
| 93229-15020 | ||||

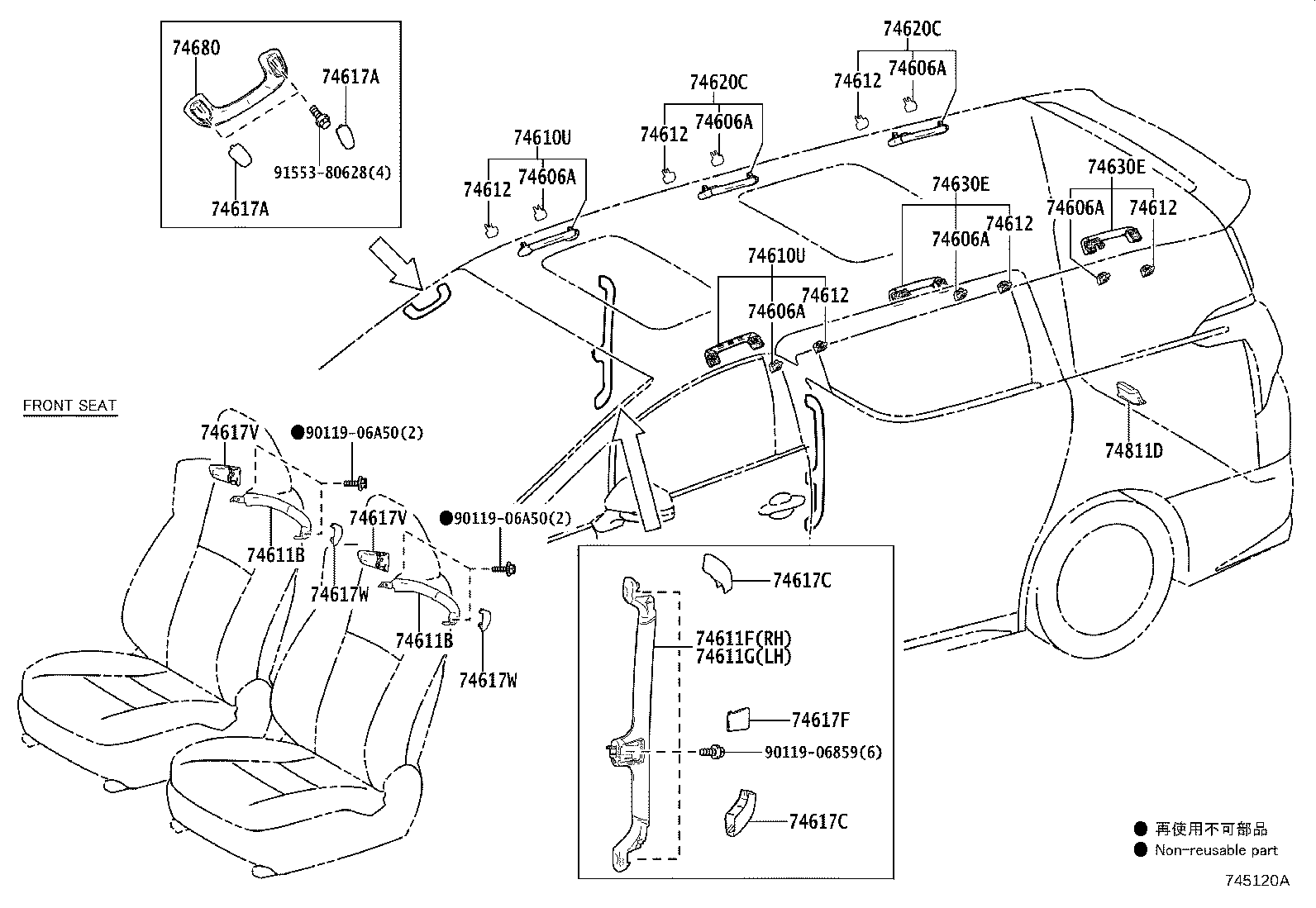

ILLUST NO. 2 OF 2(2001- )V
ASSIST GLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74606A - COVER, ASSIST GRIP | ||||
| 74611-33010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-30340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 74610U - GRIP ASSY, ASSIST | ||||
| 74610-30340C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 74611B - GRIP, ASSIST | ||||
| 74690-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 74611B - GRIP, ASSIST | ||||
| 74690-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 74611F - GRIP, ASSIST, NO.1 | ||||
| 74680-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 74611G - GRIP, ASSIST, NO.2 | ||||
| 74680-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74612 - COVER, ASSIST GRIP | ||||
| 74612-33020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
6 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
4 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74617-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
4 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74617-58060C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 74617V - PLUG, ASSIST GRIP | ||||
| 74617-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 74617V - PLUG, ASSIST GRIP | ||||
| 74617-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 74617W - PLUG, ASSIST GRIP | ||||
| 74618-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 74617W - PLUG, ASSIST GRIP | ||||
| 74618-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
2 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-30360C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 74620C - GRIP ASSY, ASSIST, REAR RH | ||||
| 74610-30360C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-30350C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 74630E - GRIP ASSY, ASSIST, REAR LH | ||||
| 74610-30350C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 74680 - GRIP ASSY, PILLAR ASSIST | ||||
| 74680-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 74811D - HANDLE, DOOR PULL | ||||
| 74811-28020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90119-06859 | ||||
| 90119-06A50 | ||||
| 91553-80628 | ||||
