GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )V

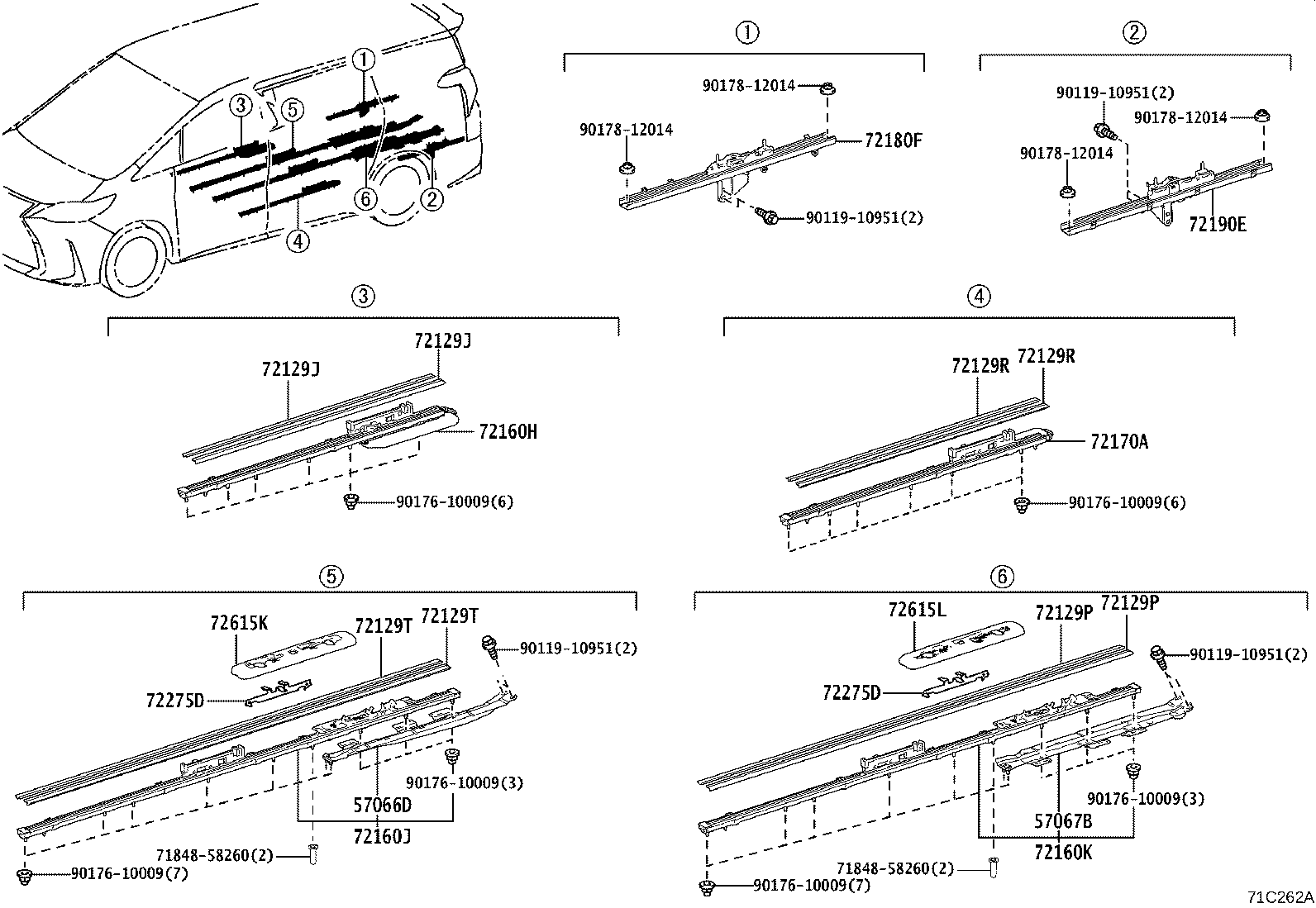

Click highlighted areas on diagram

diagram 57066D 57067B 7184858260 7184858260 72129J 72129J 72129P 72129P 72129R 72129R 72129T 72129T 72160H 72160J 72160K 72170A 72180F 72190E 72275D 72275D 72615K 72615L 9011910951 9011910951 9011910951 9011910951 9017610009 9017610009 9017610009 9017610009 9017610009 9017610009 9017812014 9017812014 9017812014 9017812014
Part # Description Qty Price
57066D - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57066-58010

AYH36,GGH31

 1
57067B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57067-58010

AYH36,GGH31

 1
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-V2060C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129-58310C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129J - PROTECTOR, SEAT TRACK LOWER RAIL, RH OUTER NO.1
72129-V2060C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129-58310C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-58240C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129-V2050C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129P - PROTECTOR, SEAT TRACK LOWER RAIL, LH INNER NO.1
72129-58240C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129-V2050C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-58310C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129-V2060C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129R - PROTECTOR, SEAT TRACK LOWER RAIL, LH OUTER NO.1
72129-58310C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129-V2060C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-V2050C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129-58240C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129T - PROTECTOR, SEAT TRACK LOWER RAIL, RH INNER NO.1
72129-V2050C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72129-58240C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
72160H - TRACK ASSY, REAR SEAT, OUTER RH
72160-V2010

AYH36,GGH31..V

 1
72160-58280

AYH36,GGH31..V

 1
72160J - TRACK ASSY, REAR RH SEAT, INNER NO.1
72160-58310

AYH36,GGH31..V

 1
72160K - TRACK ASSY, REAR LH SEAT, INNER NO.1
72160-58220

AYH36,GGH31..V

 1
72170A - TRACK ASSY, REAR SEAT, OUTER LH
72160-58330

AYH36,GGH31..V

 1
72160-V2020

AYH36,GGH31..V

 1
72180F - TRACK ASSY, REAR SEAT, INNER RH
72180-58040

AYH36,GGH31..V

 1
72190E - TRACK ASSY, REAR SEAT, INNER LH
72190-58050

AYH36,GGH31..V

 1
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-58020

AYH36,GGH31..V

 2
72275D - STOPPER, REAR SEAT TRACK SLIDE, RH NO.1
72275-58020

AYH36,GGH31..V

 2
72615K - COVER, REAR SEAT LOCK STRIKER, RH
72615-58090C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
72615L - COVER, REAR SEAT LOCK STRIKER, LH
72615-58080C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
Common parts
71848-58260
90119-10951
90176-10009
90178-12014
