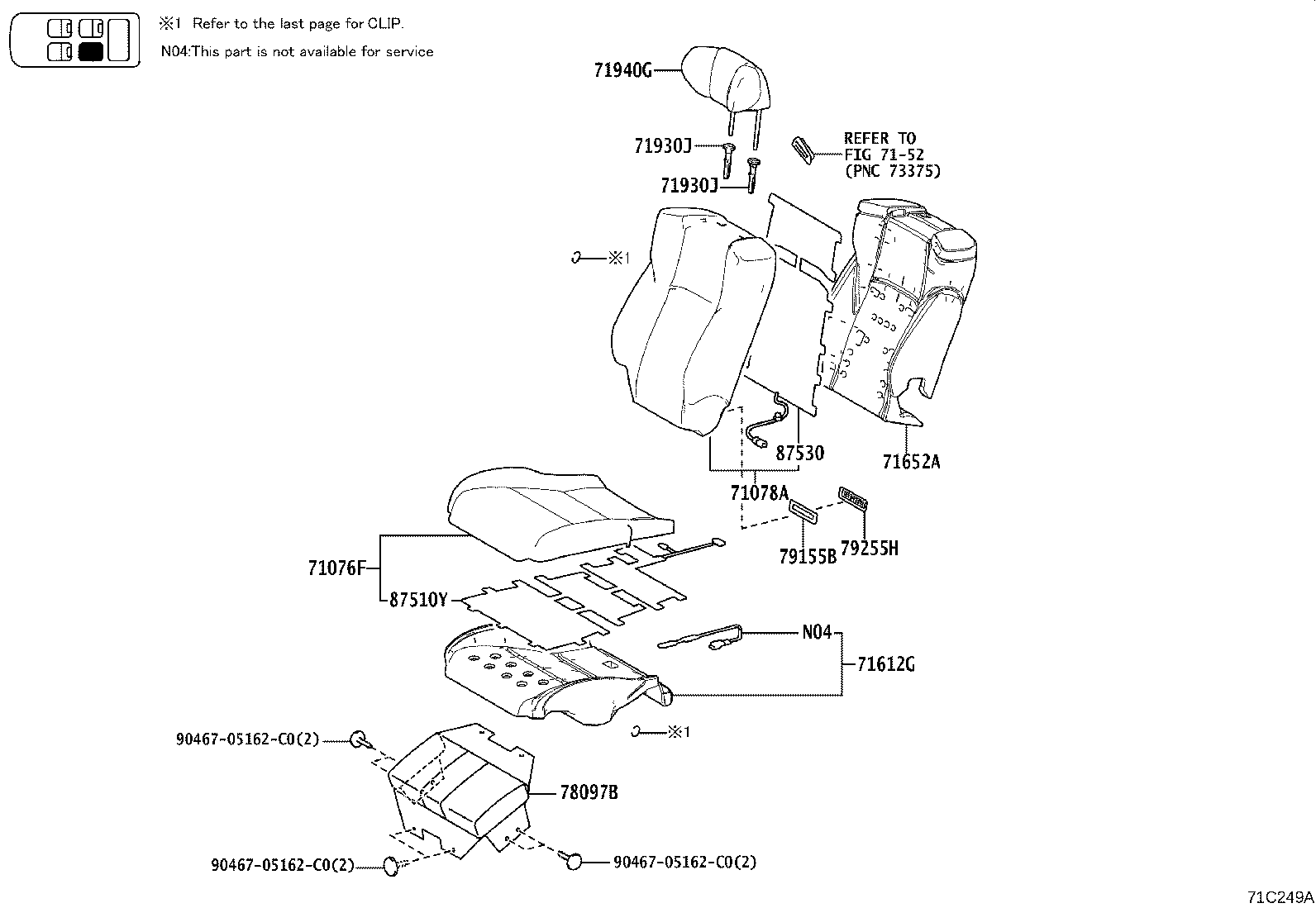

GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
ILLUST NO. 1 OF 4(2001- )V
REAR NO.1 SEAT,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71076F - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71076-58470C4 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71076-58470A5 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 71078A - COVER SUB-ASSY, REAR NO.1 SEAT BACK, LH | ||||
| 71078-58390C3 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71078-58390A5 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 71612G - PAD, REAR NO.1 SEAT CUSHION, LH | ||||
| 71612-58100 |
AYH36,GGH31..V |
1 | ||
| 71652A - PAD, REAR NO.1 SEAT BACK, LH | ||||
| 71652-58100 |
AYH36,GGH31..V |
1 | ||
| 71930J - SUPPORT ASSY, NO.1 SEAT HEADREST, LH | ||||
| 71930-4402021 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930J - SUPPORT ASSY, NO.1 SEAT HEADREST, LH | ||||
| 71930-4402021 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71940G - HEADREST ASSY, NO.1 SEAT, LH | ||||
| 71940-58630C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71940-58630A0 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 78097B - COVER SUB-ASSY, NO.1 SEAT FOOTREST(FOR LH SEAT) | ||||
| 78097-58020A1 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 78097-58020C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 79155B - PLATE, NO.1 SEAT BACK, NO.1(FOR LH SEAT) | ||||
| 79155-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79255H - PLATE, NO.1 SEAT BACK, NO.2(FOR LH SEAT) | ||||
| 79255-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 87510Y - HEATER ASSY, REAR NO.1 SEAT CUSHION, LH | ||||
| 87510-58100 |
AYH36,GGH31..V |
1 | ||
| 87530 - HEATER ASSY, REAR NO.1 SEAT BACK, LH | ||||
| 87530-58060 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 90467-05162C0 | ||||
| Linked diagrams | ||||
| 7152 | ||||

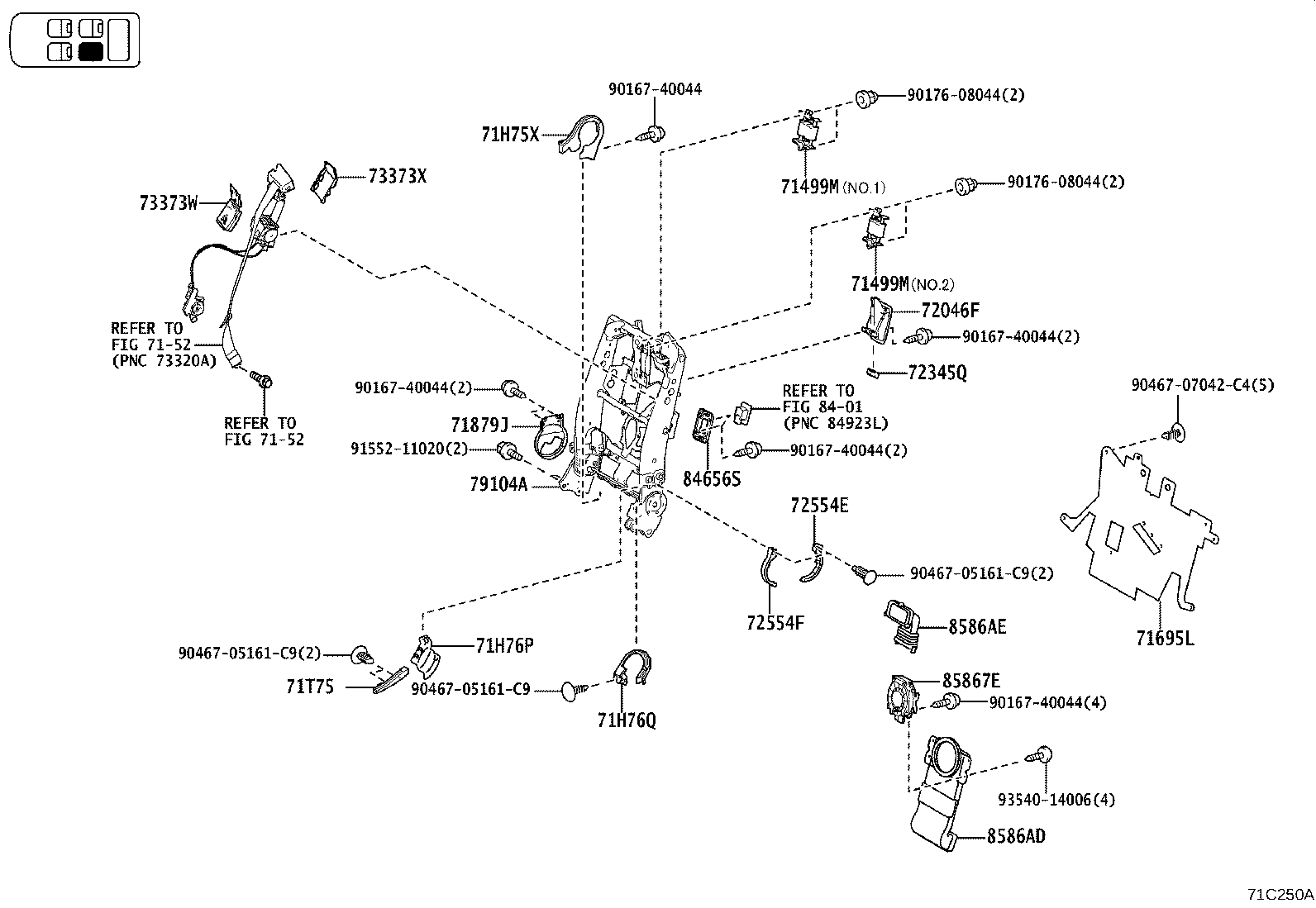

ILLUST NO. 2 OF 4(2001- )V
REAR NO.1 SEAT,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71499M - DAMPER, NO.1 SEAT BACK SPRING, LH | ||||
| 71499-58170 |
AYH36,GGH31..V NO.2:REFER ILLUST. |
1 | ||
| 71499-58060 |
AYH36,GGH31..V NO.1:REFER ILLUST. |
1 | ||
| 71499M - DAMPER, NO.1 SEAT BACK SPRING, LH | ||||
| 71499-58170 |
AYH36,GGH31..V NO.2:REFER ILLUST. |
1 | ||
| 71499-58060 |
AYH36,GGH31..V NO.1:REFER ILLUST. |
1 | ||
| 71695L - PROTECTOR, NO.1 SEAT BACK, LH | ||||
| 71696-58010 |
AYH36,GGH31..V |
1 | ||
| 71879J - COVER, REAR NO.1 SEAT RECLINING, INNER LH | ||||
| 71879-58090C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71H75X - COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR LH SEAT) | ||||
| 71875-58430C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71H76P - COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR LH SEAT) | ||||
| 71876-58540C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71H76Q - COVER, RECLINING ADJUSTER INSIDE, LH NO.3(FOR LH SEAT) | ||||
| 71876-58450C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71T75 - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58450C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72046F - COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.1(FOR LH S | ||||
| 72046-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72345Q - CAP, SEAT STAND FRAME, LH NO.1 | ||||
| 72345-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72554E - PROTECTOR, RECLINING COVER, LH NO.1 | ||||
| 72553-58060C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 72554F - PROTECTOR, RECLINING COVER, LH NO.2 | ||||
| 72553-58070C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 73373W - COVER, NO.1 SEAT SHOULDER BELT, LH NO.2 | ||||
| 73373-58090 |
AYH36,GGH31..V |
1 | ||
| 73373X - COVER, NO.1 SEAT SHOULDER BELT, LH NO.1 | ||||
| 73373-58070 |
AYH36,GGH31..V |
1 | ||
| 79104A - FRAME SUB-ASSY, NO.1 SEAT BACK, LH | ||||
| 79104-58080 |
AYH36,GGH31..V |
1 | ||
| 84656S - BEZEL, REAR POWER SEAT SWITCH(FOR LH SEAT) | ||||
| 84656-58030 |
AYH36,GGH31..V |
1 | ||
| 85867E - BLOWER, NO.1 SEAT BACK CLIMATE CONTROL(FOR LH SEAT) | ||||
| 85867-33020 |
AYH36,GGH31..V |
1 | ||
| 8586AD - DUCT, NO.1 SEAT BACK CLIMATE CONTROL, NO.1(FOR LH SEAT) | ||||
| 8586A-58010 |
AYH36,GGH31..V |
1 | ||
| 8586AE - DUCT, NO.1 SEAT BACK CLIMATE CONTROL, NO.2(FOR LH SEAT) | ||||
| 8586A-58020 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90467-05161C9 | ||||
| 90467-07042C4 | ||||
| 91552-11020 | ||||
| 93540-14006 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||

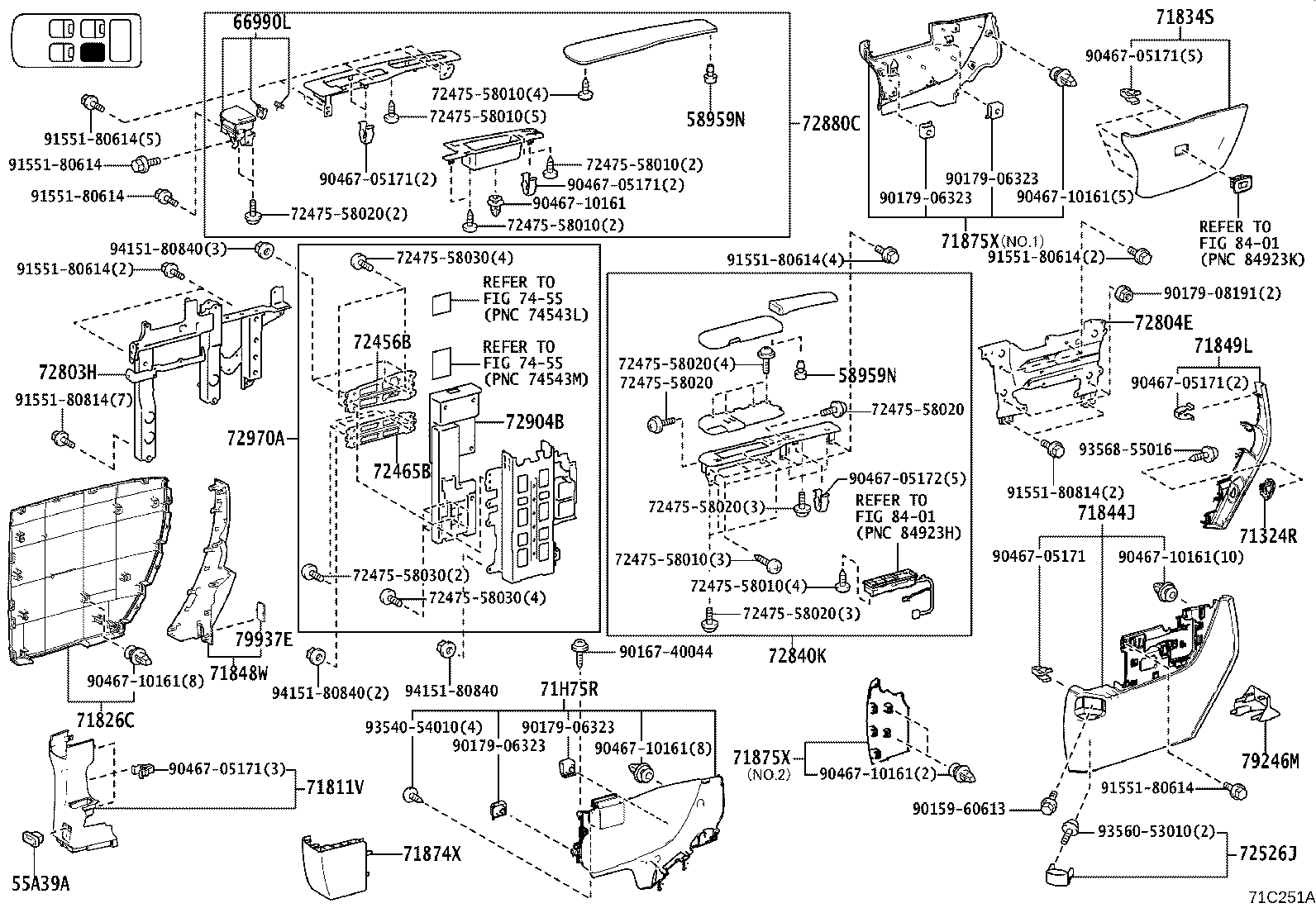

ILLUST NO. 4 OF 4(2001- )V
REAR NO.1 SEAT,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55A39A - COVER, NO.1 SEAT SPARE SWITCH HOLE(FOR LH SEAT) | ||||
| 55539-58120C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 58959N - CUSHION, NO.1 SEAT ARMREST, RH(FOR LH SEAT) | ||||
| 58959-60060 |
AYH36,GGH31..V |
10 | ||
| 58959N - CUSHION, NO.1 SEAT ARMREST, RH(FOR LH SEAT) | ||||
| 58959-60060 |
AYH36,GGH31..V |
10 | ||
| 66990L - HOLDER ASSY, REAR NO.1 SEAT CUP, RH | ||||
| 66990-58080C3 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71324R - CUSHION, REAR NO.1 SEAT, LH | ||||
| 71324-58110 |
AYH36,GGH31..V |
1 | ||
| 71811V - COVER, NO.1 SEAT RECLINING ADJUSTER, INNER(FOR LH SEAT) | ||||
| 71811-58140C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71826C - MOULDING, REAR SEAT CUSHION, LH | ||||
| 71826-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71834S - COVER, REAR SEAT RECLINING, NO.1 LH | ||||
| 71834-58100C3 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71844J - COVER, REAR NO.1 SEAT RECLINING, NO.2 LH | ||||
| 71844-58110C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71848W - CAP, NO.1 SEAT ADJUSTER COVER, RH(FOR LH SEAT) | ||||
| 71848-58220C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71849L - CAP, NO.1 SEAT ADJUSTER COVER, LH | ||||
| 71849-58190C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71874X - SHIELD, REAR SEAT CUSHION, LOWER LH | ||||
| 71874-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58330C2 |
AYH36,GGH31..V BLACK,TRIM0#,2#,RH SEAT, NO.1 |
1 | ||
| 71875-58340C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,RH SEAT, NO.2 |
1 | ||
| 71876-58470C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,LH SEAT, NO.2 |
1 | ||
| 71876-58460C2 |
AYH36,GGH31..V BLACK,TRIM0#,2#,LH SEAT, NO.1 |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58330C2 |
AYH36,GGH31..V BLACK,TRIM0#,2#,RH SEAT, NO.1 |
1 | ||
| 71875-58340C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,RH SEAT, NO.2 |
1 | ||
| 71876-58470C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,LH SEAT, NO.2 |
1 | ||
| 71876-58460C2 |
AYH36,GGH31..V BLACK,TRIM0#,2#,LH SEAT, NO.1 |
1 | ||
| 71H75R - COVER, RECLINING ADJUSTER INSIDE, RH NO.1(FOR LH SEAT) | ||||
| 71875-58410C6 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72456B - BRACKET, NO.1 SEAT FRAME SET, NO.2 | ||||
| 72456-58010 |
AYH36,GGH31..V |
1 | ||
| 72465B - BRACKET, NO.1 SEAT FRAME SET, NO.3(FOR LH SEAT) | ||||
| 72465-58010 |
AYH36,GGH31..V |
2 | ||
| 72526J - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58160C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72803H - FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, RH(FOR LH SEAT) | ||||
| 72803-58070 |
AYH36,GGH31..V |
1 | ||
| 72804E - FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, LH(FOR LH SEAT) | ||||
| 72804-58080 |
AYH36,GGH31..V |
1 | ||
| 72840K - ARMREST ASSY, REAR NO.1 SEAT, LH | ||||
| 72840-58100C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72840-58100A0 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72880C - ARMREST ASSY, NO.1 SEAT, C RH(FOR LH SEAT) | ||||
| 72880-58C30A0 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72880-58C30C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72904B - TABLE SUB-ASSY, NO.1 SEAT TURN, LH | ||||
| 72904-58010C0 |
AYH36,GGH31..V BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 72970A - TABLE ASSY, NO.1 SEAT TURN, LH | ||||
| 72970-58030C1 |
AYH36,GGH31..V BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 79246M - COVER, REAR SEAT LEG, LH | ||||
| 79246-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79937E - COVER, NO.1 SEAT LEG, NO.2(FOR RH SEAT) | ||||
| 79937-V2010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
3 | ||
| Common parts | ||||
| 72475-58010 | ||||
| 72475-58020 | ||||
| 72475-58030 | ||||
| 90159-60613 | ||||
| 90167-40044 | ||||
| 90179-06323 | ||||
| 90179-08191 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10161 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 93540-54010 | ||||
| 93560-53010 | ||||
| 93568-55016 | ||||
| 94151-80840 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||

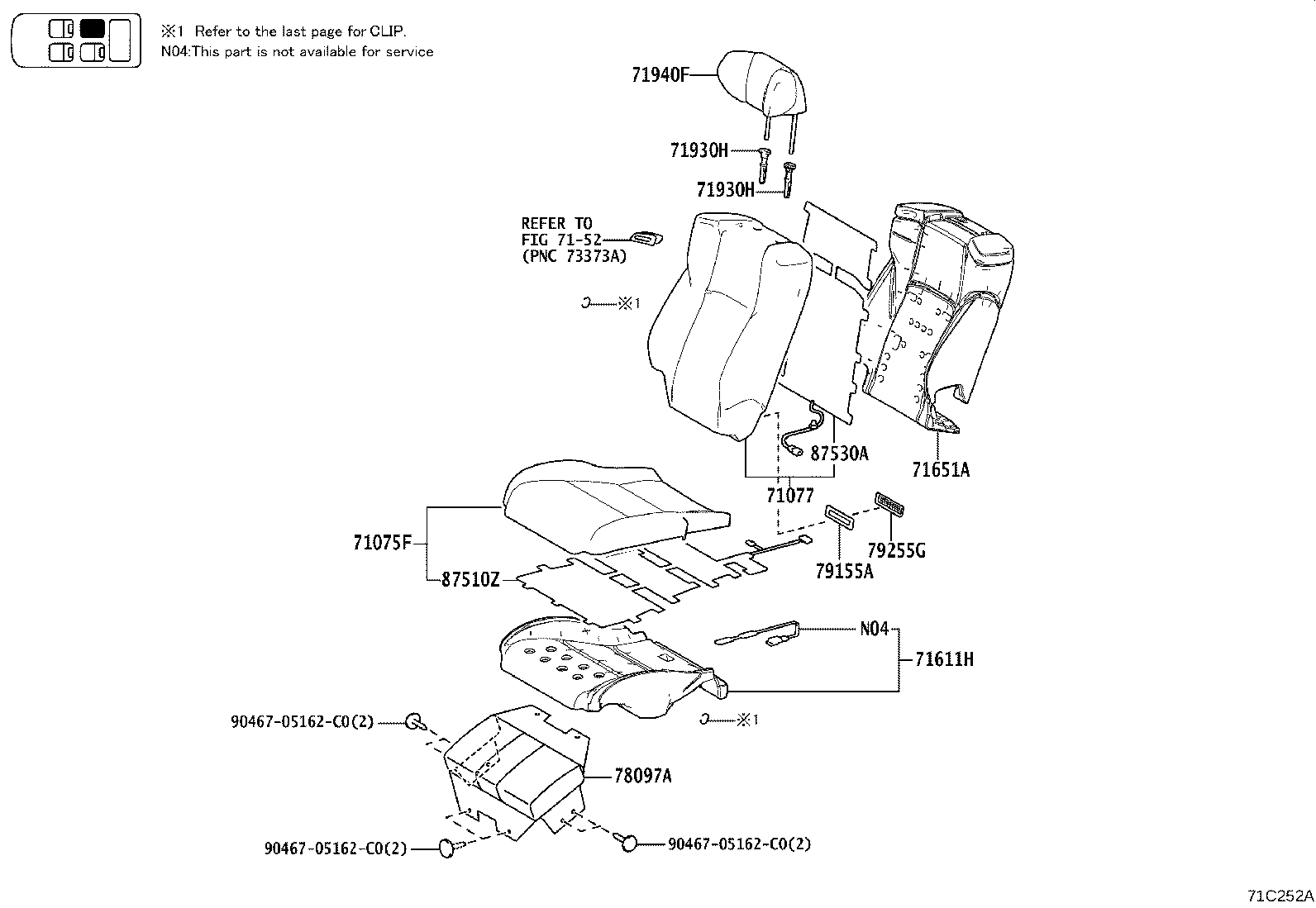

ILLUST NO. 1 OF 4(2001- )V
REAR NO.1 SEAT,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71075F - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71075-58450A5 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 71075-58450C4 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71077 - COVER SUB-ASSY, REAR NO.1 SEAT BACK, RH | ||||
| 71077-58390A5 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 71077-58390C3 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71611H - PAD, REAR NO.1 SEAT CUSHION, RH | ||||
| 71611-58110 |
AYH36,GGH31..V |
1 | ||
| 71651A - PAD, REAR NO.1 SEAT BACK, RH | ||||
| 71651-58100 |
AYH36,GGH31..V |
1 | ||
| 71930H - SUPPORT ASSY, NO.1 SEAT HEADREST, RH | ||||
| 71930-4402021 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930H - SUPPORT ASSY, NO.1 SEAT HEADREST, RH | ||||
| 71930-4402021 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71940F - HEADREST ASSY, NO.1 SEAT, RH | ||||
| 71940-58630C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71940-58630A0 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 78097A - COVER SUB-ASSY, NO.1 SEAT FOOTREST(FOR RH SEAT) | ||||
| 78097-58020C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 78097-58020A1 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 79155A - PLATE, NO.1 SEAT BACK, NO.1(FOR RH SEAT) | ||||
| 79155-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79255G - PLATE, NO.1 SEAT BACK, NO.2(FOR RH SEAT) | ||||
| 79255-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 87510Z - HEATER ASSY, REAR NO.1 SEAT CUSHION, RH | ||||
| 87510-58100 |
AYH36,GGH31..V |
1 | ||
| 87530A - HEATER ASSY, REAR NO.1 SEAT BACK, RH | ||||
| 87530-58060 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 90467-05162C0 | ||||
| Linked diagrams | ||||
| 7152 | ||||

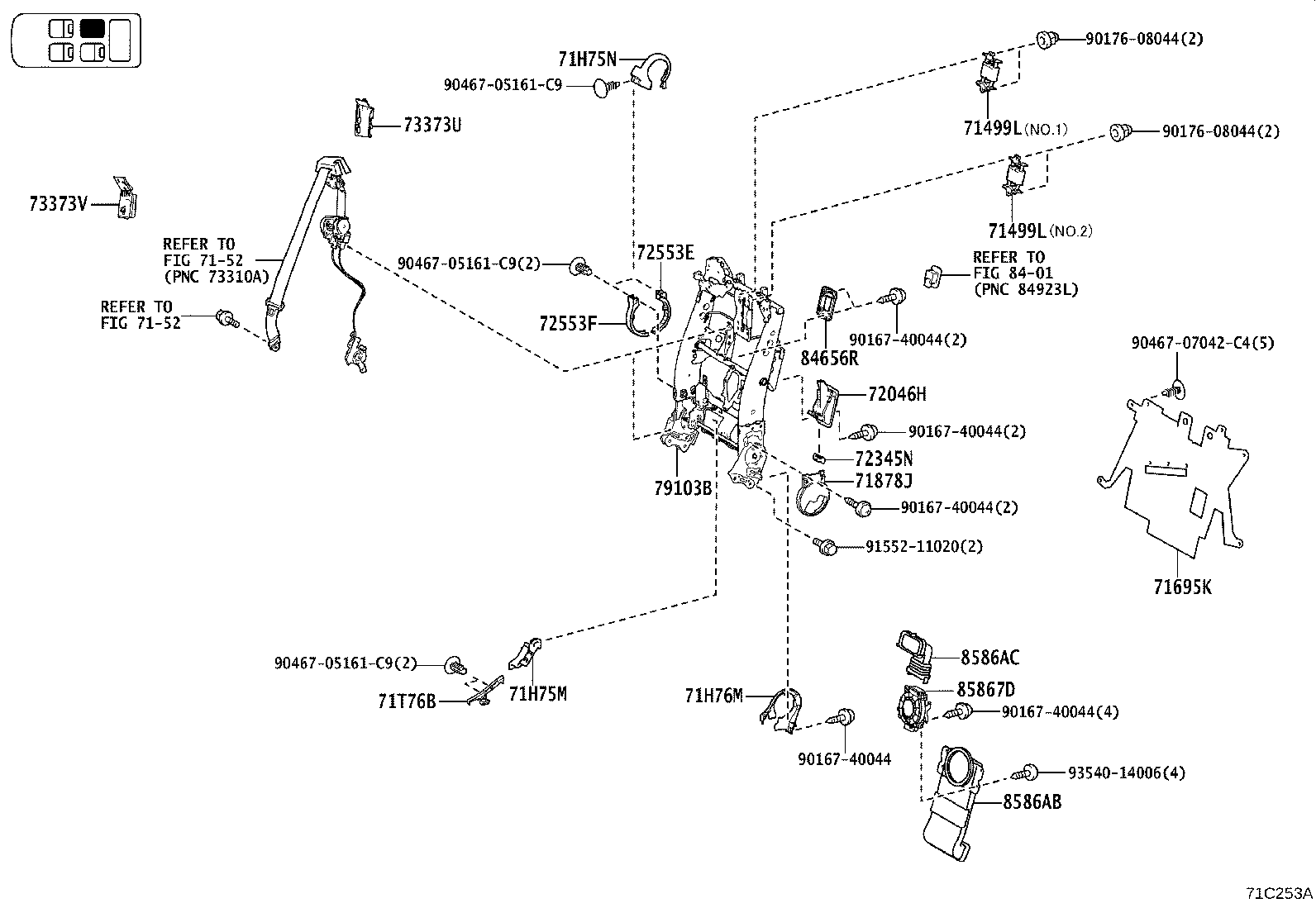

ILLUST NO. 2 OF 4(2001- )V
REAR NO.1 SEAT,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71499L - DAMPER, NO.1 SEAT BACK SPRING, RH | ||||
| 71499-58060 |
AYH36,GGH31..V NO.1:REFER ILLUST. |
1 | ||
| 71499-58170 |
AYH36,GGH31..V NO.2:REFER ILLUST. |
1 | ||
| 71499L - DAMPER, NO.1 SEAT BACK SPRING, RH | ||||
| 71499-58060 |
AYH36,GGH31..V NO.1:REFER ILLUST. |
1 | ||
| 71499-58170 |
AYH36,GGH31..V NO.2:REFER ILLUST. |
1 | ||
| 71695K - PROTECTOR, NO.1 SEAT BACK, RH | ||||
| 71695-58090 |
AYH36,GGH31..V |
1 | ||
| 71878J - COVER, REAR NO.1 SEAT RECLINING, INNER RH | ||||
| 71878-58090C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71H75M - COVER, RECLINING ADJUSTER INSIDE, RH NO.2(FOR RH SEAT) | ||||
| 71875-58550C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71H75N - COVER, RECLINING ADJUSTER INSIDE, RH NO.3(FOR RH SEAT) | ||||
| 71875-58360C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71H76M - COVER, RECLINING ADJUSTER INSIDE, LH NO.2(FOR RH SEAT) | ||||
| 71876-58480C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71T76B - COVER, RECLINING ADJUSTER INSIDE, LH | ||||
| 71876-58500C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72046H - COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER LH NO.1(FOR RH S | ||||
| 72046-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72345N - CAP, SEAT STAND FRAME, RH NO.1 | ||||
| 72345-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72553E - PROTECTOR, RECLINING COVER, RH NO.1 | ||||
| 72553-58060C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 72553F - PROTECTOR, RECLINING COVER, RH NO.2 | ||||
| 72553-58070C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 73373U - COVER, NO.1 SEAT SHOULDER BELT, RH NO.1 | ||||
| 73373-58060 |
AYH36,GGH31..V |
1 | ||
| 73373V - COVER, NO.1 SEAT SHOULDER BELT, RH NO.2 | ||||
| 73373-58080 |
AYH36,GGH31..V |
1 | ||
| 79103B - FRAME SUB-ASSY, NO.1 SEAT BACK, RH | ||||
| 79103-58110 |
AYH36,GGH31..V |
1 | ||
| 84656R - BEZEL, REAR POWER SEAT SWITCH(FOR RH SEAT) | ||||
| 84656-58030 |
AYH36,GGH31..V |
1 | ||
| 85867D - BLOWER, NO.1 SEAT BACK CLIMATE CONTROL(FOR RH SEAT) | ||||
| 85867-33020 |
AYH36,GGH31..V |
1 | ||
| 8586AB - DUCT, NO.1 SEAT BACK CLIMATE CONTROL, NO.1(FOR RH SEAT) | ||||
| 8586A-58010 |
AYH36,GGH31..V |
1 | ||
| 8586AC - DUCT, NO.1 SEAT BACK CLIMATE CONTROL, NO.2(FOR RH SEAT) | ||||
| 8586A-58020 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 90167-40044 | ||||
| 90176-08044 | ||||
| 90467-05161C9 | ||||
| 90467-07042C4 | ||||
| 91552-11020 | ||||
| 93540-14006 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8401 | ||||

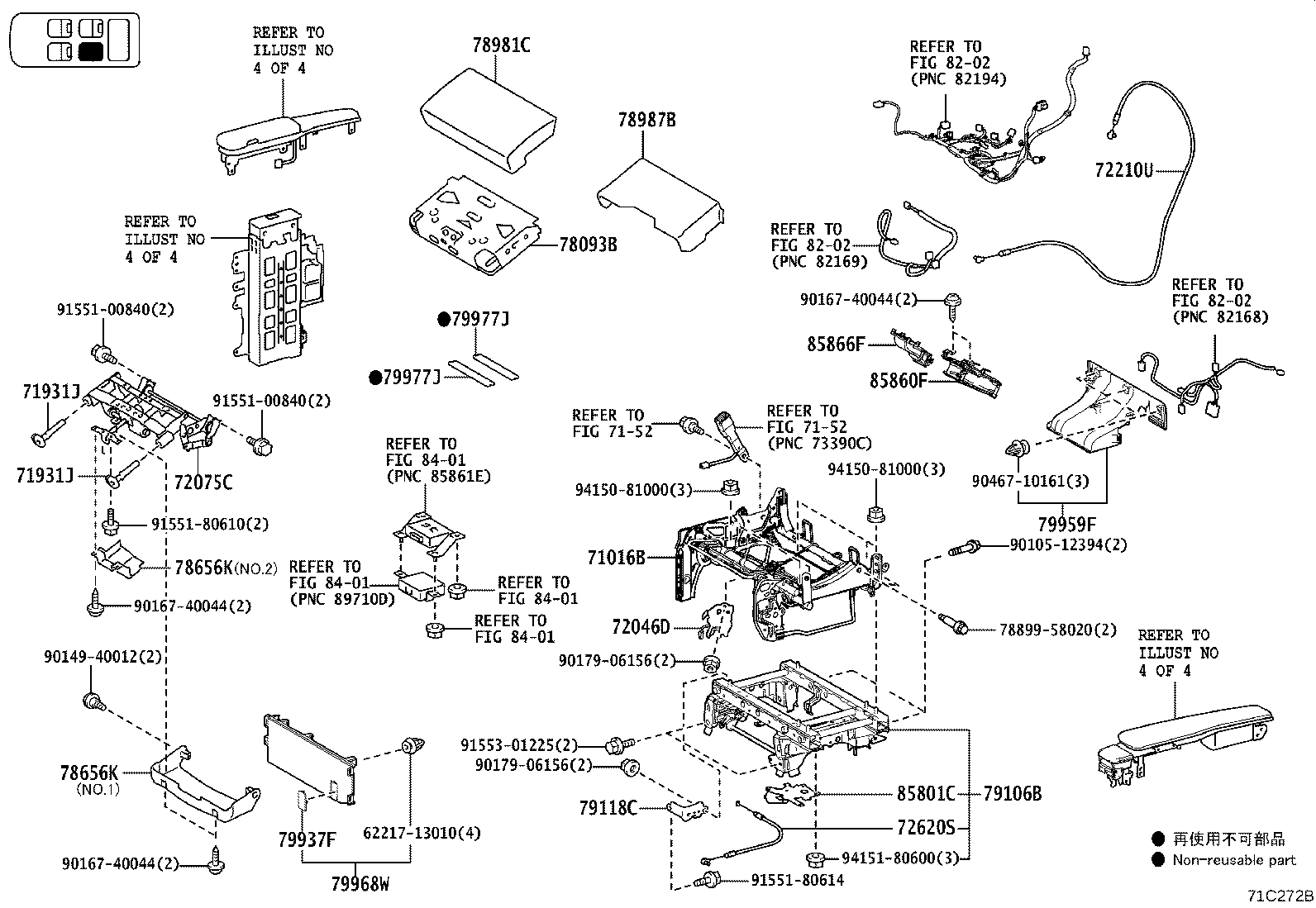

ILLUST NO. 4 OF 4(2001- )V
REAR NO.1 SEAT,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55A39 - COVER, NO.1 SEAT SPARE SWITCH HOLE(FOR RH SEAT) | ||||
| 55539-58120C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 58959L - CUSHION, NO.1 SEAT ARMREST, RH(FOR RH SEAT) | ||||
| 58959-60060 |
AYH36,GGH31..V |
3 | ||
| 58959M - CUSHION, NO.1 SEAT ARMREST, LH(FOR RH SEAT) | ||||
| 58959-60060 |
AYH36,GGH31..V |
7 | ||
| 66990E - HOLDER ASSY, REAR NO.1 SEAT CUP, LH | ||||
| 66990-58060C3 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71324S - CUSHION, REAR NO.1 SEAT, RH | ||||
| 71324-58100 |
AYH36,GGH31..V |
1 | ||
| 71812X - COVER, NO.1 SEAT RECLINING ADJUSTER, INNER(FOR RH SEAT) | ||||
| 71812-58160C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71825D - MOULDING, REAR NO.1 SEAT CUSHION, RH | ||||
| 71825-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71833S - COVER, REAR SEAT RECLINING, NO.1 RH | ||||
| 71833-58100C3 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71843J - COVER, REAR NO.1 SEAT RECLINING, NO.2 RH | ||||
| 71843-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71848T - CAP, NO.1 SEAT ADJUSTER COVER, RH | ||||
| 71848-58190C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71849N - CAP, NO.1 SEAT ADJUSTER COVER, LH(FOR RH SEAT) | ||||
| 71849-58150C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58330C2 |
AYH36,GGH31..V BLACK,TRIM0#,2#,RH SEAT, NO.1 |
1 | ||
| 71875-58340C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,RH SEAT, NO.2 |
1 | ||
| 71876-58470C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,LH SEAT, NO.2 |
1 | ||
| 71876-58460C2 |
AYH36,GGH31..V BLACK,TRIM0#,2#,LH SEAT, NO.1 |
1 | ||
| 71875X - COVER, RECLINING ADJUSTER INSIDE, RH | ||||
| 71875-58330C2 |
AYH36,GGH31..V BLACK,TRIM0#,2#,RH SEAT, NO.1 |
1 | ||
| 71875-58340C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,RH SEAT, NO.2 |
1 | ||
| 71876-58470C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,LH SEAT, NO.2 |
1 | ||
| 71876-58460C2 |
AYH36,GGH31..V BLACK,TRIM0#,2#,LH SEAT, NO.1 |
1 | ||
| 71H73 - SHIELD, REAR SEAT CUSHION, LOWER RH | ||||
| 71873-58070C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71H76L - COVER, RECLINING ADJUSTER INSIDE, LH NO.1(FOR RH SEAT) | ||||
| 71876-58330C6 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72083B - PAD SUB-ASSY, NO.1 SEAT ARMREST, RH | ||||
| 72083-58070A0 |
AYH36,GGH31..V WHITE,TRIM0#,NO.2:REFER ILLUST. |
1 | ||
| 72083-58060A0 |
AYH36,GGH31..V WHITE,TRIM0#,NO.1:REFER ILLUST. |
1 | ||
| 72083-58060C0 |
AYH36,GGH31..V BLACK,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 72083-58070C0 |
AYH36,GGH31..V BLACK,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 72083B - PAD SUB-ASSY, NO.1 SEAT ARMREST, RH | ||||
| 72083-58070A0 |
AYH36,GGH31..V WHITE,TRIM0#,NO.2:REFER ILLUST. |
1 | ||
| 72083-58060A0 |
AYH36,GGH31..V WHITE,TRIM0#,NO.1:REFER ILLUST. |
1 | ||
| 72083-58060C0 |
AYH36,GGH31..V BLACK,TRIM2#,NO.1:REFER ILLUST. |
1 | ||
| 72083-58070C0 |
AYH36,GGH31..V BLACK,TRIM2#,NO.2:REFER ILLUST. |
1 | ||
| 72455C - BRACKET, NO.1 SEAT FRAME SET, NO.1 | ||||
| 72455-58010 |
AYH36,GGH31..V |
1 | ||
| 72465B - BRACKET, NO.1 SEAT FRAME SET, NO.3(FOR LH SEAT) | ||||
| 72465-58010 |
AYH36,GGH31..V |
2 | ||
| 72525N - HANDLE, NO.1 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58130C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72803J - FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, RH(FOR RH SEAT) | ||||
| 72803-58090 |
AYH36,GGH31..V |
1 | ||
| 72804F - FRAME SUB-ASSY, REAR NO.1 SEAT ARMREST, LH(FOR RH SEAT) | ||||
| 72804-58070 |
AYH36,GGH31..V |
1 | ||
| 72830V - ARMREST ASSY, REAR NO.1 SEAT, RH | ||||
| 72830-58300A0 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72830-58300C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72890B - ARMREST ASSY, NO.1 SEAT, C LH(FOR RH SEAT) | ||||
| 72890-58B90C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72890-58B90A0 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72903B - TABLE SUB-ASSY, NO.1 SEAT TURN, RH | ||||
| 72903-58010C0 |
AYH36,GGH31..V BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 72960C - TABLE ASSY, NO.1 SEAT TURN, RH | ||||
| 72960-58030C1 |
AYH36,GGH31..V BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 74865E - COVER, NO.1 SEAT CUSHION MOULDING, RH | ||||
| 74865-V2010B0 |
AYH36,GGH31..V DK.GRAY,TRIM0#,2# |
1 | ||
| 79236L - COVER, REAR SEAT LEG, RH | ||||
| 79236-58060C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79937E - COVER, NO.1 SEAT LEG, NO.2(FOR RH SEAT) | ||||
| 79937-V2010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
3 | ||
| Common parts | ||||
| 72475-58010 | ||||
| 72475-58020 | ||||
| 72475-58030 | ||||
| 90159-60613 | ||||
| 90167-40044 | ||||
| 90179-06323 | ||||
| 90179-08191 | ||||
| 90467-04034 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-10161 | ||||
| 91551-80614 | ||||
| 91551-80814 | ||||
| 93540-54010 | ||||
| 93560-53010 | ||||
| 93568-55016 | ||||
| 94151-80840 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8401 | ||||

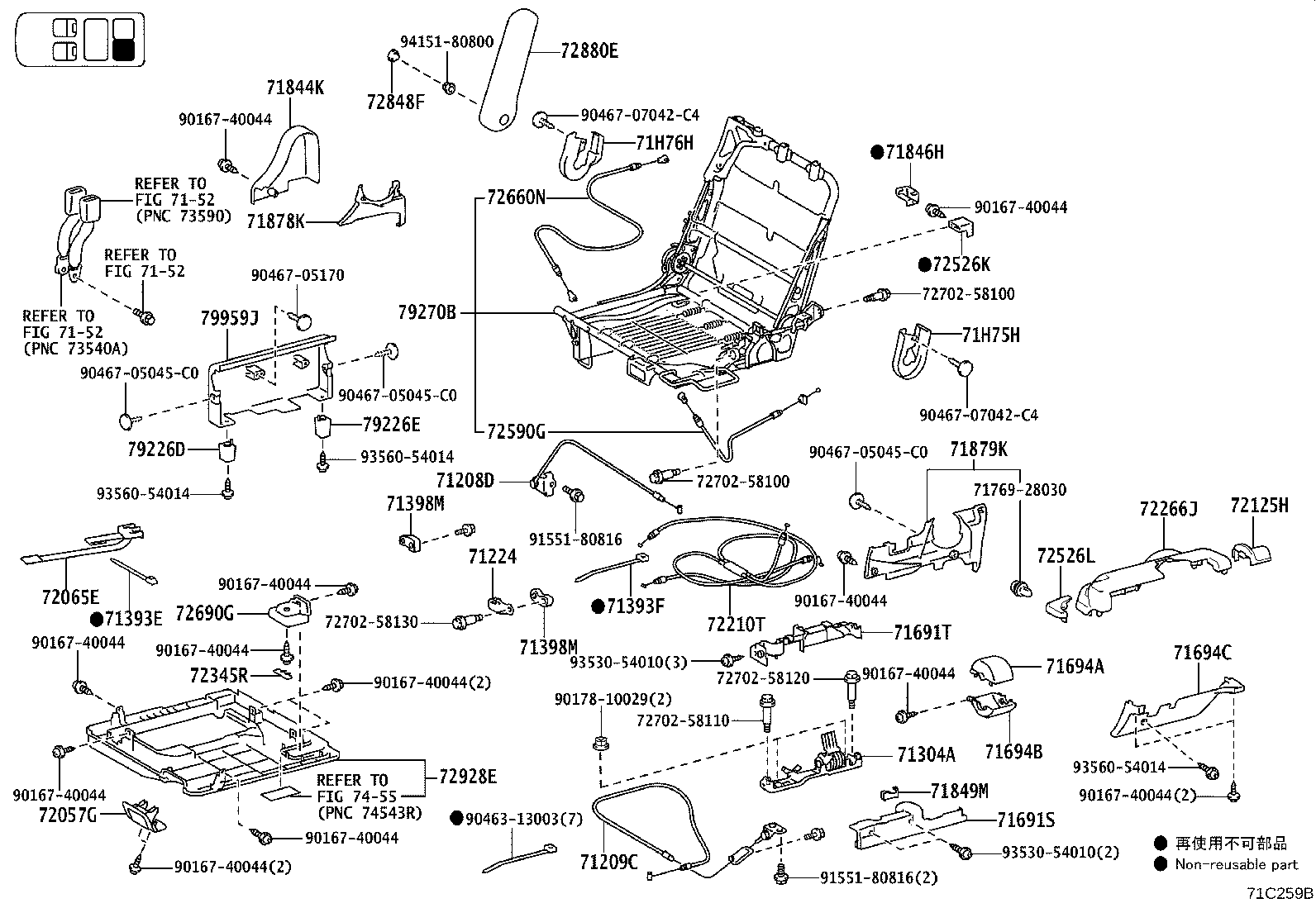

ILLUST NO. 1 OF 2(2001- )V
REAR NO.2 SEAT,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71208D - WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.1 | ||||
| 71208-58070 |
AYH36,GGH31..V |
1 | ||
| 71209C - WIRE SUB-ASSY, NO.2 SEAT CUSHION, LH NO.2 | ||||
| 71209-58060 |
AYH36,GGH31..V |
1 | ||
| 71224 - BRACKET, NO.2 SEAT CUSHION SIDE, LH | ||||
| 71224-58010 |
AYH36,GGH31..V |
1 | ||
| 71304A - HINGE SUB-ASSY, REAR NO.2 SEAT, LH | ||||
| 71304-58020 |
AYH36,GGH31..V |
1 | ||
| 71393E - BAND, NO.2 SEAT CUSHION, LH NO.1 | ||||
| 71393-28060 |
AYH36,GGH31..V |
1 | ||
| 71393F - BAND, NO.2 SEAT CUSHION, LH NO.2 | ||||
| 71393-58010 |
AYH36,GGH31..V |
1 | ||
| 71398M - GUIDE, NO.2 SEAT CUSHION SUPPORT, LH | ||||
| 71398-28010 |
AYH36,GGH31..V |
2 | ||
| 71398M - GUIDE, NO.2 SEAT CUSHION SUPPORT, LH | ||||
| 71398-28010 |
AYH36,GGH31..V |
2 | ||
| 71691S - COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 LH | ||||
| 71691-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71691T - COVER, REAR NO.2 SEAT LOCK, UPPER NO.2 LH | ||||
| 71691-58100C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71694A - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.1 | ||||
| 71694-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71694B - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.2 | ||||
| 71694-58060C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71694C - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER LH NO.3 | ||||
| 71694-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71844K - COVER, REAR NO.2 SEAT RECLINING, NO.2 LH | ||||
| 71844-58090C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71846H - CAP, REAR NO.2 SEAT COVER, LH | ||||
| 71846-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71849M - CAP, NO.2 SEAT ADJUSTER COVER, LH | ||||
| 71849-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71878K - COVER, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 71878-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,FOR RH SEAT |
1 | ||
| 71879-58070C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,FOR LH SEAT |
1 | ||
| 71879K - COVER, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 71878-58070C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,FOR RH SEAT |
1 | ||
| 71879-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,FOR LH SEAT |
1 | ||
| 71H75H - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 LH S | ||||
| 71876-58261 |
AYH36,GGH31..V |
1 | ||
| 71H76H - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 LH S | ||||
| 71875-58261 |
AYH36,GGH31..V |
1 | ||
| 72057G - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1 | ||||
| 72057-58070A1 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72057-58070C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72065E - HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, LH | ||||
| 72065-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72125H - COVER, SEAT TRACK LOCK PLATE, NO.2 | ||||
| 72126-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72210T - CABLE ASSY, NO.2 SEAT SLIDE, LH | ||||
| 72220-58010 |
AYH36,GGH31..V |
1 | ||
| 72266J - COVER, SEAT TRACK UPPER RAIL, LH | ||||
| 72266-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72345R - CAP, SEAT STAND FRAME, LH NO.2 | ||||
| 72345-58060C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72526K - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58170C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72526L - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72590G - CABLE ASSY, RECLINING REMOTE CONTROL, LH | ||||
| 72590-58020 |
AYH36,GGH31..V |
1 | ||
| 72660N - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, LH | ||||
| 72660-58020 |
AYH36,GGH31..V |
1 | ||
| 72690G - LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, LH | ||||
| 72690-58060C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72848F - CAP, NO.2 SEAT ARMREST, NO.1 LH | ||||
| 72848-28030A8 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72848-28030C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72880E - ARMREST ASSY, NO.2 SEAT, C RH(FOR LH SEAT) | ||||
| 72880-58A40A2 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72880-58A40C1 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72928E - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-58070C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79226D - STOPPER, NO.2 SEAT CUSHION, LH FRONT | ||||
| 79226-58040 |
AYH36,GGH31..V |
1 | ||
| 79226E - STOPPER, NO.2 SEAT CUSHION, LH REAR | ||||
| 79226-58050 |
AYH36,GGH31..V |
1 | ||
| 79270B - SPRING ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79270-58060 |
AYH36,GGH31..V |
1 | ||
| 79959J - COVER, NO.2 SEAT LEG, LH NO.1 | ||||
| 79959-58220C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 71769-28030 | ||||
| 72702-58100 | ||||
| 72702-58110 | ||||
| 72702-58120 | ||||
| 72702-58130 | ||||
| 90167-40044 | ||||
| 90178-10029 | ||||
| 90463-13003 | ||||
| 90467-05045C0 | ||||
| 90467-05170 | ||||
| 90467-07042C4 | ||||
| 91551-80816 | ||||
| 93530-54010 | ||||
| 93560-54014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

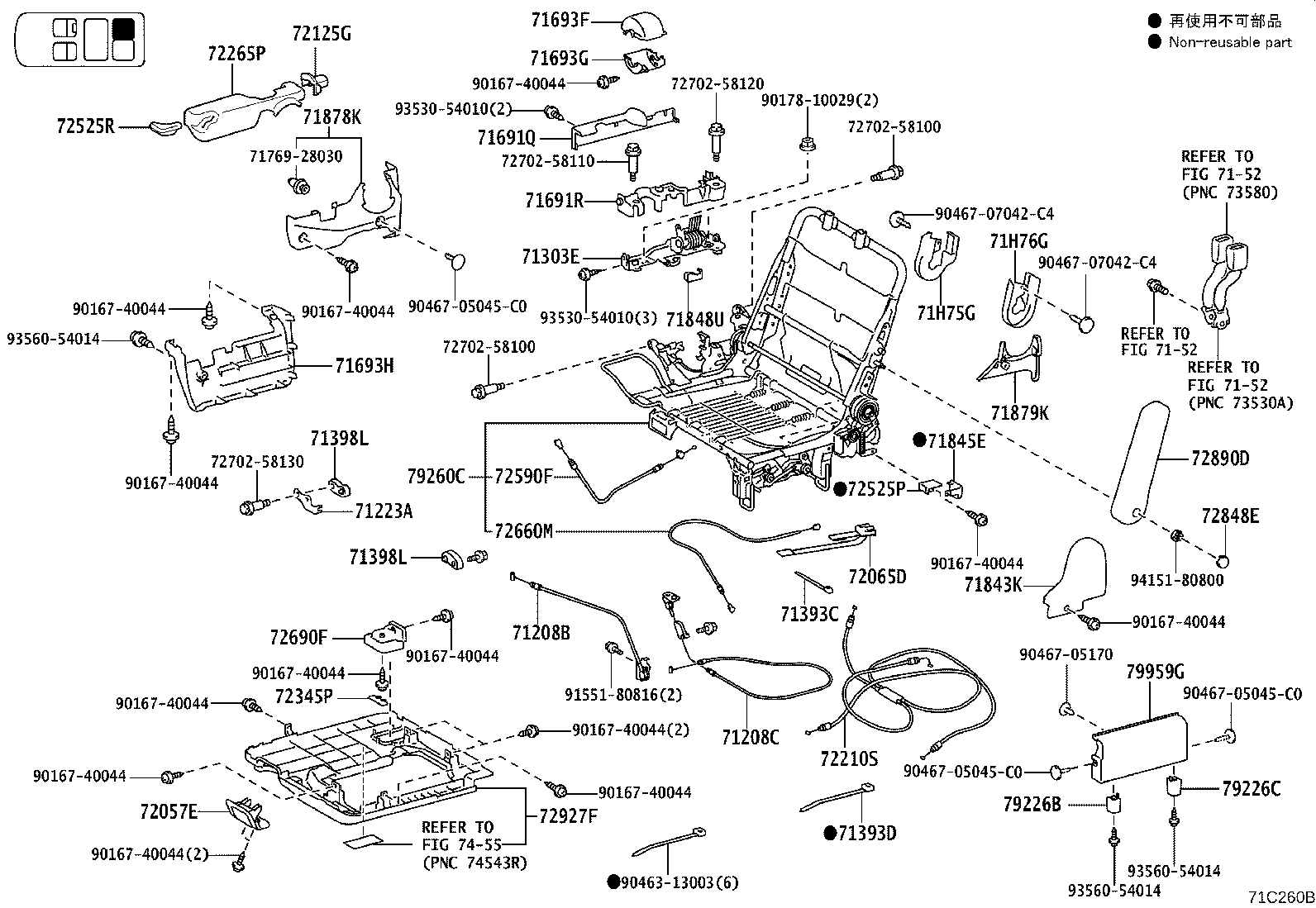

ILLUST NO. 1 OF 2(2001- )V
REAR NO.2 SEAT,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71208B - WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.1 | ||||
| 71208-58070 |
AYH36,GGH31..V |
1 | ||
| 71208C - WIRE SUB-ASSY, NO.2 SEAT CUSHION, RH NO.2 | ||||
| 71208-58080 |
AYH36,GGH31..V |
1 | ||
| 71223A - BRACKET, NO.2 SEAT CUSHION SIDE, RH | ||||
| 71223-58030 |
AYH36,GGH31..V |
1 | ||
| 71303E - HINGE SUB-ASSY, REAR NO.2 SEAT, RH | ||||
| 71303-58020 |
AYH36,GGH31..V |
1 | ||
| 71393C - BAND, NO.2 SEAT CUSHION, RH NO.1 | ||||
| 71393-28060 |
AYH36,GGH31..V |
1 | ||
| 71393D - BAND, NO.2 SEAT CUSHION, RH NO.2 | ||||
| 71393-58010 |
AYH36,GGH31..V |
1 | ||
| 71398L - GUIDE, NO.2 SEAT CUSHION SUPPORT, RH | ||||
| 71398-28010 |
AYH36,GGH31..V |
2 | ||
| 71398L - GUIDE, NO.2 SEAT CUSHION SUPPORT, RH | ||||
| 71398-28010 |
AYH36,GGH31..V |
2 | ||
| 71691Q - COVER, REAR NO.2 SEAT LOCK, UPPER NO.1 RH | ||||
| 71691-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71691R - COVER, REAR NO.2 SEAT LOCK, UPPER NO.2 RH | ||||
| 71691-58090C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71693F - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.1 | ||||
| 71693-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71693G - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.2 | ||||
| 71693-58060C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71693H - COVER, REAR NO.2 SEAT CUSHION HINGE, LOWER RH NO.3 | ||||
| 71693-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71843K - COVER, REAR NO.2 SEAT RECLINING, NO.2 RH | ||||
| 71843-58090C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71845E - CAP, REAR NO.2 SEAT COVER, RH | ||||
| 71845-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71848U - CAP, NO.2 SEAT ADJUSTER COVER, RH | ||||
| 71848-58010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 71878K - COVER, REAR NO.2 SEAT RECLINING, INNER RH | ||||
| 71878-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,FOR RH SEAT |
1 | ||
| 71879-58070C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,FOR LH SEAT |
1 | ||
| 71879K - COVER, REAR NO.2 SEAT RECLINING, INNER LH | ||||
| 71878-58070C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,FOR RH SEAT |
1 | ||
| 71879-58080C0 |
AYH36,GGH31..V BLACK,TRIM0#,2#,FOR LH SEAT |
1 | ||
| 71H75G - COVER, RECLINING ADJUSTER INSIDE, RH(FOR REAR NO.2 RH S | ||||
| 71875-58261 |
AYH36,GGH31..V |
1 | ||
| 71H76G - COVER, RECLINING ADJUSTER INSIDE, LH(FOR REAR NO.2 RH S | ||||
| 71876-58261 |
AYH36,GGH31..V |
1 | ||
| 72057E - LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1 | ||||
| 72057-58070C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72057-58070A1 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72065D - HOOK SUB-ASSY, REAR NO.2 SEAT CUSHION LOCK, RH | ||||
| 72065-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72125G - COVER, SEAT TRACK LOCK PLATE, NO.1 | ||||
| 72125-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72210S - CABLE ASSY, NO.2 SEAT SLIDE, RH | ||||
| 72210-58320 |
AYH36,GGH31..V |
1 | ||
| 72265P - COVER, SEAT TRACK UPPER RAIL, RH | ||||
| 72265-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72345P - CAP, SEAT STAND FRAME, RH NO.2 | ||||
| 72345-58060C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72525P - HANDLE, NO.2 SEAT RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58110C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72525R - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72590F - CABLE ASSY, RECLINING REMOTE CONTROL, RH | ||||
| 72590-58010 |
AYH36,GGH31..V |
1 | ||
| 72660M - CABLE ASSY, REAR NO.2 SEAT CUSHION LOCK, RH | ||||
| 72660-58020 |
AYH36,GGH31..V |
1 | ||
| 72690F - LEVER ASSY, NO.2 SEAT CUSHION LOCK RELEASE, RH | ||||
| 72690-58050C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72848E - CAP, NO.2 SEAT ARMREST, NO.1 RH | ||||
| 72848-28030A8 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72848-28030C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72890D - ARMREST ASSY, NO.2 SEAT, C LH(FOR RH SEAT) | ||||
| 72890-58A30C1 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 72890-58A30A2 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72927F - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-58070C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79226B - STOPPER, NO.2 SEAT CUSHION, RH FRONT | ||||
| 79226-58040 |
AYH36,GGH31..V |
1 | ||
| 79226C - STOPPER, NO.2 SEAT CUSHION, RH REAR | ||||
| 79226-58050 |
AYH36,GGH31..V |
1 | ||
| 79260C - SPRING ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79260-58070 |
AYH36,GGH31..V |
1 | ||
| 79959G - COVER, NO.2 SEAT LEG, RH NO.1 | ||||
| 79959-58210C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 71769-28030 | ||||
| 72702-58100 | ||||
| 72702-58110 | ||||
| 72702-58120 | ||||
| 72702-58130 | ||||
| 90167-40044 | ||||
| 90178-10029 | ||||
| 90463-13003 | ||||
| 90467-05045C0 | ||||
| 90467-05170 | ||||
| 90467-07042C4 | ||||
| 91551-80816 | ||||
| 93530-54010 | ||||
| 93560-54014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 7455 | ||||

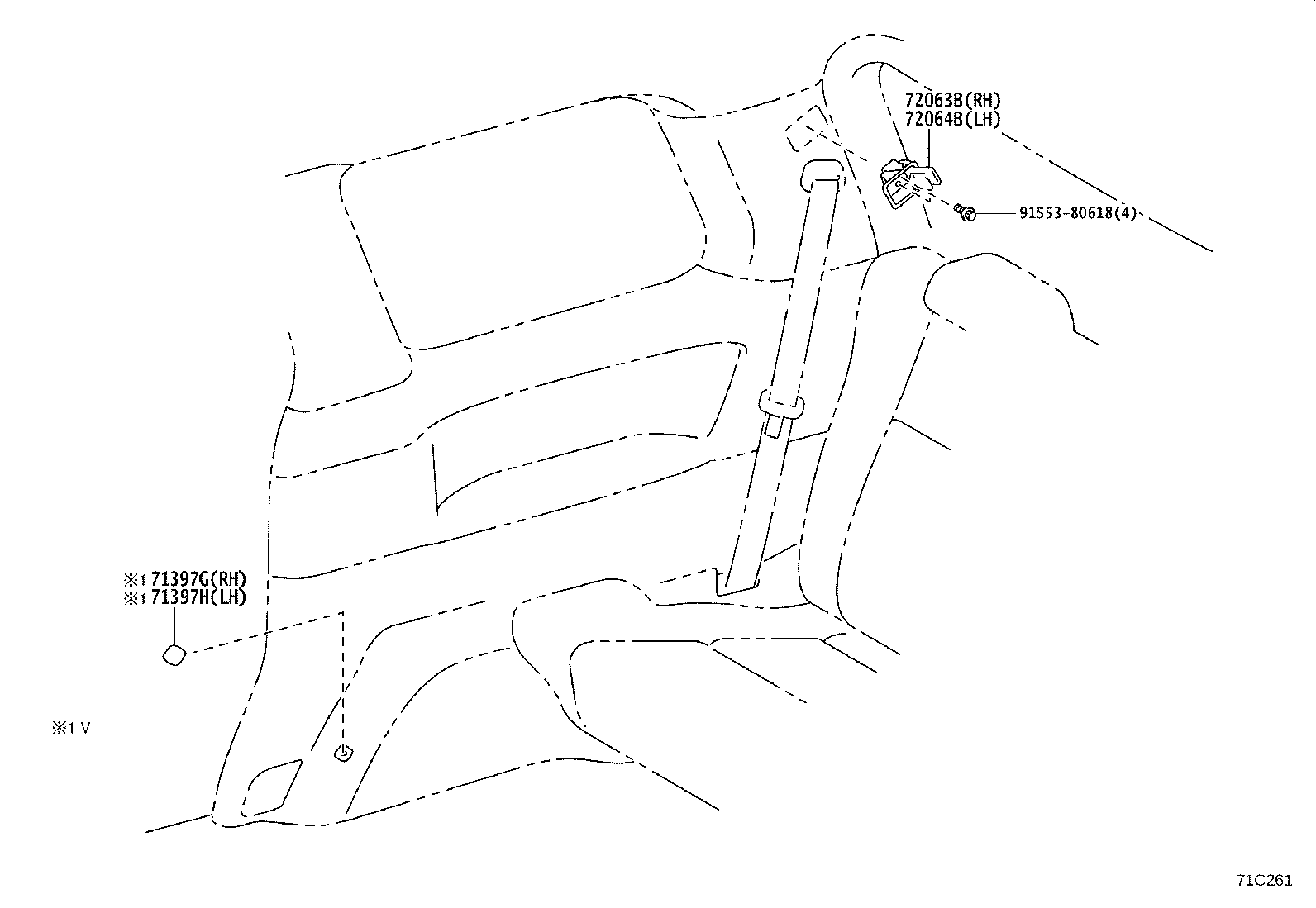

(2001- )
HOOK & STOPPER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71397G - STOPPER, REAR SEAT, RH | ||||
| 71397-58030 |
AYH36,GGH31..V |
1 | ||
| 71397H - STOPPER, REAR SEAT, LH | ||||
| 71397-58040 |
AYH36,GGH31..V |
1 | ||
| 72063B - HOOK SUB-ASSY, REAR SEAT, RH | ||||
| 72063-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 72064B - HOOK SUB-ASSY, REAR SEAT, LH | ||||
| 72064-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 91553-80618 | ||||
ILLUST NO. 3 OF 4(2001- )V
REAR NO.1 SEAT,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71016B - FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH | ||||
| 71016-58060 |
AYH36,GGH31..V |
1 | ||
| 71931J - SUPPORT, NO.1 SEAT FOOTREST(FOR LH SEAT) | ||||
| 71931-47010C8 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 71931J - SUPPORT, NO.1 SEAT FOOTREST(FOR LH SEAT) | ||||
| 71931-47010C8 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 72046D - COVER SUB-ASSY, REAR SEAT TRACK, OUTER LH NO.1 | ||||
| 72046-58030 |
AYH36,GGH31..V |
1 | ||
| 72075C - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR LH SE | ||||
| 72075-58030 |
AYH36,GGH31 |
1 | ||
| 72210U - CABLE ASSY, NO.1 SEAT TRACK CONTROL, LH | ||||
| 72210-58290 |
AYH36,GGH31..V |
1 | ||
| 72620S - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR LH SEAT) | ||||
| 72620-58030 |
AYH36,GGH31..V |
1 | ||
| 78093B - FRAME SUB-AASY, NO.1 SEAT FOOTREST(FOR LH SEAT) | ||||
| 78093-58010 |
AYH36,GGH31..V |
1 | ||
| 78656K - COVER, REAR SEAT LEGREST, LH | ||||
| 78656-58080C0 |
AYH36,GGH31 BLACK,TRIM0#,2#,NO.1:REFER ILLUST. |
1 | ||
| 78656-58090C0 |
AYH36,GGH31 BLACK,TRIM0#,2#,NO.2:REFER ILLUST. |
1 | ||
| 78656K - COVER, REAR SEAT LEGREST, LH | ||||
| 78656-58080C0 |
AYH36,GGH31 BLACK,TRIM0#,2#,NO.1:REFER ILLUST. |
1 | ||
| 78656-58090C0 |
AYH36,GGH31 BLACK,TRIM0#,2#,NO.2:REFER ILLUST. |
1 | ||
| 78981C - PANEL, NO.1 SEAT FOOTREST(FOR LH SEAT) | ||||
| 78981-58020 |
AYH36,GGH31..V |
1 | ||
| 78987B - COVER, REAR NO.1 SEAT FOOTREST, NO.1 LH | ||||
| 78987-58040C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 79106B - LEG SUB-ASSY, NO.1 SEAT, LH | ||||
| 79106-58120 |
AYH36,GGH31..V |
1 | ||
| 79118C - BRACKET, NO.1 SEAT LEG(FOR LH SEAT) | ||||
| 79118-58020 |
AYH36,GGH31..V |
1 | ||
| 79937F - COVER, NO.1 SEAT LEG, NO.2(FOR LH SEAT) | ||||
| 79937-V2010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79959F - COVER, NO.1 SEAT LEG, LH | ||||
| 79959-58180C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79968W - COVER, REAR NO.1 SEAT LEG SIDE, NO.5(FOR LH SEAT) | ||||
| 79968-58060C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79977J - FELT, SEAT BACK | ||||
| 79977-58020 |
AYH36,GGH31..V |
4 | ||
| 79977J - FELT, SEAT BACK | ||||
| 79977-58020 |
AYH36,GGH31..V |
4 | ||
| 85801C - MOTOR ASSY, POWER SEAT(FOR LH SEAT) | ||||
| 85801-58060 |
AYH36,GGH31..V |
1 | ||
| 85860F - BLOWER ASSY, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR LH S | ||||
| 85860-58020 |
AYH36,GGH31..V |
1 | ||
| 85866F - DUCT, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR LH SEAT) | ||||
| 85866-58010 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 78899-58020 | ||||
| 90105-12394 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90179-06156 | ||||
| 90467-10161 | ||||
| 91551-00840 | ||||
| 91551-80610 | ||||
| 91551-80614 | ||||
| 91553-01225 | ||||
| 94150-81000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||

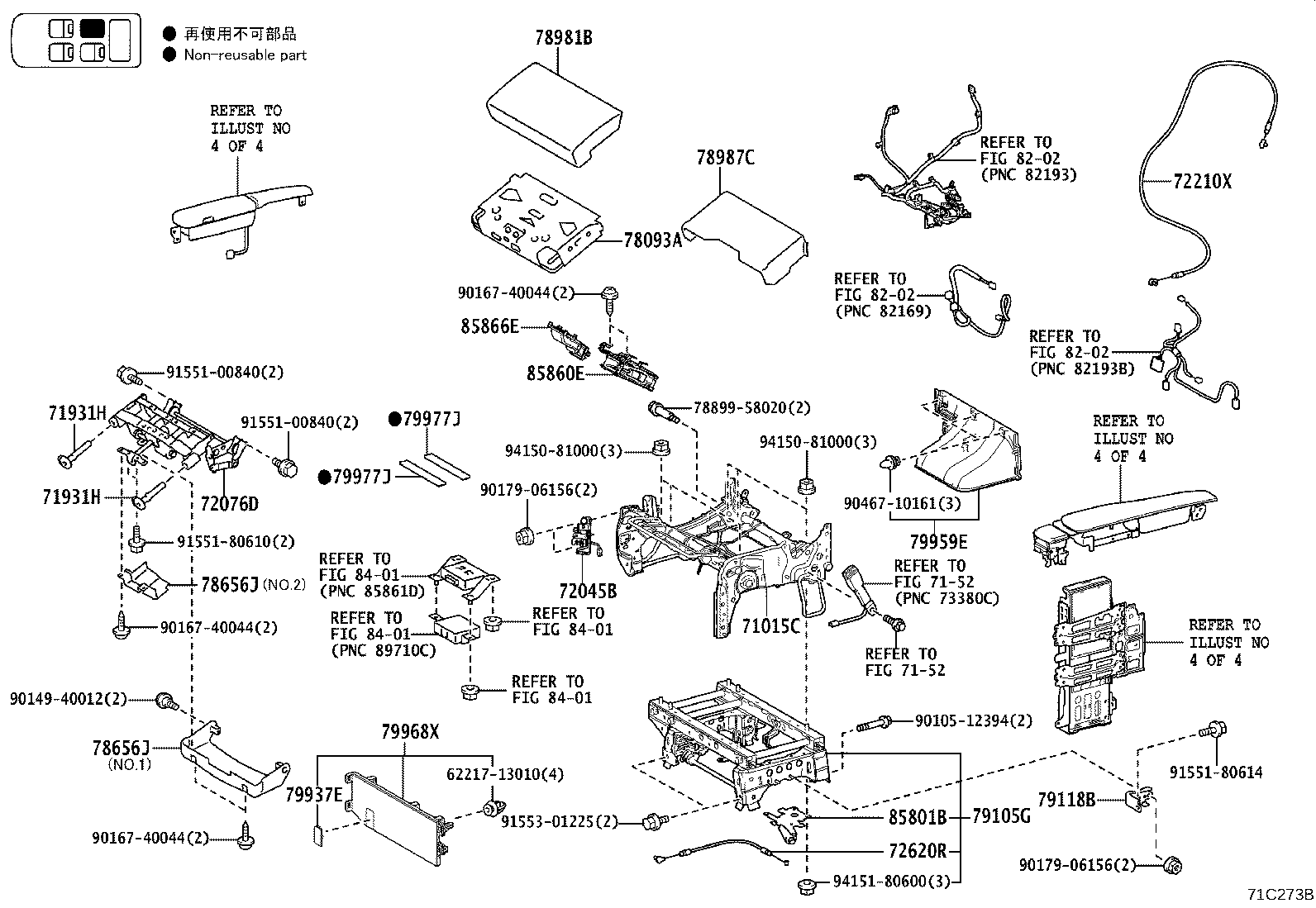

ILLUST NO. 3 OF 4(2001- )V
REAR NO.1 SEAT,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015C - FRAME SUB-ASSY, NO.1 SEAT CUSHION, RH | ||||
| 71015-58080 |
AYH36,GGH31..V |
1 | ||
| 71931H - SUPPORT, NO.1 SEAT FOOTREST(FOR RH SEAT) | ||||
| 71931-47010C8 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 71931H - SUPPORT, NO.1 SEAT FOOTREST(FOR RH SEAT) | ||||
| 71931-47010C8 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 72045B - COVER SUB-ASSY, NO.1 SEAT TRACK, OUTER RH | ||||
| 72045-58020 |
AYH36,GGH31..V |
1 | ||
| 72076D - ARM SUB-ASSY, RECLINING ADJUSTER, LOWER INNER(FOR RH SE | ||||
| 72075-58030 |
AYH36,GGH31 |
1 | ||
| 72210X - CABLE ASSY, NO.1 SEAT TRACK CONTROL, RH | ||||
| 72210-58290 |
AYH36,GGH31..V |
1 | ||
| 72620R - CABLE ASSY, REAR NO.1 SEAT LOCK(FOR RH SEAT) | ||||
| 72620-58030 |
AYH36,GGH31..V |
1 | ||
| 78093A - FRAME SUB-AASY, NO.1 SEAT FOOTREST(FOR RH SEAT) | ||||
| 78093-58010 |
AYH36,GGH31..V |
1 | ||
| 78656J - COVER, REAR SEAT LEGREST, RH | ||||
| 78656-58080C0 |
AYH36,GGH31 BLACK,TRIM0#,2#,NO.1:REFER ILLUST. |
1 | ||
| 78656-58090C0 |
AYH36,GGH31 BLACK,TRIM0#,2#,NO.2:REFER ILLUST. |
1 | ||
| 78656J - COVER, REAR SEAT LEGREST, RH | ||||
| 78656-58080C0 |
AYH36,GGH31 BLACK,TRIM0#,2#,NO.1:REFER ILLUST. |
1 | ||
| 78656-58090C0 |
AYH36,GGH31 BLACK,TRIM0#,2#,NO.2:REFER ILLUST. |
1 | ||
| 78981B - PANEL, NO.1 SEAT FOOTREST(FOR RH SEAT) | ||||
| 78981-58020 |
AYH36,GGH31..V |
1 | ||
| 78987C - COVER, REAR NO.1 SEAT FOOTREST, NO.1 RH | ||||
| 78987-58040C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 79105G - LEG SUB-ASSY, NO.1 SEAT, RH | ||||
| 79105-58100 |
AYH36,GGH31..V |
1 | ||
| 79118B - BRACKET, NO.1 SEAT LEG(FOR RH SEAT) | ||||
| 79118-58010 |
AYH36,GGH31..V |
1 | ||
| 79937E - COVER, NO.1 SEAT LEG, NO.2(FOR RH SEAT) | ||||
| 79937-V2010C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
3 | ||
| 79959E - COVER, NO.1 SEAT LEG, RH | ||||
| 79959-58260C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79968X - COVER, REAR NO.1 SEAT LEG SIDE, NO.5(FOR RH SEAT) | ||||
| 79968-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 79977J - FELT, SEAT BACK | ||||
| 79977-58020 |
AYH36,GGH31..V |
4 | ||
| 79977J - FELT, SEAT BACK | ||||
| 79977-58020 |
AYH36,GGH31..V |
4 | ||
| 85801B - MOTOR ASSY, POWER SEAT(FOR RH SEAT) | ||||
| 85801-58050 |
AYH36,GGH31..V |
1 | ||
| 85860E - BLOWER ASSY, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR RH S | ||||
| 85860-58010 |
AYH36,GGH31..V |
1 | ||
| 85866E - DUCT, NO.1 SEAT CUSHION CLIMATE CONTROL(FOR RH SEAT) | ||||
| 85866-58010 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 62217-13010 | ||||
| 78899-58020 | ||||
| 90105-12394 | ||||
| 90149-40012 | ||||
| 90167-40044 | ||||
| 90179-06156 | ||||
| 90467-10161 | ||||
| 91551-00840 | ||||
| 91551-80610 | ||||
| 91551-80614 | ||||
| 91553-01225 | ||||
| 94150-81000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7152 | ||||
| 8202 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(2001- )V

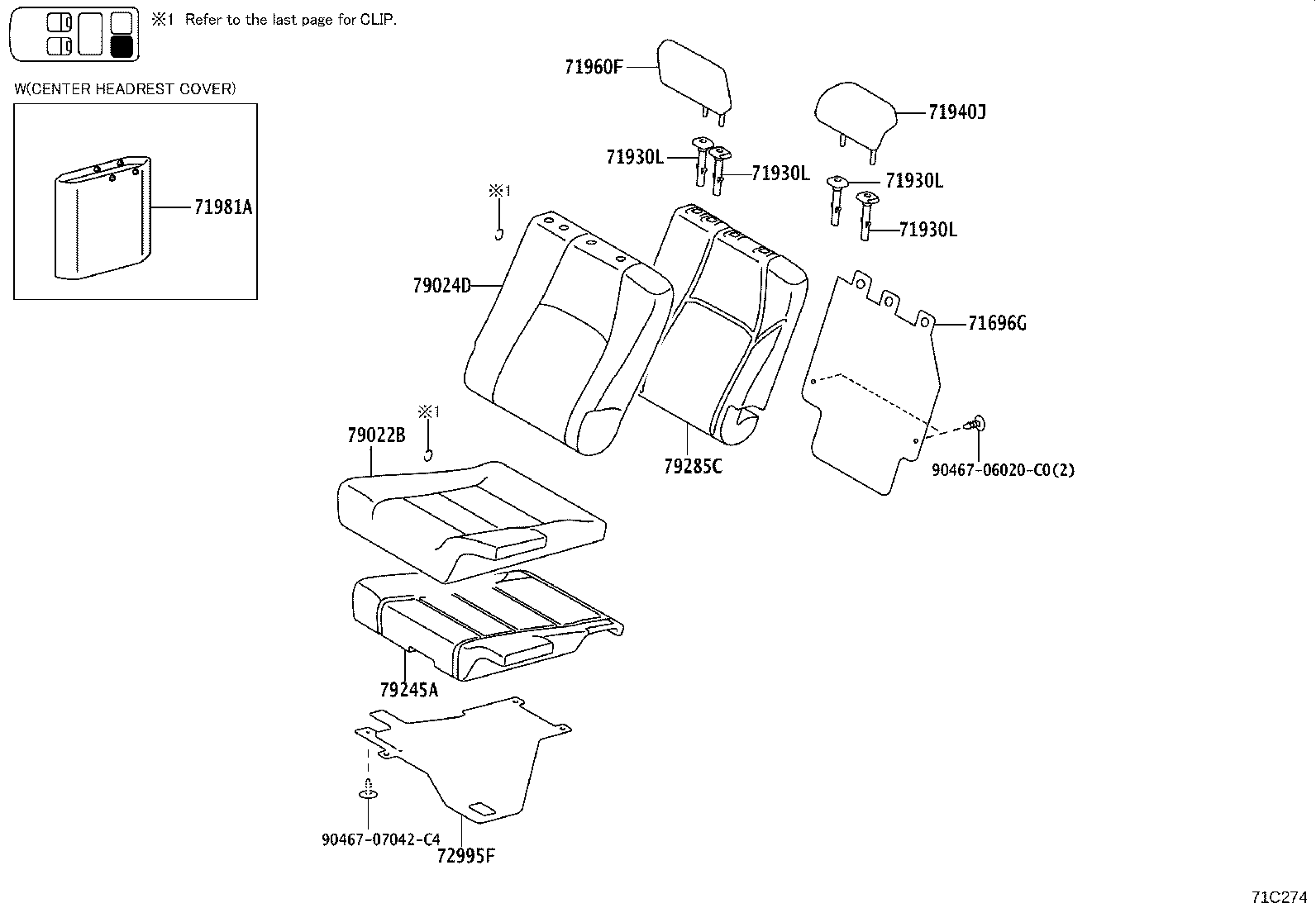

REAR NO.2 SEAT,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71696G - PROTECTOR, NO.2 SEAT BACK, LH | ||||
| 71696-58020 |
AYH36,GGH31..V |
1 | ||
| 71930L - SUPPORT ASSY, NO.2 SEAT HEADREST, LH | ||||
| 71931-47020C4 |
AYH36,GGH31..V W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47020C4 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930L - SUPPORT ASSY, NO.2 SEAT HEADREST, LH | ||||
| 71931-47020C4 |
AYH36,GGH31..V W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47020C4 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930L - SUPPORT ASSY, NO.2 SEAT HEADREST, LH | ||||
| 71931-47020C4 |
AYH36,GGH31..V W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47020C4 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930L - SUPPORT ASSY, NO.2 SEAT HEADREST, LH | ||||
| 71931-47020C4 |
AYH36,GGH31..V W/O(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71930-47020C4 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
2 | ||
| 71940J - HEADREST ASSY, NO.2 SEAT, LH | ||||
| 71940-58530A5 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 71940-58530C3 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71960F - HEADREST ASSY, REAR NO.2 SEAT, CENTER | ||||
| 71960-58380A3 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 71960-58380C0 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71981A - COVER, NO.2 SEAT HEADREST | ||||
| 71981-58010 |
AYH36,GGH31..V |
1 | ||
| 72995F - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-58180 |
AYH36,GGH31..V |
2 | ||
| 79022B - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH | ||||
| 79022-58370A6 |
GGH31..V;AYH36..RHD..V WHITE,TRIM0# |
1 | ||
| 79022-58370C3 |
GGH31..V;AYH36..RHD..V BLACK,TRIM2# |
1 | ||
| 79024D - COVER SUB-ASSY, NO.2 SEAT BACK, LH | ||||
| 79024-58410A4 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 79024-58410C3 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 79245A - PAD, NO.2 SEAT CUSHION, LH | ||||
| 79245-58030 |
AYH36,GGH31..V |
1 | ||
| 79285C - PAD, NO.2 SEAT BACK, LH | ||||
| 79285-58040 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 90467-06020C0 | ||||
| 90467-07042C4 | ||||
ILLUST NO. 2 OF 2(2001- )V

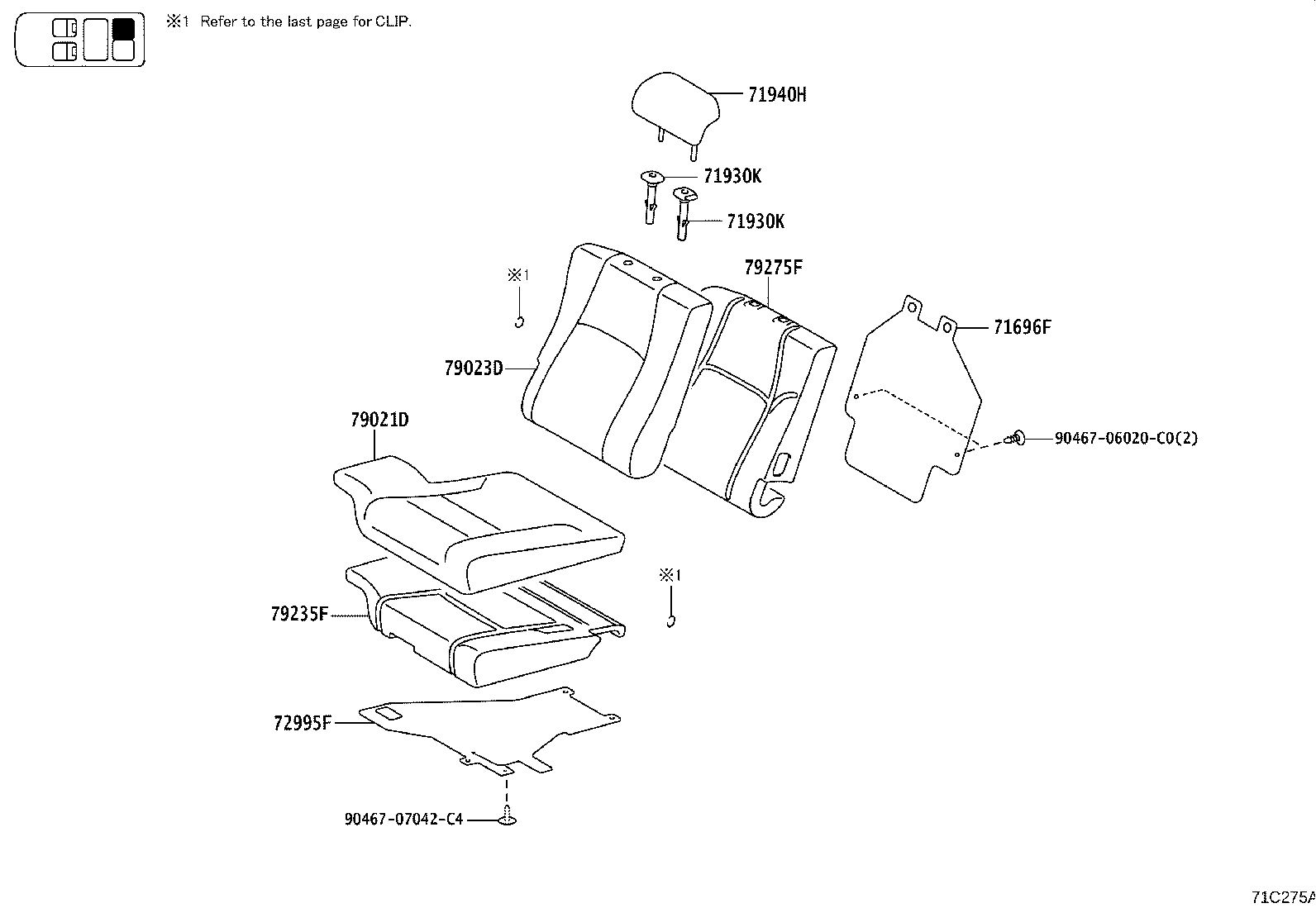

REAR NO.2 SEAT,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71696F - PROTECTOR, NO.2 SEAT BACK, RH | ||||
| 71695-58120 |
AYH36,GGH31..V |
1 | ||
| 71930K - SUPPORT ASSY, NO.2 SEAT HEADREST, RH | ||||
| 71931-47020C4 |
AYH36,GGH31..V W/O(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71930-47020C4 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71930K - SUPPORT ASSY, NO.2 SEAT HEADREST, RH | ||||
| 71931-47020C4 |
AYH36,GGH31..V W/O(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71930-47020C4 |
AYH36,GGH31..V W(LOCK),BLACK,TRIM0#,2# |
1 | ||
| 71940H - HEADREST ASSY, NO.2 SEAT, RH | ||||
| 71940-58530C3 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 71940-58530A5 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 72995F - COVER, REAR SEAT CUSHION, RH | ||||
| 72995-58180 |
AYH36,GGH31..V |
2 | ||
| 79021D - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH | ||||
| 79021-58360A6 |
GGH31..V;AYH36..RHD..V WHITE,TRIM0# |
1 | ||
| 79021-58360C3 |
GGH31..V;AYH36..RHD..V BLACK,TRIM2# |
1 | ||
| 79023D - COVER SUB-ASSY, NO.2 SEAT BACK, RH | ||||
| 79023-58370A4 |
AYH36,GGH31..V WHITE,TRIM0# |
1 | ||
| 79023-58370C3 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 79235F - PAD, NO.2 SEAT CUSHION, RH | ||||
| 79235-58030 |
AYH36,GGH31..V |
1 | ||
| 79275F - PAD, NO.2 SEAT BACK, RH | ||||
| 79275-58040 |
AYH36,GGH31..V |
1 | ||
| Common parts | ||||
| 90467-06020C0 | ||||
| 90467-07042C4 | ||||
(2001- )

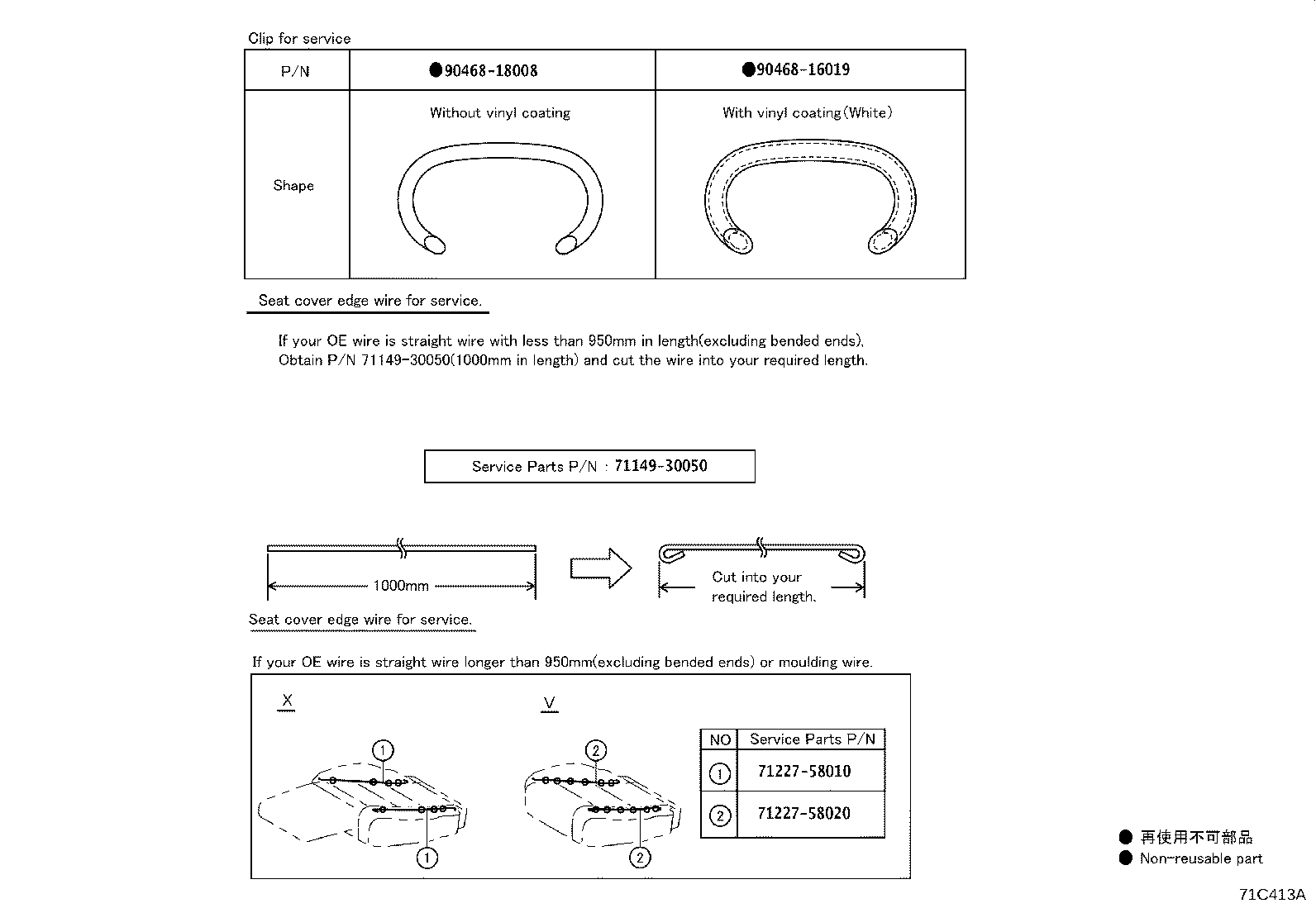

SEAT EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71227-58010 | ||||
| 71227-58020 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
