GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

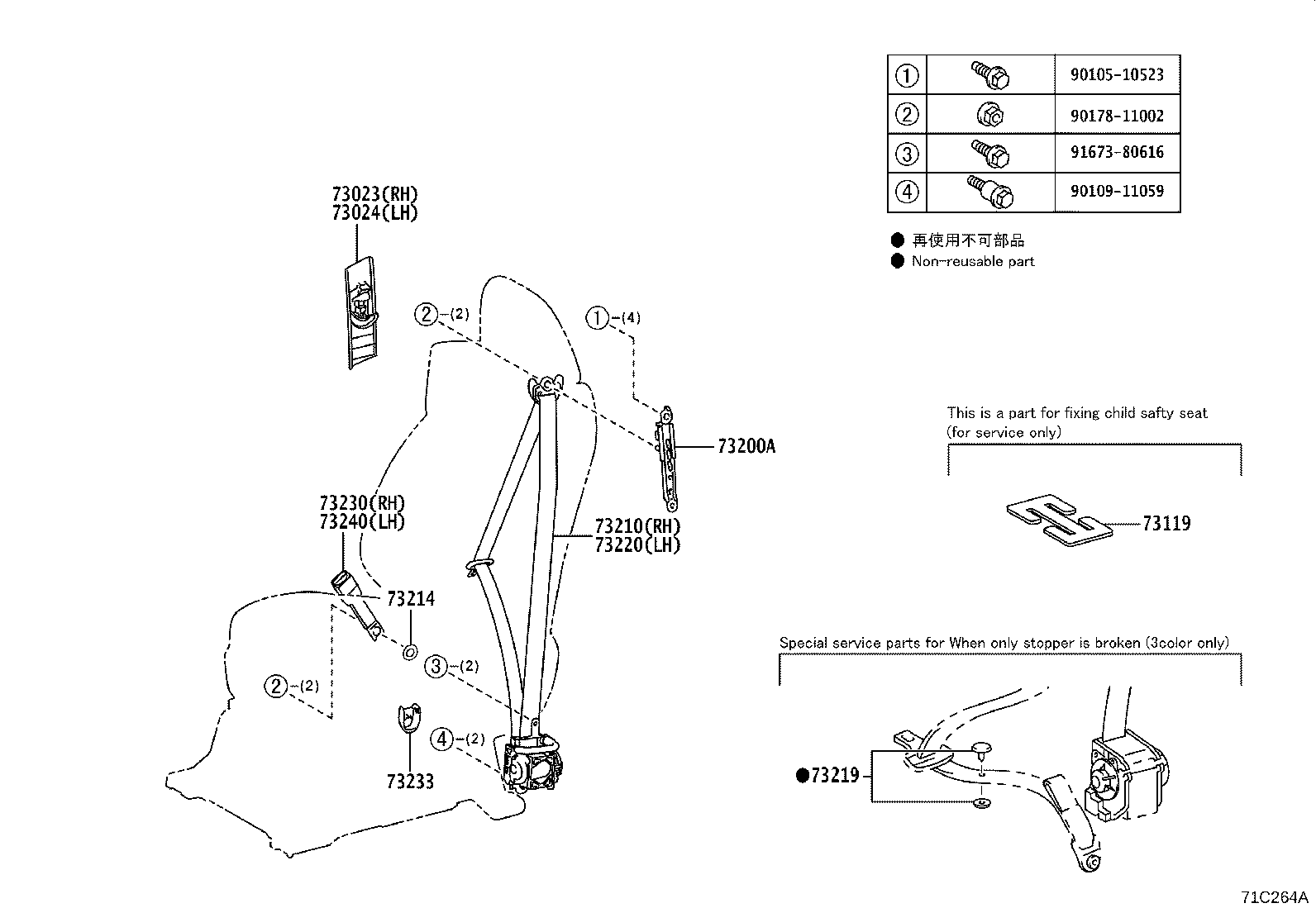

ILLUST NO. 1 OF 3(2001- )

Click highlighted areas on diagram

FRONT SEAT

diagram 73023 73024 73119 73200A 73210 73214 73219 73220 73230 73233 73240 9010510523 9010911059 9017811002 9167380616
Part # Description Qty Price
73023 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH
73023-58010C1

AYH36,GGH31

BLACK,TRIM0#,2#

 1
73024 - PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH
73024-58010C1

AYH36,GGH31

BLACK,TRIM0#,2#

 1
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

AYH36,GGH31

 1
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-12070

AYH36,GGH31

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-58073C0

AYH36,GGH31..LHD

BLACK,TRIM0#,2#

 1
73214 - PLATE, FRONT SEAT BELT ANCHOR
73214-75010

AYH36,GGH31

 2
73219 - STOPPER, TONGUE PLATE
73219-33010

AYH36,GGH31

BLACK

 1
73219-33020

AYH36,GGH31

GRAY

 1
73219-33030

AYH36,GGH31

BEIGE

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-58083C0

AYH36,GGH31..LHD

BLACK,TRIM0#,2#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73240-58121C0

AYH36,GGH31..LHD..V

BLACK,TRIM0#,2#

 1
73233 - COVER, LAP BELT OUTER ANCHOR
73233-60020C1

AYH36,GGH31

BLACK,TRIM0#,2#

 2
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-58121C0

AYH36,GGH31..X;AYH36,GGH31..LHD..V

BLACK,TRIM0#,2#

 1
Common parts
90105-10523
90109-11059
90178-11002
91673-80616

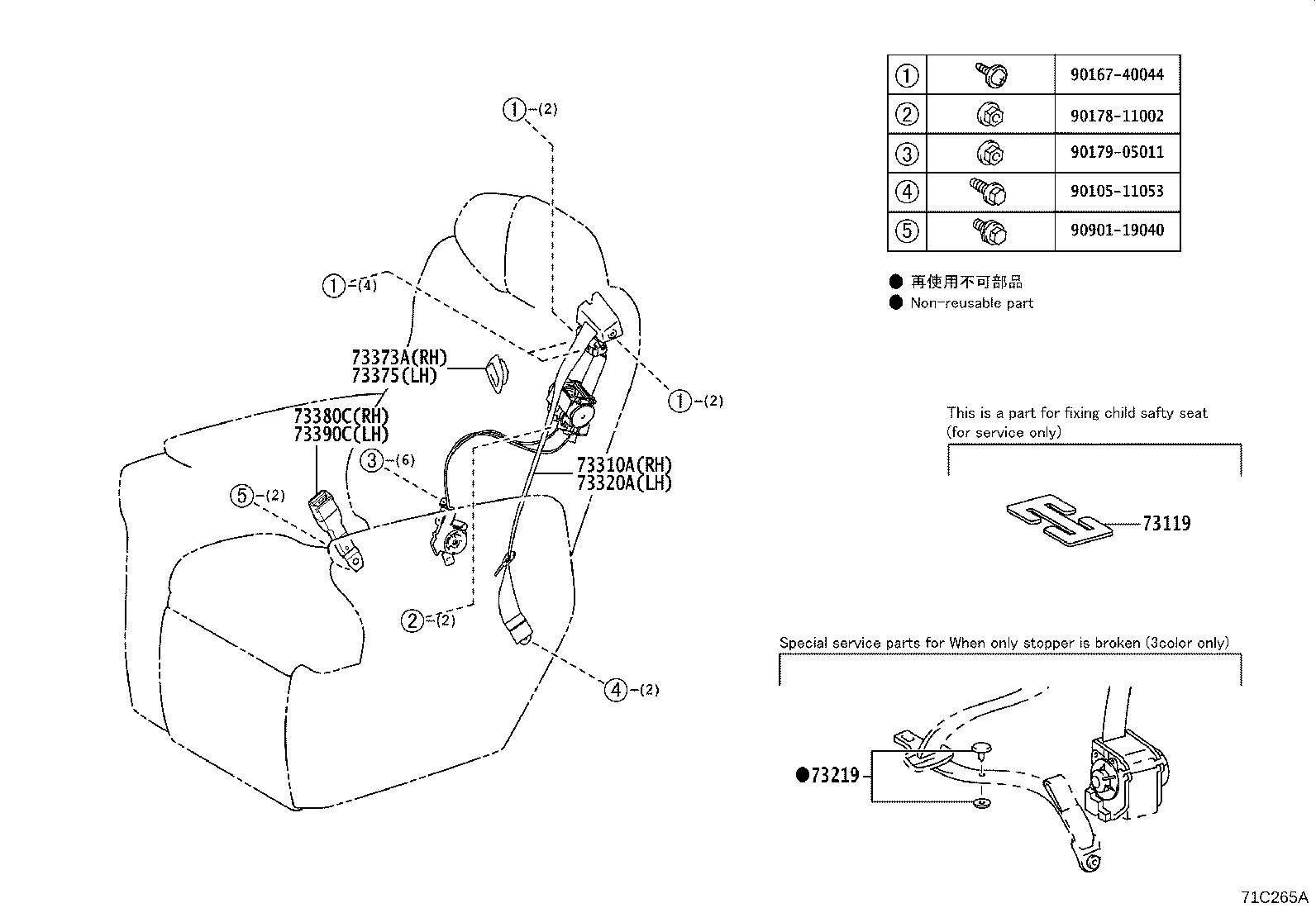

ILLUST NO. 2 OF 3(2001- )V

Click highlighted areas on diagram

REAR NO.1 SEAT

diagram 73119 73219 73310A 73320A 73373A 73375 73380C 73390C 9010511053 9016740044 9017811002 9017905011 9090119040
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

AYH36,GGH31

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

AYH36,GGH31

BLACK

 1
73219-33020

AYH36,GGH31

GRAY

 1
73219-33030

AYH36,GGH31

BEIGE

 1
73310A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, RH
73310-58091C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
73310-V2010C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
73320A - BELT ASSY, NO.1 SEAT 3 POINT TYPE, LH
73320-V2010C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
73320-58071C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
73373A - COVER, REAR SEAT SHOULDER BELT, RH
73373-58040

AYH36,GGH31..V

 1
73375 - COVER, REAR SEAT SHOULDER BELT, LH
73375-58030

AYH36,GGH31..V

 1
73380C - BELT ASSY, REAR NO.1 SEAT, INNER RH
73380-V2010C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
73380-58060C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
73390C - BELT ASSY, REAR NO.1 SEAT, INNER LH
73380-V2010C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
73380-58060C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
Common parts
90105-11053
90167-40044
90178-11002
90179-05011
90901-19040

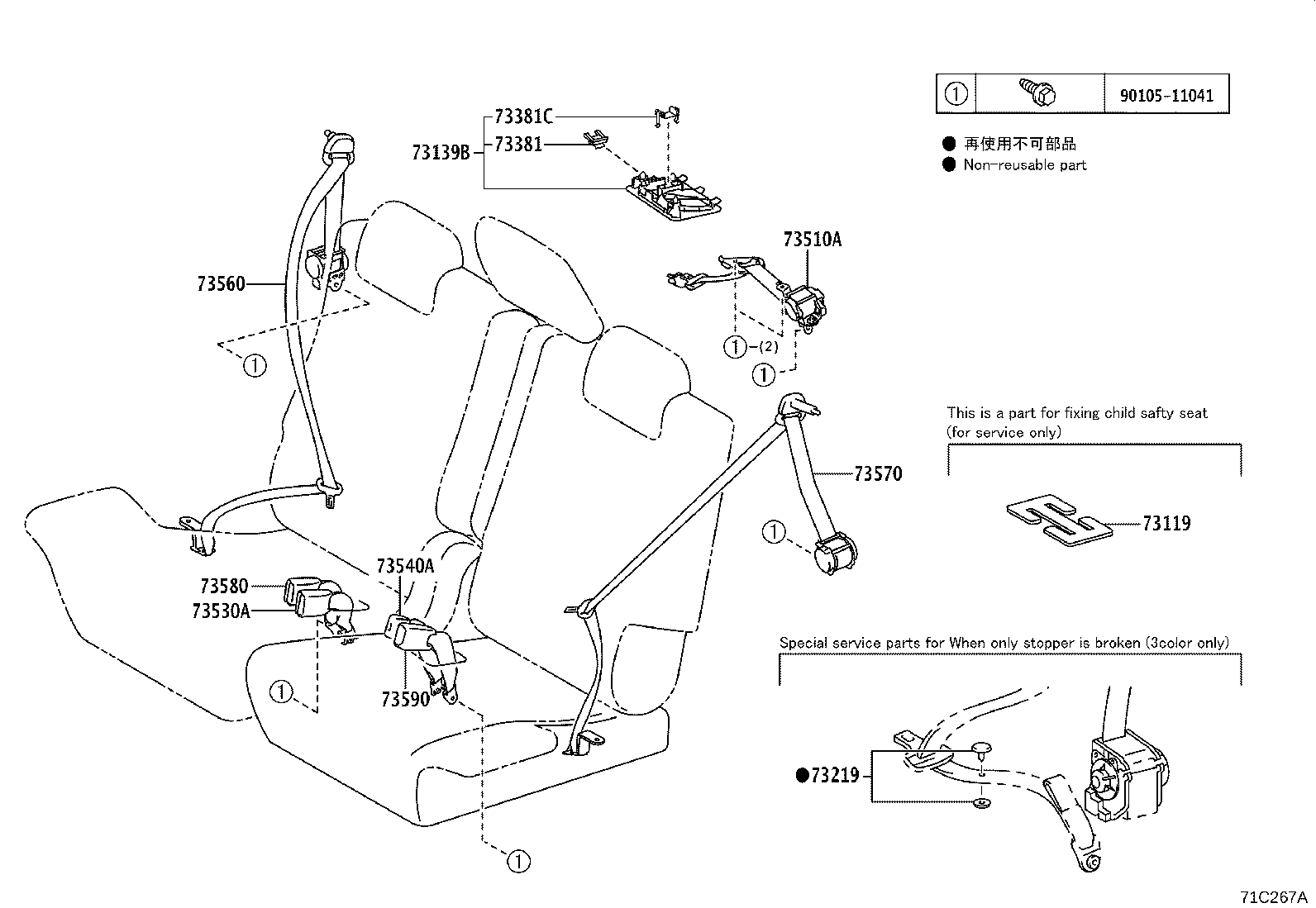

ILLUST NO. 3 OF 3(2001- )V

Click highlighted areas on diagram

REAR NO.2 SEAT

diagram 73119 73139B 73219 73381 73381C 73510A 73530A 73540A 73560 73570 73580 73590 9010511041
Part # Description Qty Price
73119 - PLATE, SEAT BELT WEBBING CLIP
73119-22010

AYH36,GGH31

 1
73139B - COVER, SEAT BELT ANCHOR
73139-58021C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
73219 - STOPPER, TONGUE PLATE
73219-33010

AYH36,GGH31

BLACK

 1
73219-33020

AYH36,GGH31

GRAY

 1
73219-33030

AYH36,GGH31

BEIGE

 1
73381 - HOLDER, REAR SEAT BELT
73381-0D010

AYH36,GGH31..V

 1
73381C - HOLDER, SEAT BELT
73381-KK010

AYH36,GGH31..V

 1
73510A - BELT ASSY, REAR NO.2 SEAT, 3 POINT TYPE
73510-58042C1

GGH31..V;AYH36..RHD..V

BLACK,TRIM0#,2#

 1
73510-V2010C0

GGH31..V;AYH36..RHD..V

BLACK,TRIM0#,2#

 1
73530A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, RH
73530-58010C2

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
73540A - BELT ASSY, REAR NO.2 SEAT LAP TYPE, LH
73540-58021C2

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
73560 - BELT ASSY, REAR NO.2 SEAT, OUTER RH
73560-58062C1

GGH31..V;AYH36..RHD..V

BLACK,TRIM0#,2#

 1
73570 - BELT ASSY, REAR NO.2 SEAT, OUTER LH
73570-58082C1

GGH31..V;AYH36..RHD..V

BLACK,TRIM0#,2#

 1
73580 - BELT ASSY, REAR NO.2 SEAT, INNER RH
73580-58040C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
73590 - BELT ASSY, REAR NO.2 SEAT, INNER LH
73580-58040C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
Common parts
90105-11041
