GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

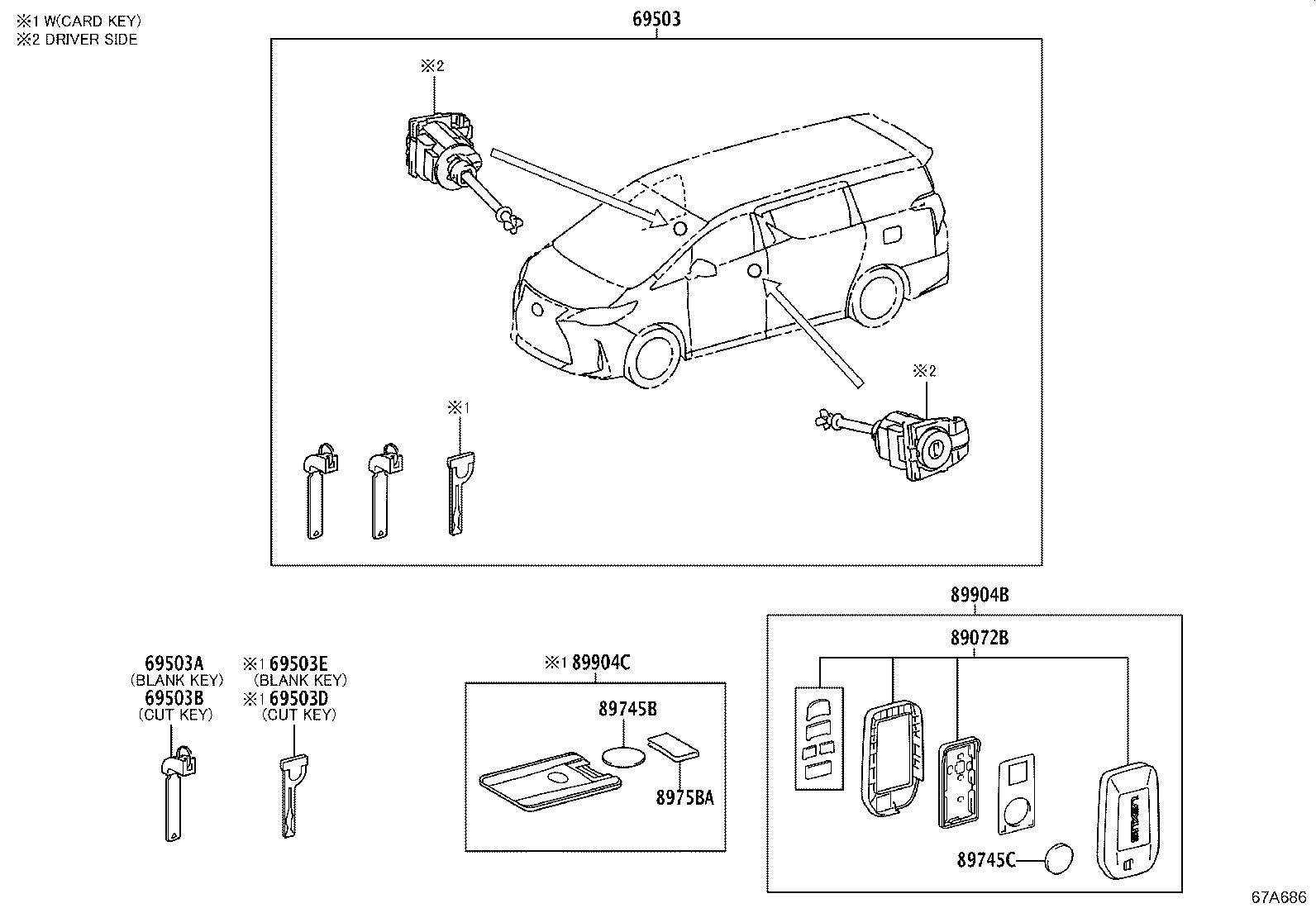

Click highlighted areas on diagram

diagram 69503 69503A 69503B 69503D 69503E 89072B 89745B 89745C 8975BA 89904B 89904C
Part # Description Qty Price
69503 - CYLINDER SET, LOCK
69005-58340

AYH36,GGH31..LHD

KEY PLATE-SMART ENTRY & CARD KEY

 1
69005-58300

AYH36,GGH31..LHD

 1
69503A - KEY, BLANK
69515-33120

AYH36,GGH31

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-33110

AYH36,GGH31

MASTER KEY,W(*68)

 2
69503D - KEY, CUT(CARD KEY)
69515-30330

AYH36,GGH31

MASTER KEY,KEY PLATE-SMART ENTRY & CARD KEY

 1
69503E - KEY, BLANK(CARD KEY)
69515-30350

AYH36,GGH31

MASTER KEY,KEY PLATE-SMART ENTRY & CARD KEY

 1
89072B - HOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
89072-58410

GGH31..8FC

 1
89745B - BATTERY, TRANSMITTER(CARD KEY)
89745-50030

AYH36,GGH31

CR2412,KEY PLATE-SMART ENTRY & CARD KEY

 1
89745C - BATTERY, TRANSMITTER
89745-50020

AYH36,GGH31

CR2032

 1
8975BA - COVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
8975B-50030

AYH36,GGH31

KEY PLATE-SMART ENTRY & CARD KEY

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-58500

GGH31..8FC

 2
89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
89904-58540

GGH31..8FC

KEY PLATE-SMART ENTRY & CARD KEY

 1
