GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

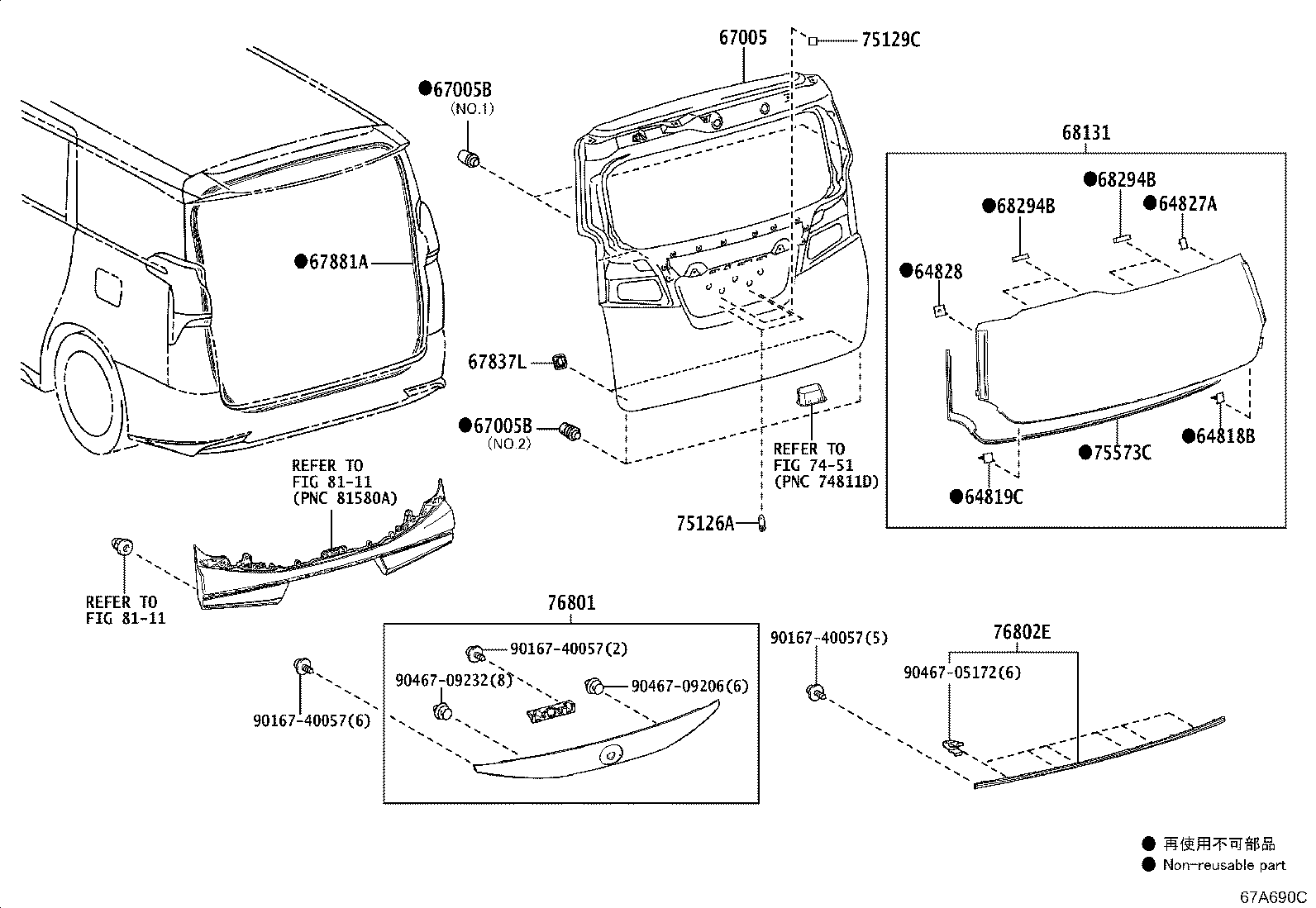

ILLUST NO. 1 OF 2(2001- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64818B - SPACER, BACK DOOR GLASS, NO.1 | ||||
| 64818-58030 |
AYH36,GGH31 |
1 | ||
| 64819C - SPACER, BACK DOOR GLASS, NO.2 | ||||
| 64819-58030 |
AYH36,GGH31 |
1 | ||
| 64827A - CLIP, BACK WINDOW GLASS, RH | ||||
| 64827-58030 |
AYH36,GGH31 |
1 | ||
| 64828 - CLIP, BACK WINDOW GLASS, LH | ||||
| 64828-58030 |
AYH36,GGH31 |
1 | ||
| 67005 - PANEL SUB-ASSY, BACK DOOR | ||||
| 67005-58210 |
GGH31;AYH36..RHD |
1 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09148 |
AYH36,GGH31 NO.2 |
2 | ||
| 90541-10034 |
AYH36,GGH31 NO.1 |
2 | ||
| 67005B - CUSHION(FOR BACK DOOR PANEL) | ||||
| 90541-09148 |
AYH36,GGH31 NO.2 |
2 | ||
| 90541-10034 |
AYH36,GGH31 NO.1 |
2 | ||
| 67837L - SEAL, DOOR DUST PROOF | ||||
| 67837-58010 |
AYH36,GGH31 |
2 | ||
| 67881A - WEATHERSTRIP, BACK DOOR | ||||
| 67881-58040 |
AYH36,GGH31 |
1 | ||
| 68131 - GLASS, BACK DOOR | ||||
| 68105-58200 |
AYH36;GGH31..LHD |
1 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AYH36,GGH31 |
4 | ||
| 68294B - DAM, BACK DOOR GLASS ADHESIVE | ||||
| 68294-26030 |
AYH36,GGH31 |
4 | ||
| 75129C - CUSHION, REAR LICENCE PLATE | ||||
| 75129-28020 |
AYH36,GGH31 |
2 | ||
| 75573C - MOULDING, BACK WINDOW, OUTSIDE | ||||
| 75573-58020 |
AYH36,GGH31 |
1 | ||
| 76801 - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE | ||||
| 76801-58270A0 |
AYH36,GGH31 WHITE PEARL CS.,070 |
1 | ||
| 76801-58270C0 |
AYH36,GGH31 BLACK,202 |
1 | ||
| 76802E - GARNISH SUB-ASSY, BACK DOOR, OUTSIDE LOWER | ||||
| 76802-58030 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 90167-40057 | ||||
| 90467-05172 | ||||
| 90467-09206 | ||||
| 90467-09232 | ||||
| Linked diagrams | ||||
| 7451 | ||||
| 8111 | ||||

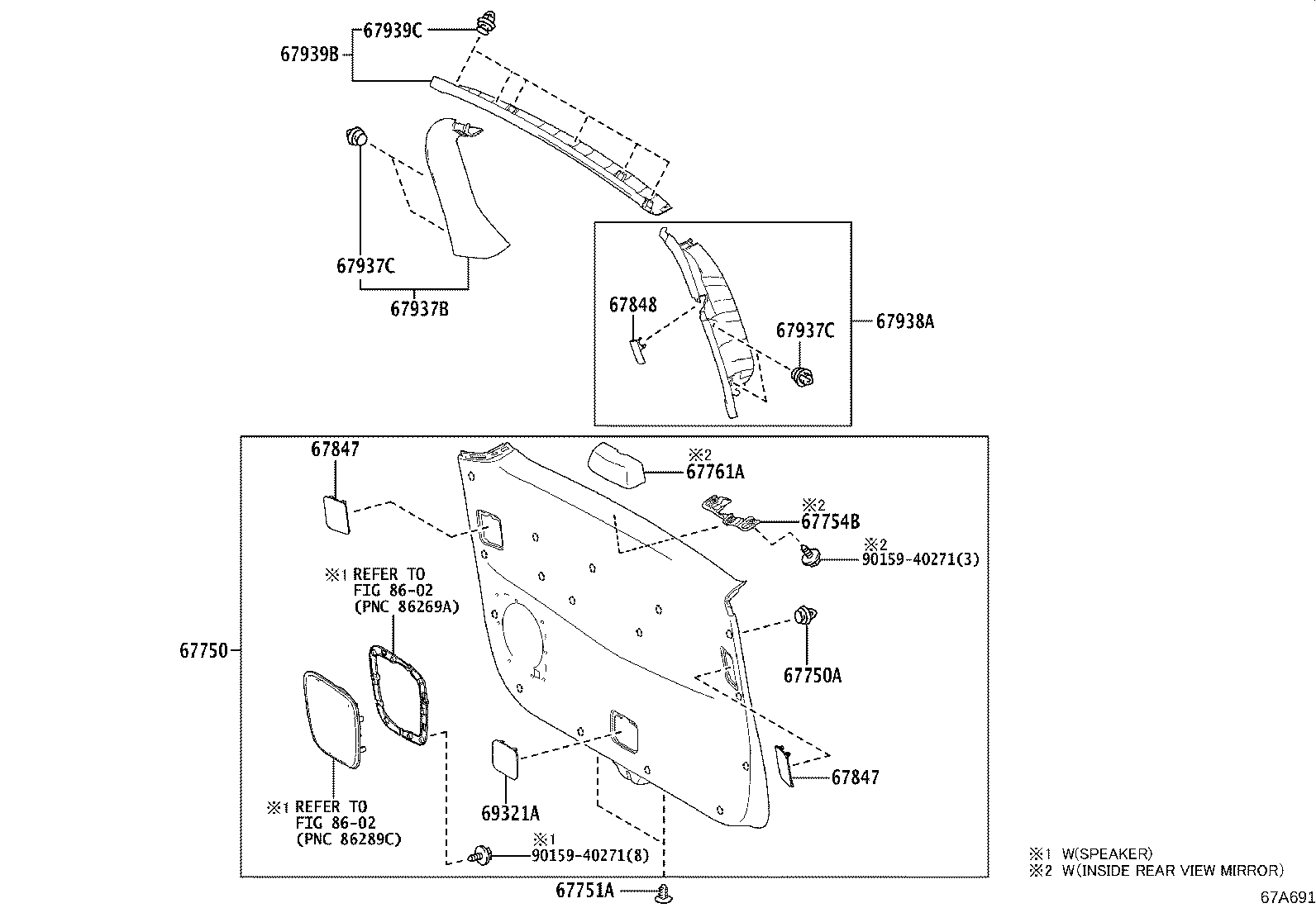

ILLUST NO. 2 OF 2(2001- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67750 - BOARD ASSY, BACK DOOR TRIM | ||||
| 67750-58160C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67750A - CLIP(FOR BACK DOOR TRIM) | ||||
| 90467-10161 |
AYH36,GGH31 |
16 | ||
| 67751A - CLIP(FOR BACK DOOR TRIM BOARD) | ||||
| 90467-07076C7 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 67754B - SPACER, BACK DOOR TRIM | ||||
| 67754-58030 |
AYH36,GGH31 |
1 | ||
| 67761A - COVER, BACK DOOR TRIM | ||||
| 67761-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-58020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 67847 - COVER, BACK DOOR SERVICE HOLE, RH | ||||
| 67847-58020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| 67848 - COVER, BACK DOOR SERVICE HOLE, LH | ||||
| 67848-58040C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67937B - GARNISH, BACK DOOR SIDE, RH | ||||
| 67937-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
AYH36,GGH31 |
4 | ||
| 67937C - CLIP(FOR BACK DOOR SIDE GARNISH) | ||||
| 90467-10161 |
AYH36,GGH31 |
4 | ||
| 67938A - GARNISH, BACK DOOR SIDE, LH | ||||
| 67938-58020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67939B - GARNISH, BACK DOOR, CENTER | ||||
| 67939-58040C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67939C - CLIP(FOR BACK DOOR CENTER GARNISH) | ||||
| 90467-10161 |
AYH36,GGH31 |
6 | ||
| 69321A - COVER, BACK DOOR LOCK | ||||
| 69321-58020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| Common parts | ||||
| 90159-40271 | ||||
| Linked diagrams | ||||
| 8602 | ||||
