GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

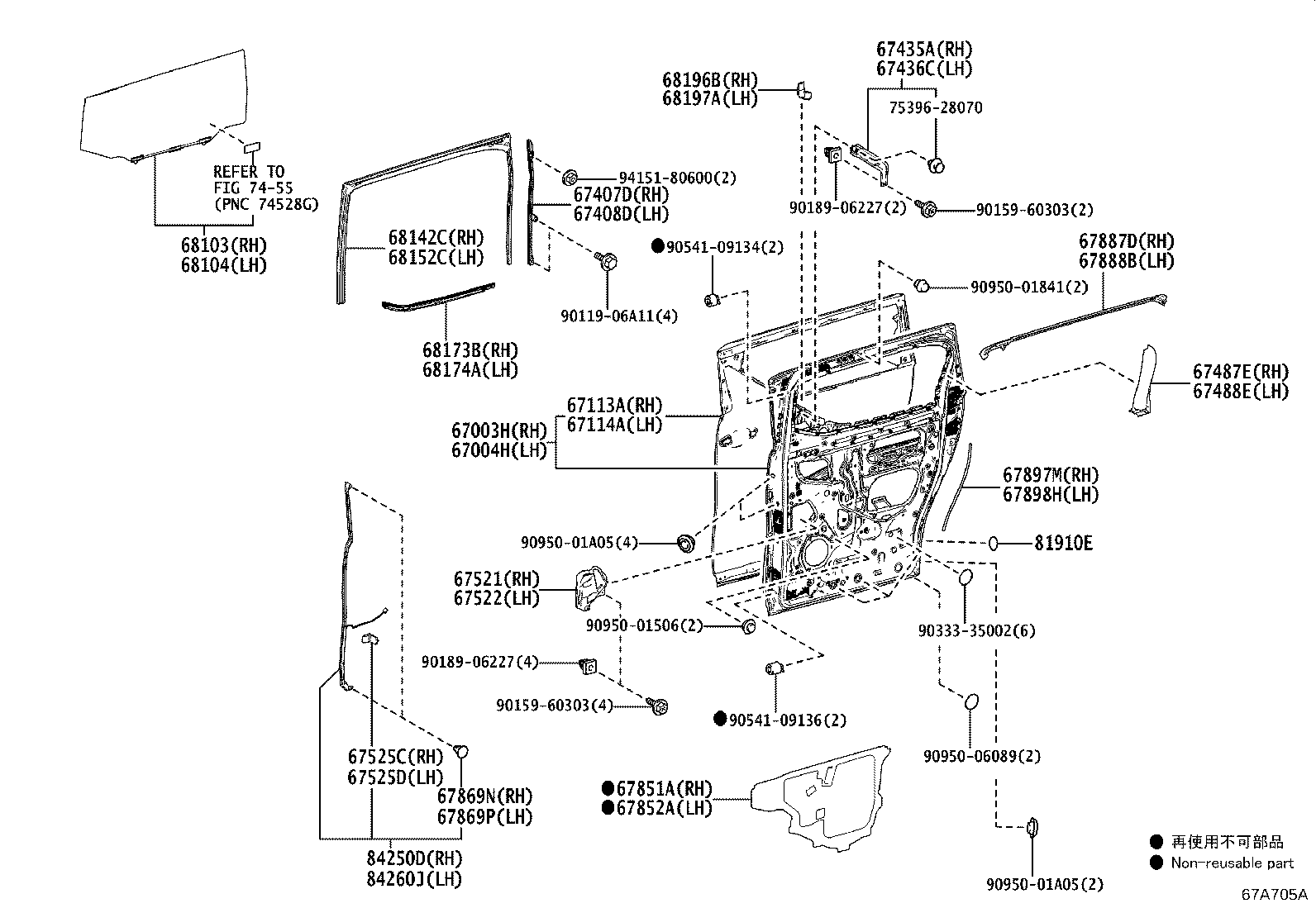

ILLUST NO. 1 OF 2(2001- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003H - DOOR SUB-ASSY, SLIDE, RH | ||||
| 67003-58130 |
AYH36,GGH31 |
1 | ||
| 67004H - DOOR SUB-ASSY, SLIDE, LH | ||||
| 67004-58130 |
AYH36,GGH31 |
1 | ||
| 67113A - PANEL, SLIDE DOOR, OUTER RH | ||||
| 67113-58070 |
AYH36,GGH31 |
1 | ||
| 67114A - PANEL, SLIDE DOOR, OUTER LH | ||||
| 67114-58070 |
AYH36,GGH31 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-58030 |
AYH36,GGH31 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-58030 |
AYH36,GGH31 |
1 | ||
| 67435A - GUIDE, REAR DOOR WINDOW, FRONT RH | ||||
| 67435-58030 |
AYH36,GGH31 |
1 | ||
| 67436C - GUIDE, REAR DOOR WINDOW, FRONT LH | ||||
| 67436-58030 |
AYH36,GGH31 |
1 | ||
| 67487E - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 62583-58020 |
AYH36,GGH31 |
1 | ||
| 67488E - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 62584-58020 |
AYH36,GGH31 |
1 | ||
| 67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH | ||||
| 67521-58020 |
AYH36,GGH31 |
1 | ||
| 67522 - COVER SUB-ASSY, SLIDE DOOR PANEL, LH | ||||
| 67522-58020 |
AYH36,GGH31 |
1 | ||
| 67525C - COVER, SLIDE DOOR PANEL, LOWER RH | ||||
| 67525-58010 |
AYH36,GGH31 |
1 | ||
| 67525D - COVER, SLIDE DOOR PANEL, LOWER LH | ||||
| 67526-58020 |
AYH36,GGH31 |
1 | ||
| 67851A - COVER, SLIDE DOOR SERVICE HOLE, NO.1 | ||||
| 67851-58040 |
AYH36,GGH31 |
1 | ||
| 67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2 | ||||
| 67852-58040 |
AYH36,GGH31 |
1 | ||
| 67869N - CLIP, REAR DOOR WEATHERSTRIP, RH | ||||
| 67869-28020 |
AYH36,GGH31 |
2 | ||
| 67869P - CLIP, REAR DOOR WEATHERSTRIP, LH | ||||
| 67869-28020 |
AYH36,GGH31 |
2 | ||
| 67887D - WEATHERSTRIP, SLIDE DOOR, NO.2 RH | ||||
| 67887-58030 |
AYH36,GGH31 |
1 | ||
| 67888B - WEATHERSTRIP, SLIDE DOOR, NO.2 LH | ||||
| 67888-58030 |
AYH36,GGH31 |
1 | ||
| 67897M - WEATHERSTRIP, SLIDE DOOR, NO.4 RH | ||||
| 67856-58020 |
AYH36,GGH31 |
1 | ||
| 67898H - WEATHERSTRIP, SLIDE DOOR, NO.4 LH | ||||
| 67856-58020 |
AYH36,GGH31 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-58150 |
AYH36;GGH31..LHD |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-58150 |
AYH36;GGH31..LHD |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-58050 |
AYH36,GGH31 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-58050 |
AYH36,GGH31 |
1 | ||
| 68173B - WEATHERSTRIP, REAR DOOR GLASS, INNER RH | ||||
| 68173-58040 |
AYH36,GGH31 |
1 | ||
| 68174A - WEATHERSTRIP, REAR DOOR GLASS, INNER LH | ||||
| 68174-58040 |
AYH36,GGH31 |
1 | ||
| 68196B - SEAL, REAR DOOR BELT, FRONT RH | ||||
| 68196-58010 |
AYH36,GGH31 |
1 | ||
| 68197A - SEAL, REAR DOOR BELT, FRONT LH | ||||
| 68197-58010 |
AYH36,GGH31 |
1 | ||
| 81910E - REFLECTOR ASSY, REFLEX | ||||
| 81910-21030 |
AYH36,GGH31 |
2 | ||
| 84250D - SENSOR ASSY, POWER SLIDE DOOR, RH | ||||
| 84250-58221 |
AYH36,GGH31 |
1 | ||
| 84260J - SENSOR ASSY, POWER SLIDE DOOR, LH | ||||
| 84260-58041 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 75396-28070 | ||||
| 90119-06A11 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90333-35002 | ||||
| 90541-09134 | ||||
| 90541-09136 | ||||
| 90950-01506 | ||||
| 90950-01841 | ||||
| 90950-01A05 | ||||
| 90950-06089 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 7455 | ||||

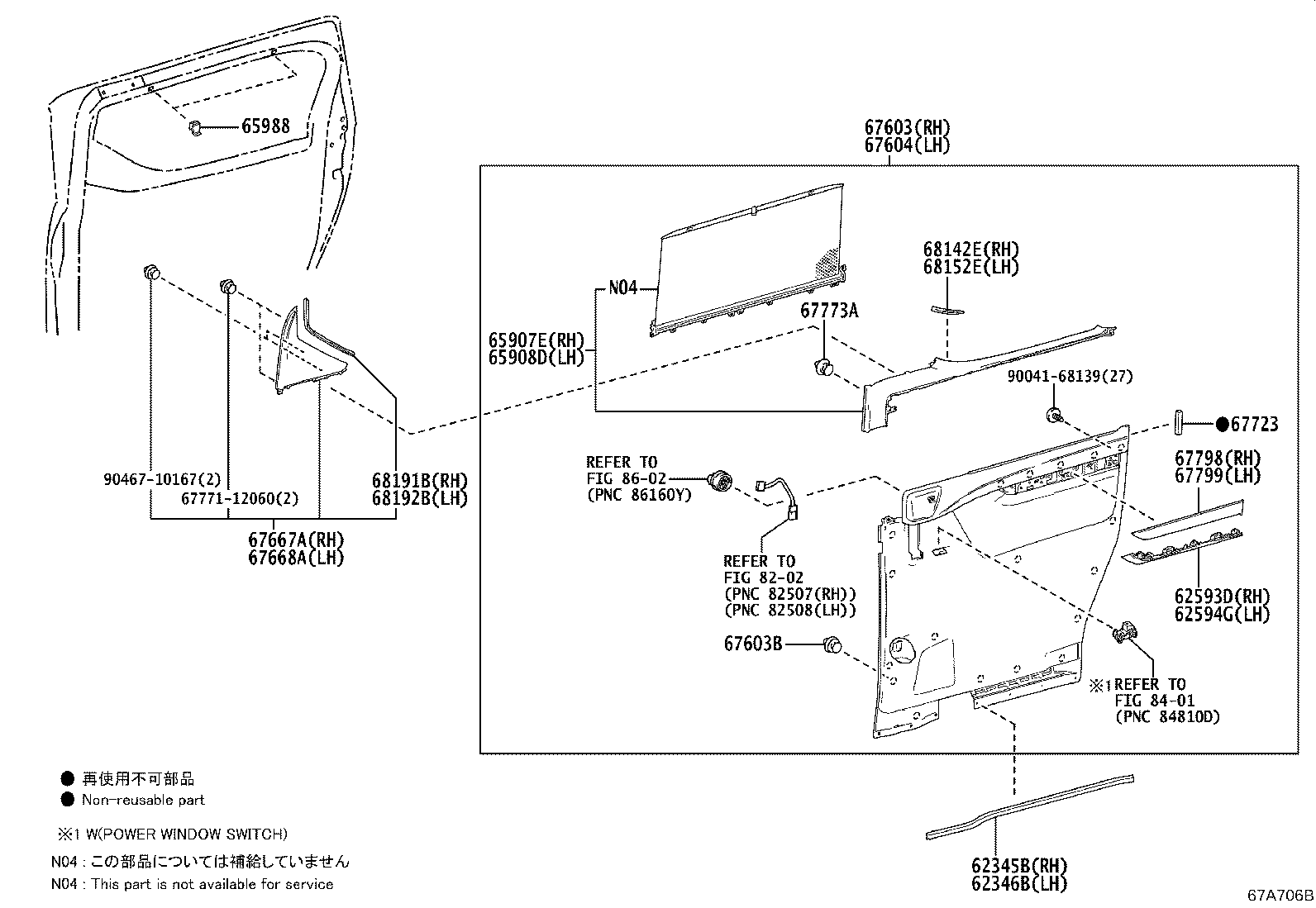

ILLUST NO. 2 OF 2(2001- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62345B - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 62345-58030 |
AYH36,GGH31 |
1 | ||
| 62346B - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 62346-58030 |
AYH36,GGH31 |
1 | ||
| 62593D - PLATE, SIDE TRIM BASE, NO.3 | ||||
| 62593-58010B1 |
AYH36,GGH31 SILVER SPUTTERING,TRIM0#,2# |
1 | ||
| 62594G - PLATE, SIDE TRIM BASE, NO.4 | ||||
| 62594-58020B1 |
AYH36,GGH31 SILVER SPUTTERING,TRIM0#,2# |
1 | ||
| 65907E - CURTAIN SUB-ASSY, REAR RH | ||||
| 67683-58040C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 65908D - CURTAIN SUB-ASSY, REAR LH | ||||
| 67684-58040C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 65988 - HOOK, SUNSHADE | ||||
| 65988-58020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
4 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67680-58660C0 |
AYH36,GGH31..V BLACK,TRIM0# |
1 | ||
| 67680-58660C1 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 67603B - CLIP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-09206 |
AYH36,GGH31 |
36 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67690-58660C1 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 67690-58660C0 |
AYH36,GGH31..V BLACK,TRIM0# |
1 | ||
| 67667A - GARNISH, SLIDE DOOR WINDOW, RH | ||||
| 67667-58060C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67668A - GARNISH, SLIDE DOOR WINDOW, LH | ||||
| 67668-58060C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67723 - PAD, REAR DOOR TRIM, UPPER | ||||
| 67723-58010 |
AYH36,GGH31 |
2 | ||
| 67773A - CLIP, REAR DOOR TRIM UPPER RETAINER, NO.1 | ||||
| 67773-47010 |
AYH36,GGH31 |
2 | ||
| 67798 - BASE, DOOR TRIM ORNAMENT, REAR NO.1 | ||||
| 67798-58080C0 |
AYH36,GGH31 BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 67799 - BASE, DOOR TRIM ORNAMENT, REAR NO.2 | ||||
| 67799-58080C0 |
AYH36,GGH31 BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 68142E - RUN, SLIDE DOOR GLASS, RH | ||||
| 68191-58050 |
AYH36,GGH31 |
1 | ||
| 68152E - RUN, SLIDE DOOR GLASS, LH | ||||
| 68192-58050 |
AYH36,GGH31 |
1 | ||
| 68191B - RUN, REAR DOOR GLASS, NO.2 RH | ||||
| 68191-58030 |
AYH36,GGH31 |
1 | ||
| 68192B - RUN, REAR DOOR GLASS, NO.2 LH | ||||
| 68192-58030 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 67771-12060 | ||||
| 90041-68139 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8602 | ||||
