GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

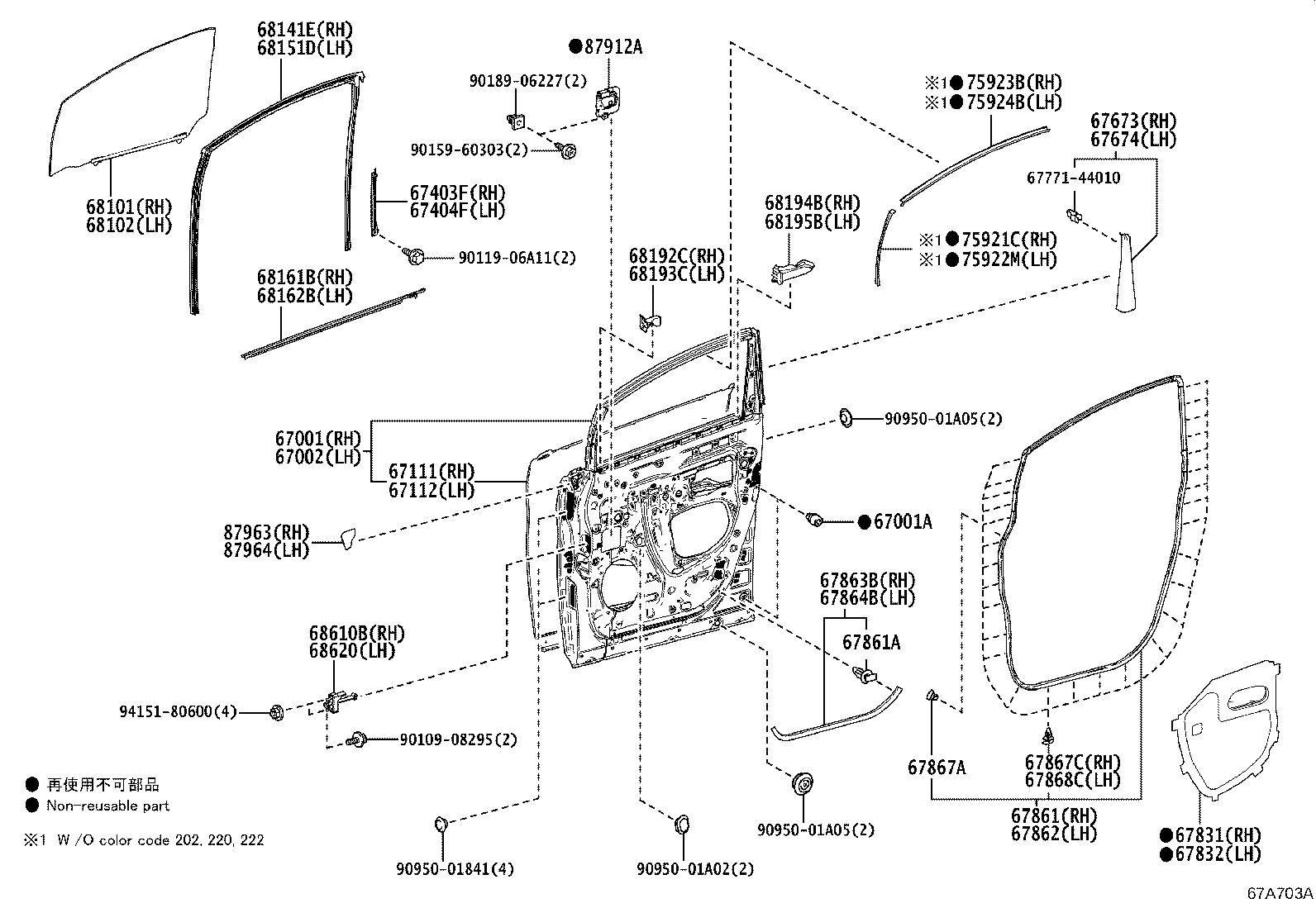

ILLUST NO. 1 OF 2(2001- )
DOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-58070 |
AYH36,GGH31 |
1 | ||
| 67001A - CUSHION, FRONT DOOR PANEL | ||||
| 90541-09143 |
AYH36,GGH31 |
4 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-58080 |
AYH36,GGH31 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-58050 |
AYH36,GGH31 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-58050 |
AYH36,GGH31 |
1 | ||
| 67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH | ||||
| 67403-58030 |
AYH36,GGH31 |
1 | ||
| 67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH | ||||
| 67404-58030 |
AYH36,GGH31 |
1 | ||
| 67673 - GARNISH, DOOR FRAME, LOWER RH | ||||
| 67673-58020 |
AYH36,GGH31 |
1 | ||
| 67674 - GARNISH, DOOR FRAME, LOWER LH | ||||
| 67674-58020 |
AYH36,GGH31 |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67801-58020 |
AYH36,GGH31 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67802-58020 |
AYH36,GGH31 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-58040 |
AYH36,GGH31 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67867-12150 |
AYH36,GGH31 |
12 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-58040 |
AYH36,GGH31 |
1 | ||
| 67863B - WEATHERSTRIP, FRONT DOOR, NO.2 RH | ||||
| 67863-58030 |
AYH36,GGH31 |
1 | ||
| 67864B - WEATHERSTRIP, FRONT DOOR, NO.2 LH | ||||
| 67863-58030 |
AYH36,GGH31 |
1 | ||
| 67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR) | ||||
| 90467-04034 |
AYH36,GGH31 |
2 | ||
| 67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
AYH36,GGH31 |
29 | ||
| 67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH | ||||
| 67867-12150 |
AYH36,GGH31 |
29 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68101-58110 |
AYH36,GGH31 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68102-58110 |
AYH36,GGH31 |
1 | ||
| 68141E - RUN, FRONT DOOR GLASS, RH | ||||
| 68141-58051 |
AYH36,GGH31 |
1 | ||
| 68151D - RUN, FRONT DOOR GLASS, LH | ||||
| 68151-58051 |
AYH36,GGH31 |
1 | ||
| 68161B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER RH | ||||
| 68161-58030 |
AYH36,GGH31 |
1 | ||
| 68162B - WEATHERSTRIP, FRONT DOOR GLASS, OUTER LH | ||||
| 68162-58030 |
AYH36,GGH31 |
1 | ||
| 68192C - SEAL, FRONT DOOR BELT, FRONT RH | ||||
| 68192-58060 |
AYH36,GGH31 |
1 | ||
| 68193C - SEAL, FRONT DOOR BELT, FRONT LH | ||||
| 68193-58010 |
AYH36,GGH31 |
1 | ||
| 68194B - SEAL, FRONT DOOR BELT, REAR RH | ||||
| 68194-58010 |
AYH36,GGH31 |
1 | ||
| 68195B - SEAL, FRONT DOOR BELT, REAR LH | ||||
| 68195-58010 |
AYH36,GGH31 |
1 | ||
| 68610B - CHECK ASSY, FRONT DOOR, RH | ||||
| 68610-58030 |
AYH36,GGH31 |
1 | ||
| 68620 - CHECK ASSY, FRONT DOOR, LH | ||||
| 68620-58030 |
AYH36,GGH31 |
1 | ||
| 75921C - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-58010 |
AYH36,GGH31 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75922M - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-58010 |
AYH36,GGH31 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75923B - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-58010 |
AYH36,GGH31 0 OR 1PIECE,REF.ILL. |
1 | ||
| 75924B - TAPE, BLACK OUT, NO.2 LH | ||||
| 75924-58010 |
AYH36,GGH31 0 OR 1PIECE,REF.ILL. |
1 | ||
| 87912A - PROTECTOR, OUTER MIRROR | ||||
| 87912-58010 |
AYH36,GGH31 RH |
1 | ||
| 87912-58020 |
AYH36,GGH31 LH |
1 | ||
| 87963 - COVER, OUTER MIRROR INSTALL HOLE, RH | ||||
| 87963-58010 |
AYH36,GGH31 |
1 | ||
| 87964 - COVER, OUTER MIRROR INSTALL HOLE, LH | ||||
| 87964-58010 |
AYH36,GGH31 |
1 | ||
| Common parts | ||||
| 67771-44010 | ||||
| 90109-08295 | ||||
| 90119-06A11 | ||||
| 90159-60303 | ||||
| 90189-06227 | ||||
| 90950-01841 | ||||
| 90950-01A02 | ||||
| 90950-01A05 | ||||
| 94151-80600 | ||||

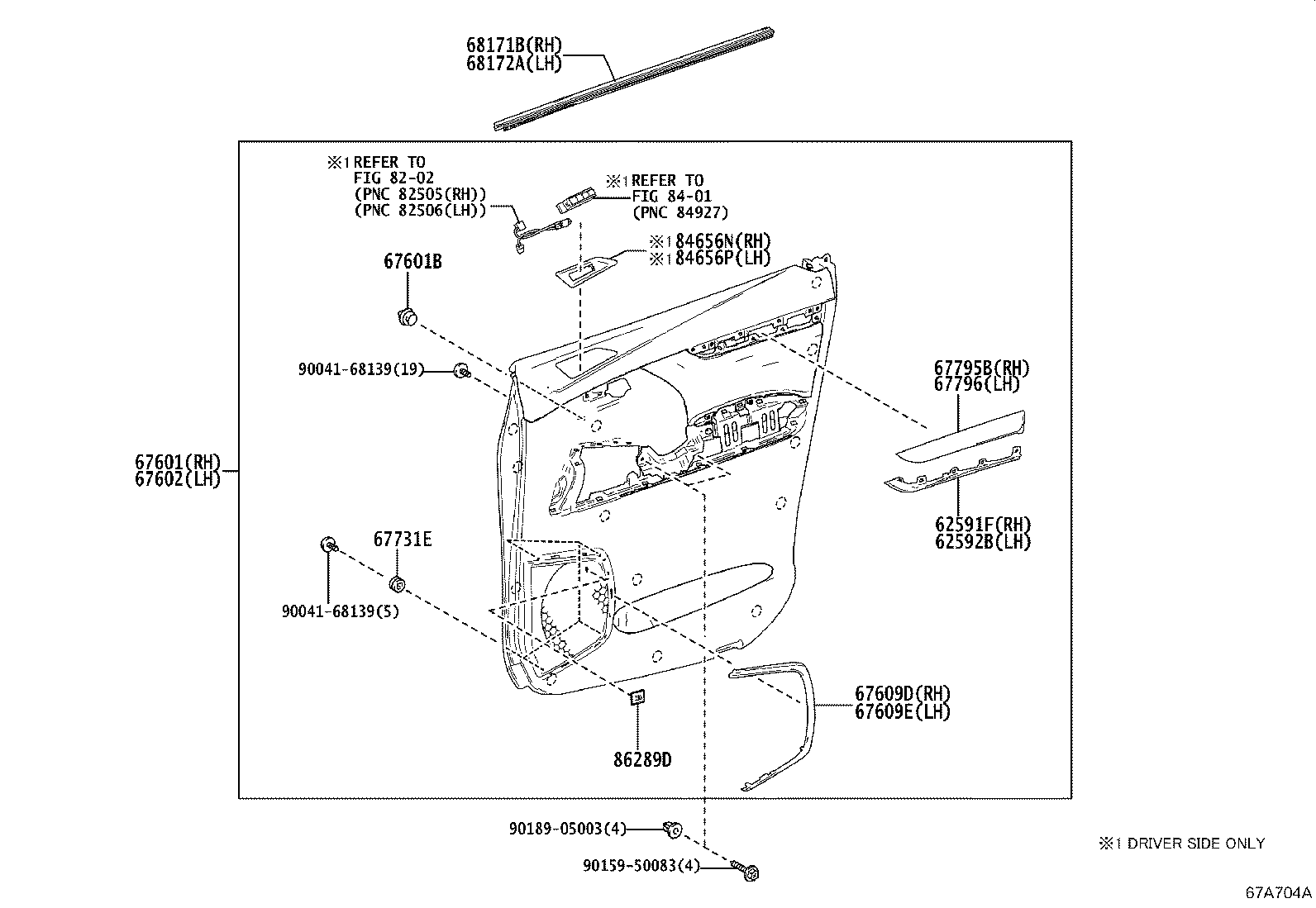

ILLUST NO. 2 OF 2(2001- )
DOOR TRIM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62591F - PLATE, SIDE TRIM BASE, NO.1 | ||||
| 62591-58010B1 |
AYH36,GGH31 SILVER SPUTTERING,TRIM0#,2# |
1 | ||
| 62592B - PLATE, SIDE TRIM BASE, NO.2 | ||||
| 62592-58010B1 |
AYH36,GGH31 SILVER SPUTTERING,TRIM0#,2# |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-58680C1 |
AYH36,GGH31..LHD BLACK,TRIM2# |
1 | ||
| 67610-58680C0 |
AYH36,GGH31..LHD BLACK,TRIM0# |
1 | ||
| 67601B - CLIP(FOR FRONT DOOR TRIM BOARD) | ||||
| 90467-09206 |
AYH36,GGH31 |
26 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-58620C1 |
AYH36,GGH31..LHD BLACK,TRIM2# |
1 | ||
| 67620-58620C0 |
AYH36,GGH31..LHD BLACK,TRIM0# |
1 | ||
| 67609D - GRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH | ||||
| 67609-58050B1 |
AYH36,GGH31 SILVER SPUTTERING,TRIM0#,2# |
1 | ||
| 67609E - GRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH | ||||
| 67709-58050B1 |
AYH36,GGH31 SILVER SPUTTERING,TRIM0#,2# |
1 | ||
| 67731E - SPACER, SIDE TRIM, NO.1 | ||||
| 67731-58010 |
AYH36,GGH31 |
10 | ||
| 67795B - BASE, DOOR TRIM ORNAMENT, FRONT NO.1 | ||||
| 67795-58080C0 |
AYH36,GGH31 BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 67796 - BASE, DOOR TRIM ORNAMENT, FRONT NO.2 | ||||
| 67796-58080C0 |
AYH36,GGH31 BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH | ||||
| 68171-58040 |
AYH36,GGH31 |
1 | ||
| 68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH | ||||
| 68172-58040 |
AYH36,GGH31 |
1 | ||
| 84656P - BEZEL, SWITCH, LH | ||||
| 84656-58060C0 |
AYH36,GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 86289D - PLATE, SPEAKER GRILLE | ||||
| 86289-58040C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
2 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90159-50083 | ||||
| 90189-05003 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
