GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

Click highlighted areas on diagram

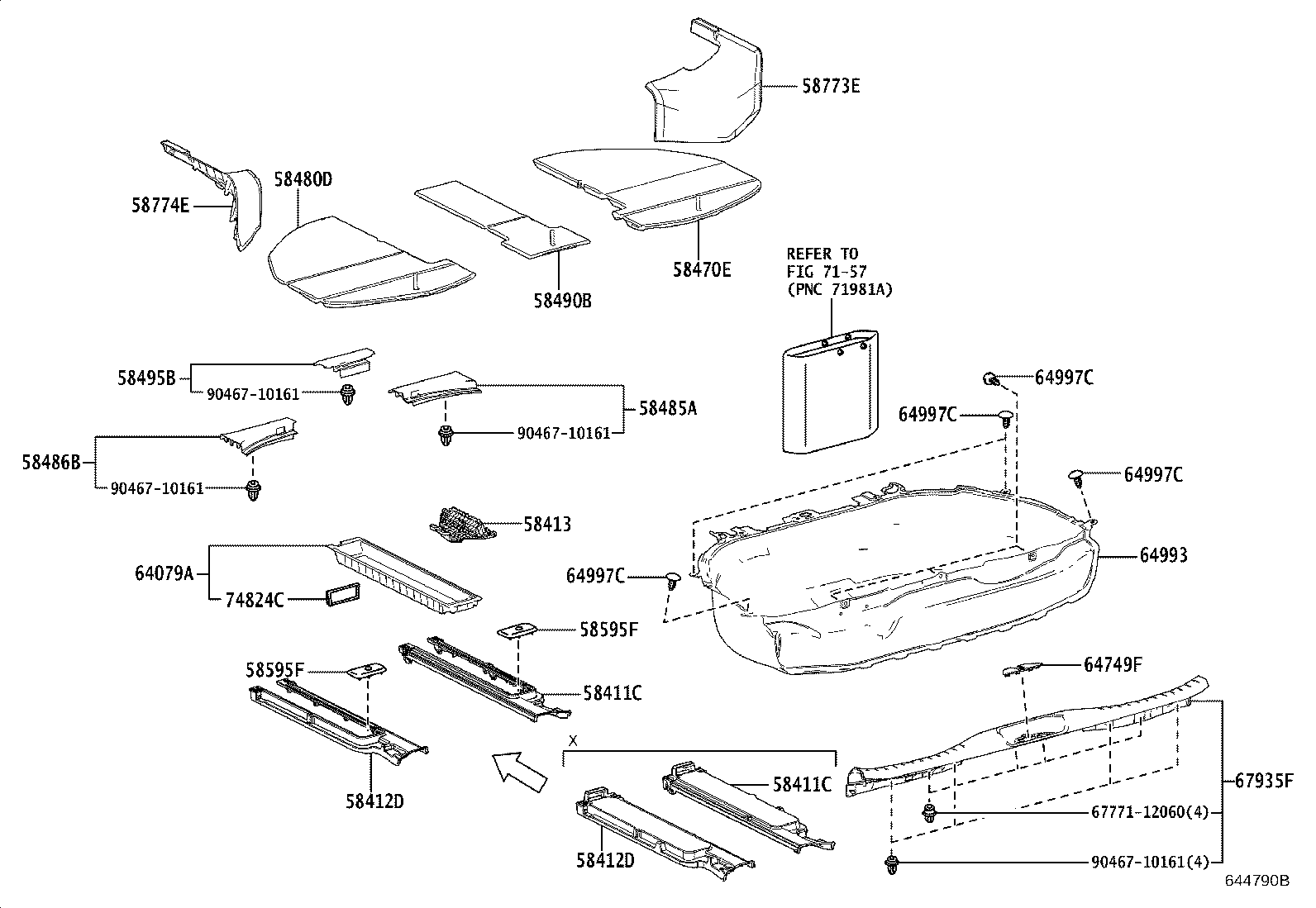

diagram 58411C 58411C 58412D 58412D 58413 58470E 58480D 58485A 58486B 58490B 58495B 58595F 58595F 58773E 58774E 64079A 64749F 64993 64997C 64997C 64997C 64997C 6777112060 67935F 7157 74824C 9046710161 9046710161 9046710161 9046710161
Part # Description Qty Price
58411C - COVER, DECK RAIL, NO.1
58411-58010C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
58411C - COVER, DECK RAIL, NO.1
58411-58010C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
58412D - COVER, DECK RAIL, NO.2
58412-58010C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
58412D - COVER, DECK RAIL, NO.2
58412-58010C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
58413 - COVER, DECK RAIL
58413-58010C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
58470E - BOARD ASSY, REAR FLOOR, NO.1
58470-58010C2

AYH36,GGH31

BLACK,TRIM0#,2#

 1
58480D - BOARD ASSY, REAR FLOOR, NO.2
58480-58010C2

AYH36,GGH31

BLACK,TRIM0#,2#

 1
58485A - PLATE, REAR FLOOR BOARD, UPPER NO.1
58485-58010C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
58486B - PLATE, REAR FLOOR BOARD, UPPER NO.2
58486-58010C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 1
58490B - BOARD ASSY, REAR FLOOR, NO.3
58490-58010C1

AYH36,GGH31

BLACK,TRIM0#,2#

 1
58495B - PLATE, REAR FLOOR BOARD, UPPER NO.3
58495-58010C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
58595F - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
58595F - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
64079A - BOX SUB-ASSY, UTILITY
64079-58011C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
64749F - COVER, BACK DOOR STRIKER
64749-58020C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
64993 - BOX, DECK FLOOR, REAR
64993-58021

AYH36,GGH31

 1
64997C - CLIP(FOR DECK FLOOR BOX)
90467-05164C7

AYH36,GGH31

BLACK

 7
64997C - CLIP(FOR DECK FLOOR BOX)
90467-05164C7

AYH36,GGH31

BLACK

 7
64997C - CLIP(FOR DECK FLOOR BOX)
90467-05164C7

AYH36,GGH31

BLACK

 7
64997C - CLIP(FOR DECK FLOOR BOX)
90467-05164C7

AYH36,GGH31

BLACK

 7
67935F - PLATE, BACK DOOR SCUFF
67935-58030C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
74824C - PLATE, SEPARATOR BOARD
74824-58010C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
Common parts
67771-12060
90467-10161
Linked diagrams
7157
