GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

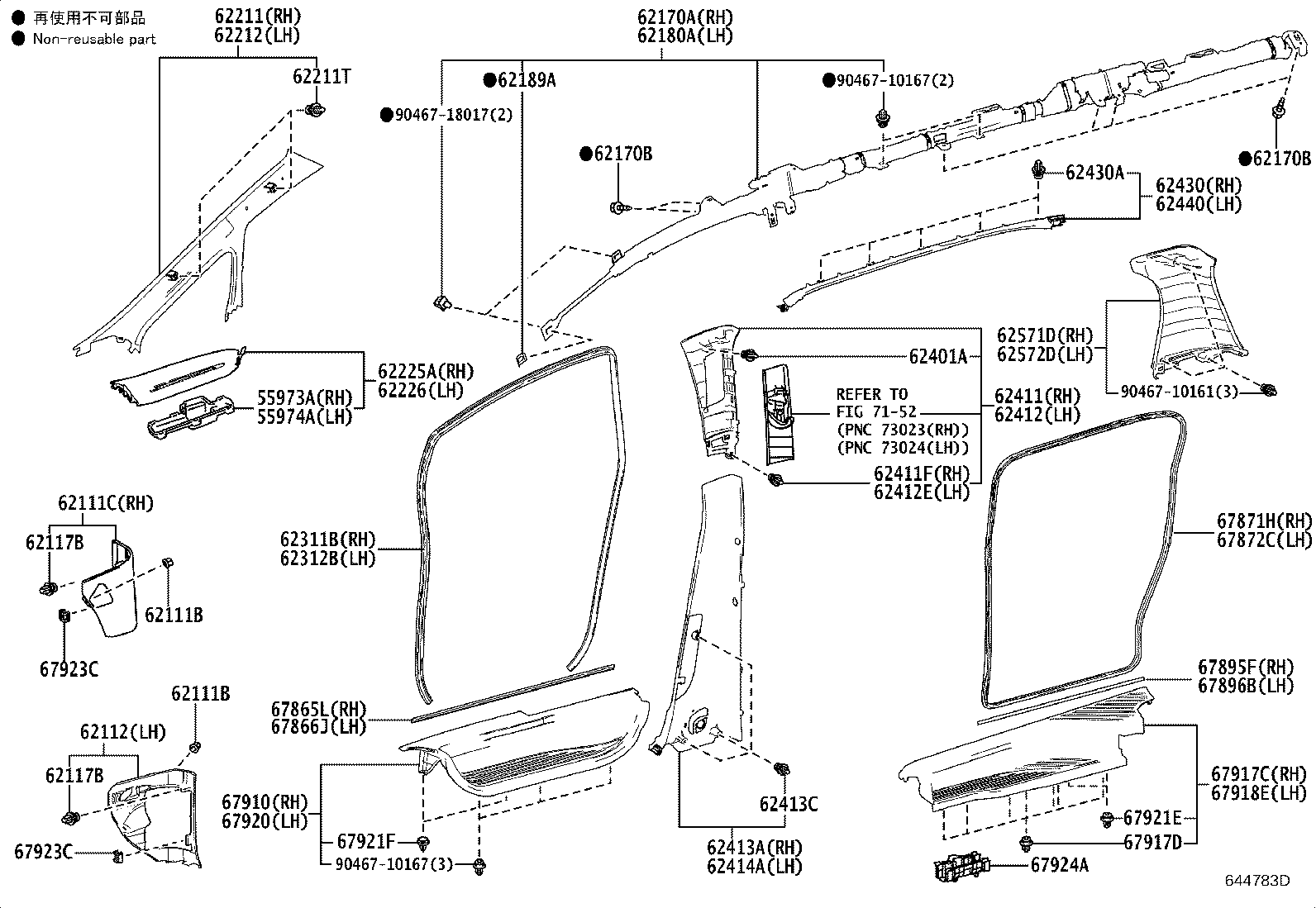

ILLUST NO. 1 OF 2(2001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55973A - DUCT, SIDE DEFROSTER NOZZLE, NO.3 | ||||
| 55973-58020 |
AYH36,GGH31 |
1 | ||
| 55974A - DUCT, SIDE DEFROSTER NOZZLE, NO.4 | ||||
| 55974-58020 |
AYH36,GGH31 |
1 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
AYH36,GGH31 |
2 | ||
| 62111B - CLIP(FOR COWL SIDE TRIM) | ||||
| 90467-06147 |
AYH36,GGH31 |
2 | ||
| 62111C - BOARD, COWL SIDE TRIM, RH | ||||
| 62111-58070C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62112 - BOARD, COWL SIDE TRIM, LH | ||||
| 62112-58100C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
AYH36,GGH31 |
2 | ||
| 62117B - CLIP, NO.1(FOR COWL SIDE TRIM) | ||||
| 90467-10161 |
AYH36,GGH31 |
2 | ||
| 62170A - AIR BAG ASSY, CURTAIN SHIELD, RH | ||||
| 62170-58030 |
AYH36,GGH31..V |
1 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
AYH36,GGH31 |
12 | ||
| 62170B - BOLT, W/WASHER | ||||
| 90119-06869 |
AYH36,GGH31 |
12 | ||
| 62180A - AIR BAG ASSY, CURTAIN SHIELD, LH | ||||
| 62180-58030 |
AYH36,GGH31..V |
1 | ||
| 62189A - SPACER, CURTAIN SHIELD AIR BAG CLIP | ||||
| 62189-42010 |
AYH36,GGH31 |
2 | ||
| 62211 - GARNISH, FRONT PILLAR, RH | ||||
| 62211-58080C2 |
AYH36,GGH31..V CHARCOAL,TRIM0#,2# |
1 | ||
| 62211T - CLIP(FOR FRONT PILLAR GARNISH) | ||||
| 90467-10161 |
AYH36,GGH31 |
4 | ||
| 62212 - GARNISH, FRONT PILLAR, LH | ||||
| 62212-58080C2 |
AYH36,GGH31..V CHARCOAL,TRIM0#,2# |
1 | ||
| 62225A - GARNISH, FRONT PILLAR, LOWER RH | ||||
| 62225-58050C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62226 - GARNISH, FRONT PILLAR, LOWER LH | ||||
| 62226-58050C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62311B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH | ||||
| 62311-58030 |
AYH36,GGH31 |
1 | ||
| 62312B - WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH | ||||
| 62312-58030 |
AYH36,GGH31 |
1 | ||
| 62401A - CLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER) | ||||
| 90467-10188 |
AYH36,GGH31 |
2 | ||
| 62411 - GARNISH, CENTER PILLAR, RH | ||||
| 62410-58061C3 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 62411F - CLIP, CENTER PILLAR GARNISH, RH | ||||
| 90467-10161 |
AYH36,GGH31 |
1 | ||
| 62412 - GARNISH, CENTER PILLAR, LH | ||||
| 62420-58061C2 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 62412E - CLIP, CENTER PILLAR GARNISH, LH | ||||
| 90467-10161 |
AYH36,GGH31 |
1 | ||
| 62413A - GARNISH, CENTER PILLAR, LOWER RH | ||||
| 62413-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 62413C - CLIP (FOR CENTER LOWER GARNISH) | ||||
| 90467-10161 |
AYH36,GGH31 |
6 | ||
| 62414A - GARNISH, CENTER PILLAR, LOWER LH | ||||
| 62414-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 62430 - GARNISH ASSY, ROOF SIDE RAIL, RH | ||||
| 62430-58020C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62430A - CLIP, ROOF SIDE RAIL GARNISH | ||||
| 90467-10167 |
AYH36,GGH31 |
10 | ||
| 62440 - GARNISH ASSY, ROOF SIDE RAIL, LH | ||||
| 62440-58020C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62571D - GARNISH, QUARTER LOCK PILLAR, RH | ||||
| 62550-58120C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62572D - GARNISH, QUARTER LOCK PILLAR, LH | ||||
| 62560-58120C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67865L - WEATHERSTRIP, FRONT DOOR, NO.3 RH | ||||
| 67865-58100 |
AYH36,GGH31 |
1 | ||
| 67866J - WEATHERSTRIP, FRONT DOOR, NO.3 LH | ||||
| 67866-58080 |
AYH36,GGH31 |
1 | ||
| 67871H - WEATHERSTRIP, SLIDE DOOR, NO.1 RH | ||||
| 67871-58050 |
AYH36,GGH31 |
1 | ||
| 67872C - WEATHERSTRIP, SLIDE DOOR, NO.1 LH | ||||
| 67872-58050 |
AYH36,GGH31 |
1 | ||
| 67895F - WEATHERSTRIP, SLIDE DOOR, NO.3 RH | ||||
| 67895-58010 |
GGH31;AYH36..RHD |
1 | ||
| 67896B - WEATHERSTRIP, SLIDE DOOR, NO.3 LH | ||||
| 67896-58010 |
GGH31;AYH36..RHD |
1 | ||
| 67910 - PLATE ASSY, DOOR SCUFF, RH | ||||
| 67910-V2080C0 |
GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 67910-58310C0 |
GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 67917C - PLATE, REAR DOOR SCUFF, RH | ||||
| 67930-58060C0 |
GGH31;AYH36..RHD BLACK,TRIM0#,2# |
1 | ||
| 67930-V2060C0 |
GGH31;AYH36..RHD BLACK,TRIM0#,2# |
1 | ||
| 67917D - CLIP, REAR DOOR SCUFF PLATE | ||||
| 62217-13010 |
GGH31;AYH36..RHD |
14 | ||
| 67918E - PLATE, REAR DOOR SCUFF, LH | ||||
| 67940-58060C0 |
GGH31;AYH36..RHD BLACK,TRIM0#,2# |
1 | ||
| 67940-V2060C0 |
GGH31;AYH36..RHD BLACK,TRIM0#,2# |
1 | ||
| 67920 - PLATE ASSY, DOOR SCUFF, LH | ||||
| 67920-58350C0 |
GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 67920-V2080C0 |
GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 67921E - RETAINER, REAR DOOR SCUFF PLATE | ||||
| 67771-28150 |
GGH31;AYH36..RHD |
4 | ||
| 67921F - RETAINER, FRONT DOOR SCUFF PLATE | ||||
| 67771-58030 |
GGH31;AYH36..RHD |
4 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-28020 |
AYH36,GGH31 |
2 | ||
| 67923C - CLAMP, DOOR SCUFF PLATE, NO.1 | ||||
| 67923-28020 |
AYH36,GGH31 |
2 | ||
| 67924A - CLAMP, DOOR SCUFF PLATE, NO.2 | ||||
| 67924-28010 |
AYH36,GGH31 |
8 | ||
| Common parts | ||||
| 90467-10161 | ||||
| 90467-10167 | ||||
| 90467-18017 | ||||
| Linked diagrams | ||||
| 7152 | ||||

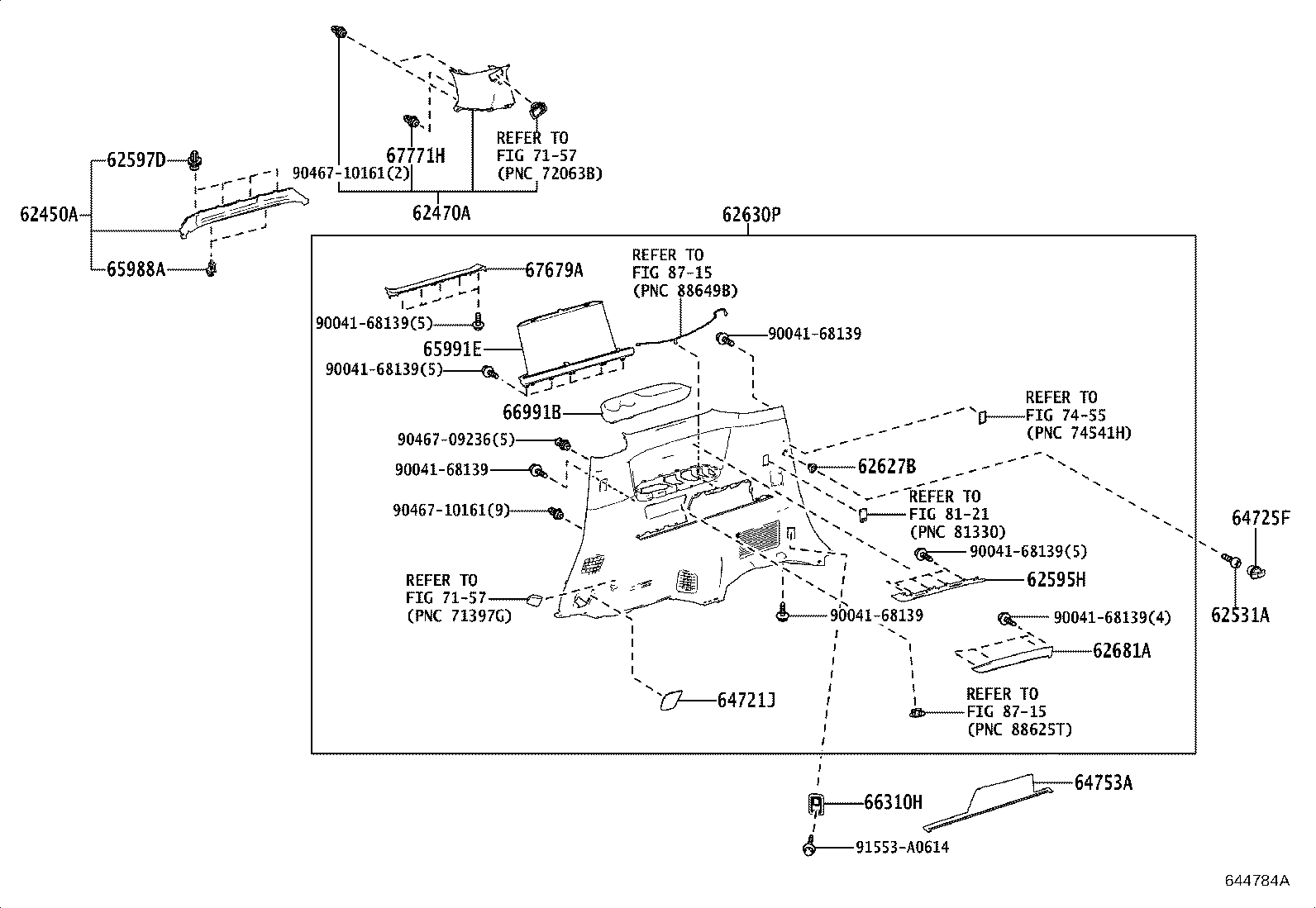

ILLUST NO. 2 OF 2(2001- )V
RH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62450A - GARNISH ASSY, ROOF SIDE RAIL, REAR RH | ||||
| 62450-58040C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62470A - GARNISH ASSY, ROOF SIDE, INNER RH | ||||
| 62470-58081C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 62531A - SPACER, QUARTER TRIM, RH | ||||
| 62531-60010 |
AYH36,GGH31 |
1 | ||
| 62595H - PLATE, SIDE TRIM BASE, NO.5 | ||||
| 62595-58020B1 |
AYH36,GGH31..V SILVER SPUTTERING,TRIM0#,2# |
1 | ||
| 62597D - CLIP | ||||
| 90467-10161 |
AYH36,GGH31 |
8 | ||
| 62627B - COVER, QUARTER TRIM | ||||
| 62627-60010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62630P - PANEL ASSY, QUARTER TRIM, REAR RH | ||||
| 62630-58D20C2 |
AYH36,GGH31..V BLACK,TRIM0# |
1 | ||
| 62630-58D20C3 |
AYH36,GGH31..V BLACK,TRIM2# |
1 | ||
| 62681A - ORNAMENT, QUARTER TRIM, RH | ||||
| 62691-58120C0 |
AYH36,GGH31..V BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 64721J - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-60020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 64753A - GARNISH, DECK SIDE, REAR, RH | ||||
| 64753-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 65988A - HOOK, SUNSHADE | ||||
| 65988-58010C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
4 | ||
| 65991E - CURTAIN, REAR WINDOW, RH | ||||
| 65991-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C1 |
AYH36,GGH31 BLACK |
2 | ||
| 66991B - HOLDER, CUP, NO.1 | ||||
| 66991-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 67679A - BEZEL, SUNSHADE, RH | ||||
| 67679-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 67771-28150 |
AYH36,GGH31 |
2 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90467-09236 | ||||
| 90467-10161 | ||||
| 91553-A0614 | ||||
| Linked diagrams | ||||
| 7157 | ||||
| 7455 | ||||
| 8121 | ||||
| 8715 | ||||

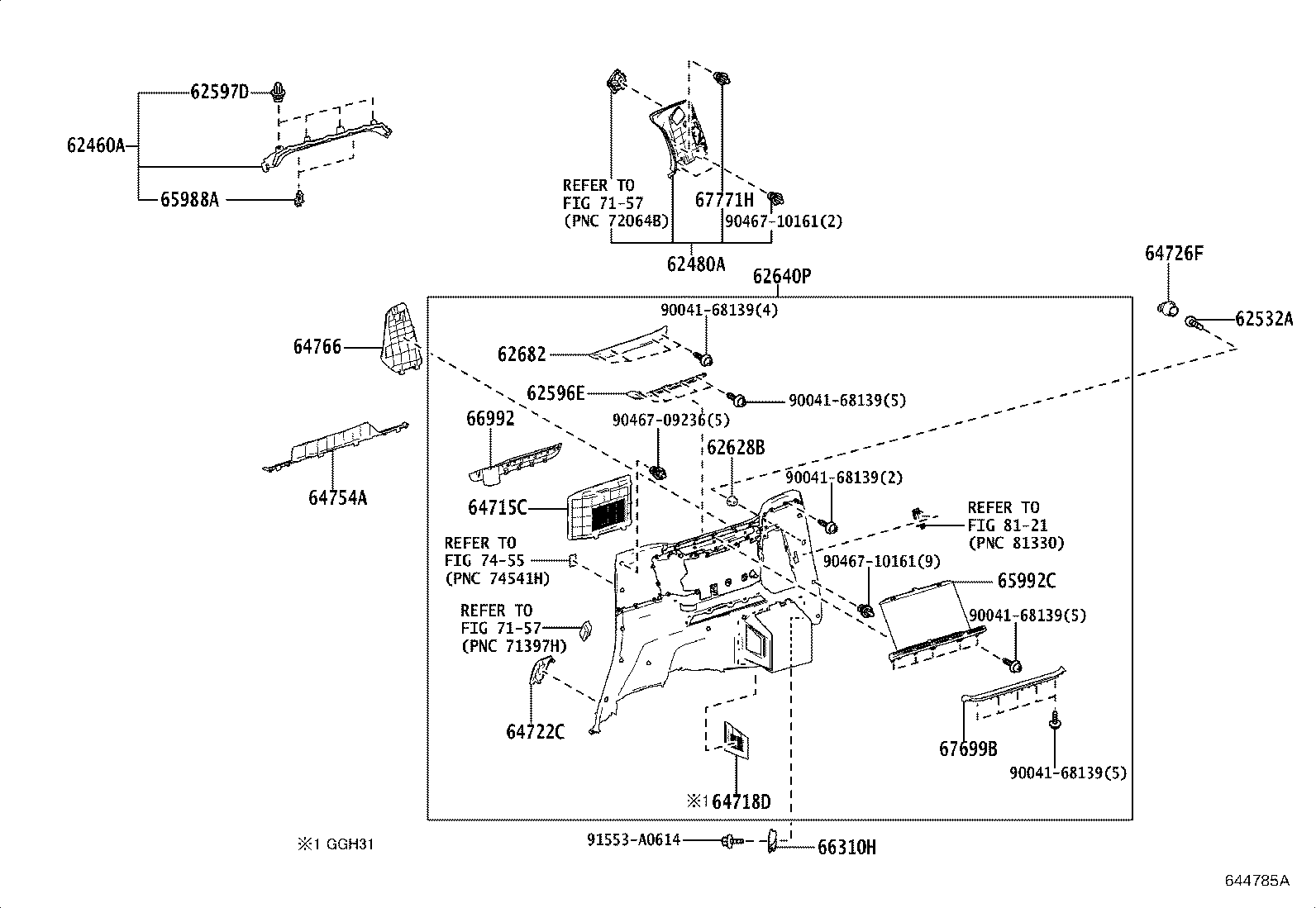

ILLUST NO. 2 OF 2(2001- )V
LH SIDE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 62460A - GARNISH ASSY, ROOF SIDE RAIL, REAR LH | ||||
| 62460-58040C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62480A - GARNISH ASSY, ROOF SIDE, INNER LH | ||||
| 62480-58180C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 62532A - SPACER, QUARTER TRIM, LH | ||||
| 62531-60010 |
AYH36,GGH31 |
1 | ||
| 62596E - PLATE, SIDE TRIM BASE, NO.6 | ||||
| 62596-58010B1 |
AYH36,GGH31..V SILVER SPUTTERING,TRIM0#,2# |
1 | ||
| 62597D - CLIP | ||||
| 90467-10161 |
AYH36,GGH31 |
8 | ||
| 62628B - COVER, QUARTER TRIM, LH | ||||
| 62627-60010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 62640P - PANEL ASSY, QUARTER TRIM, REAR LH | ||||
| 62640-58G90C3 |
GGH31..V BLACK,TRIM2# |
1 | ||
| 62640-58G90C2 |
GGH31..V BLACK,TRIM0# |
1 | ||
| 62682 - ORNAMENT, QUARTER TRIM, LH | ||||
| 62692-58080C0 |
AYH36,GGH31..V BLACK GINSUIBOKU,TRIM0#,2# |
1 | ||
| 64715C - COVER, DECK SIDE TRIM, LH | ||||
| 64715-58050C0 |
GGH31 BLACK,TRIM0#,2# |
1 | ||
| 64718D - COVER, DECK TRIM SERVICE HOLE | ||||
| 64718-58010C0 |
GGH31 BLACK,TRIM0#,2# |
1 | ||
| 64722C - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-58040C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 64726F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.2 | ||||
| 64725-60020C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 64754A - GARNISH, DECK SIDE, REAR, LH | ||||
| 64754-58030C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 64766 - COVER SUB-ASSY, QUARTER TRIM JACK | ||||
| 64766-58050C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 65988A - HOOK, SUNSHADE | ||||
| 65988-58010C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
4 | ||
| 65992C - CURTAIN, REAR WINDOW, LH | ||||
| 65992-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 66310H - HOOK ASSY, ROPE | ||||
| 66310-30011C1 |
AYH36,GGH31 BLACK |
2 | ||
| 66992 - HOLDER, CUP, NO.2 | ||||
| 66992-58020C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 67699B - BEZEL, SUNSHADE, LH | ||||
| 67699-58010C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 67771H - RETAINER, DOOR TRIM | ||||
| 67771-28150 |
AYH36,GGH31 |
2 | ||
| Common parts | ||||
| 90041-68139 | ||||
| 90467-09236 | ||||
| 90467-10161 | ||||
| 91553-A0614 | ||||
| Linked diagrams | ||||
| 7157 | ||||
| 7455 | ||||
| 8121 | ||||
