GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 3(2001- )

Click highlighted areas on diagram

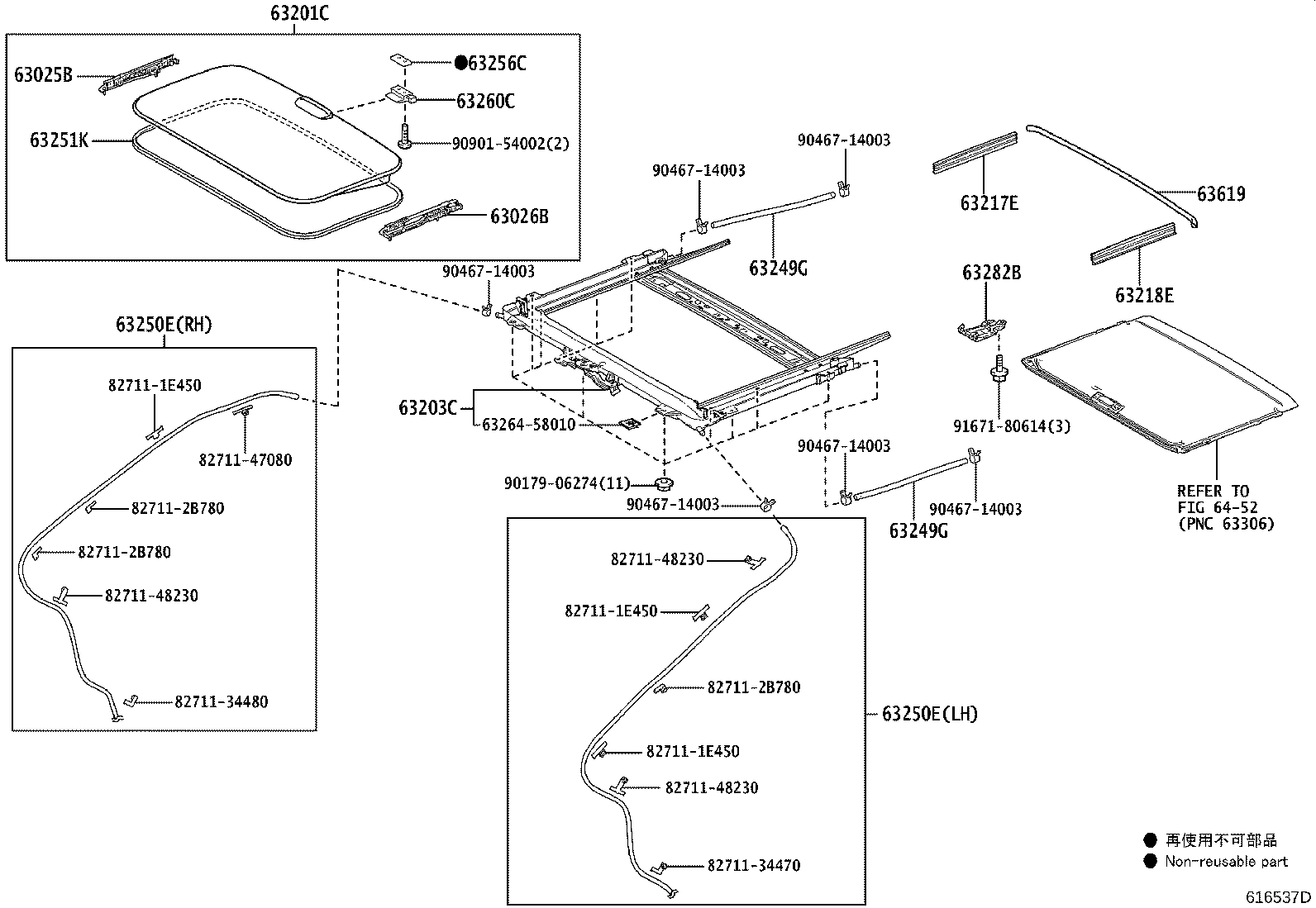

SLIDING ROOF,FRONT

diagram 63025B 63026B 63201C 63203C 63217E 63218E 63249G 63249G 63250E 63250E 63251K 63256C 63260C 6326458010 63282B 63619 6452 827111E450 827111E450 827111E450 827112B780 827112B780 827112B780 8271134470 8271134480 8271147080 8271148230 8271148230 8271148230 9017906274 9046714003 9046714003 9046714003 9046714003 9046714003 9046714003 9090154002 9167180614
Part # Description Qty Price
63025B - LINK SUB-ASSY, TILT ROOF, RH
63025-58030

AYH36,GGH31

 1
63026B - LINK SUB-ASSY, TILT ROOF, LH
63026-58030

AYH36,GGH31

 1
63201C - GLASS SUB-ASSY, TILT ROOF
63201-58060

AYH36,GGH31

 1
63203C - HOUSING SUB-ASSY, TILT ROOF
63203-58060

AYH36,GGH31

 1
63217E - GARNISH, SLIDING ROOF, FRONT RH
63217-58020

AYH36,GGH31

 1
63218E - GARNISH, SLIDING ROOF, FRONT LH
63217-58020

AYH36,GGH31

 1
63249G - HOSE, SLIDING ROOF DRAIN
63245-58030

AYH36,GGH31

 2
63249G - HOSE, SLIDING ROOF DRAIN
63245-58030

AYH36,GGH31

 2
63250E - HOSE ASSY, TILT ROOF DRAIN
63250-58050

AYH36,GGH31

RH

 1
63250-58060

AYH36,GGH31

LH

 1
63250E - HOSE ASSY, TILT ROOF DRAIN
63250-58050

AYH36,GGH31

RH

 1
63250-58060

AYH36,GGH31

LH

 1
63251K - WEATHERSTRIP, TILT ROOF
63251-58040

AYH36,GGH31

 1
63256C - SEAL, TILT ROOF GLASS
63256-44010

AYH36,GGH31

 1
63260C - HANDLE ASSY, TILT ROOF LOCK
63260-26030

AYH36,GGH31

 1
63282B - STRIKER, TILT ROOF LOCK
63282-58010

AYH36,GGH31

 1
63619 - COVER, TILT ROOF PANEL
63619-58030

AYH36,GGH31

 1
Common parts
63264-58010
82711-1E450
82711-2B780
82711-34470
82711-34480
82711-47080
82711-48230
90179-06274
90467-14003
90901-54002
91671-80614
Linked diagrams
6452

ILLUST NO. 1 OF 3(2001- )

Click highlighted areas on diagram

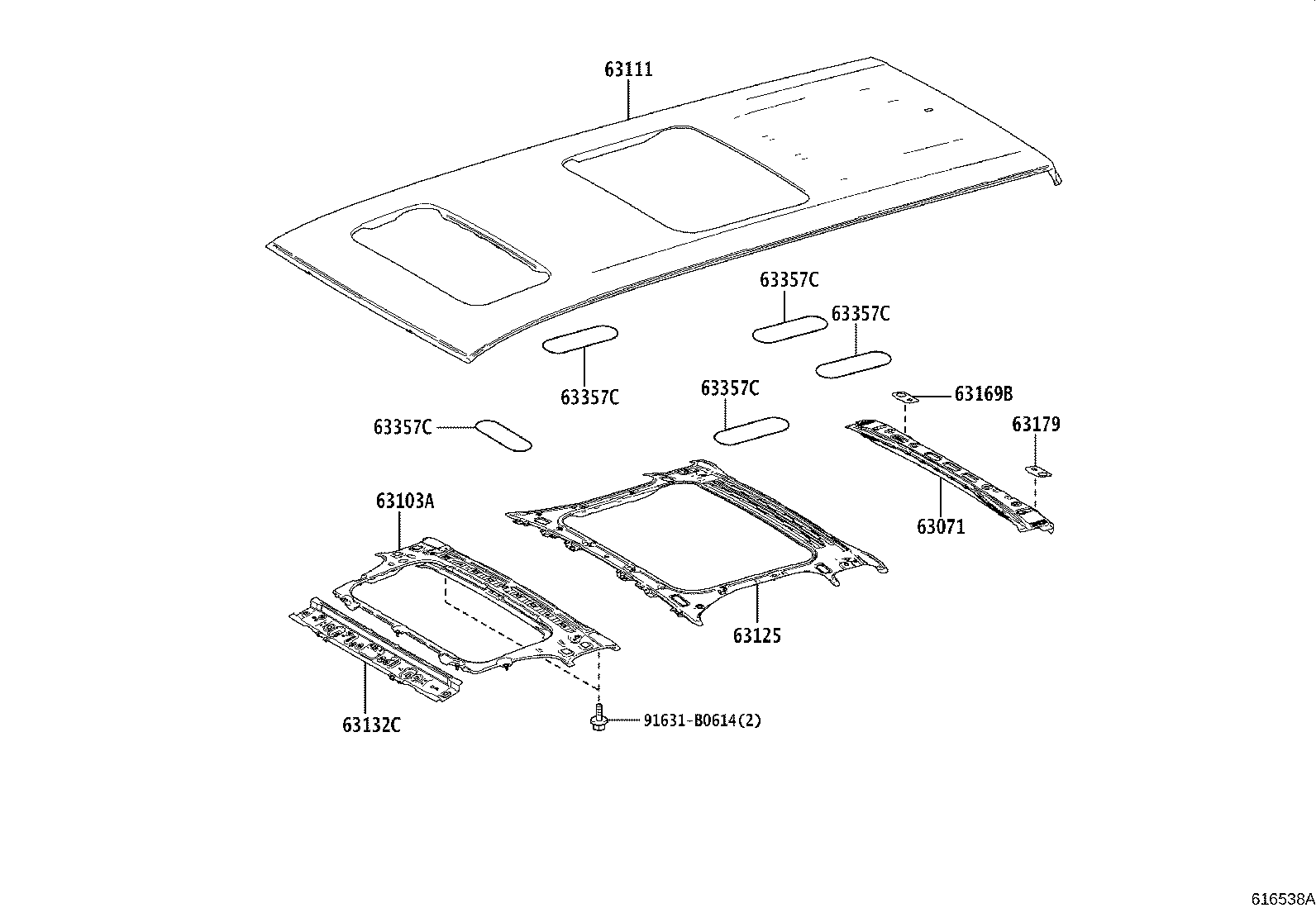

ROOF PANEL

diagram 63071 63103A 63111 63125 63132C 63169B 63179 63357C 63357C 63357C 63357C 63357C 91631B0614
Part # Description Qty Price
63071 - FRAME SUB-ASSY, BACK DOOR OPENING, UPPER
63071-58030

AYH36,GGH31

 1
63103A - REINFORCEMENT SUB-ASSY, ROOF PANEL
63103-58030

AYH36,GGH31

 1
63111 - PANEL, ROOF
63111-58070

GGH31;AYH36..RHD

 1
63125 - REINFORCEMENT, ROOF PANEL, NO.2
63125-58030

AYH36,GGH31

 1
63132C - PANEL, WINDSHIELD HEADER, INNER
63132-58030

AYH36,GGH31

 1
63169B - PLATE, ROOF PANEL REINFORCEMENT, RH
63169-35020

AYH36,GGH31

 1
63179 - PLATE, ROOF PANEL REINFORCEMENT, LH
63179-35020

AYH36,GGH31

 1
63357C - SILENCER, ROOF
63357-58010

AYH36,GGH31

 5
63357C - SILENCER, ROOF
63357-58010

AYH36,GGH31

 5
63357C - SILENCER, ROOF
63357-58010

AYH36,GGH31

 5
63357C - SILENCER, ROOF
63357-58010

AYH36,GGH31

 5
63357C - SILENCER, ROOF
63357-58010

AYH36,GGH31

 5
Common parts
91631-B0614

ILLUST NO. 3 OF 3(2001- )

Click highlighted areas on diagram

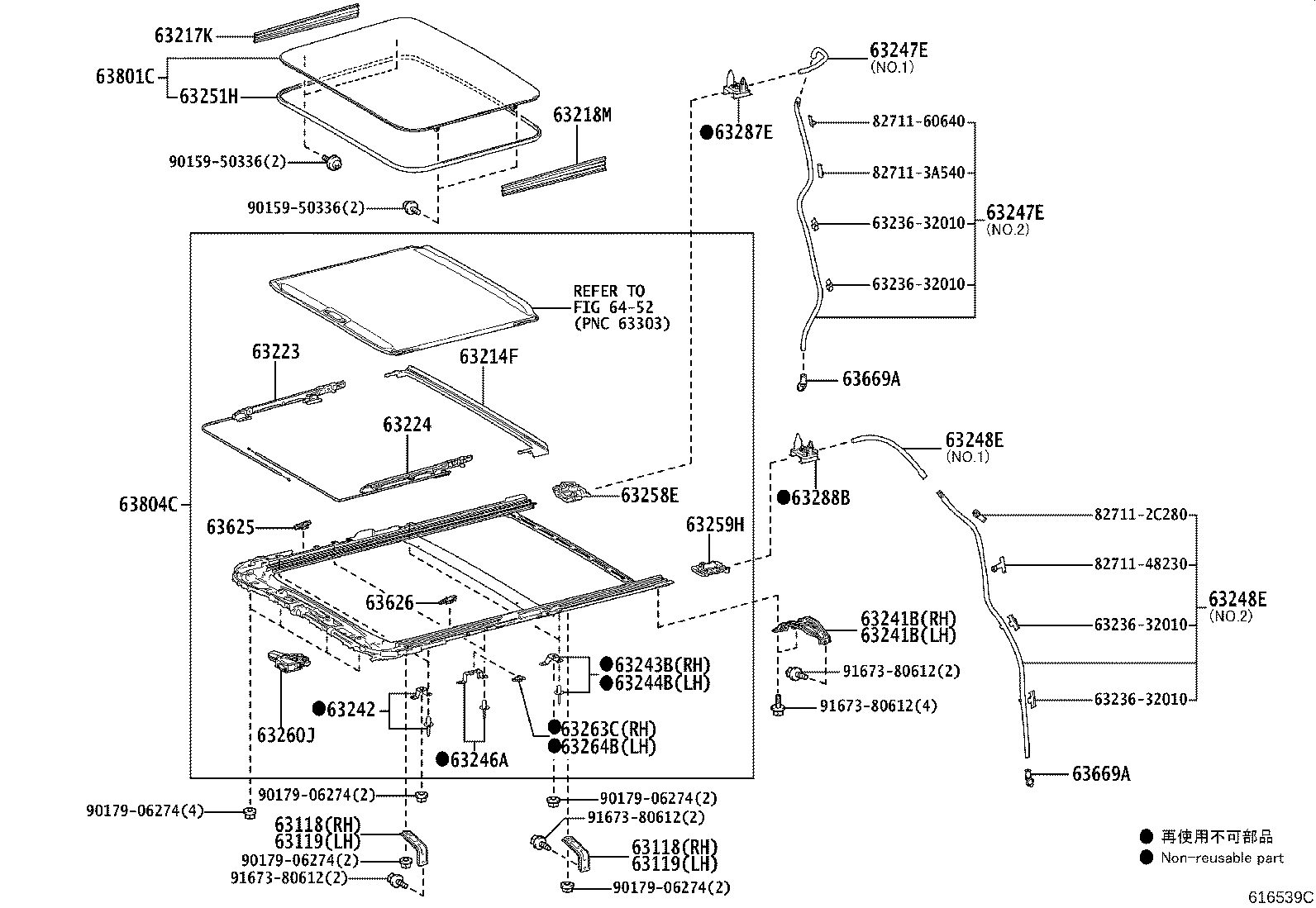

SLIDING ROOF,REAR

diagram 63118 63118 63119 63119 63214F 63217K 63218M 63223 63224 6323632010 6323632010 6323632010 6323632010 63241B 63241B 63242 63243B 63244B 63246A 63247E 63247E 63248E 63248E 63251H 63258E 63259H 63260J 63263C 63264B 63287E 63288B 63625 63626 63669A 63669A 63801C 63804C 6452 827112C280 827113A540 8271148230 8271160640 9015950336 9015950336 9017906274 9017906274 9017906274 9017906274 9017906274 9167380612 9167380612 9167380612 9167380612
Part # Description Qty Price
63118 - SUPPORT, ROOF PANEL, RH
63118-58050

AYH36,GGH31

 2
63118 - SUPPORT, ROOF PANEL, RH
63118-58050

AYH36,GGH31

 2
63119 - SUPPORT, ROOF PANEL, LH
63118-58050

AYH36,GGH31

 2
63119 - SUPPORT, ROOF PANEL, LH
63118-58050

AYH36,GGH31

 2
63214F - CHANNEL, ROOF DRIP, REAR
63214-33070

AYH36,GGH31

 1
63217K - GARNISH, SLIDING ROOF SIDE, RH
63217-58030

AYH36,GGH31

 1
63218M - GARNISH, SLIDING ROOF SIDE, LH
63217-58030

AYH36,GGH31

 1
63223 - CABLE, SLIDING ROOF DRIVE, RH
63223-58020

AYH36,GGH31

 1
63224 - CABLE, SLIDING ROOF DRIVE, LH
63224-58020

AYH36,GGH31

 1
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-58040

AYH36,GGH31

RH

 1
63241-58050

AYH36,GGH31

LH

 1
63241B - BRACKET, SLIDING ROOF HOUSING, NO.1
63241-58040

AYH36,GGH31

RH

 1
63241-58050

AYH36,GGH31

LH

 1
63242 - BRACKET, SLIDING ROOF HOUSING, NO.1
63242-58010

AYH36,GGH31

 2
63243B - BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, RH
63243-58010

AYH36,GGH31

 1
63244B - BRACKET, REMOVABLE ROOF HOUSING SIDE MOUNTING, LH
63244-58010

AYH36,GGH31

 1
63246A - BRACKET, REMOVABLE ROOF, NO.2
63246-58010

AYH36,GGH31

 2
63247E - HOSE, SLIDING ROOF DRAIN, REAR RH
63247-58040

AYH36,GGH31

NO.1

 1
63247-58050

AYH36,GGH31

NO.2

 1
63247E - HOSE, SLIDING ROOF DRAIN, REAR RH
63247-58040

AYH36,GGH31

NO.1

 1
63247-58050

AYH36,GGH31

NO.2

 1
63248E - HOSE, SLIDING ROOF DRAIN, REAR LH
63248-58030

AYH36,GGH31

NO.1

 1
63248-58040

AYH36,GGH31

NO.2

 1
63248E - HOSE, SLIDING ROOF DRAIN, REAR LH
63248-58030

AYH36,GGH31

NO.1

 1
63248-58040

AYH36,GGH31

NO.2

 1
63251H - WEATHERSTRIP, SLIDING ROOF
63251-58050

AYH36,GGH31

 1
63258E - JOINT, SLIDE ROOF DRAIN HOSE, RH
63258-58040

AYH36,GGH31

 1
63259H - JOINT, SLIDE ROOF DRAIN HOSE, LH
63259-58030

AYH36,GGH31

 1
63260J - GEAR ASSY, SLIDING ROOF DRIVE
63260-58030

AYH36,GGH31

 1
63263C - PLATE, SLIDING ROOF LOCK CATCH, RH
63263-60030

AYH36,GGH31

 1
63264B - PLATE, SLIDING ROOF LOCK CATCH, LH
63263-60030

AYH36,GGH31

 1
63287E - CAP, SLIDING ROOF HOUSING DRAIN END, RH
63287-58010

AYH36,GGH31

 1
63288B - CAP, SLIDING ROOF HOUSING DRAIN END, LH
63288-58010

AYH36,GGH31

 1
63625 - BLOCK, SLIDING ROOF GUIDE, RH
63625-58010

AYH36,GGH31

 1
63626 - BLOCK, SLIDING ROOF GUIDE, LH
63626-58010

AYH36,GGH31

 1
63669A - GROMMET, SLIDING ROOF DRAIN
63669-30040

AYH36,GGH31

 2
63669A - GROMMET, SLIDING ROOF DRAIN
63669-30040

AYH36,GGH31

 2
63801C - GLASS SUB-ASSY, REAR SLIDE ROOF
63801-58050

AYH36,GGH31

 1
63804C - HOUSING SUB-ASSY, REAR SLIDE ROOF
63804-58070C0

AYH36,GGH31

BLACK,TRIM0#,2#

 1
Common parts
63236-32010
82711-2C280
82711-3A540
82711-48230
82711-60640
90159-50336
90179-06274
91673-80612
Linked diagrams
6452
