GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h
Production
Jan 2020
-
Sep 9999
Engine
2GRFKS
Transmission
8FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

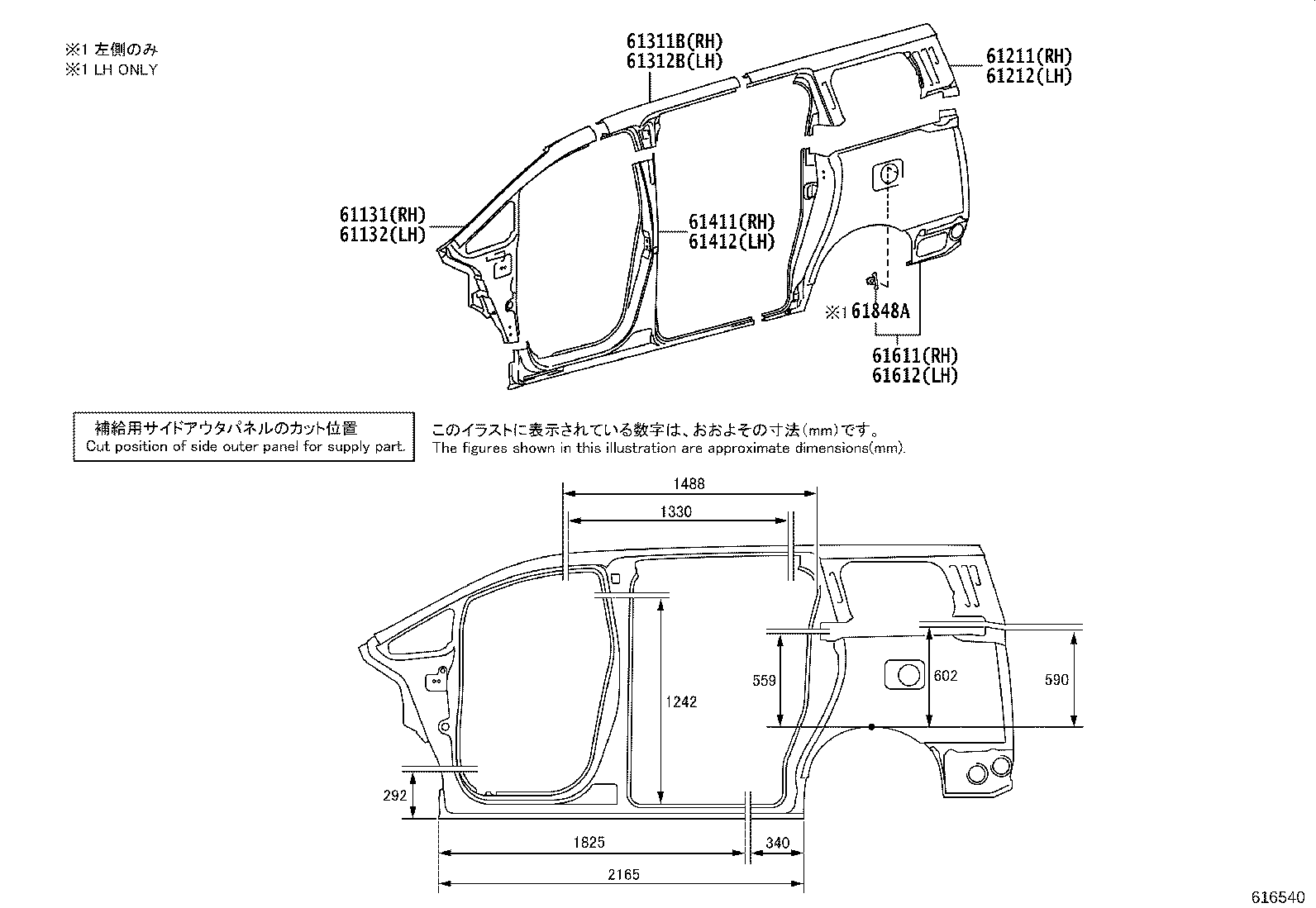

ILLUST NO. 1 OF 2(2001- )
Click highlighted areas on diagram
OUTER PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61131 - PILLAR, FRONT BODY, UPPER OUTER RH | ||||
| 61106-58040 |
AYH36,GGH31 |
1 | ||
| 61132 - PILLAR, FRONT BODY, UPPER OUTER LH | ||||
| 61107-58040 |
AYH36,GGH31 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61225-58021 |
AYH36,GGH31 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61226-58021 |
AYH36,GGH31 |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-58040 |
AYH36,GGH31 |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-58040 |
AYH36,GGH31 |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61411-58020 |
AYH36,GGH31 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61412-58020 |
AYH36,GGH31 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-58160 |
AYH36,GGH31 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-58110 |
AYH36,GGH31 |
1 | ||
| 61848A - RETAINER, QUARTER PANEL, LH | ||||
| 61848-58010 |
AYH36,GGH31 |
1 | ||

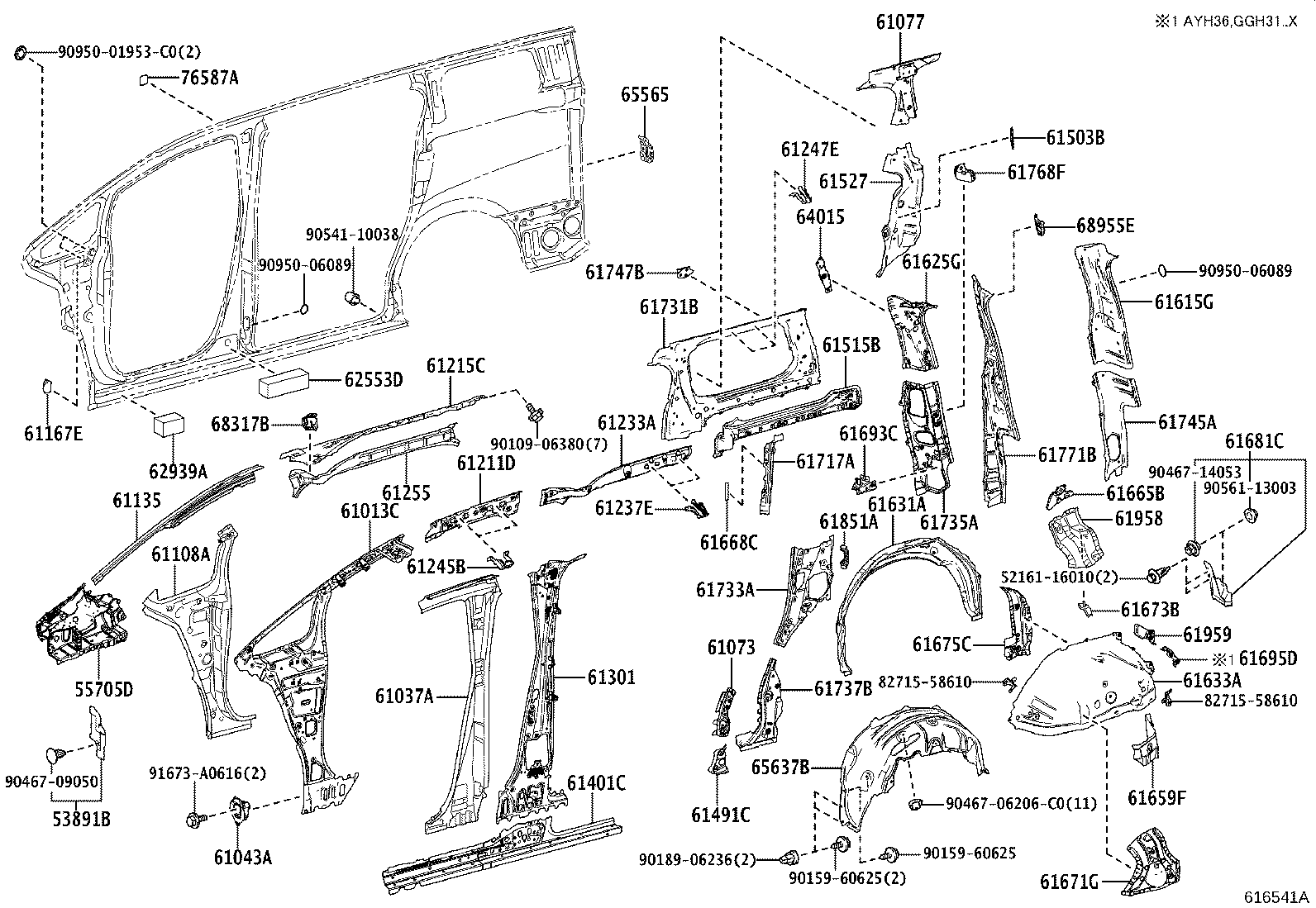

ILLUST NO. 2 OF 2(2001- )
Click highlighted areas on diagram
INNER PANEL,RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53891B - SEAL, FRONT FENDER SPLASH SHIELD, FRONT RH | ||||
| 53891-58010 |
AYH36,GGH31 |
1 | ||
| 55705D - PANEL SUB-ASSY, COWL TOP SIDE, RH, | ||||
| 55705-58020 |
AYH36,GGH31 |
1 | ||
| 61013C - PANEL SUB-ASSY, SIDE, INNER RH | ||||
| 61013-58050 |
AYH36,GGH31 |
1 | ||
| 61037A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH | ||||
| 61303-58040 |
AYH36,GGH31 |
1 | ||
| 61043A - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH | ||||
| 61043-58010 |
AYH36,GGH31 |
1 | ||
| 61073 - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, RH | ||||
| 61073-58010 |
AYH36,GGH31 |
1 | ||
| 61077 - SHIELD SUB-ASSY, QUARTER WINDOW, REAR RH | ||||
| 61077-58030 |
AYH36,GGH31 |
1 | ||
| 61108A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH | ||||
| 61108-58040 |
AYH36,GGH31 |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-58030 |
AYH36,GGH31 |
1 | ||
| 61167E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
AYH36,GGH31 |
1 | ||
| 61211D - RAIL, ROOF SIDE, FRONT RH | ||||
| 61211-58020 |
AYH36,GGH31 |
1 | ||
| 61215C - RAIL, ROOF SIDE, OUTER REAR RH | ||||
| 61215-58030 |
AYH36,GGH31 |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-58030 |
AYH36,GGH31 |
1 | ||
| 61237E - BRACKET, ASSIST GRIP, NO.1 | ||||
| 61237-58050 |
AYH36,GGH31 |
2 | ||
| 61245B - BRACKET, ASSIST GRIP, NO.3 RH | ||||
| 61245-58050 |
AYH36,GGH31 |
2 | ||
| 61247E - BRACKET, ASSIST GRIP, NO.4 RH | ||||
| 61247-58020 |
AYH36,GGH31 |
2 | ||
| 61255 - PLATE, ROOF SIDE RAIL, OUTER RH | ||||
| 61255-58030 |
AYH36,GGH31 |
1 | ||
| 61301 - PILLAR SUB-ASSY, CENTER BODY, RH | ||||
| 61301-58030 |
AYH36,GGH31 |
1 | ||
| 61401C - PANEL SUB-ASSY, ROCKER, OUTER RH | ||||
| 61401-58020 |
AYH36,GGH31 |
1 | ||
| 61491C - PLATE, NO.3 LOWER RAIL, INNER RH | ||||
| 61491-58020 |
AYH36,GGH31 |
1 | ||
| 61503B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, RH | ||||
| 61503-58030 |
AYH36,GGH31 |
1 | ||
| 61515B - EXTENSION, QUARTER LOCK PILLAR, RH | ||||
| 61515-58040 |
AYH36,GGH31 |
1 | ||
| 61527 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER RH | ||||
| 61527-58030 |
AYH36,GGH31 |
1 | ||
| 61615G - REINFORCEMENT, REAR BODY REAR SIDE PANEL, RH | ||||
| 61615-58030 |
AYH36,GGH31 |
1 | ||
| 61625G - EXTENSION, QUARTER PANEL, REAR RH | ||||
| 61625-58030 |
AYH36,GGH31 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-58030 |
AYH36,GGH31 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61633-58030 |
AYH36,GGH31 |
1 | ||
| 61659F - BRACKET, REAR SHOCK ABSORBER, NO.2 RH | ||||
| 61659-58010 |
AYH36,GGH31 |
1 | ||
| 61665B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61665-58030 |
AYH36,GGH31 |
1 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61668-58070 |
AYH36,GGH31 |
2 | ||
| 61671G - SUPPORT, REAR SUSPENSION SPRING, RH | ||||
| 61671-58030 |
AYH36,GGH31 |
1 | ||
| 61673B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61673-58020 |
AYH36,GGH31 |
1 | ||
| 61675C - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR RH | ||||
| 61675-58030 |
AYH36,GGH31 |
1 | ||
| 61681C - EXTENSION, REAR WHEEL OPENING, RH | ||||
| 61681-58050 |
AYH36,GGH31 |
1 | ||
| 61693C - RETAINER, REAR SEAT BACK SET, RH | ||||
| 61693-58030 |
AYH36,GGH31 |
1 | ||
| 61717A - REINFORCEMENT, QUARTER PANEL EXTENSION, RH | ||||
| 61717-58030 |
AYH36,GGH31 |
1 | ||
| 61731B - PANEL, ROOF SIDE, INNER RH | ||||
| 61731-58030 |
AYH36,GGH31 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-58030 |
AYH36,GGH31 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-58031 |
AYH36,GGH31 |
1 | ||
| 61735-58030 |
AYH36,GGH31 |
1 | ||
| 61737B - PANEL, ROOF SIDE, INNER LOWER RH | ||||
| 61737-58030 |
AYH36,GGH31 |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-58030 |
AYH36,GGH31 |
1 | ||
| 61747B - REINFORCEMENT, ROOF SIDE, INNER REAR, RH | ||||
| 61747-58020 |
AYH36,GGH31 |
1 | ||
| 61768F - REINFORCE, BELT ANCHOR TO QUARTER, INNER LOWER RH | ||||
| 61768-58030 |
AYH36,GGH31 |
1 | ||
| 61771B - FRAME, BACK DOOR OPENING UPPER CORNER, RH | ||||
| 61771-58031 |
AYH36,GGH31 |
1 | ||
| 61851A - BRACKET, QUARTER INNER COMPUTER, NO.1 | ||||
| 61851-58010 |
AYH36,GGH31 |
1 | ||
| 61958 - BRACKET, REAR SEAT LEG, NO.1 RH | ||||
| 61958-58030 |
AYH36,GGH31 |
1 | ||
| 61959 - BRACKET, REAR SEAT LEG, NO.2 RH | ||||
| 61959-58030 |
AYH36,GGH31 |
1 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-58030 |
AYH36,GGH31 |
2 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-32020 |
AYH36,GGH31 |
2 | ||
| 64015 - PANEL SUB-ASSY, BACK CORNER, INNER RH | ||||
| 64015-58020 |
AYH36,GGH31 |
1 | ||
| 65565 - PATCH, SIDE PANEL REAR END, RH | ||||
| 65565-58020 |
AYH36,GGH31 |
1 | ||
| 65637B - LINER, REAR WHEEL HOUSE, RH | ||||
| 65637-58040 |
AYH36,GGH31 |
1 | ||
| 68317B - STOPPER, SLIDE DOOR UPPER RAIL, RH | ||||
| 68317-58031 |
AYH36,GGH31 |
1 | ||
| 68955E - BRACKET, BACK DOOR STAY, UPPER RH | ||||
| 68955-58011 |
AYH36,GGH31 |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28040 |
AYH36,GGH31 |
2 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 82715-58610 | ||||
| 90109-06380 | ||||
| 90159-60625 | ||||
| 90189-06236 | ||||
| 90467-06206C0 | ||||
| 90467-09050 | ||||
| 90467-14053 | ||||
| 90541-10038 | ||||
| 90561-13003 | ||||
| 90950-01953C0 | ||||
| 90950-06089 | ||||
| 91673-A0616 | ||||

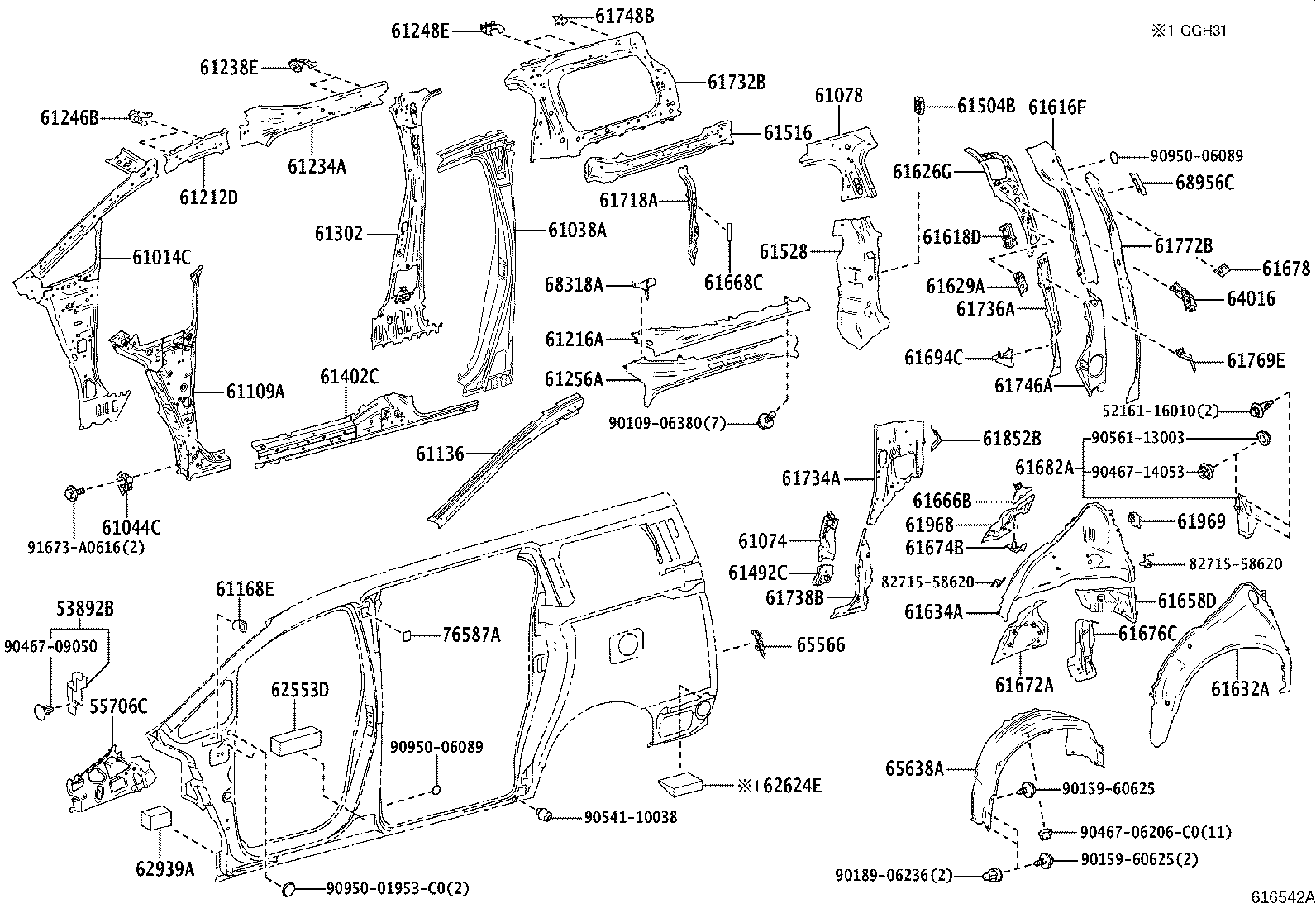

ILLUST NO. 2 OF 2(2001- )
Click highlighted areas on diagram
INNER PANEL,LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53892B - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-58030 |
AYH36,GGH31 |
1 | ||
| 55706C - PANEL SUB-ASSY, COWL TOP SIDE, LH | ||||
| 55706-58020 |
AYH36,GGH31 |
1 | ||
| 61014C - PANEL SUB-ASSY, SIDE, INNER LH | ||||
| 61014-58060 |
AYH36,GGH31 |
1 | ||
| 61038A - REINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH | ||||
| 61304-58040 |
AYH36,GGH31 |
1 | ||
| 61044C - EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH | ||||
| 61044-58010 |
AYH36,GGH31 |
1 | ||
| 61074 - BRACE SUB-ASSY, QUARTER WHEEL HOUSE, LH | ||||
| 61074-58010 |
AYH36,GGH31 |
1 | ||
| 61078 - SHIELD SUB-ASSY, QUARTER WINDOW, REAR LH | ||||
| 61078-58030 |
AYH36,GGH31 |
1 | ||
| 61109A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER LH | ||||
| 61109-58040 |
AYH36,GGH31 |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-58030 |
AYH36,GGH31 |
1 | ||
| 61168E - BRACKET, NO.6 PILLAR OUTER | ||||
| 61168-44010 |
AYH36,GGH31 |
1 | ||
| 61212D - RAIL, ROOF SIDE, FRONT LH | ||||
| 61212-58020 |
AYH36,GGH31 |
1 | ||
| 61216A - RAIL, ROOF SIDE, OUTER REAR LH | ||||
| 61216-58030 |
AYH36,GGH31 |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-58030 |
AYH36,GGH31 |
1 | ||
| 61238E - BRACKET, ASSIST GRIP, NO.2 | ||||
| 61237-58050 |
AYH36,GGH31 |
2 | ||
| 61246B - BRACKET, ASSIST GRIP, NO.3 LH | ||||
| 61245-58050 |
AYH36,GGH31 |
2 | ||
| 61248E - BRACKET, ASSIST GRIP, NO.4 RH | ||||
| 61247-58020 |
AYH36,GGH31 |
2 | ||
| 61256A - PLATE, ROOF SIDE RAIL, OUTER LH | ||||
| 61256-58030 |
AYH36,GGH31 |
1 | ||
| 61302 - PILLAR SUB-ASSY, CENTER BODY, LH | ||||
| 61302-58030 |
AYH36,GGH31 |
1 | ||
| 61402C - PANEL SUB-ASSY, ROCKER, OUTER LH | ||||
| 61402-58020 |
AYH36,GGH31 |
1 | ||
| 61492C - PLATE, NO.3 LOWER RAIL, INNER LH | ||||
| 61492-58020 |
AYH36,GGH31 |
1 | ||
| 61504B - REINFORCEMENT SUB-ASSY, QUARTER LOCK PILLAR, LH | ||||
| 61503-58030 |
AYH36,GGH31 |
1 | ||
| 61516 - EXTENSION, QUARTER LOCK PILLAR, LH | ||||
| 61516-58040 |
AYH36,GGH31 |
1 | ||
| 61528 - REINFORCEMENT, QUARTER LOCK PILLER, LOWER LH | ||||
| 61528-58030 |
AYH36,GGH31 |
1 | ||
| 61616F - REINFORCEMENT, REAR BODY REAR SIDE PANEL, LH | ||||
| 61616-58030 |
AYH36,GGH31 |
1 | ||
| 61618D - REINFORCEMENT, REAR UPPER SIDE PANEL, UPPER | ||||
| 61618-58020 |
AYH36,GGH31 |
1 | ||
| 61626G - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-58040 |
AYH36,GGH31 |
1 | ||
| 61629A - REINFORCEMENT, QUARTER PANEL, LH | ||||
| 61629-58020 |
AYH36,GGH31 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-58030 |
AYH36,GGH31 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61634-58030 |
AYH36,GGH31 |
1 | ||
| 61658D - BRACKET, REAR SHOCK ABSORBER, LH | ||||
| 61649-58020 |
AYH36,GGH31 |
1 | ||
| 61666B - REINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, | ||||
| 61666-58030 |
AYH36,GGH31 |
1 | ||
| 61668C - SEAL, QUARTER PANEL, NO.2 | ||||
| 61668-58070 |
AYH36,GGH31 |
2 | ||
| 61672A - SUPPORT, REAR SUSPENSION SPRING, LH | ||||
| 61672-58030 |
AYH36,GGH31 |
1 | ||
| 61674B - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61674-58020 |
AYH36,GGH31 |
1 | ||
| 61676C - REINFORCEMENT, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 61676-58030 |
AYH36,GGH31 |
1 | ||
| 61678 - REINFORCE, SEAT BELT ANCHOR, NO.2 LOWER LH | ||||
| 61678-58010 |
AYH36,GGH31 |
1 | ||
| 61682A - EXTENSION, REAR WHEEL OPENING, LH | ||||
| 61682-58050 |
AYH36,GGH31 |
1 | ||
| 61694C - RETAINER, REAR SEAT BACK SET, LH | ||||
| 61694-58030 |
AYH36,GGH31 |
1 | ||
| 61718A - REINFORCEMENT, QUARTER PANEL EXTENSION, LH | ||||
| 61718-58020 |
AYH36,GGH31 |
1 | ||
| 61732B - PANEL, ROOF SIDE, INNER LH | ||||
| 61732-58030 |
AYH36,GGH31 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-58030 |
AYH36,GGH31 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-58030 |
AYH36,GGH31 |
1 | ||
| 61736-58031 |
AYH36,GGH31 |
1 | ||
| 61738B - PANEL, ROOF SIDE, INNER LOWER LH | ||||
| 61738-58030 |
AYH36,GGH31 |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-58030 |
AYH36,GGH31 |
1 | ||
| 61748B - REINFORCEMENT, ROOF SIDE, INNER REAR, LH | ||||
| 61748-58020 |
AYH36,GGH31 |
1 | ||
| 61769E - REINFORCEMENT, BELT ANCHOR TO QUARTER, INNER LOWER LH | ||||
| 61769-58030 |
AYH36,GGH31 |
1 | ||
| 61772B - FRAME, BACK DOOR OPENING UPPER CORNER, LH | ||||
| 61772-58031 |
AYH36,GGH31 |
1 | ||
| 61852B - BRACKET, QUARTER INNER COMPUTER, NO.2 | ||||
| 61852-58010 |
AYH36,GGH31 |
1 | ||
| 61968 - BRACKET, REAR SEAT LEG, NO.1 LH | ||||
| 61968-58030 |
AYH36,GGH31 |
1 | ||
| 61969 - BRACKET, REAR SEAT LEG, NO.2 LH | ||||
| 61969-58030 |
AYH36,GGH31 |
1 | ||
| 62553D - PAD, PILLAR, NO.3 | ||||
| 62553-58030 |
AYH36,GGH31 |
2 | ||
| 62624E - PAD, QUARTER WHEEL HOUSE, INNER REAR LH | ||||
| 62624-58010 |
GGH31 |
1 | ||
| 62939A - SILENCER, QUARTER VENT | ||||
| 62939-32020 |
AYH36,GGH31 |
2 | ||
| 64016 - PANEL SUB-ASSY, BACK CORNER, INNER LH | ||||
| 64016-58020 |
AYH36,GGH31 |
1 | ||
| 65566 - PATCH, SIDE PANEL REAR END, LH | ||||
| 65566-58020 |
AYH36,GGH31 |
1 | ||
| 65638A - LINER, REAR WHEEL HOUSE, LH | ||||
| 65638-58040 |
AYH36,GGH31 |
1 | ||
| 68318A - STOPPER, SLIDE DOOR UPPER RAIL, LH | ||||
| 68318-58031 |
AYH36,GGH31 |
1 | ||
| 68956C - BRACKET, BACK DOOR STAY, UPPER LH | ||||
| 68956-58011 |
AYH36,GGH31 |
1 | ||
| 76587A - PROTECTOR, CENTER PILLAR OUTER | ||||
| 76587-28040 |
AYH36,GGH31 |
2 | ||
| Common parts | ||||
| 52161-16010 | ||||
| 82715-58620 | ||||
| 90109-06380 | ||||
| 90159-60625 | ||||
| 90189-06236 | ||||
| 90467-06206C0 | ||||
| 90467-09050 | ||||
| 90467-14053 | ||||
| 90541-10038 | ||||
| 90561-13003 | ||||
| 90950-01953C0 | ||||
| 90950-06089 | ||||
| 91673-A0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
