GGH31L-LFZVB (2020)
Toyota Lexus Lm350/Lm300h

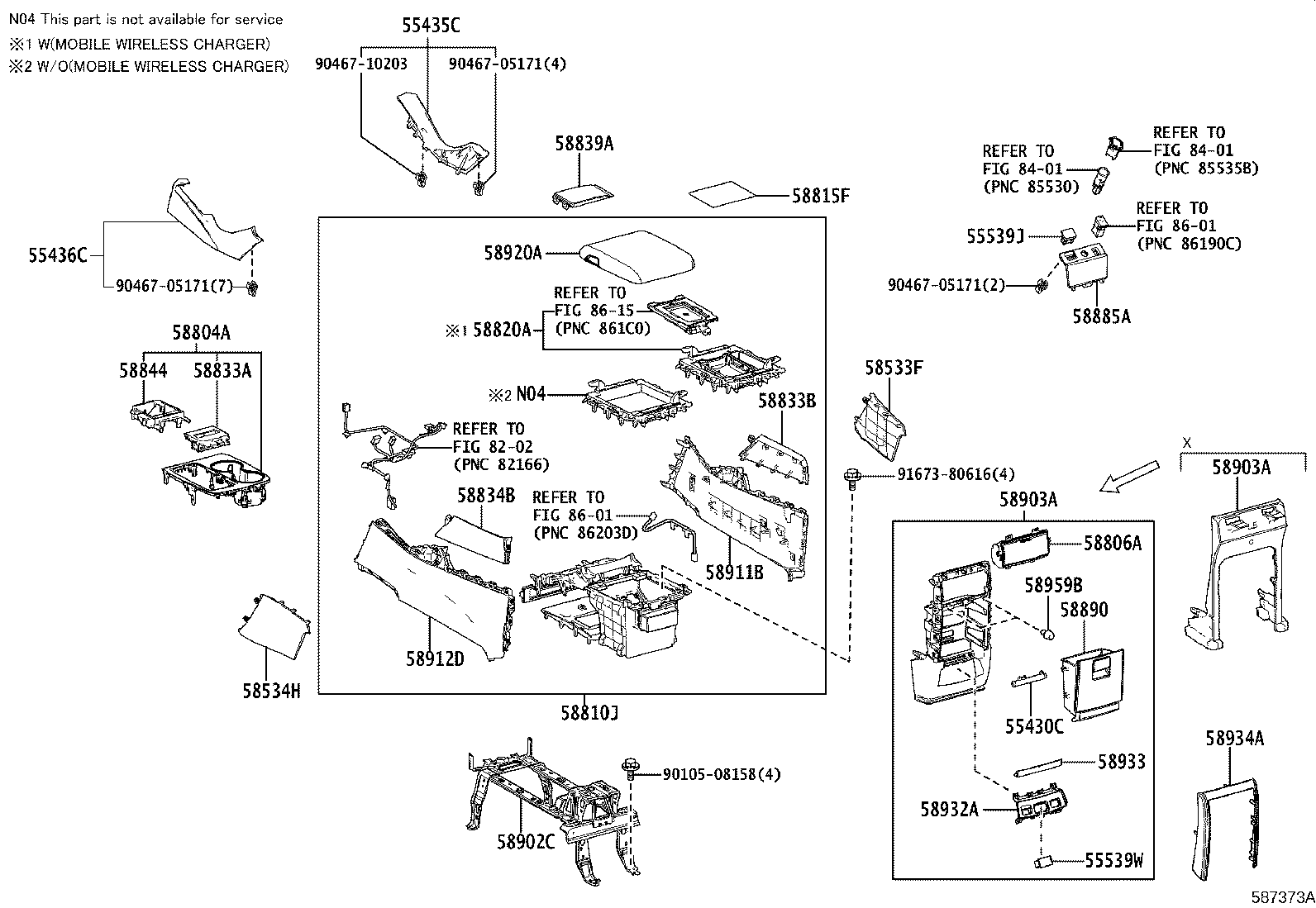

ILLUST NO. 1 OF 2(2001- )LHD
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55430C - DAMPER ASSY, INSTRUMENT CLUSTER FINISH PANEL | ||||
| 55430-58020 |
AYH36,GGH31..V |
1 | ||
| 55435C - PANEL, INSTRUMENT PANEL FINISH, END RH | ||||
| 55413-58060C2 |
AYH36,GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 55436C - PANEL, INSTRUMENT PANEL FINISH, END LH | ||||
| 55412-58220C2 |
AYH36,GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 55539J - COVER, SPARE SWITCH HOLE | ||||
| 55539-58120C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 55539W - COVER, SPARE SWITCH HOLE | ||||
| 55539-58140C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 58533F - COVER, FLOOR CARPET, CENTER RH | ||||
| 58534-58080C1 |
AYH36,GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 58534H - COVER, FLOOR CARPET, CENTER LH | ||||
| 58533-58080C0 |
AYH36,GGH31..LHD BLACK,TRIM0#,2# |
1 | ||
| 58804A - PANEL SUB-ASSY, CONSOLE, UPPER | ||||
| 58804-58300 |
AYH36,GGH31..LHD..V |
1 | ||
| 58806A - POCKET SUB-ASSY, CONSOLE BOX | ||||
| 58806-58090 |
AYH36,GGH31..V |
1 | ||
| 58810J - BOX ASSY, CONSOLE | ||||
| 58810-58450C0 |
AYH36,GGH31..LHD..V BLACK,TRIM0#,2# |
1 | ||
| 58815F - CARPET, CONSOLE BOX | ||||
| 58815-58040 |
AYH36,GGH31 |
1 | ||
| 58833A - COVER, CONSOLE, UPPER | ||||
| 58833-58160 |
AYH36,GGH31..V |
1 | ||
| 58833B - GARNISH, CONSOLE UPPER PANEL, NO.1 | ||||
| 58833-58150C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 58834B - GARNISH, CONSOLE UPPER PANEL, NO.2 | ||||
| 58834-58120C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 58839A - COVER, CONSOLE BOX HOLE | ||||
| 58839-58040 |
AYH36,GGH31 |
1 | ||
| 58844 - BEZEL, CONSOLE BOX | ||||
| 58844-58020 |
AYH36,GGH31 |
1 | ||
| 58885A - PANEL, EQUIPMENT SET | ||||
| 58885-58020 |
AYH36,GGH31 |
1 | ||
| 58885-58020C1 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 58890 - BOX ASSY, TRASH | ||||
| 58890-58100C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 58902C - BRACKET SUB-ASSY, CONSOLE BOX MOUNTING | ||||
| 58902-58060 |
AYH36,GGH31 |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-58440C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 58903A - PANEL SUB-ASSY, CONSOLE REAR END | ||||
| 58903-58440C1 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 58911B - PANEL, BOX, NO.1 | ||||
| 58911-58070C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 58912D - PANEL, BOX, NO.2 | ||||
| 58912-58060C0 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 58920A - ARMREST ASSY, REAR CONSOLE | ||||
| 58920-58020C2 |
AYH36,GGH31 BLACK,TRIM0#,2# |
1 | ||
| 58932A - GARNISH, REAR CONSOLE BOX | ||||
| 58932-58011C0 |
AYH36,GGH31..V BLACK,TRIM0#,2# |
1 | ||
| 58933 - GARNISH, CONSOLE REAR END PANEL | ||||
| 58933-58090 |
AYH36,GGH31..V |
1 | ||
| 58934A - GARNISH, CONSOLE REAR END PANEL, NO.2 | ||||
| 58934-58010 |
AYH36,GGH31..V |
1 | ||
| 58959B - CUSHION, CONSOLE COMPARTMENT DOOR | ||||
| 58959-60060 |
AYH36,GGH31..V |
2 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90467-05171 | ||||
| 90467-10203 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8401 | ||||
| 8601 | ||||
| 8615 | ||||
