GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )GGH31..LHD

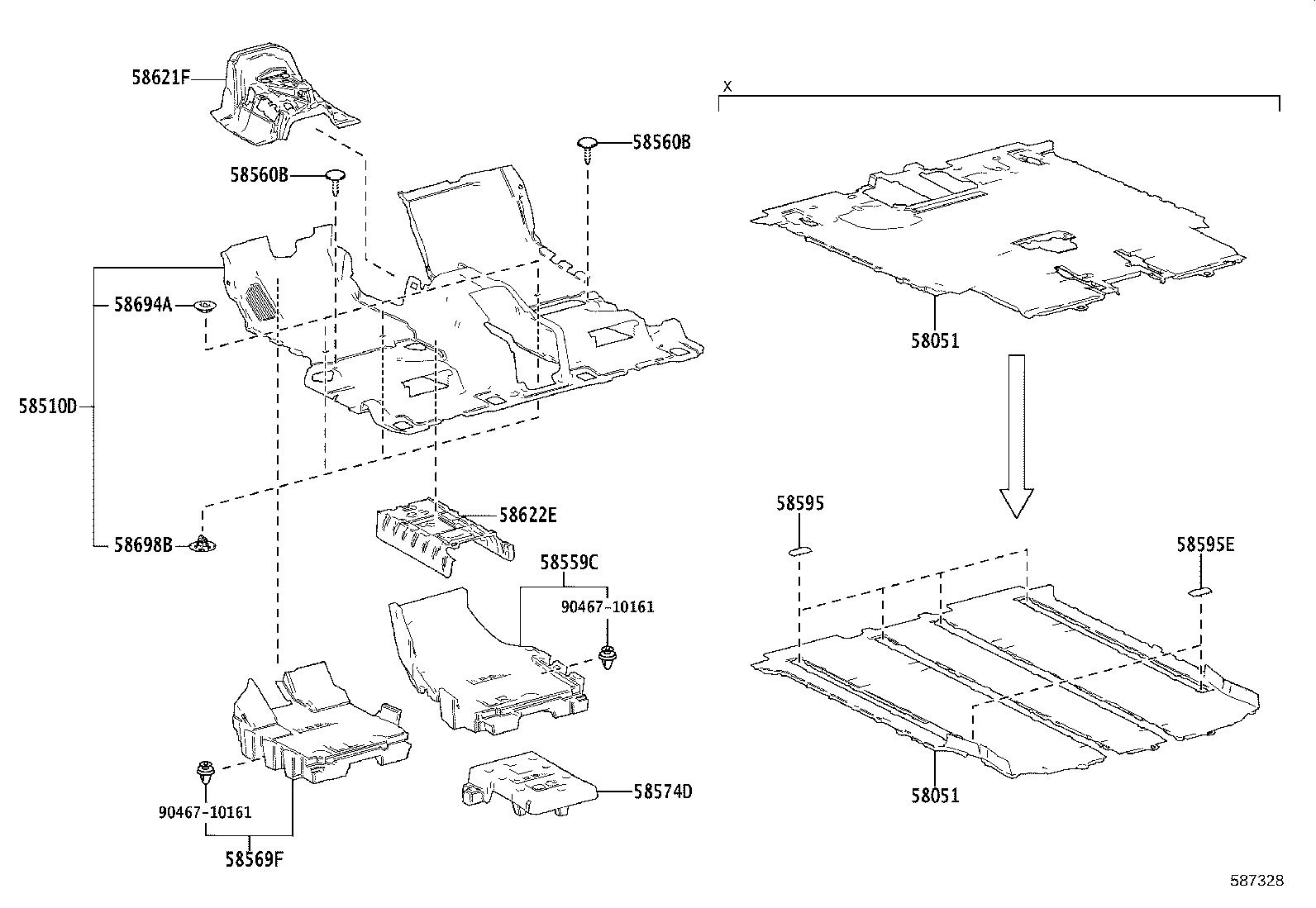

Click highlighted areas on diagram

diagram 58051 58051 58510D 58559C 58560B 58560B 58569F 58574D 58595 58595E 58621F 58622E 58694A 58698B 9046710161 9046710161
Part # Description Qty Price
58051 - MAT SET, FLOOR
58051-58370B1

AYH36,GGH31..V

DK. GREY,TRIM0#,2#

 1
58051 - MAT SET, FLOOR
58051-58370B1

AYH36,GGH31..V

DK. GREY,TRIM0#,2#

 1
58510D - CARPET ASSY, FLOOR, FRONT
58500-58220C1

GGH31..LHD

DK. GREY,TRIM0#,2#

 1
58559C - PAD, FRONT FLOOR SIDE, RH
58559-58020

AYH36,GGH31..LHD

 1
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-05164C7

AYH36,GGH31

BLACK

 2
58560B - CLIP(FOR FLOOR CARPET, REAR)
90467-05164C7

AYH36,GGH31

BLACK

 2
58569F - PAD, FRONT FLOOR SIDE, LH
58569-58030

AYH36,GGH31..LHD

 1
58574D - PAD, FRONT FLOOR, CENTER NO.2 RH
58574-58010

GGH31

 1
58595 - MOULDING, FLOOR CARPET, NO.3
58595-28100C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 4
58595E - MOULDING, FLOOR CARPET, NO.4
58595-58090C0

AYH36,GGH31..V

BLACK,TRIM0#,2#

 2
58621F - SILENCER, CENTER CONSOLE, NO.1
58621-58010

AYH36,GGH31

 1
58622E - SILENCER, CENTER CONSOLE, NO.2
58622-58010

GGH31

 1
58694A - PLATE, MAT SET, UPPER
58694-78010

AYH36,GGH31

 3
58698B - PLATE, MAT SET, LOWER
58698-78010

AYH36,GGH31

 3
Common parts
90467-10161
