GGH31L-LFZVB (2020)

Toyota Lexus Lm350/Lm300h

Production Jan 2020 - Sep 9999
Engine 2GRFKS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(2001- )

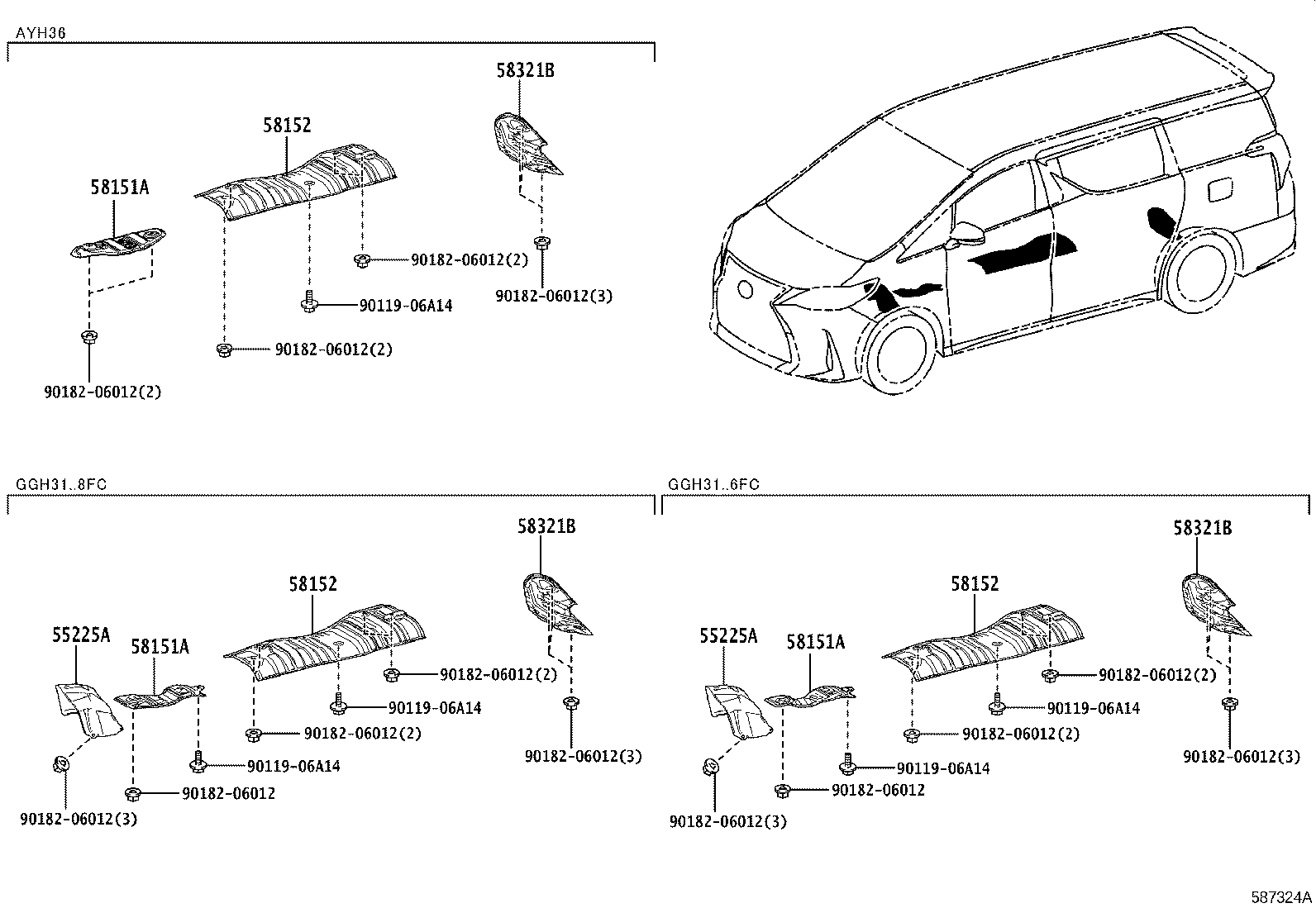

Click highlighted areas on diagram

diagram 55225A 55225A 58151A 58151A 58151A 58152 58152 58152 58321B 58321B 58321B 9011906A14 9011906A14 9011906A14 9011906A14 9011906A14 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012 9018206012
Part # Description Qty Price
55225A - INSULATOR, DASH PANEL HEAT, NO.1
55225-28020

GGH31

 1
55225A - INSULATOR, DASH PANEL HEAT, NO.1
55225-28020

GGH31

 1
58151A - INSULATOR, FLOOR HEAT, NO.1
58151-58060

GGH31..8FC

 1
58151A - INSULATOR, FLOOR HEAT, NO.1
58151-58060

GGH31..8FC

 1
58151A - INSULATOR, FLOOR HEAT, NO.1
58151-58060

GGH31..8FC

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-58010

AYH36,GGH31

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-58010

AYH36,GGH31

 1
58152 - INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58152-58010

AYH36,GGH31

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-58010

AYH36,GGH31

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-58010

AYH36,GGH31

 1
58321B - INSULATOR, REAR FLOOR HEAT, NO.1
58321-58010

AYH36,GGH31

 1
Common parts
90119-06A14
90182-06012
